Updated on August 03, 2026.
A Power Stroke coolant reservoir should not be replaced just because the plastic has turned yellow. Replace it when inspection confirms a crack, a leaking seam, a damaged cap seat, a failed fitting, an unreadable level, or another defect that keeps the cooling system from holding pressure and separating air. Coolant pushed from the bottle can also come from overfill, a weak cap, trapped air, a hose leak, an EGR cooler problem, oil-cooler restriction, or combustion pressure. Diagnose the system before ordering a tank.
What Does a Power Stroke Coolant Reservoir Do?
Ford commonly calls this part a degas bottle. It is more than a catch can. On the 6.0L, 6.4L, and 6.7L Power Stroke platforms discussed here, the bottle is a pressurized part of the cooling circuit. It provides room for coolant expansion, gives entrained air a place to separate, supplies a visible cold-level reference, and works with the pressure cap to control system pressure.
A non-pressurized overflow bottle behaves differently. It catches coolant pushed past a radiator cap and returns it as the engine cools. Confusing those two designs can lead to the wrong cap, incorrect hose routing, or a bad fill procedure.
| Function | What the degas bottle contributes | What it cannot do |
|---|---|---|
| Expansion space | Accepts normal coolant expansion as temperature rises | Cannot compensate for chronic overfill or combustion gas entering the system |
| Deaeration | Allows returning coolant and air to separate through the designed vent circuit | Cannot purge a system with incorrect hose routing or a blocked vent line |
| Pressure control | Provides the sealing neck used by the specified pressure cap | Cannot make a weak cap, damaged seal, or incorrect cap rating work properly |
| Level check | Provides the platform-specific cold fill reference | Does not make a hot level reading reliable or safe |
When Should You Replace the Coolant Reservoir?
Age alone is not a diagnosis. A stained but dry OEM bottle may remain serviceable, while a clean-looking bottle can leak around the cap neck or a molded fitting. Replace the reservoir when one or more of these faults are confirmed:
- A visible crack in the shell, seam, mounting ear, neck, or hose nipple.
- Dried coolant residue that returns after the area is cleaned and pressure-tested.
- A cap sealing surface that is chipped, distorted, deeply scratched, or unable to hold the specified pressure.
- A loose or damaged hose connection that is part of the reservoir rather than the replaceable hose.
- A level sensor mount, internal float, or related provision that no longer works correctly.
- Plastic so cloudy or stained that the correct cold level cannot be read.
- Oil, fuel, stop-leak, or heavy deposits that cannot be removed after the contamination source has been repaired.
Do not condemn the bottle from a low-coolant warning alone. Verify the level cold, inspect the connector and harness, and test the sensor circuit according to the Ford workshop information for the truck.
Symptoms and What They Actually Mean
| Symptom | Likely inspection points | Do not assume |
|---|---|---|
| White or colored crust around the cap | Cap seal, neck damage, overfill, abnormal pressure, venting history | That the bottle itself is cracked |
| Wet seam or mounting area | Shell crack, seam leak, nearby hose spraying onto the bottle | That replacing the cap alone will fix it |
| Coolant level drops with no puddle | EGR cooler, heater core, internal engine leak, hot-only leak, exhaust steam | That evaporation through the reservoir is normal |
| Coolant is pushed out while towing | Cold overfill, weak cap, trapped air, restricted heat transfer, combustion pressure | That a heavier tank will stop the pressure source |
| Low-coolant warning with correct level | Sensor, float, connector, wiring, calibration or tank provision | That more coolant should be added |
| Oil film or sludge in the bottle | Oil-cooler failure, transmission-fluid contamination where applicable, prior repair residue | That the bottle created the contamination |
| White exhaust smoke and coolant loss | EGR cooler or internal engine leak; check for hydrolock risk before cranking | That the reservoir is the root cause |
Separate Tank Failure from Excess System Pressure
The reservoir is often where a cooling-system problem becomes visible. That does not make it the source. A truck that repeatedly vents coolant under towing load needs more than a new bottle.
Ford's official 6.0L Power Stroke coolant-loss procedure separates bottle and cap faults from EGR cooler leakage, oil-cooler restriction, head-gasket concerns, and overboost. It also notes that an overfilled 6.0L system can vent through the cap until the level stabilizes. That is why the exact cold-fill mark matters.
On a 6.4L, coolant contamination can be evidence of another failed component. Repair the source first. Installing a fresh reservoir while oil, fuel, or another contaminant remains in the circuit only gives the contamination a clean place to collect.
Why 6.0 Powerstroke Coolant Loss Can Start at the Oil Cooler
On a 6.0L, the oil cooler and EGR cooler are not separate items on a random checklist. A restricted oil-cooler coolant passage can reduce flow through the EGR cooler. Under towing or a long grade, that loss of flow raises thermal stress and can contribute to an EGR cooler leak. Coolant may then enter the intake or exhaust, produce white smoke, create internal coolant loss, or pressurize the degas bottle. Replacing only the leaking EGR cooler without checking oil-cooler flow leaves the condition that can damage the replacement.
Ford TSB 09-8-3 calls for a loaded road test with engine coolant temperature above 190°F (88°C). In that specific procedure, an engine oil temperature reading 15°F (8.4°C) or more above coolant temperature sends the technician to oil-cooler service and an off-vehicle EGR cooler pressure test. Use that number only within Ford's test conditions; a quick unloaded idle comparison is not equivalent.
Coolant filtration can reduce circulating rust, scale, and loose debris on a compatible truck, but it is not a repair for a restricted cooler and does not replace Ford's flushing procedure or the correct coolant. A bypass kit also adds hoses and fittings that must be routed and inspected. If filtration fits the maintenance plan, compare the application details in the Coolant Filtration Kit collection before adding another potential leak path.
How to Diagnose a Power Stroke Coolant Reservoir Problem
- Let the truck cool completely. Never remove a pressure cap from a hot engine. Park level and use the cold mark specified for that exact truck and reservoir.
- Record the level and operating conditions. Note whether loss occurs during towing, long grades, jobsite idling, active regeneration, cold starts, or ordinary unloaded driving.
- Clean and inspect. Look for dried residue at the cap neck, molded seams, hose fittings, quick connects, radiator connections, water pump, heater circuit, and beneath the bottle. A mirror and UV dye approved for the coolant can help with a hot-only leak.
- Test the cap separately. Confirm its pressure specification and sealing condition from current Ford service information. A cap can leak early even when the bottle is sound.
- Pressure-test the cold system. Use the adapter, limit, and procedure specified for the vehicle. Hold the test long enough to inspect every joint. Do not apply a universal pressure number across 6.0L, 6.4L, and 6.7L trucks.
- Check for an internal pressure source. Rapid hose hardening after a cold start, repeated loaded venting, unexplained loss, or white exhaust requires engine-specific testing. A combustion-gas test is one clue, not a complete diagnosis.
- Verify the repair under the same load. After filling and bleeding, monitor coolant temperature, oil temperature where supported, heater output, level stability, and leakage during a controlled road test. A tow rig should be checked under a representative load once it is safe to do so.
2008-2010 6.4L Fitment: Single Port Does Not Mean EGR Delete
This is the most important correction to the old version of this guide. Ford published TSB 11-12-4 for 2008-2010 6.4L F-Super Duty cooling-system leaks on December 22, 2011. It superseded TSB 11-6-6. The procedure directs technicians working on an affected dual-port degas bottle to install Ford's single-port bottle design, a new cap, and the specified Venturi tee arrangement. It also requires verification of tee orientation and related hose connections.
In plain shop language: a single-port bottle can be part of Ford's updated stock-emissions cooling layout. Port count by itself does not prove that the truck has been emissions-modified. Do not add a generic Y-fitting or reroute coolant hoses from a product photo. Identify the current bottle, hose configuration, Venturi tee, cap, and applicable Ford procedure before ordering or installing anything.
| Platform | Fitment checks before purchase | Service issue to keep in view |
|---|---|---|
| 2003-2007 6.0L Power Stroke | Build date, cap, level mark, sensor provision, hose nipples and mounting points | Do not confuse venting from overfill with an EGR cooler, oil cooler, head-gasket, or cap concern |
| 2008-2010 6.4L Power Stroke | VIN, single- or dual-port starting configuration, Venturi tee, hose routing, cap and updated service parts | Follow Ford's updated layout; do not classify the tank from EGR status alone |
| 2011-2019 6.7L Power Stroke | Exact year, pickup versus chassis cab, sensor/connector, cap, hose locations and underhood clearance | Later 6.7L model years outside this range require a separately verified part |
Plastic vs Aluminum Coolant Reservoir
A new OEM-style plastic bottle is a valid repair when the truck is stock, visibility through the tank matters, and the owner wants factory-like service behavior. Plastic also isolates coolant from a metal shell and makes the level easier to see when the material is clear.
A welded aluminum replacement makes sense when the original shell or neck has physically failed, the truck sees rough jobsite or off-road vibration, or the owner wants a rigid bolt-on tank with a serviceable sight feature. Judge the welds, neck machining, brackets, hose nipples, coating, cap compatibility, and leak-test quality. Material name alone does not establish fitment or pressure integrity.
| Decision point | OEM-style plastic | Welded aluminum |
|---|---|---|
| Level visibility | Easy when the shell remains clear | Depends on a sight glass or level indicator |
| Shell behavior | Lightweight and compliant, but ages with heat cycles | Rigid shell; welds, fittings, and cap neck become the key quality points |
| Heat rejection | Not a cooling-system upgrade by itself | Do not expect a meaningful drop in engine temperature from tank material alone |
| Service checks | Inspect seams, discoloration, neck and molded nipples | Inspect welds, coating, threaded fittings, sight glass and bracket alignment |
| Best fit | Stock-style replacement and easy visual level checks | Confirmed shell failure, demanding use, or preference for a rigid rebuildable assembly |
Cap Pressure, Coolant Level and Fluid Choice
The number on a pressure cap is a release specification, not the pressure a healthy truck must reach in normal driving. Ford TSB 09-8-3 provides one verified test range: on the covered 6.0L applications, the degas cap should release between 12-18 psi (83-124 kPa); release below 12 psi calls for cap replacement in that procedure. That range should not be copied to every 6.4L or 6.7L truck.
| Platform | Published reference available here | How to use it |
|---|---|---|
| 6.0L applications covered by TSB 09-8-3 | 12-18 psi (83-124 kPa) release range; replace below 12 psi during the stated test | Follow the TSB's cold setup, inline adapter, slow pump action and stabilization steps |
| 2008-2010 6.4L | No universal value supplied by TSB 11-12-4 | Match the cap part and test limit to the latest Ford workshop information |
| 2011-2019 6.7L | Year and cooling configuration must be checked | Read the installed cap marking, then verify it against the vehicle-specific Ford procedure |
Do not fill a metal tank to an arbitrary percentage or use a floating ball as the only reference. Establish the correct cold level from the applicable Ford workshop or owner information, then verify where that level appears in the installed sight glass. Leave the expansion space the system was designed to use.
Ford's general owner guidance is to check coolant cold and use the marked cold fill range. The exact mark and coolant specification vary by platform and service history. Consult the current Ford coolant-checking guidance and vehicle-specific service literature instead of relying on bottle color or an old forum post.
Use coolant that meets Ford's current specification for the truck. Do not mix formulas because the color looks similar. Extreme cold makes concentration and freeze protection critical; excessive concentrate can also reduce heat transfer. Test the mixture with an appropriate refractometer when service history is unknown.
Installation Details That Prevent a Comeback
- Confirm the VIN, engine, build configuration, port layout, sensor connection, cap, and every hose connection before draining coolant.
- With the engine cold, drain into a clean container and inspect the old coolant for oil, fuel, rust, sealant, or debris. Do not reuse contaminated coolant.
- Transfer only the parts the replacement was designed to reuse. Install new O-rings, seals, clamps, or cap when the service procedure calls for them.
- Set the reservoir on its brackets without forcing it into alignment. Check hood, battery, intake, wiring, and hose clearance before tightening.
- Route hoses without kinks, abrasion, unsupported weight, or contact with sharp and hot components. On an affected 6.4L, verify the Venturi tee orientation and updated hose arrangement.
- Fill with the correct coolant and procedure. Ford's 6.4L service bulletin calls for vacuum filling during that repair because trapped air can remain when the system is filled improperly.
- Pressure-test the cold system, test the cap, warm the engine while monitoring temperature and heater performance, let it cool fully, and recheck the cold level.
DIY Checks vs Shop-Level Work
| Reasonable owner checks on a cold truck | Work better handled by a qualified shop |
|---|---|
| Record the cold level, clean residue, inspect the shell and cap seat, verify hose rub points, read the cap marking and scan stored codes | Vehicle-specific pressure testing, off-vehicle EGR cooler testing, combustion-pressure diagnosis and loaded data logging |
| Replace a confirmed bolt-on tank when the correct routing and fill procedure are already known and the proper tools are available | Vacuum filling the 6.4L system, correcting the Venturi tee layout, handling contaminated coolant and diagnosing a possible hydrolock condition |
Vacuum filling is the practical dividing line for many home garages. Ford's 6.4L bulletin warns that filling without the specified air-lift tool or equivalent can leave excessive air in the system. Paying for the correct fill and pressure verification is cheaper than chasing a false low level, no-heat complaint, or loaded overheat caused by an air pocket.
How Truck Use Changes the Decision
- Towing: Long grades expose weak caps, combustion leakage, restricted heat exchangers, and hot-only hose leaks. A new tank will not hide a pressure problem for long.
- Payload and jobsite idle: Heavy loads and low road speed reduce cooling margin. Inspect fan operation, radiator airflow, debris, and coolant condition along with the bottle.
- Off-roading: Vibration and chassis twist make bracket fit, hose slack, weld quality, and clearance more important than appearance.
- Extreme cold: Correct coolant concentration, heater performance, and a free-flowing vent circuit matter. Ice, slush, or an incorrect mixture can create symptoms that resemble a bad tank.
- Hot climates: Repeated heat soak accelerates plastic aging, but chronic venting still requires a cap and system-pressure diagnosis.
Budget for the Whole Cooling-System Repair
Prices vary by region, configuration, coolant quantity, and what testing finds. These planning ranges are not quotes.
| Item | Typical planning range | What changes the cost |
|---|---|---|
| Visual inspection and cap/system pressure test | $0 DIY to $250 shop diagnosis | Access, hot-only leak testing, dye and loaded verification |
| OEM-style plastic reservoir and cap | $80-$350 in parts | Engine, year, sensor, cap and updated hose package |
| Aftermarket aluminum reservoir | $140-$450 in parts | Material, coating, sight glass, fittings and included hardware |
| Coolant, seals, clamps, hoses or Venturi tee | $40-$400+ | Coolant capacity and whether updated Ford service parts are required |
| Reservoir installation and vacuum fill | $150-$650 labor | Shop rate, access, cleanup and additional hose repair |
| Internal leak or heat-exchanger repair | Hundreds to several thousand dollars | EGR cooler, oil cooler, head gasket, radiator, water pump or other root cause |
Power Stroke Coolant Reservoir Options
Use these as application starting points, then verify the installed hose layout, cap, sensor, and underhood configuration. SPELAB lists the following welded aluminum options:
| Application | Recommended product | Before ordering |
|---|---|---|

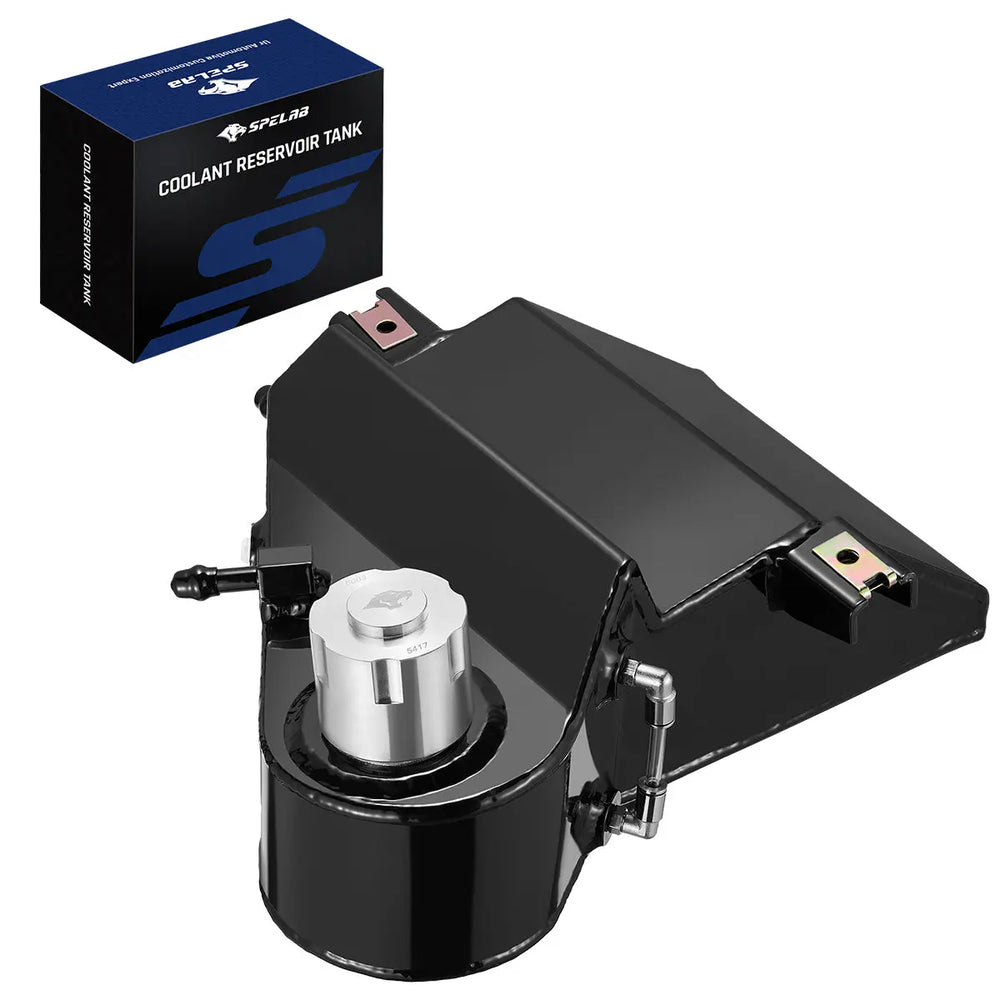

| 2003-2007 Ford 6.0L Power Stroke | Coolant Reservoir for 2003-2007 Ford 6.0L Powerstroke Coolant Overflow Tank | SPELAB | Confirm build, cold-level reference, cap, sensor and hose nipples |
| 2008-2010 Ford 6.4L Power Stroke | Coolant Reservoir for 2008-2010 Ford 6.4L Powerstroke Coolant Overflow Tank | SPELAB | Verify Ford's single-port update, Venturi tee orientation, cap and hose routing |
| 2011-2019 Ford 6.7L Power Stroke | Coolant Reservoir for 2011-2019 Ford 6.7L Powerstroke Coolant Overflow Tank | SPELAB | Confirm exact year, pickup or chassis cab, sensor, cap and clearance |
For other year-specific choices, review the Powerstroke Coolant Expansion Tank collection. A listed year range is not a substitute for checking a truck that has prior cooling-system updates or swapped parts.
FAQ
Q: Does a yellow coolant reservoir need to be replaced?
A: Not automatically. Yellowing makes the level harder to read, but replacement is justified when the bottle is cracked, leaking, distorted, contaminated beyond cleaning, or too opaque to service accurately.
Q: Will an aluminum coolant reservoir keep my Power Stroke cooler?
A: Do not expect a measurable engine-temperature reduction from the reservoir material alone. Cooling performance depends on coolant flow, radiator and heat-exchanger condition, fan operation, thermostat control, system pressure, engine load, and airflow.
Q: Why does my truck push coolant out of the degas bottle?
A: Common causes include overfill, a weak cap, a damaged cap seat, trapped air, restricted cooling flow, overheating, or combustion pressure. Test the cap and system, then follow the engine-specific diagnostic procedure before replacing parts.
Q: Is a single-port 6.4L Power Stroke reservoir only for an EGR-deleted truck?
A: No. Ford's 6.4L service bulletin includes a single-port replacement bottle, new cap, and specified Venturi tee arrangement for affected trucks. Verify the current Ford hose layout; do not infer emissions status from port count.
Q: Can I use a Y-fitting to make a one-port tank fit my 6.4L?
A: Do not improvise the routing. Use the Ford-specified updated components and tee orientation for the truck. An incorrect split can impair deaeration or coolant flow and create another failure point.
Q: How full should an aluminum coolant reservoir be?
A: Use the vehicle's specified cold level, not a universal percentage. After installation, relate that correct cold level to the tank's sight glass or indicator, then confirm it again after a complete heat cycle and cool-down.
Q: What should I check after installing a coolant reservoir?
A: Check bracket alignment, hose clearance, cap sealing, sensor operation, cold pressure retention, heater output, operating temperature, leaks, and the fully cooled level. Reinspect after a towing or loaded drive if that is the truck's normal duty.
