Updated on Sep 11, 2026.
A failed intake-horn or grid-heater sealing joint on a 2007.5-2024 Ram 6.7L Cummins can leak charge air and cause a hiss under load, weak acceleration, low actual boost, oily soot at the joint, or an underboost fault. An intake-horn gasket does not normally carry coolant, so unexplained coolant loss points to a separate cooling-system fault rather than proving that the intake gasket has failed.
Key Takeaways
A 6.7L Cummins intake gasket should be replaced only after the leaking joint has been identified; charge-pipe boots, clamps, sensors, turbo controls, and the EGR cooler can create overlapping symptoms.
- Use scan data, a visual inspection, and an engine-off regulated pressure or smoke test before ordering parts.
- Do not rely on a soapy-water test at idle because the intake may not develop enough pressure to expose a small leak.
- Treat coolant loss as a separate diagnostic path, especially when white vapor, a sweet odor, or an unexplained reservoir drop is present.
- Use the torque value, tightening sequence, gasket, and fuel-line procedure specified for the exact model year and hardware.
- An upgraded intake horn changes airflow or heater configuration only when the selected kit is designed to do so; it does not repair unrelated boost, turbo, sensor, or cooling-system faults.
Last updated: September 11, 2026
Which 6.7 Cummins Intake Gasket Is Actually Leaking?
The phrase "6.7 Cummins intake manifold gasket" often refers to the seals around the intake horn and grid-heater plate, but the exact joint must be named before the truck can be diagnosed correctly.
The turbocharger moves compressed air through the charge-air cooler, boots, intake horn, heater assembly, and cylinder-head intake plenum. A leak at any connection can reduce delivered air under load. Oil mist from the closed-crankcase ventilation system can collect around a loose joint, which is why a wet or dark seam is a clue rather than proof.
Model-year changes also matter. Ram 2500, Ram 3500, Ram 4500, and Ram 5500 configurations can differ in sensor locations, fuel-line routing, emissions hardware, heater strategy, and underhood clearance. Confirm year-specific fitment by VIN, build date, pickup or chassis-cab configuration, and the exact parts installed on the engine.
What Are the Symptoms of a Bad 6.7 Cummins Intake Gasket?
A leaking intake-horn or grid-heater joint most often shows up under load as escaping-air noise, reduced boost response, weak towing power, oily soot at one seam, or a possible P0299 underboost fault.
- Hiss or whoosh under acceleration: Escaping charge air becomes easier to hear as airflow and load rise.
- Weak acceleration or slow boost response: Actual boost may trail commanded boost, depending on leak size, altitude, turbo control, and engine calibration.
- Black smoke: A large charge-air leak can reduce available oxygen and increase visible smoke, but injector faults, restricted airflow, turbo problems, and calibration issues can cause the same symptom.
- Oily or sooty residue: Fresh residue concentrated at one joint can mark an air leak. Old residue must be cleaned before the joint is judged.
- Check-engine or electronic-throttle warning: P0299 or other airflow-related faults may appear, but no single trouble code confirms a failed gasket.
- Higher exhaust temperature under load: A substantial leak can contribute to higher exhaust-gas temperature, depending on fueling, trailer weight, grade, ambient temperature, and how long the truck remains under load.
Do Not Blame the Intake Gasket First
Charge-air boots, clamps, the EGR cooler, MAP or intake-air-temperature sensors, turbo controls, and exhaust restriction can imitate an intake-gasket problem on a 6.7L Cummins.
| Likely fault | Clues that fit | What separates it from the others |
|---|---|---|
| Intake-horn or grid-heater seal | Hiss under load, low actual boost, fresh oily soot concentrated at the horn or heater joint | A regulated pressure or smoke test exposes leakage at that exact seam |
| Charge-pipe boot, clamp, or pipe | Oil spray near a coupler, a split boot, clamp movement, or a hiss nearer the charge-air cooler | Leak appears away from the intake-horn flange during a full charge-air-system test |
| EGR cooler coolant leak | Unexplained coolant loss, white vapor, sweet odor, cooling-system pressure change, or coolant entering the intake path | Cooling-system and EGR-cooler testing identifies a coolant-side failure; the intake-horn gasket does not normally carry coolant |
| MAP/IAT sensor or wiring fault | Implausible key-on/engine-off readings, intermittent data, connector damage, or sensor contamination | Sensor values fail a plausibility check even when the charge-air system holds pressure |
| Turbo control or exhaust-side problem | Slow spool, underboost, actuator faults, frequent regeneration, or poor response without a visible intake leak | The intake passes pressure testing, while scan data or mechanical inspection points to turbo control or exhaust restriction |
How Do You Test a 6.7 Cummins Intake Gasket?
The most dependable driveway-level test is an engine-off, regulated charge-air pressure or smoke test performed within the pressure limit specified for the exact truck and test equipment.
- Record the operating condition. Note whether the symptom appears only during towing, at a specific engine speed, after a repair, or at all times. Save trouble codes and freeze-frame data before clearing anything.
- Compare scan data. Check commanded versus actual boost, MAP plausibility, intake-air temperature, turbo actuator data when supported, and DPF-related information. One value alone is not a diagnosis.
- Inspect the full charge-air path. Check the compressor outlet, hot-side pipe, charge-air cooler, cold-side pipe, boots, clamps, intake horn, heater joint, sensor seals, and nearby hoses.
- Clean suspicious residue. Degrease the outside of the joint and dry it. A clean surface makes fresh leakage easier to identify after testing or a short loaded drive.
- Pressurize with the engine off. Isolate the system with proper test plugs and a regulated air source. Use the service procedure or tester manufacturer's limit because a universal test pressure is not appropriate for every 2007.5-2024 configuration.
- Use smoke or soapy solution. Smoke can reveal a small leak. Soapy solution is useful only after the system is safely pressurized; a bubble-free idle test does not rule out a leak.
- Confirm the exact joint. Repair the gasket only when leakage is visible or measurable at the horn or grid-heater sealing surface.
Keep hands, face, and loose clothing away from pressurized plugs and hoses. Release test pressure before moving any cap, boot, or clamp.
How Is the Intake-Horn Gasket Replaced?
A correct repair restores a clean, flat sealing joint with the specified gasket, fasteners, torque sequence, and year-specific service procedure; one generic torque value should not be used across every 6.7L Cummins application.
- Let the engine cool and disconnect both batteries. Remove components only after the truck is stable and the work area is clean.
- Confirm the service information. Match the VIN and model year to the correct removal sequence, torque specifications, gasket orientation, and fuel-line requirements.
- Protect the fuel system. Common-rail fuel pressure can reach tens of thousands of psi under load, depending on operating conditions. Never loosen a high-pressure connection on a running or hot engine, and follow the manufacturer procedure for pressure relief.
- Remove obstructing parts methodically. Label connectors and brackets, then remove the charge pipe, dipstick-tube attachment, wiring supports, and fuel lines only as required by the specific configuration.
- Cap every open fuel connection immediately. Dirt small enough to escape casual inspection can damage high-pressure pumps or injectors.
- Inspect the sealing surfaces. Check for corrosion, scratches, distortion, cracks, pulled threads, incorrect hardware, or residue that could prevent even clamping.
- Install the specified gasket. Use the gasket supplied for the exact joint or a verified OE-compatible replacement. Apply sealant only when the gasket or service instructions require it.
- Torque the fasteners correctly. Follow the exact sequence, stages, and value for the truck and hardware. Do not reuse a generic 18 lb-ft figure without verification.
- Reassemble and verify. Follow the specified fuel-system priming procedure, inspect for fuel or air leaks, repeat the charge-air test, and compare actual boost with commanded boost during a controlled road test.
Re-torque the assembly only when the part manufacturer or the applicable service information specifically calls for it. Unscheduled re-torquing can disturb a correctly clamped joint.
Should You Replace the Gasket or Upgrade the Intake Horn?
A gasket-only repair is usually the sensible choice when the stock parts are undamaged and the truck meets the owner's airflow and cold-start needs; an intake upgrade makes more sense when inspection finds damaged hardware or the owner has a separate, defined configuration goal.
| Option | Best fit | Main tradeoff |
|---|---|---|
| Reseal the stock assembly | Unmodified daily driver with flat, undamaged sealing surfaces | Lowest parts cost, but it does not change airflow or heater design |
| Stock-style replacement | Damaged original horn or heater plate where factory-style operation is the priority | Simple operating strategy, but the replacement must still match the exact year and truck configuration |

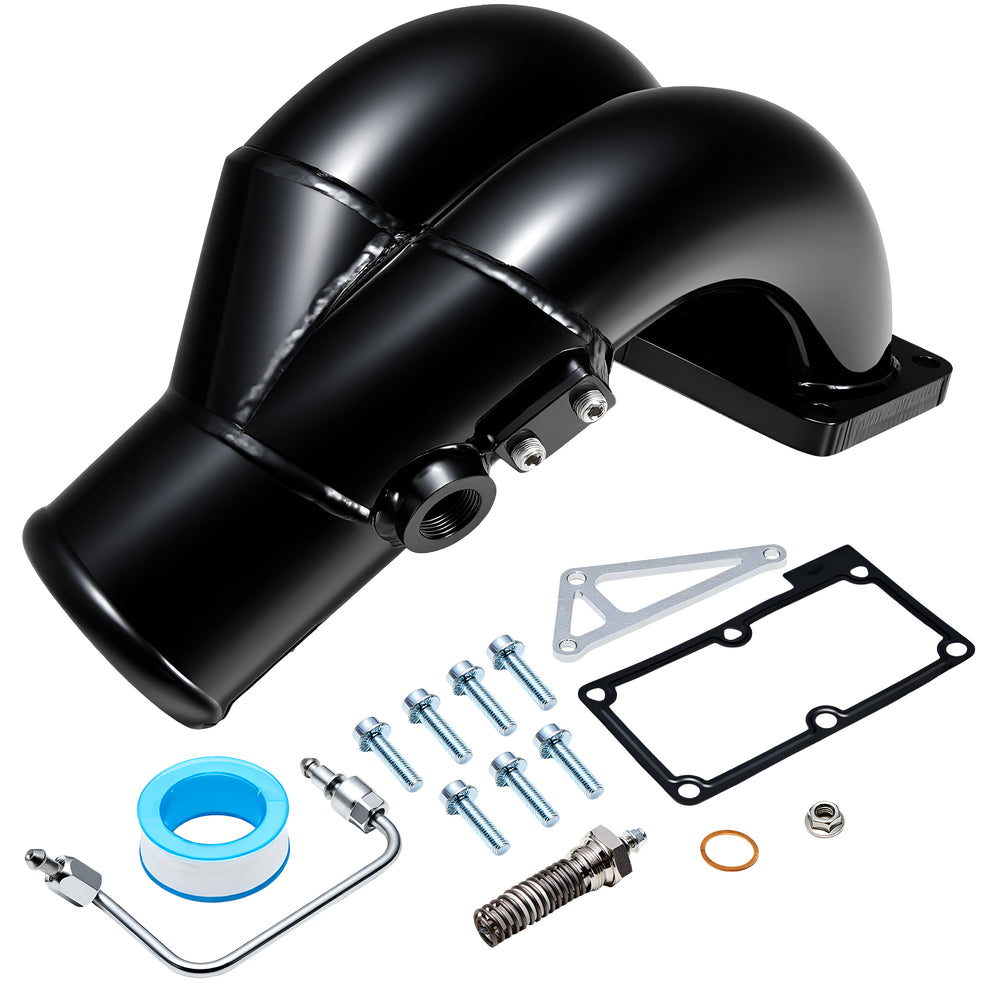

| 6.7L Cummins intake manifold upgrade | Towing, modified, or work-truck build with a measured airflow goal and verified fitment | Higher parts cost; power, EGT, and fuel-economy gains are not guaranteed by the horn alone |
| 3.5-inch intake manifold with heating element | Owner who wants a different intake path while retaining an alternate cold-start heating strategy | Electrical, sensor, fuel-line, and year compatibility must be checked before purchase |
| T304 stainless steel intake manifold with heating element | Build where material, 3.5-inch routing, and heater strategy all match the planned setup | More installation variables than a gasket-only repair; exact included parts must be confirmed |
Replacing an intake horn alone does not automatically remove the grid-heater bolt failure concern. The result depends on whether the selected configuration retains the factory heater, replaces the heater strategy, or changes the heater plate.
What Must Be Checked Before Ordering Parts?
Fitment should be confirmed by model year, VIN or build date, pickup versus chassis cab, heater strategy, emissions configuration, sensor ports, and fuel-line routing rather than by the words "6.7 Cummins" alone.
| Truck group | Checks before ordering |
|---|---|
| 2007.5-2012 Ram 2500/3500 | Build date, intake and heater layout, sensor provisions, fuel-line routing, and retained emissions hardware |
| 2013-2018 Ram 2500/3500 | Pickup configuration, heater choice, connector and sensor compatibility, fuel lines, and charge-pipe connection |
| 2019-2024 Ram 2500/3500 | Exact year, electronic and sensor provisions, heater strategy, intake routing, and selected product variant |
| Ram 4500/5500 chassis cab | Chassis-cab-specific fitment, plumbing, fuel-line routing, bracket clearance, and kit contents |
Product listings can contain several variants under one URL. Confirm the selected option and packing list instead of assuming that every version includes the intake horn, grid-heater plate, heating element, gaskets, fuel lines, wiring, plugs, and mounting hardware.
How Much Does a 6.7 Cummins Intake Gasket Repair Cost?
A gasket-only repair often costs far less in parts than in labor because access, cleaning, fuel-system handling, and post-repair testing can take several hours; total cost depends on model year, shop rate, damaged hardware, and whether fuel lines or adjacent seals must be replaced.
| Work item | Rough planning range | What changes the range |
|---|---|---|
| Professional diagnosis | Typically about 0.5-1.5 labor hours | Scan-data access, pressure-test setup, leak location, and whether the symptom can be reproduced |
| Gaskets, seals, and small hardware | Often roughly $25-$150 | Exact joint, OE versus aftermarket parts, required fuel lines, bolts, plugs, and shipping |
| Gasket-only labor | Often about 3-6 labor hours | Model year, corrosion, fuel-line routing, previous modifications, broken fasteners, and cleaning time |
| Planning example at $130-$200 per labor hour | Roughly $390-$1,200 in labor before parts | Local posted labor rate and billed time; this is a planning example, not a repair quote |
| Intake or heater-configuration upgrade | Selected product price plus installation parts and labor | Material, year range, heater element, fuel lines, wiring, tuning requirements, and kit contents |
A shop estimate should separate diagnostic time, parts, labor, taxes, and any required high-pressure fuel lines. That breakdown makes a stock reseal easier to compare with an upgraded assembly without pretending that every truck has the same installed cost.
Frequently Asked Questions
The answers below separate common 6.7L Cummins intake-gasket symptoms from look-alike faults and identify the checks that should happen before repair.
Q: Can a bad 6.7 Cummins intake manifold gasket cause coolant loss?
A: An intake-horn or grid-heater gasket does not normally seal a coolant passage, so coolant loss should not be assigned to that gasket without separate evidence. Check the cooling system, hoses, reservoir, EGR cooler, oil cooler, and other leak paths; white vapor or coolant in the intake can support an EGR-cooler diagnosis, but it does not prove an intake-horn gasket failure.
Q: Can I drive or tow with an intake boost leak?
A: Avoid towing, hard acceleration, and sustained grades when a 6.7L Cummins has a confirmed or suspected charge-air leak. A small leak may allow limited light-load driving to a repair location, but power loss, heavy smoke, rising exhaust temperature, limp mode, abnormal turbo noise, or a loose charge pipe calls for stopping and repairing the truck first.
Q: Which code confirms a failed intake gasket?
A: No diagnostic trouble code confirms a failed intake gasket by itself. P0299 can appear when delivered boost remains below the expected value, while electronic-throttle or airflow-related warnings can have several causes; confirm the leak location with scan data and pressure or smoke testing.
Q: Will soapy water find a 6.7 Cummins boost leak at idle?
A: Soapy water at idle can miss the leak because the intake may not be under enough positive pressure. Apply soapy solution only after safely pressurizing the isolated charge-air system with the engine off and within the limit specified by the applicable service or test-equipment instructions.
Q: How long should a 6.7 Cummins intake gasket last?
A: The intake-horn gasket has no universal 100,000- or 150,000-mile replacement interval. Service life depends on joint flatness, fastener clamping, installation quality, heat cycles, contamination, vibration, boost level, and whether nearby hardware remains secure.
Q: Does replacing the intake horn eliminate the grid-heater bolt risk?
A: Replacing only the horn does not automatically change the factory grid heater. The exact result depends on the selected heater plate, delete or replacement strategy, electrical provisions, and model-year compatibility, and cold-start requirements should be considered before changing the heater configuration.
Q: Do SPELAB intake kits always include gaskets, hardware, and a heater?
A: Kit contents vary by selected product and variant. Confirm the current packing list for the exact SKU because an intake horn, grid-heater plate, heating element, gaskets, fuel lines, wiring, plugs, and mounting hardware may be sold in different combinations.
Final Check Before the Truck Goes Back to Work
A successful 6.7L Cummins intake-gasket repair ends with a dry fuel system, a charge-air system that holds the specified test pressure, plausible sensor data, and actual boost that follows commanded boost during a controlled loaded test.
Do not judge the repair from idle quality alone. Let the engine reach operating temperature, inspect every disturbed connection, and stop the test if fuel leakage, a loose boot, abnormal turbo noise, heavy smoke, or a new warning appears.
