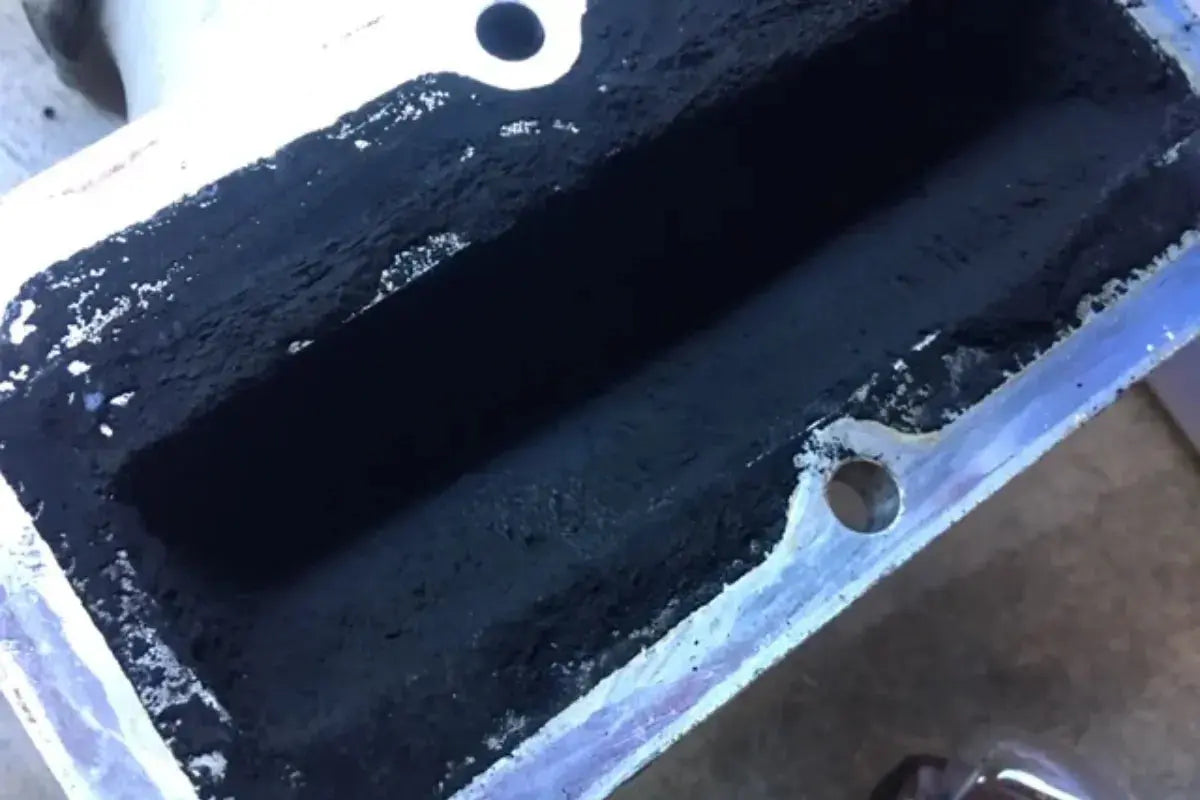

The intake manifold is a crucial component in an engine, responsible for distributing air to the individual cylinders. After the air passes through the intake manifold, it mixes with fuel and enters the combustion chamber for ignition. Over time, oil residues, carbon buildup, and other contaminants accumulate inside the intake plenum.
These deposits can obstruct airflow, leading to reduced engine power, lower fuel efficiency, and potential engine failure. Therefore, regularly cleaning the air intake manifold is essential for ensuring optimal engine performance and longevity.

What are some cheap ways to clean the intake manifold?
There are various ways to clean the intake manifold, with each method differing in cost and effectiveness. Here are some of the most common cleaning methods:
(1) Manual Cleaning
The most basic and common method involves manual cleaning. Typically, this method uses brushes, cleaners, and solvents. The intake manifold is first removed and soaked in a cleaning solvent for a few hours, then cleaned using a brush or scraper. For tougher dirt, a wire brush or power tool (such as an electric brush) may be used to clean more effectively.
This method is budget-friendly and allows the owner to do the job themselves, but it can be time-consuming and results in a mess of oil and grime.
(2) Using Chemical Cleaners
There are many chemical cleaners on the market, such as Purple Power, Seafoam, and other specialized cleaning products. These cleaners are highly effective at breaking down oil, carbon buildup, and other contaminants. Typically, these products are sprayed into the intake manifold, and a brush is used to clean it.
For intake plenums that aren’t fully removed, these cleaners can be sprayed through the throttle body or intake valve, allowing the cleaner to reach the interior of the manifold. While this method is quick and convenient, it does require purchasing specialized cleaners, making it slightly more expensive.
(3) Pressure Washing and Steam Cleaning
For intake manifolds that are already removed, pressure washing or steam cleaning provides an effective solution. These methods can thoroughly remove deep-set oil and carbon buildup, especially from the interior and hard-to-reach corners of the manifold. However, these methods require specialized equipment, such as a pressure washer or steam cleaner.
This method provides significant cleaning results, and the owner can simply take the intake manifold to an auto maintenance shop for cleaning, saving time and effort.
(4) Soaking and Scraping
Another simple yet cost-effective cleaning method is soaking and scraping. For example, soaking the intake manifold in carburetor cleaner, gasoline, or diesel for several hours, followed by scraping the contaminants off with a brush or scraper, is an effective way to clean. This method is practical for car owners who don’t have access to pressure washers.
Cost-saving Tip:
For those looking to save money, combining manual scraping with chemical cleaners is an affordable cleaning solution. Additionally, soaking the intake manifold in solvent is a cost-effective way to clean it without needing expensive equipment.
What cleaning methods are suitable for intake manifolds?
Aluminum intake manifolds are commonly found in automotive engines. Due to the relatively soft nature of aluminum, extra care should be taken when cleaning to avoid scratching or damaging the surface. Here are some methods suitable for cleaning aluminum intake manifolds:
-
Pre-Cleaning Inspection
Inspect the manifold for cracks or damage before cleaning. If there are any issues, repair or replace the part to avoid further damage during the cleaning process.
-
Use Mild Cleaning Solvents
Avoid harsh chemicals that can corrode aluminum. Use mild engine or carburetor cleaners to safely break down contaminants without harming the manifold.
-
Gentle Scrubbing with Soft Brushes
Use soft brushes (nylon or plastic) to scrub the manifold. Steel brushes can scratch the aluminum surface, so stick to non-abrasive tools.
-
Soaking in Cleaning Solvents
For tough buildups, soak the manifold in a cleaner like carburetor cleaner for a few hours. This helps loosen carbon deposits for easier removal.
-
Pressure Washing with Caution
If using a pressure washer, keep the pressure between 500-1000 PSI. Too high a pressure can damage the aluminum, so adjust the nozzle and distance accordingly.
-
Air Drying or Compressed Air
After cleaning, dry the manifold thoroughly with compressed air. This ensures no moisture is left, preventing corrosion.
-
Avoid Over-Cleaning
Don’t scrub excessively, as it can wear down the aluminum surface. Clean moderately to maintain the manifold’s integrity.
-
Prevent Contamination of the Engine
Seal off engine areas with plastic covers to avoid contaminants entering the engine. Always ensure the manifold is free from cleaning agents before reinstalling.
6.7 Cummins Intake Manifold Cleaning
For owners of 6.7 Cummins engines, cleaning the intake manifold requires special attention due to the complexity of the engine design. The 6.7 Cummins has a variable geometry turbocharger and intricate exhaust gas recirculation (EGR) systems, which can lead to heavier buildup of carbon and oil in the intake manifold.
Method Recommendation for 6.7 Cummins: The most effective cleaning method for 6.7 Cummins intake manifold is a combination of chemical cleaning and manual scraping. The high levels of carbon buildup often require a stronger cleaning agent that can break down the oil and soot deposits effectively. However, for the best results, the intake manifold should be removed for a thorough clean to reach all internal areas.
Extra Caution: It is essential to be cautious about cleaning the EGR components in 6.7 Cummins engines. Improper cleaning can damage sensors and other parts, so it's advisable to clean the EGR system separately or consult a professional if unsure.
Conclusion
If you're aiming for the best overall solution:
pressure washing or steam cleaning is the most effective method for thorough cleaning, especially when the manifold has significant carbon buildup or oil residue.
For those with a limited budget or a smaller amount of buildup, manual cleaning combined with chemical cleaners provides an affordable and efficient solution.
For regular maintenance, using chemical cleaners or soaking and scraping offers a good balance between cost, convenience, and effectiveness.
FAQ
Q1: How long does pressure washing or steam cleaning take for the intake manifold?
A1: Pressure washing or steam cleaning typically takes between 30 minutes to an hour, depending on the level of contamination and the size of the intake manifold.
Q2: Can I use household products like dish soap to clean the intake manifold?
A2: Dish soap can be useful for initial rinsing but is not recommended for thorough cleaning. For more effective cleaning, it's recommended to use specialized engine cleaners or solvents designed for tough contaminants.
Q3: How can I prevent carbon buildup in the intake manifold?
A3: To reduce carbon buildup in the intake manifold, ensure your engine is running efficiently. Regular maintenance, such as using quality fuel and keeping the air filter clean, can help. Additionally, driving habits like avoiding excessive idling and minimizing short trips can prevent the engine from accumulating excess carbon. Fuel additives that clean the intake system can also help keep the manifold cleaner over time.
Q4: Is soaking the intake manifold in solvent a safe and effective method?
A4: Soaking the intake manifold in a cleaning solvent, such as carb cleaner, gasoline, or diesel, is an effective method for loosening carbon buildup. However, it is essential to do so in a well-ventilated area and avoid skin contact with the solvent. This method is safe when done correctly but can be messy.
Q5: How often should I clean the intake manifold?
A5: The frequency of cleaning depends on your driving conditions and the amount of carbon buildup in your engine. For most drivers, cleaning the intake manifold every 30,000 to 50,000 miles is sufficient.
