EZ Lynk for a 6.7L Cummins is a cloud-based tuning and diagnostics workflow that lets a Ram owner connect an Auto Agent device through the OBD-II port, receive tune files from a remote tuner, flash the truck, monitor live data, and send diagnostic information back for revisions. On a tow rig, jobsite truck, or weekend Mod build, the device is only one part of the decision; year fitment, transmission strategy, emissions status, voltage stability, and tuner support decide whether the setup feels dialed-in or frustrating.
Key Takeaways
- EZ Lynk is commonly used on 2010-2021 Ram 6.7L Cummins trucks, but exact support depends on year, ECM/TCM access, transmission, and tuner coverage.
- The best setup is usually not the hottest horsepower file; it is the file that controls torque, EGT, boost, shift behavior, and drivability under real Payload and Towing load.
- On many 2018+ Ram trucks, security-gateway access is the first thing to sort out when a flash will not start.
- 68RFE trucks need extra care because added torque can expose weak shift strategy, converter behavior, clutch wear, or heat problems.
- A tuner device without clear support is not a complete plan; the calibration source and revision process matter as much as the box plugged into the truck.
A 6.7 Cummins that only hauls groceries and one dragging a skid steer through July heat do not need the same tune. In our parts testing, the smoother work truck is usually the one with a conservative, matched calibration: clean airflow, stable fueling, controlled exhaust heat, and a transmission strategy that does not hammer the driveline.
For Ram 2500, 3500, 4500, and 5500 owners, the real questions are simple: will it fit, will it flash, and will it behave when the bed is loaded or a trailer is hooked up?
Is EZ Lynk Compatible With 6.7L Cummins?
EZ Lynk coverage spans many 2010-2021 Ram 6.7L Cummins applications, but the correct file and hardware depend on the truck's exact year, transmission, cab-and-chassis status, and emissions configuration.
Broad compatibility does not mean every truck flashes the same way. A 2012 Ram 2500 with a 68RFE, a 2018 truck with security gateway concerns, and a 2020 high-output Aisin truck can all require different planning.
| Truck Range | Common Application | What To Verify | Buyer Risk |
|---|---|---|---|
| 2010-2012 Ram 2500/3500 | 6.7L Cummins with 68RFE or manual applications | Engine tune support, exhaust configuration, transmission condition | Older trucks may have worn sensors, weak batteries, or existing drivability problems that tuning will not hide. |
| 2013-2018 Ram 2500/3500 | 6.7L Cummins with updated emissions and electronics | ECM access, TCM tuning option, SOTF compatibility, exhaust package match | Wrong file selection can make towing shift feel harsh or lazy. |
| 2019-2021 Ram 2500/3500 | Standard-output and high-output 6.7L Cummins trucks | Aisin vs 68RFE, bypass requirement, tuner coverage by exact year | Security gateway and transmission differences make pre-checks mandatory. |
| Ram 4500/5500 chassis cab | Commercial 6.7L Cummins use | Cab-and-chassis tuning support, duty cycle, payload, idle time | Work trucks see heat, idle hours, and payload stress that a light-duty file may ignore. |
Write the VIN, model year, transmission, tire size, axle ratio, current Mod list, and normal towing weight on one shop note. That short list gives the calibration provider more useful information than saying only, "It is a 6.7."
What EZ Lynk Actually Does On A Cummins
EZ Lynk gives the truck owner and tuner a connected path for tune delivery, flashing, diagnostics, live data, and file revisions; it does not replace basic mechanical inspection or make a worn truck healthy by itself.
The Auto Agent plugs into the OBD-II port, pairs with the mobile app, and lets the tuner send files through the cloud. For an owner two hours from a diesel shop, that remote workflow is the big attraction.
- Receives engine tune files from a supporting tuner
- Can support transmission tuning when the truck, package, and tuner allow it
- Reads and clears diagnostic trouble codes
- Monitors data such as EGT-related inputs, boost, coolant temperature, battery voltage, and transmission temperature when available
- Supports revision communication between owner and tuner
That remote revision loop is valuable when the truck lives hours from a diesel shop, but only if the package includes a responsive calibration provider and clearly defined support.
Diagnose The Truck Before You Flash It
A tune should be loaded on a mechanically sound truck, because weak fuel delivery, boost leaks, hot transmission fluid, low battery voltage, or existing DTCs can make a good calibration look bad.
Before flashing, scan the truck and save the codes plus freeze-frame data. Check battery health, charging voltage, fuel filter service, boost pipe clamps, exhaust leaks near the turbo, coolant condition, and transmission fluid behavior.
A truck with hard starts, rail-pressure drop, black smoke, or poor throttle response needs diagnosis before tuning. The guide on rail-pressure and drivability checks is useful when the complaint follows engine load rather than a recent flash.
| DTC Or Symptom | What It Points Toward | First Shop Checks | Flash Decision |
|---|---|---|---|
| P0087: Fuel Rail/System Pressure Too Low | Actual rail pressure is not meeting the commanded target. | Check both fuel filters, water contamination, low-pressure supply, wiring, rail-pressure sensor data, and commanded-versus-actual pressure. On a 2019-2020 truck, also check the VIN for the applicable high-pressure fuel-pump recall before condemning parts. | Do not flash until the pressure loss is diagnosed. A calibration cannot repair restricted supply or a failing pump. |
| P0299: Turbocharger Underboost | The ECM sees less boost than expected for the operating condition. | Pressure-test charge-air boots and pipes, inspect clamps, look for exhaust leakage ahead of the turbo, and verify VGT actuator and turbo movement with proper service data. | Fix the air-path or turbo-control fault first; extra fuel can raise smoke and EGT without restoring the missing boost. |
| No code, but the flash will not begin | Low voltage, phone/Wi-Fi interruption, wrong key state, security-gateway access, or unsupported file. | Stabilize battery voltage, stop accessories, confirm the app workflow, inspect the bypass connection, and contact the file provider with screenshots. | Do not keep cycling random files. Preserve the original code list and follow the tuner's recovery steps. |
FCA's Y78/NHTSA 21V-880 campaign covers certain 2019-2020 Ram 2500, 3500, 4500, and 5500 6.7L diesel trucks with a high-pressure fuel pump that may fail. Use the truck's VIN on the NHTSA recall lookup instead of assuming every 6.7 Cummins has the same pump.
- Charge the battery and keep a maintainer connected during flashing.
- Do not flash with a weak battery, unstable Wi-Fi, or low phone charge.
- Fix boost leaks before judging throttle response or smoke control.
- Check transmission temperature under load before asking for more torque.
- Confirm emissions equipment status with the tuner before selecting any file.
Why Transmission Tuning Matters On A 6.7 Cummins
On a tuned 6.7 Cummins, transmission behavior often decides whether the truck feels heavy-duty and controlled or sloppy and abusive.
The 68RFE can work well in a daily or towing truck when torque management, shift timing, converter lockup, and line pressure strategy are matched to the build. It can also complain fast when a hot tune is stacked on top of tired fluid, worn clutches, or aggressive throttle mapping.
Aisin-equipped trucks need a different conversation. They are often used in higher-payload work, but the owner still needs to confirm what the tuner supports and whether the file is built for the truck's actual duty cycle.
| Goal | Engine Tune Priority | Transmission Priority | Best Fit |
|---|---|---|---|
| Daily driver | Smooth throttle, low smoke, clean cold starts | Normal shift feel, no harsh low-speed hunting | Single conservative tune with support |
| Towing | Controlled torque, EGT management, predictable pedal | Converter control and lower heat under load | Tow-focused file, careful data logging |
| Off-roading | Low-speed response and clean modulation | Shift behavior that does not hunt on grades | Moderate tune with live monitoring |
| Performance Mod build | Fuel, air, boost, and exhaust matched together | TCM support and upgraded hardware if needed | Custom file with clear revision path |

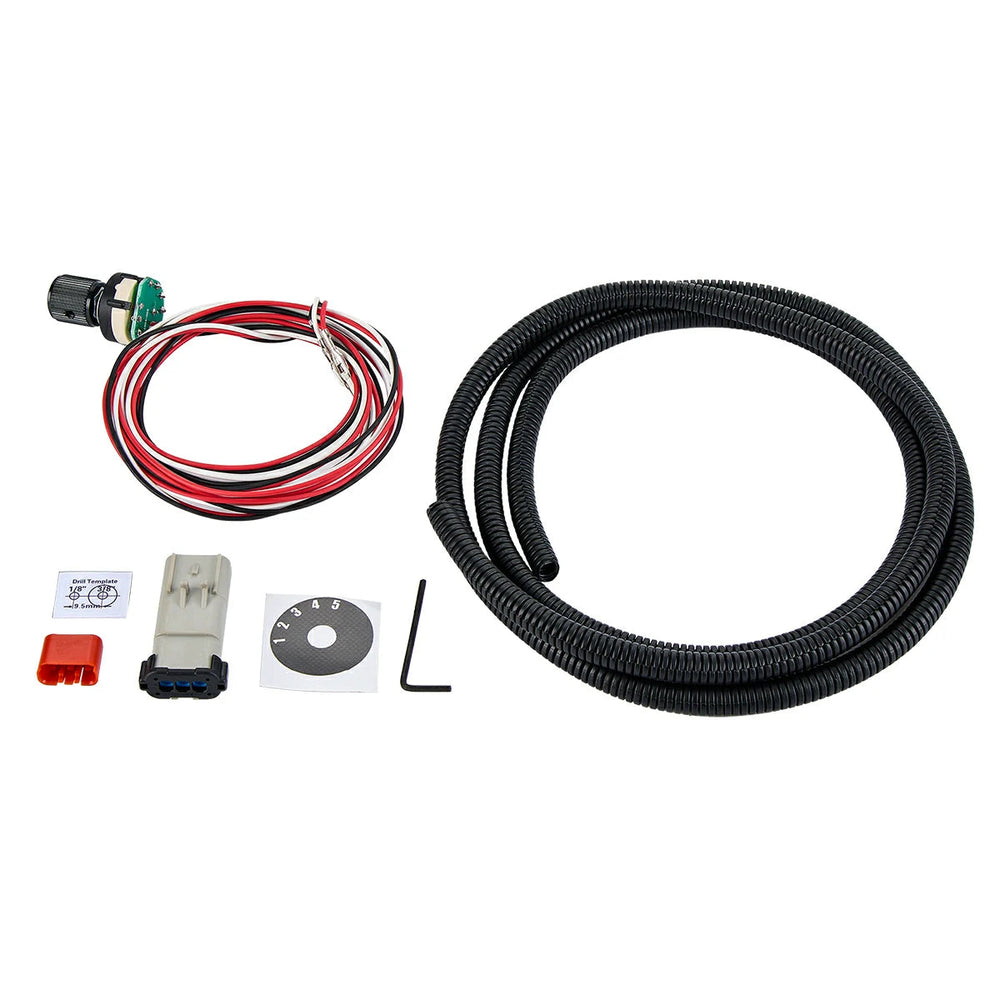

If shift-on-the-fly control is part of the build, the switch, tune file, ECM strategy, and selected power levels have to be designed to work together. A switch by itself does not add SOTF capability.
2018+ Ram Bypass And Security Checks
Many 2018 and newer Ram trucks use security architecture that can require bypass-related hardware before tuning access works correctly.
On many Ram HD installations, the connection is reached under the driver-side dash near the steering column and OBD-II area. The exact gateway connector and trim access vary by year and kit, so follow the supplied diagram instead of probing connectors by color or forcing a plug blind.
Plug in the bypass, secure the harness away from the pedals and sharp brackets, then confirm communication before starting a flash. On a jobsite truck, that five-minute check can prevent a full day of downtime.
Supporting Mods That Make A Tune Behave Better
Good tuning works best when airflow, exhaust flow, fuel delivery, cooling, and crankcase ventilation are not already fighting the calibration.
For a stock daily driver, you may only need clean filters, healthy sensors, and a conservative file. For a heavier tow rig, heat and restriction matter more. For a truck that sees long grades in Arizona or winter starts in North Dakota, small weak points show up fast.
- A clean intake tract helps the turbo build boost without lazy response.
- Healthy exhaust flow helps keep backpressure and heat under control where the setup is legal for use.
- Stable fuel pressure keeps the engine from feeling flat under load.
- Transmission cooling becomes more important when Payload and torque increase together.
On an airflow build, smoke or lazy spool after a tune change is still a reason to pressure-test the charge-air path. Tight-looking boots can leak only when boost and trailer load come up together.
Emissions, Warranty, And Street Use
Any tuning decision that changes emissions controls, ECM logic, or TCM behavior can affect legality, inspection, warranty exposure, resale value, and dealer support.
The U.S. EPA states that tampering with required emissions controls and selling or installing defeat devices can violate the Clean Air Act. Calling a street-certified truck a farm, jobsite, private-land, off-road, or competition truck does not by itself establish an exemption; check the vehicle's actual certification and applicable law using official guidance such as the EPA vehicle and engine enforcement information.
For a broader owner-facing discussion, this emissions decision guide can help separate repair cost frustration from legal and mechanical reality.
Which EZ Lynk Package Makes Sense?
The right package is the one that matches your truck's year, transmission, use case, included files, support window, and hardware needs.
Do not shop only by the device price. A cheaper listing with no file, no support, or the wrong truck coverage can cost more by the time the owner pays for corrections.
| Package Type | What It Usually Includes | Who It Fits | What To Ask Before Buying |
|---|---|---|---|

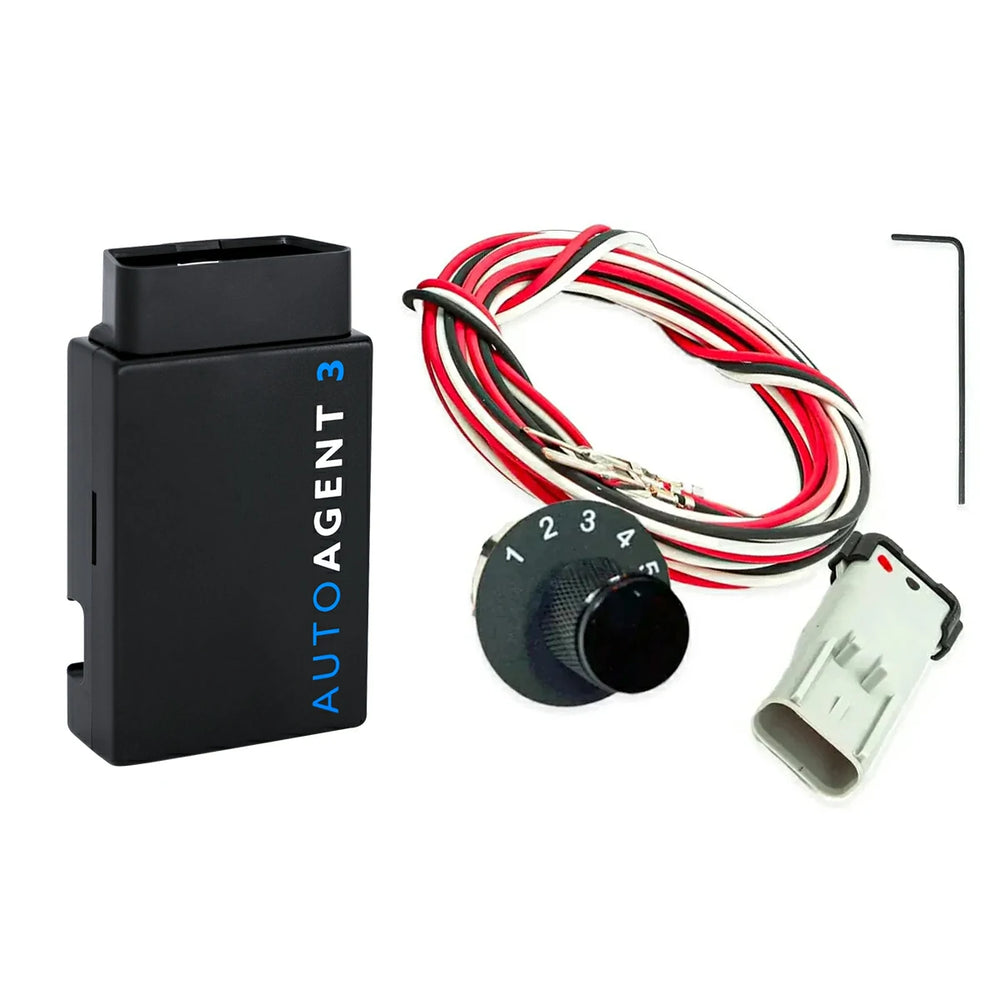

| Device only | Auto Agent hardware, no tune file | Owner who already has a tuner arranged | Will my tuner support this exact device and VIN? |
| Single tune | One file built for the truck's setup | Daily driver or tow rig with one clear use case | Are revisions included if drivability needs adjustment? |
| SOTF tune | Multiple selectable levels with compatible hardware | Owner who changes load or driving style often | Does my year, ECM, and switch setup support it? |

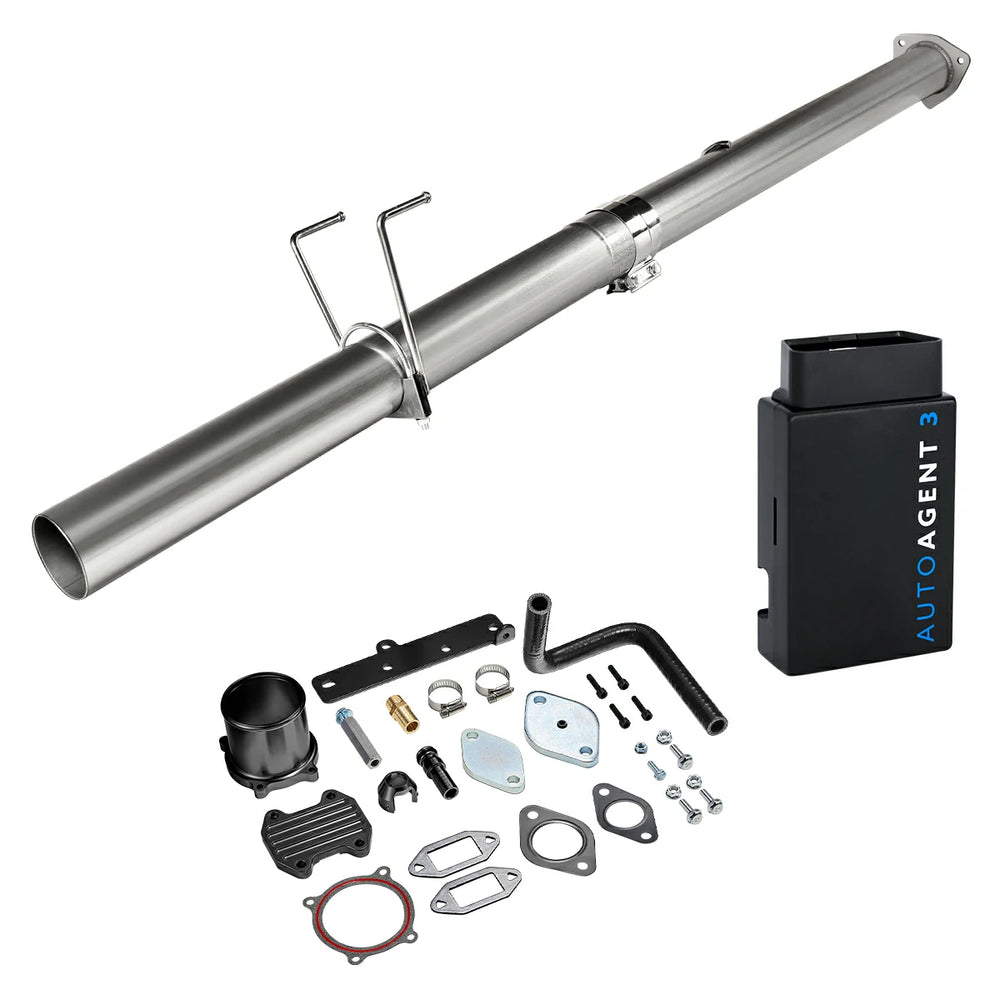

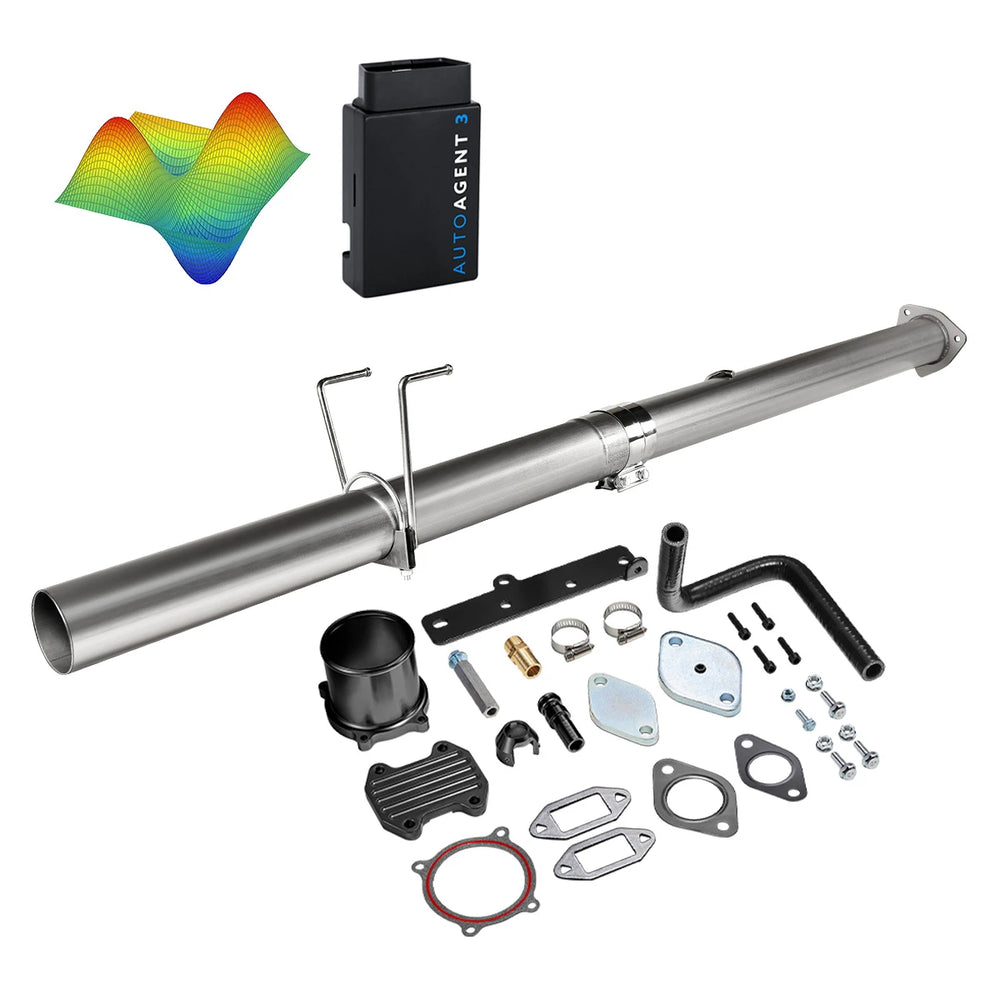

| All-in-one kit | Tuner, files, and matched exhaust or emissions-related hardware | Purpose-built project with documented lawful use | What is included, and what rules apply to this exact vehicle and jurisdiction? |
For buyers comparing device, file, and hardware combinations, the EZ Lynk tuner package collection keeps the available package structures in one place.
For cost planning, the guide on diesel tuning and delete cost breakdowns is a useful companion because the device, files, exhaust hardware, labor, and support are often priced separately.
FAQ
Q: Does EZ Lynk work on every 6.7L Cummins?
A: No. EZ Lynk is commonly used on many 6.7L Cummins Ram trucks, but every buyer should verify model year, ECM/TCM support, transmission, tuner coverage, and any required bypass hardware.
Q: Do 2018+ Ram Cummins trucks need a bypass cable?
A: Many 2018+ Ram trucks require a bypass-related solution because of factory security architecture. On many Ram HD kits, the connection is under the driver-side dash near the steering column and OBD-II area, but the exact connector and routing vary by year.
Q: Is EZ Lynk good for towing?
A: It can be a good towing choice when the tune is built around controlled torque, EGT management, transmission heat, and predictable throttle response instead of peak horsepower.
Q: Can EZ Lynk tune the transmission?
A: Transmission tuning depends on the truck, transmission, tuner, and purchased package. Ask directly whether 68RFE or Aisin TCM support is included, optional, or unavailable for your exact setup.
Q: Should I choose SOTF or a single tune?
A: A single tune is often cleaner for a dedicated daily or tow truck. SOTF makes sense when the owner truly needs selectable levels and the tuner confirms switch compatibility.
Q: What should I check before flashing?
A: Save all DTCs and freeze-frame data, then check battery voltage, fuel filter condition, boost leaks, coolant temperature, transmission temperature, and emissions configuration. Diagnose P0087 rail-pressure loss or P0299 underboost before loading a file.
Q: Will tuning void my warranty?
A: ECM or TCM changes can create warranty exposure. Warranty outcomes depend on the modification, dealer process, manufacturer policy, flash history, and the failed component involved.
