Product Information +
- Brand: SPELAB
- SKU: SPIS08535
- Availability: Out of stock
- Product Type: Intake Manifold
-
PLEASE NOTE!
- Description
- This product is legal for off road use and non pollution controlled vehicles (1965 & older); however, it has not been tested or approved by the California Air Resources Board (CARB) for highway vehicles in the state of California. By purchasing this product, buyer agrees it will not be used on pollution controlled vehicles in California, or in a state with similar emissions regulations.
Intake Manifold Ford Small Block Carbureted Polished Dual Plane Air Gap | SPELAB

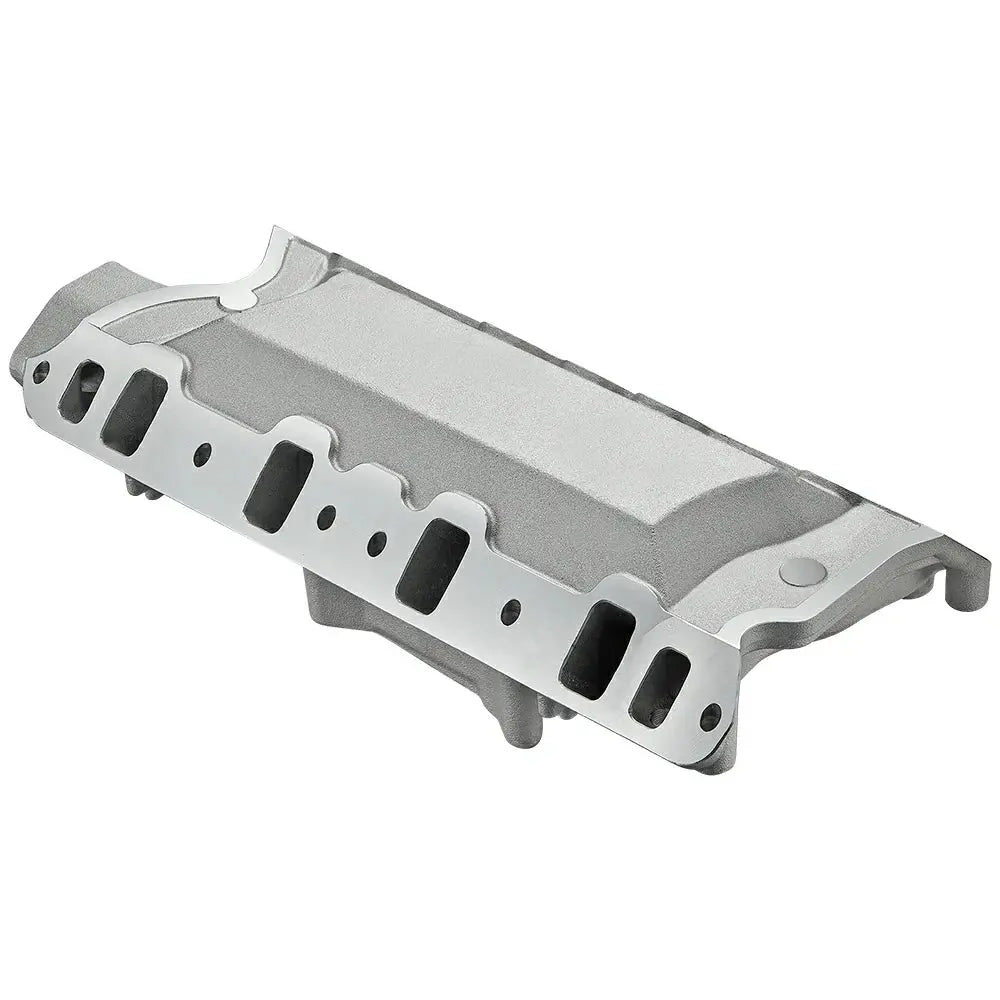

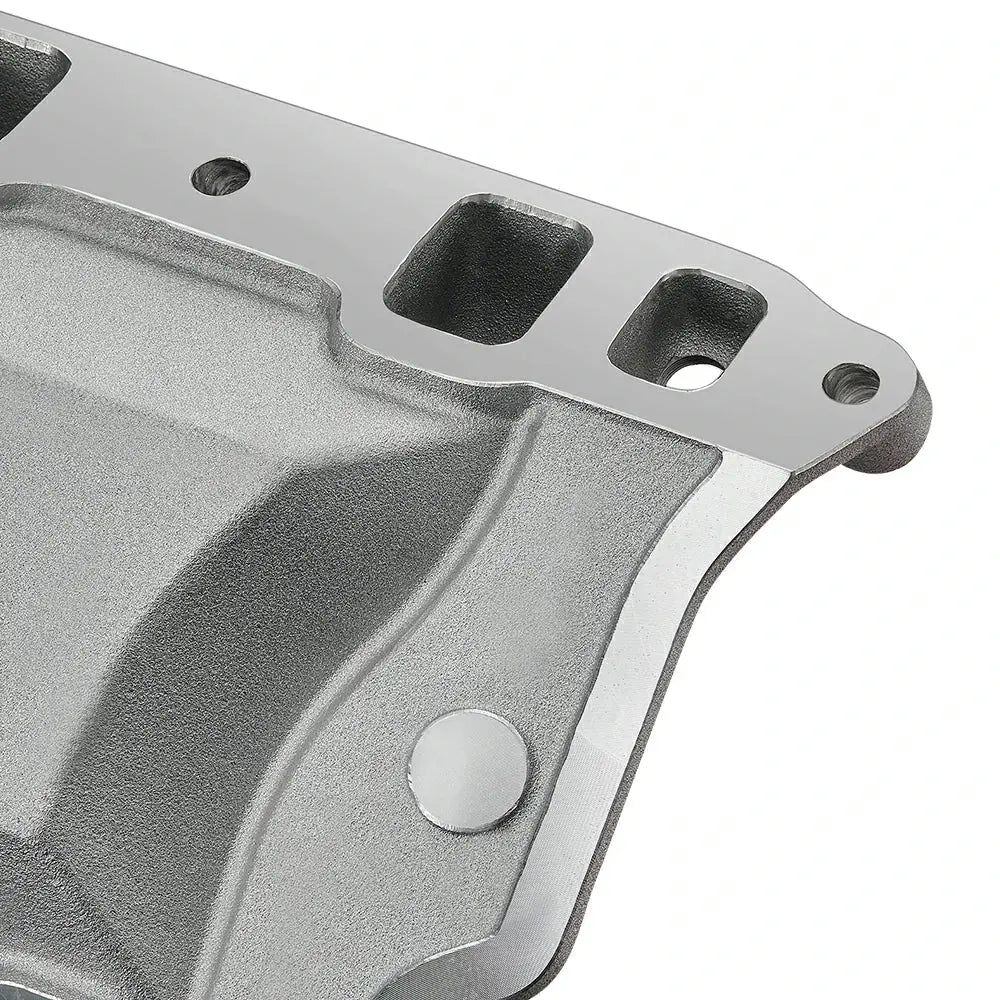

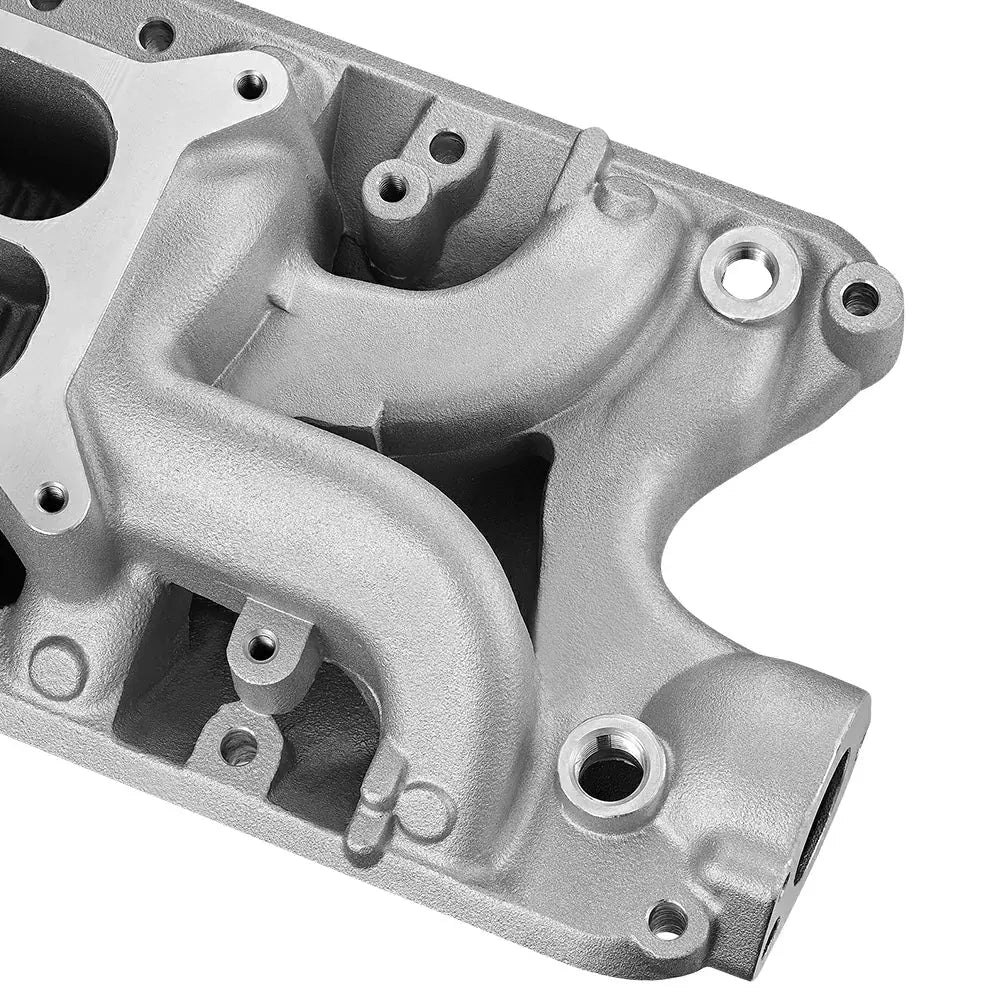

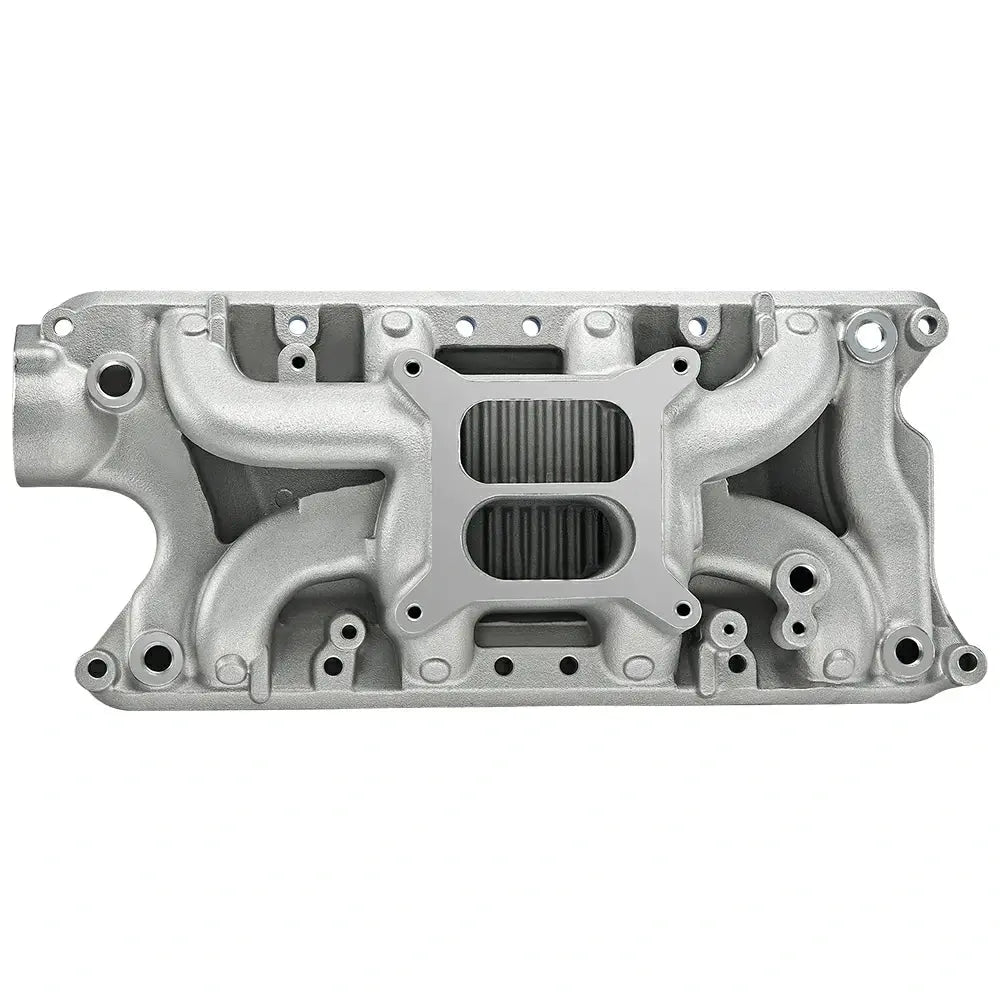

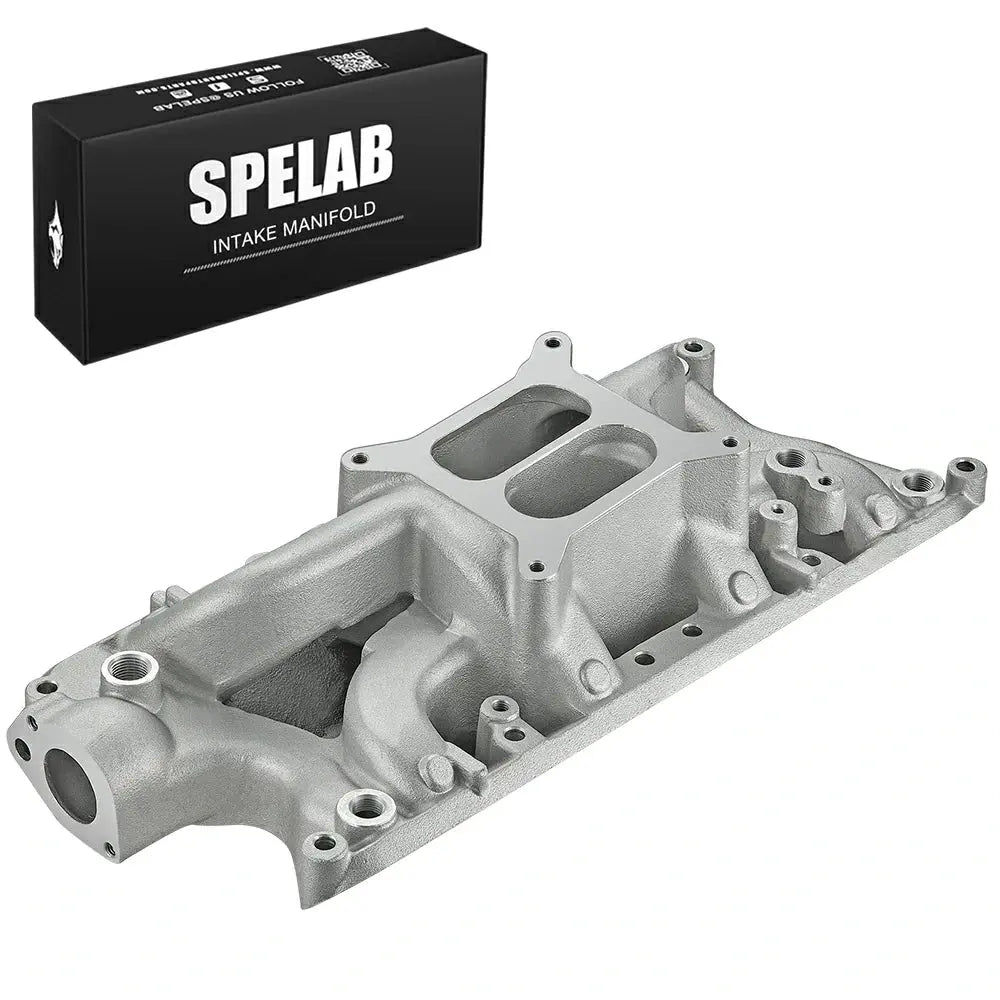

Producing power and torque comparable to single-plane manifolds, SPELAB's dual-plane air gap intake manifold retains the driveability and throttle response like other dual-planes and performs best between 1,500 and 6,500 rpm. Its improved design is complimented by an open area under the plenum. This feature ensures less heat transfer from the engine, meaning the air/fuel charge will be cooler and produce more power and torque. It is cast from lightweight aluminum and features a relatively low profile for great hood clearance. Additional provisions include dual distributor hold-downs, 4 corner water ports, nitrous bosses, and a square bore carburetor flange.
- Fits 1955-1986 Chevy small block engines
- Features dual-plane air-gap design with a black finish
Specifications
| ENGINE BLOCK STYLE | OEM Standard Deck |
| CARBURETOR QUANTITY | 1 |
| INTAKE STYLE | Dual Plane |
| BASIC OPERATING RANGE | 1,500 to 6,500 RPM |
| MANIFOLD HEIGHT | 4.65" |
| MANIFOLD MATERAL | Aluminum |
| MANIFOLD FINISH | Satin |
| EGR | No |

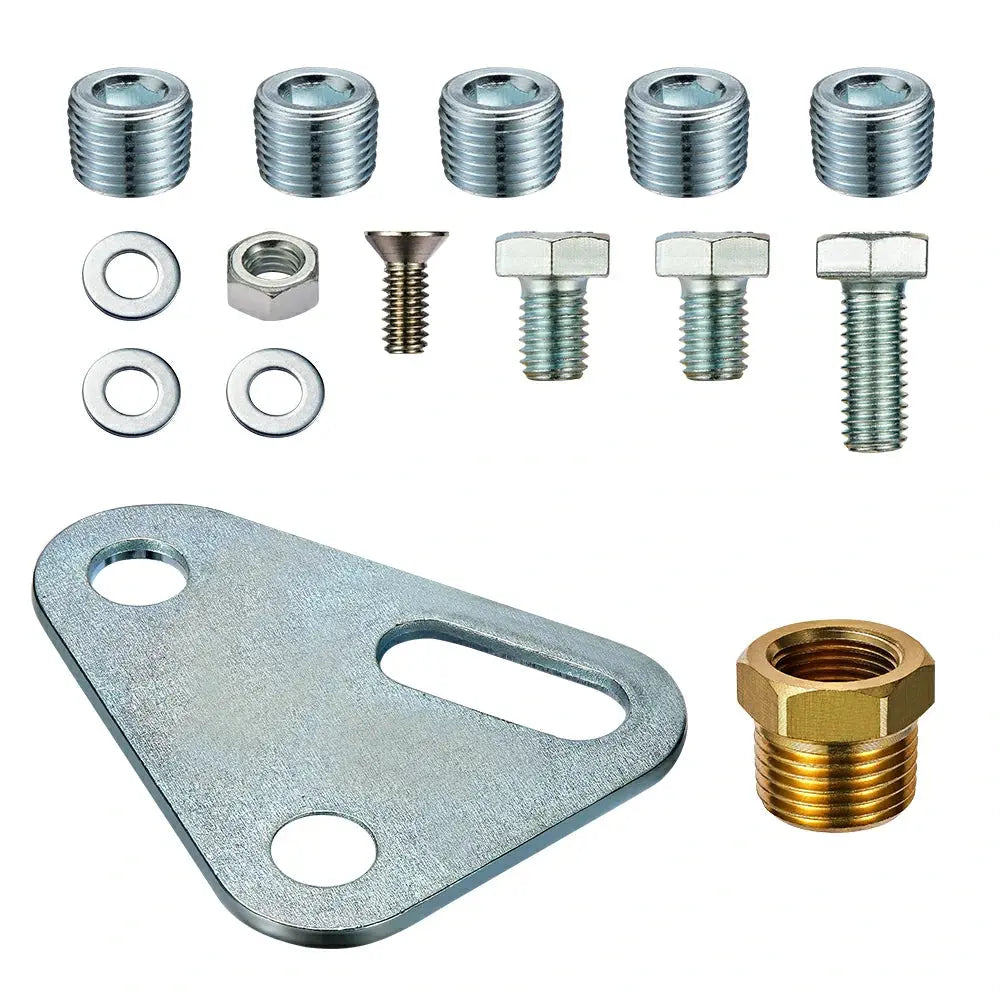

| INCLUDED | Water Port Block-offs |
| EGR Adapter | |
| Throttle Bracket Adapter Plate Kit |
Fitment
FORD SMALL BLOCK WINDSOR V8
- 3.6 L / 221 in3
- 4.3 L / 260 in3
- 4.7 L / 289 in3
- 4.9 L / 302 in3 generally referred to as 5.0 L
NOTES
- Will not fit 255, Boss 302, or 351W
- Manifold is stock replacement and street legal for 289 engines with OEM carb from 1965-1966
ALERT
FAQ
Q1: What engines is the SPELAB Dual Plane Air Gap Intake Manifold compatible with?
A1:
The SPELAB Dual Plane Air Gap Intake Manifold is designed for Ford Small Block Windsor V8 engines, including the following engine displacements:
- 3.6L / 221 in³
- 4.3L / 260 in³
- 4.7L / 289 in³
- 4.9L / 302 in³ (commonly referred to as 5.0L).
Note: This manifold is not compatible with the 255, Boss 302, or 351W engines.
Q2: What is the basic operating RPM range of the SPELAB Dual Plane Intake Manifold?
A2:
The SPELAB Dual Plane Air Gap Intake Manifold performs best in the 1,500 to 6,500 RPM range. This makes it ideal for street and performance applications, offering great throttle response and power delivery within this range.
Q3: Does this intake manifold feature any heat-reducing design elements?
A3:
Yes, the SPELAB Dual Plane Air Gap Intake Manifold features an air-gap design with an open area under the plenum. This design minimizes heat transfer from the engine, ensuring that the air/fuel mixture remains cooler, which helps improve power and torque output.
Q4: What is the material and finish of the SPELAB Dual Plane Intake Manifold?
A4:
The SPELAB Dual Plane Air Gap Intake Manifold is cast from lightweight aluminum for durability and performance. It is finished with a satin surface treatment, which enhances the appearance and provides added protection against corrosion.
Q5: Is this intake manifold street legal?
A5:
Yes, the SPELAB Dual Plane Air Gap Intake Manifold is street legal for 289 engines with an OEM carburetor from the 1965-1966 model years. It is designed as a stock replacement part for these specific applications, but it is legal for off-road use only on other vehicles.
