Intake Manifold For Dual PLane - GM LS1/LS2/LS6 | SPELAB
Carbureted LS Manifolds

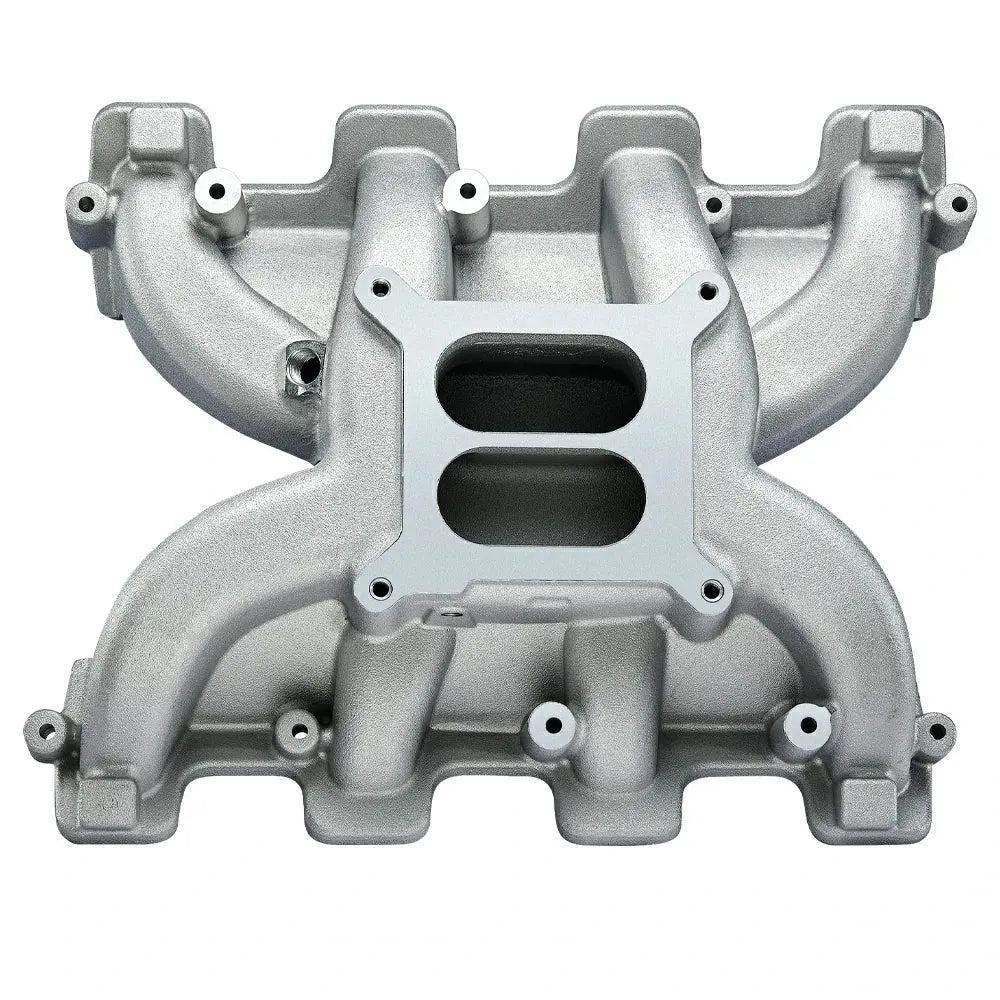

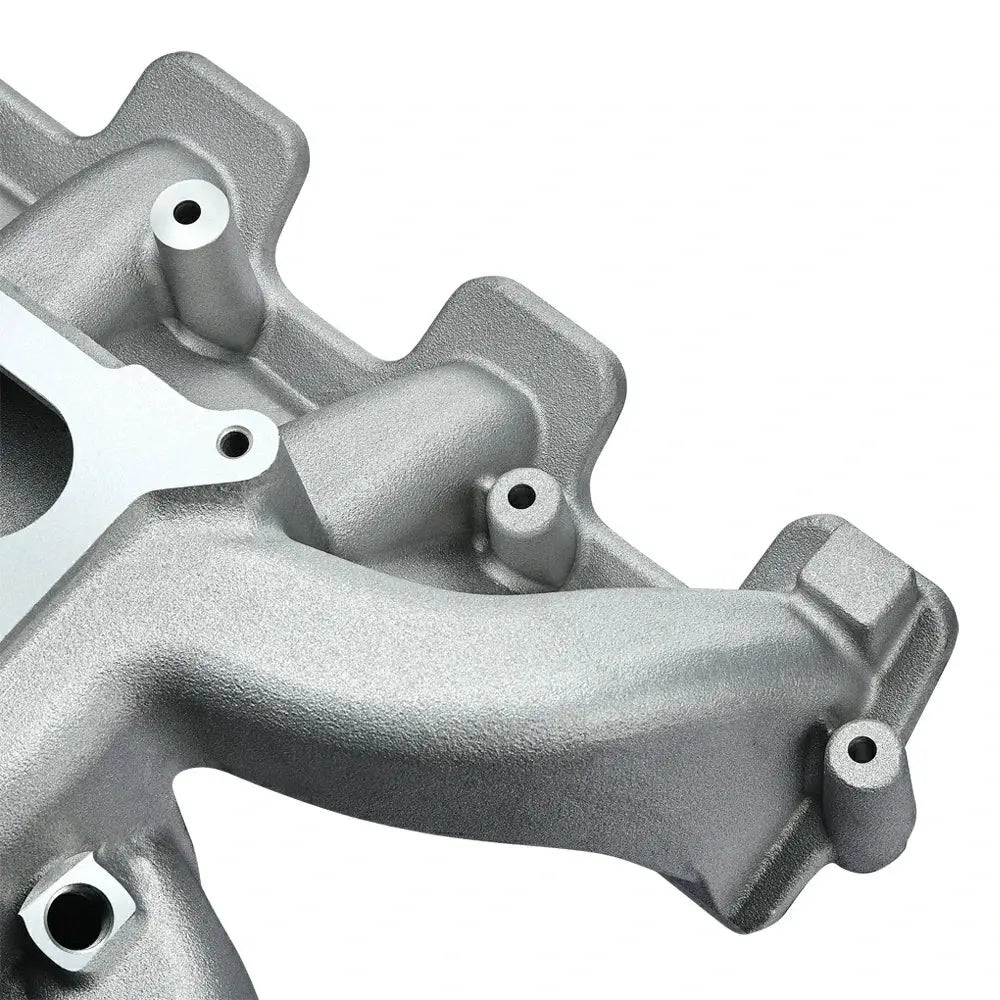

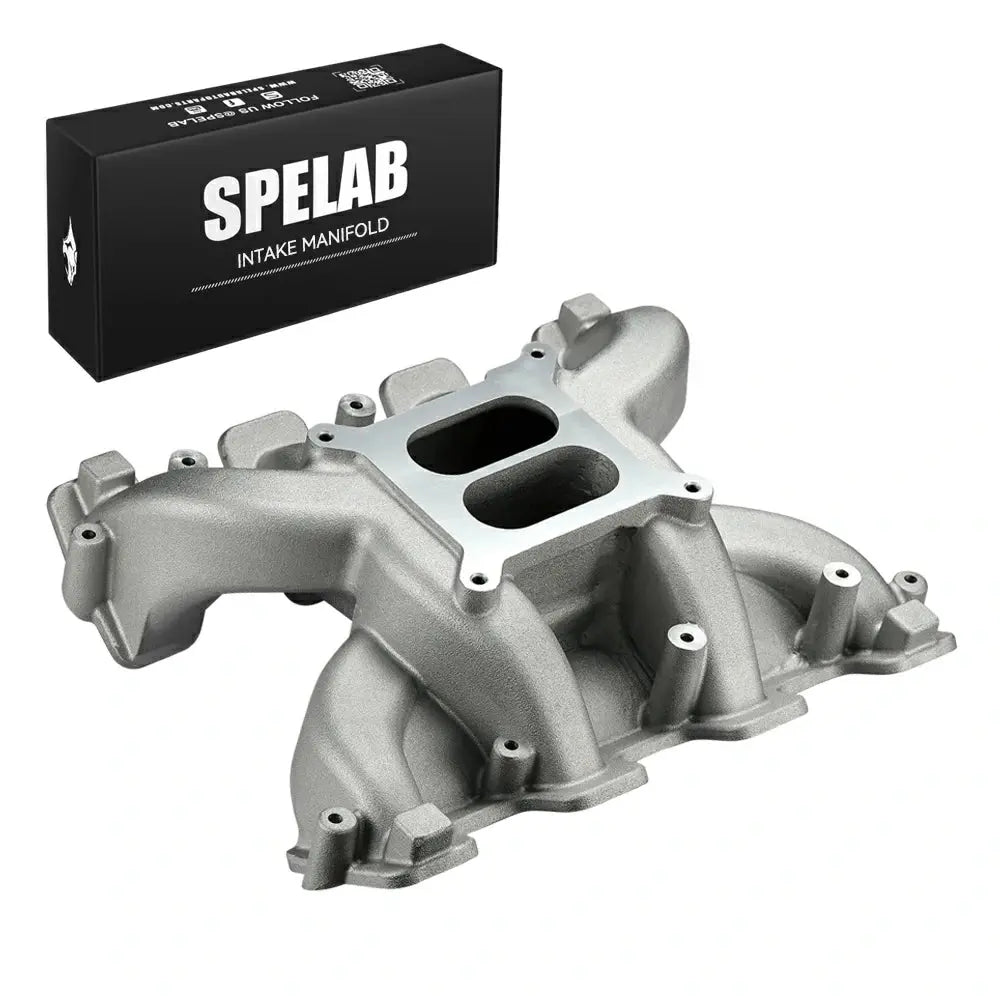

This powerful manifold is designed for the popular Chevrolet LS1 5.7L small-block V8 originally used in 1997-Up Corvette and 1998-2002 Camaro/Firebird. It also fits the Corvette LS6 and Gen III LR4 4.8L, LM7 5.3L, and LQ4 6.0L engines. For maximum power and a broad torque curve from 1500-6500 RPM, this manifold allows the use of a carburetor on these originally computer-controlled engines. It made 410 HP and 418 ft/lbs TQ in dyno tests with camshaft 350-2215 and carburetor 350-1413.
Installation Notes

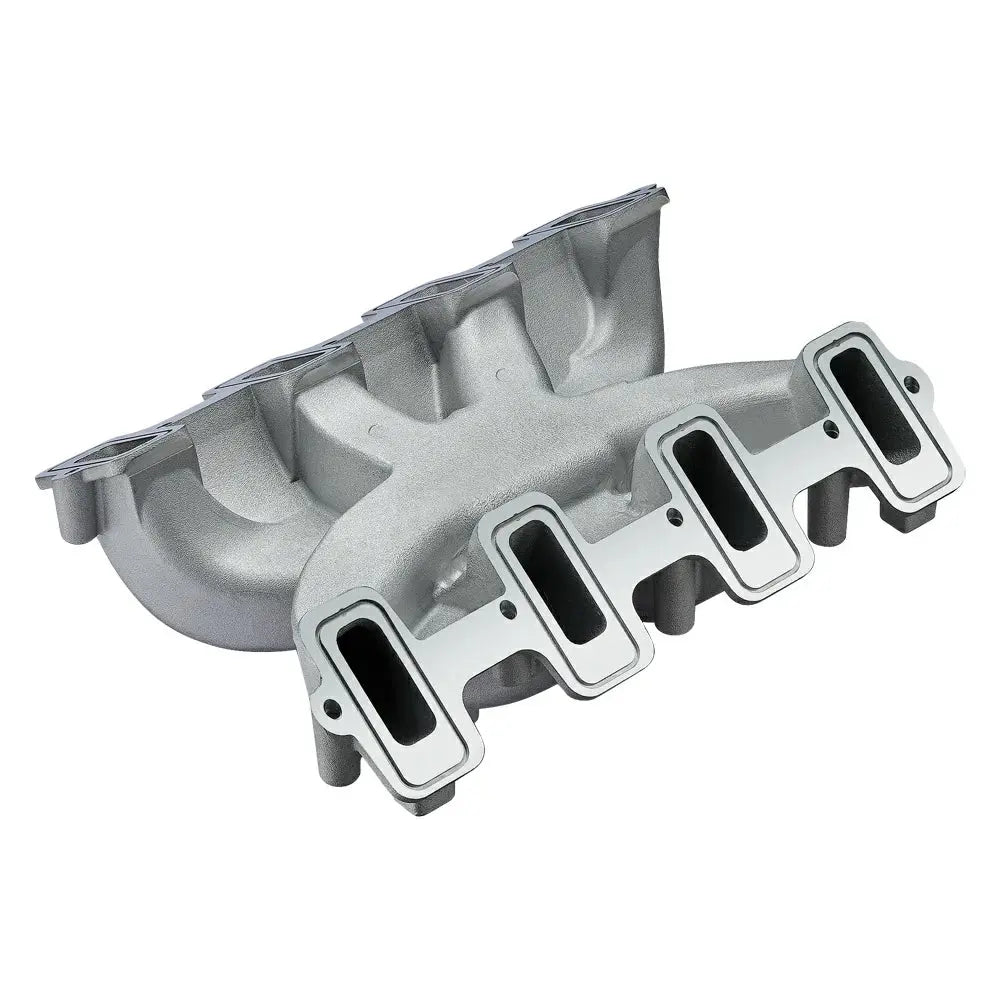

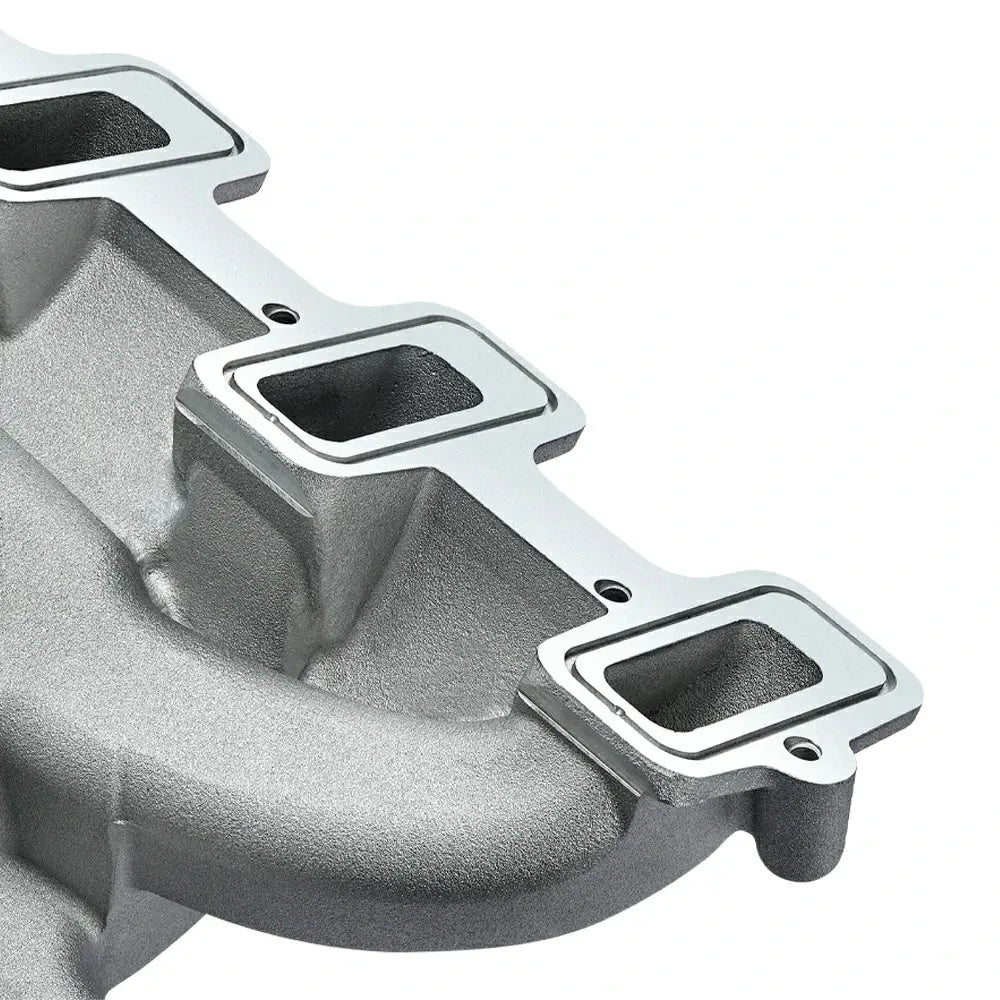

- Port Exit Dimensions: .98" Wide x 2.72" Tall

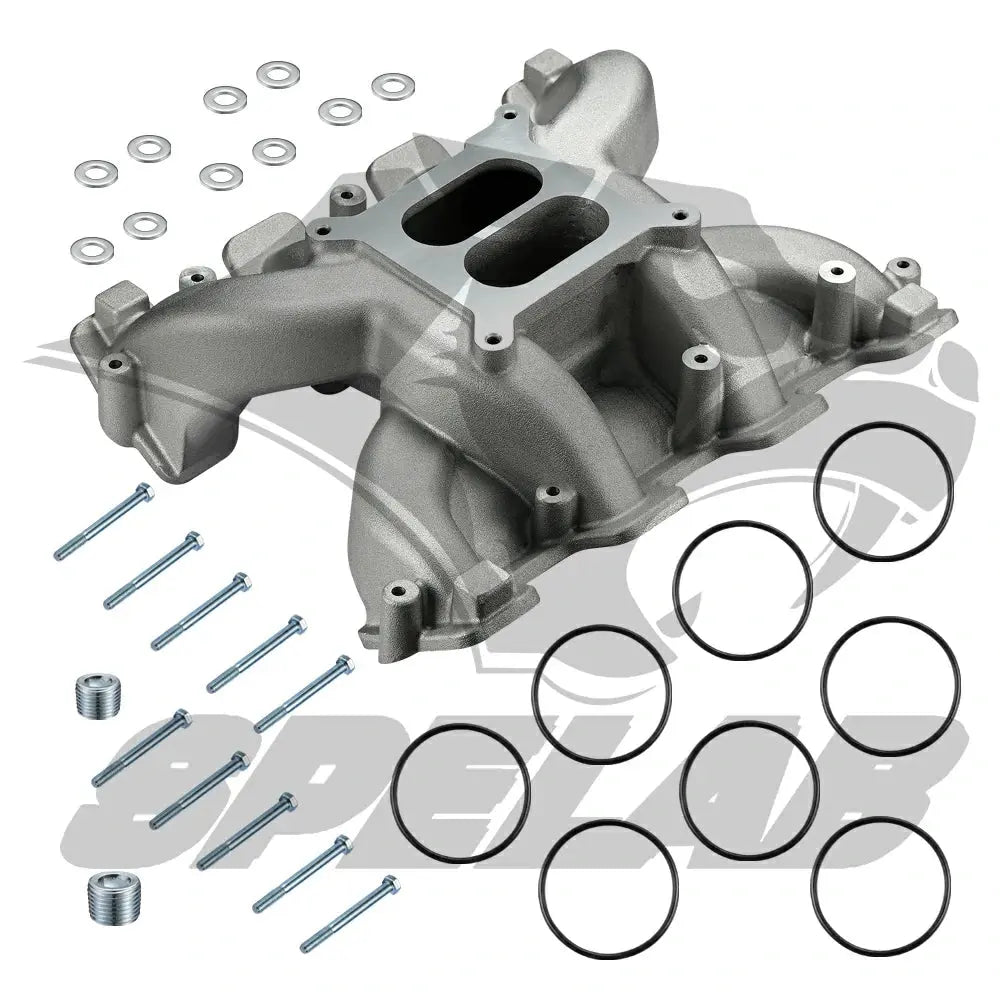

- Uses LS1/LS6-style individual port O-ring seals
- Recommended intake gasket; 555-210800
- Manifold Height: (A) 4.50" , (B) 5.40"; Carb pad height: 4.95"
- View Manifold ''A/B'' Measurement Guide.
- Intake manifold only
- Use with 350-8029 throttle cable/transmission kickdown cable bracket compatible with TH350, 200R-4 & TH700R-4 transmissions
- LS1(24x) applications can be identified by the rear mounted cam position sensor that is black in color
- LS2(58x)applications can be identified by the timing cover mounted cam position sensor that is grey in color
Specifications:
| Part Type | Intake Manifold |
| Position | N/A |
| Engine Make/Size | Chevy Small Block |
| RPM Range | 1500-6500 |
| Emission | Without EGR |
| EGR | Without EGR |
| Carburetor Quantity | One |
| Cylinder Head Type | Standard |
| Engine Block Style | Stock/OEM standard Deck |
| Engine Block Style | Stock/OEM standard deck |
| Basic Operating RPM Range | 1,500-6,500 |
| Intake Finish | Natural |
| Intake Material | Aluminum |
| Intake Style | Dual plane |
| Number Of Carbs | One |
| Intake Section Included | Complete |
| Manufacturer's Part Number: | 71187 |
| Shipping Weight: | 20.5 |
| Package Height: | 23.5 |
| Package Depth: | 16.4 |
| Package Width: | 9.4 |
| Part Category: | Performance Parts |
Fitments：
Chevrolet Corvette 2007 Base Convertible 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV
Chevrolet Corvette 2007 Base Hatchback 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV
Chevrolet Corvette 2006 Base Convertible 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV
Chevrolet Corvette 2006 Base Hatchback 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV
Cadillac CTS 2005 V Sedan 4-Door 5.7L 346Cu. In. V8 GAS OHV
Chevrolet Corvette 2005 Base Convertible 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV
Chevrolet Corvette 2005 Base Hatchback 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV
Cadillac CTS 2004 V Sedan 4-Door 5.7L 346Cu. In. V8 GAS OHV
Chevrolet Corvette 2004 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2004 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2004 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2004 Z06 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2003 50th Anniversary Edition Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chvrolet Corvette 2003 50th Anniversary Edition Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet orvette 2003 50th Anniversary Edition Pace Car Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2003 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2003 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2003 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2003 Z06 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2002 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2002 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2002 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2002 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2002 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2002 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2002 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2002 Z06 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2001 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2001 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2001 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2001 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2001 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2001 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2001 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2001 Z06 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2000 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2000 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2000 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 2000 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2000 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2000 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 2000 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 1999 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 1999 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 1999 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 1999 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1999 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1999 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1999 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 1998 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 1998 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 1998 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Camaro 1998 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1998 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1998 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1998 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1998 Indianapolis 500 Pace Car Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1998 Indianapolis 500 Pace Car Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1997 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV
Chevrolet Corvette 1997 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV
