6.7 Powerstroke CCV Delete Pros and Cons: Reroute, Risks & OEM Filter

Updated on May 12, 2026.

If you own a Ford Super Duty with a 6.7-liter Powerstroke engine, you may have heard about performing a CCV delete or CCV reroute. But what does that actually mean, and is it really worth doing?

In simple terms, the CCV system handles crankcase blow-by gases and oil vapor. A 6.7 Powerstroke CCV reroute kit with catch can changes how those vapors are managed, with the goal of keeping oil mist out of the intake system.

Before going further, it is important to separate three terms: OEM crankcase vent filter replacement, CCV reroute, and full CCV delete. They are often discussed together, but they are not the same. Replacing the OEM filter keeps the factory system. A CCV reroute changes where crankcase vapors travel and often uses a catch can to separate oil mist. A full CCV delete or vent-to-atmosphere setup removes or bypasses the factory path and can create more legal, warranty, odor, and inspection concerns.

This guide breaks down the real pros and cons of a 6.7 Powerstroke CCV delete or reroute, including intake oil buildup, catch cans, street legality, warranty risk, oil smell, check-engine-light concerns, and which owners should avoid this modification.

What Does the CCV System Do on a 6.7 Powerstroke?

The CCV system, short for Crankcase Ventilation system, is designed to manage blow-by gases that escape past the piston rings during normal engine operation. These gases can carry oil vapor, moisture, hydrocarbons, and other contaminants from the crankcase.

On a factory 6.7 Powerstroke, the CCV system routes crankcase vapors back through the intake path so they can be processed through the engine instead of being released directly into the atmosphere. This helps the truck meet emissions requirements and keeps the system closed.

Over time, crankcase vapor can carry oil mist back into the intake tract. On a high-mileage or heavily worked diesel truck, that oil mist may contribute to oily residue around intake boots, charge pipes, the turbo inlet, and intercooler plumbing. That is why many 6.7 Powerstroke owners look at CCV reroute or catch-can-style solutions—not primarily for big horsepower gains, but to keep the intake system cleaner over time.

CCV Delete vs CCV Reroute vs OEM CCV Filter Replacement

There is often confusion between a CCV delete and a CCV reroute. A CCV delete usually refers to removing or bypassing the factory crankcase ventilation path. A CCV reroute usually redirects crankcase vapor through another path and may include a catch can or oil separator to trap oil droplets before they reach the intake system.

The third option is not a modification at all: replacing the OEM crankcase vent filter. This keeps the factory system in place and is usually the lowest-risk approach for warranty trucks, emissions-compliant daily drivers, or owners who do not want odor, inspection, or warranty concerns.

How Does a 6.7 Powerstroke CCV Reroute Work?

A CCV reroute changes the path of crankcase blow-by gases so oil vapor is not sent directly back through the factory intake path. In many setups, the vapor is routed through a catch can or oil separator that helps collect oil mist before it can contaminate the turbo inlet, intercooler piping, or intake tract.

A full CCV delete or vent-to-atmosphere setup is different. Instead of separating and managing the vapor, it may vent crankcase gases externally. That approach can create stronger emissions, odor, oil residue, and warranty concerns, especially on street-driven trucks.

Pros of a 6.7 Powerstroke CCV Reroute

Using a CCV reroute kit can offer several maintenance and reliability-focused benefits for a 6.7 Powerstroke, especially when the truck is high-mileage, used for towing, or already modified.

• Cleaner Turbo Inlet, Intercooler Pipes, and Intake Tract: The biggest reason owners consider a CCV reroute is to reduce oil vapor from entering the intake system. Less oil mist can mean less oily residue around the turbo inlet, charge pipes, intercooler boots, and intake tract.
• Less Oil Seepage Around Intake Boots: Many diesel owners first notice CCV-related oil vapor when they see oily film or seepage around intercooler boots and charge pipe connections. A properly designed reroute or catch can setup can help reduce that mess.
• Better Long-Term Intake Cleanliness: On trucks that tow, idle for long periods, or have higher mileage, keeping oil mist out of the intake can help maintain a cleaner airflow path over time.
• More Useful for Worked or Modified Trucks: Trucks that tow heavy, run higher boost, or see hard use may benefit more from controlling crankcase vapor than a lightly used stock daily driver.
• Can Reduce Some Factory CCV Filter Maintenance Concerns: Depending on the setup, a reroute may reduce some of the maintenance concerns associated with the factory crankcase vent filter, although it introduces its own maintenance needs such as draining a catch can.
• More Room for Inspection or Other Engine Bay Work: Rerouting or simplifying parts of the CCV plumbing may make certain engine bay areas easier to inspect or service, depending on the kit layout.

Cons and Risks of a 6.7 Powerstroke CCV Delete

A CCV reroute or delete is not a free upgrade. It changes how the engine manages crankcase vapors, so it should be treated as a real system modification, not just a cosmetic part.

• Emissions and Street-Legal Risk: For street-driven trucks in the U.S., removing, bypassing, or disabling emissions-related equipment may be considered tampering under the Clean Air Act. A full CCV delete or vent-to-atmosphere setup should be checked against federal, state, and local emissions rules before installation. You can review the EPA's aftermarket defeat device and tampering guidance here: EPA aftermarket defeat devices and tampering guidance.
• Warranty and Dealer Inspection Risk: A modified crankcase ventilation system may affect factory powertrain or emissions warranty coverage, especially if a related engine, turbo, emissions, or crankcase pressure issue appears later.
• Oil Smell and Engine Bay Residue: Vent-to-atmosphere setups may create oil smell at idle, low speed, or when parked after towing. Poor hose routing can also leave oily residue under the hood or along the frame.
• Possible Check Engine Light or DTC Issues: Depending on model year, sensor handling, hose routing, and kit design, an incorrect install can trigger crankcase ventilation-related codes or a check engine light.
• Crankcase Pressure Problems: A poorly designed, kinked, restricted, or blocked hose can create abnormal crankcase pressure. That can contribute to leaks, gasket issues, oil seepage, or other drivability concerns.
• Catch Can and Cold Weather Maintenance: A catch can setup must be drained and inspected. In cold climates, condensation and hose routing should be watched carefully to avoid restriction or freezing concerns.

Will a 6.7 Powerstroke CCV Delete Cause a Check Engine Light?

It depends on the truck’s model year, sensor layout, kit design, and installation quality. Some 6.7 Powerstroke trucks monitor crankcase ventilation behavior, so a disconnected sensor, blocked hose, incorrect cap, or poor routing may trigger a check engine light or crankcase ventilation-related diagnostic trouble code.

Before installing any CCV reroute or delete kit, confirm the exact fitment for your model year and check whether the kit retains the required sensor connections. If your truck is a daily driver or still under warranty, this is one of the most important things to verify before modifying the system.

Who Should Consider a 6.7 Powerstroke CCV Reroute?

A CCV reroute is not necessary for every truck, but it can make sense in certain real-world use cases.

• Owners with high-mileage 6.7 Powerstroke trucks showing oil residue around intake boots or charge pipes.
• Trucks used for towing, hauling, long idle hours, or hard work.
• Modified or tuned trucks where long-term intake cleanliness matters.
• Owners outside factory warranty who understand the emissions and inspection risks.
• Drivers willing to inspect hoses and maintain or drain a catch can when needed.

Who Should Avoid a Full CCV Delete?

A full CCV delete or vent-to-atmosphere setup is where the risk goes up. It may not be a good fit for the following owners:

• Street-driven trucks in strict emissions inspection areas.
• Trucks still covered by factory powertrain or emissions warranty.
• Owners who do not want oil smell, oily residue, or extra maintenance.
• Drivers expecting a noticeable horsepower gain from the CCV modification alone.
• Anyone who cannot confirm sensor compatibility and model-year fitment before installation.

OEM Alternative: Replacing the 6.7 Powerstroke Crankcase Vent Filter

Not every owner needs a CCV delete or reroute. For warranty trucks, emissions-compliant daily drivers, and owners who want the lowest-risk maintenance path, replacing the OEM crankcase vent filter is the factory-style option.

Ford’s owner information for the 6.7L diesel includes a crankcase vent filter element replacement procedure. Ford also states that the filter element should not be cleaned or reconditioned, and that operating without a filter element or with an unapproved filter element may result in turbocharger, exchanger, or engine damage that may not be covered by warranty. You can review Ford’s owner information here: Ford 6.7L diesel crankcase vent filter information.

That means the safest decision depends on your use case. If your truck is still under warranty or used in an emissions-inspection area, OEM filter replacement may be the better first step. If your truck is high-mileage, used hard, or already outside warranty, a properly installed CCV reroute with oil separation may be worth considering.

When to Consider a SPELAB 6.7 Powerstroke CCV Reroute Kit

If your truck is high-mileage, used for towing, or showing oil residue around the intake boots or charge pipes, a properly routed CCV reroute kit with oil separation may be worth considering. This article explains the trade-offs; the product page should be used to confirm fitment, included parts, pricing, and installation notes before ordering.

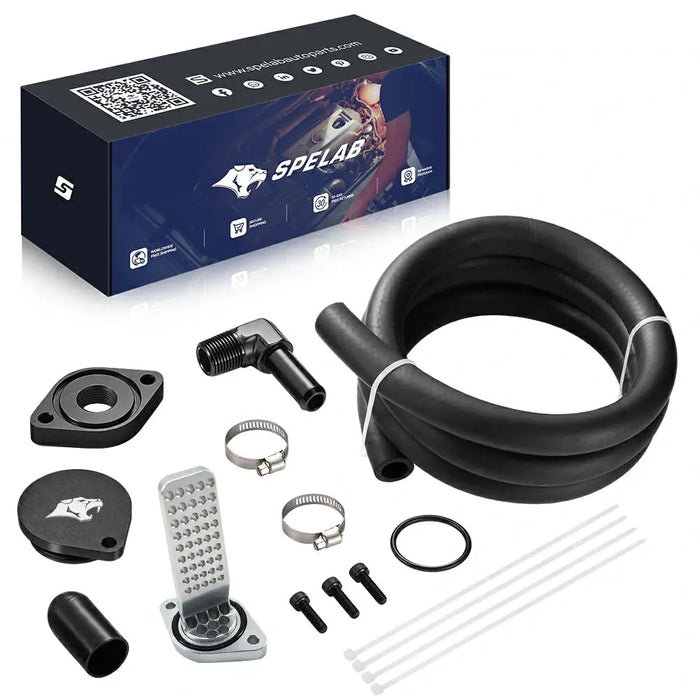

View the SPELAB 6.7 Powerstroke CCV reroute kit with catch can

For related options, you can also browse SPELAB’s CCV PCV reroute kit collection, but use the product page above to confirm the specific 6.7 Powerstroke kit fitment and included parts.

For installation reference, see the SPELAB 6.7 Powerstroke CCV reroute kit instruction page:
https://www.spelabautoparts.com/pages/spelab-11-20-6-7l-powerstroke-ccv-reroute-kit-installtion-instruction

Installation Tips Before You Start

A CCV reroute is not the hardest job on a 6.7 Powerstroke, but it does require clean routing and attention to detail. Before you start, check the following:

• Confirm model-year fitment: Do not assume every 6.7 Powerstroke uses the same sensor layout or hose routing.
• Check local emissions rules: Street-driven trucks may be subject to federal, state, and local restrictions.
• Plan hose routing carefully: Avoid kinks, low spots, heat sources, and moving components.
• Watch crankcase pressure: Poor routing or restriction can create pressure issues and leaks.
• Maintain the catch can: Drain and inspect it regularly, especially in cold weather or towing use.
• Keep OEM parts: If you ever need warranty service, inspection, or resale, keeping original components can be helpful.

Conclusion

A 6.7 Powerstroke CCV reroute can be a useful upgrade for owners who want to reduce oil vapor contamination in the turbo inlet, intercooler piping, intake boots, and intake tract. It is especially worth considering on high-mileage, towing, or modified trucks where long-term intake cleanliness matters.

However, a full CCV delete is not the right choice for every truck. Street legality, warranty coverage, oil smell, check-engine-light risk, and crankcase pressure control all need to be considered before installation. For warranty trucks or emissions-compliant daily drivers, replacing the OEM crankcase vent filter may be the safer first step.

Final Verdict: A CCV reroute with a catch can can make sense for high-mileage, towing, or modified 6.7 Powerstroke trucks where intake cleanliness is a priority. But a full CCV delete is not the right choice for every owner. Street legality, warranty coverage, oil smell, check-engine-light risk, and crankcase pressure control should all be reviewed before installation.

FAQs About 6.7 Powerstroke CCV Delete and Reroute

Q1: What does a CCV delete do on a 6.7 Powerstroke?

A1: It changes how crankcase blow-by gases and oil vapor are handled. Instead of routing oil vapor back into the intake path, a delete or reroute sends it through another path to reduce intake oil contamination.

Q2: Is a CCV delete the same as a CCV reroute?

A2: No. A full CCV delete may vent crankcase vapor externally, while a CCV reroute typically redirects the vapor and may use a catch can to separate oil mist. A reroute is usually the more practical option for owners focused on intake cleanliness.

Q3: Is a 6.7 Powerstroke CCV delete legal for street use?

A3: It depends on the design and where the truck is used, but a full delete or vent-to-atmosphere setup can create emissions compliance issues for street-driven trucks. Always check federal, state, and local rules before installation.

Q4: Will a CCV delete void my warranty?

A4: It may affect warranty coverage, especially if a related engine, turbo, emissions, or crankcase ventilation issue appears after the modification. Warranty trucks should consider OEM crankcase vent filter replacement first.

Q5: Will a 6.7 Powerstroke CCV delete throw a check engine light?

A5: It can, depending on model year, sensor handling, hose routing, and kit design. A disconnected sensor, blocked hose, incorrect cap, or poor routing may trigger crankcase ventilation-related codes.

Q6: Does a CCV reroute add horsepower?

A6: Not usually in a noticeable way. A CCV reroute is better viewed as a preventive maintenance upgrade that helps keep the intake system cleaner over time, not a major horsepower modification.

Q7: Does a CCV reroute help with oil in intercooler boots?

A7: It can help reduce oil vapor entering the intake tract, which may reduce oily residue around charge pipes, intercooler boots, and intake connections.

Q8: How often should I drain a CCV catch can?

A8: Drain intervals depend on truck use, engine condition, climate, towing load, and idle time. Check it more often after installation until you understand how much oil and condensation your truck collects.

Q9: Should I replace the OEM CCV filter instead?

A9: If your truck is still under warranty, used on public roads in a strict emissions area, or you want the lowest-risk maintenance path, replacing the OEM crankcase vent filter may be the better first step.

Q10: Who should avoid a full CCV delete?

A10: Owners in strict emissions-inspection areas, trucks under factory warranty, daily drivers needing full compliance, and drivers who do not want oil smell or extra maintenance should avoid a full vent-to-atmosphere delete.
