Updated on January 7 2026 by John Lee
TL;DR: The valve cover gasket keeps oil inside your engine. Common signs of failure include burning oil smells and visible leaks. Replacement costs 350. For Dodge Hemi/Cummins owners, factory plastic covers often warp—upgrading to aluminum valve covers is highly recommended to prevent recurring leaks.
Introduction
The valve cover gasket is a small, yet essential component of your engine's defense system. While it seals the top of the engine, its failure can lead to messy oil leaks and critical engine issues. Sitting between the valve cover and the cylinder head, this gasket ensures oil stays inside the engine to lubricate the rocker arms and valves, while keeping dirt and debris out.
In this comprehensive guide, we will dive deep into valve cover gaskets: identifying types, diagnosing leaks (vs. head gasket leaks), step-by-step replacement tips for DIYers, and why upgrading your valve covers might be the permanent fix you need.
Types of Valve Cover Gaskets: Which is Best?
Not all gaskets are created equal. Depending on your vehicle's age and performance level, you might encounter different materials:
- Cork Gaskets: Common on vintage cars. They are affordable but tend to dry out, shrink, and become brittle, leading to leaks over time.
- Rubber Gaskets: The industry standard for most modern vehicles. They are durable and offer excellent sealing properties but can harden after years of heat cycling.
- Silicone Gaskets: Highly flexible and heat-resistant. Ideally suited for high-performance engines or boosted applications where temperatures run high.
- Composite Gaskets: A blend of materials offering structural rigidity and sealing flexibility.
Pro Tip: On engines like the Dodge Hemi 5.7L or 6.4L, the factory plastic valve covers often warp over time, causing the gasket to fail repeatedly. In this case, simply changing the gasket won't fix the issue—upgrading to Billet Aluminum Valve Covers provides a flat, rigid sealing surface that prevents future leaks.
Functions: More Than Just a Seal
Despite its simple appearance, the valve cover gasket serves three critical roles:
- Sealing & Containment: It keeps motor oil inside the top of the engine where it lubricates the camshafts and valves.
- Contamination Prevention: It stops road grime, dust, and moisture from entering the delicate valve train.
- Vacuum Maintenance: It helps maintain the engine's internal vacuum pressure (PCV system), which is vital for engine efficiency.
Valve Cover Gasket vs. Head Gasket: Knowing the Difference
Many car owners confuse these two, but they are very different issues:
- Valve Cover Gasket Leak: Usually results in oil leaking externally down the side of the engine or onto the exhaust manifold (causing a burning smell). It is generally a minor, affordable repair.
- Head Gasket Leak: Occurs lower down, between the cylinder block and cylinder head. Symptoms include white exhaust smoke, milky oil, and overheating. This is a major, expensive mechanical failure.
Signs of a Leaking Valve Cover Gasket
If you notice any of these symptoms, check your valve covers immediately:
- Burning Oil Smell: This is the most common sign. Leaking oil drips onto the hot exhaust manifold, creating a distinct acrid smoke and smell.
- Visible Oil Stains: Look for "wet" patches or sludge buildup around the edges of the valve cover or on the spark plug tubes.
- Engine Misfires: If oil leaks internally into the spark plug tubes (common on OHC engines), it can foul the spark plugs and cause a misfire.
- Low Engine Oil Levels: While slow, a persistent leak will cause your oil level to drop between changes.
Common Causes of Gasket Failure
Why do these gaskets fail? usually, it's a combination of:
- Heat Cycling: The constant heating up and cooling down of the engine causes rubber gaskets to harden and lose flexibility.
- Warped Valve Covers: Plastic valve covers (common on Dodge, BMW, and Nissan) can warp due to heat, creating gaps that a new gasket cannot seal.
- Over-Torquing: Tightening the bolts too much can crush the gasket or crack the valve cover.
- Clogged PCV Valve: Excess pressure in the crankcase can blow out gaskets.
How to Replace a Valve Cover Gasket (Step-by-Step)
Replacing a valve cover gasket is a manageable DIY task, but precision is key. A small mistake in cleaning or tightening can lead to a repeat leak within days. Here is the professional procedure:
- Preparation: Work on a cool engine only. Aluminum heads warp easily if bolts are removed while hot. Gather a socket set, a torque wrench (inch-pounds), a plastic scraper, brake cleaner, and RTV silicone.
- Remove Components: Unbolt ignition coils, spark plug wires, and any PCV hoses or heater lines blocking the cover. Label your connections with tape to remember where they go.
- Remove the Valve Cover: Loosen bolts from the outside moving inward. Gently tap the cover with a rubber mallet if it's stuck—do not pry with a metal screwdriver, as gouging the aluminum head will cause permanent leaks.
- Clean Surfaces (The Most Critical Step): Use a plastic scraper and brake cleaner to remove 100% of the old gasket material and oil residue. The cylinder head surface must be dry and shiny.
- Install New Gasket: Press the new gasket into the valve cover groove. Ensure it is not twisted.
- Reinstall and Torque: Place the cover back carefully. Tighten bolts in a crisscross pattern (starting from the center). Use a torque wrench to hit the spec (usually very low, around 8-10 Nm / 70-89 in-lbs).
Even with a new gasket, leaks often happen where the cylinder head meets the timing cover or camshaft arches. Always apply a small dab (pea-sized) of RTV High-Temp Silicone at these sharp corners or seams before laying down the gasket. This fills the microscopic gaps that rubber gaskets can't seal alone.
⚠️ Specific Guides for Popular Models
Different engines have unique "pain points." Here is what you need to know for the most common Dodge engines:
1. Dodge Ram 6.7L Cummins (Diesel)
- Injector Harness Caution: On the 6.7L Cummins, the fuel injector harness passes through the valve cover gasket. The nuts holding these connectors are extremely fragile. Do not over-tighten them, or you will crack the connector plastic, leading to electrical issues.
- Rear Bolt Access: The bolts near the firewall (cylinder #6) are notoriously hard to reach. Use a swivel socket and an extension to avoid stripping the bolt head.
- CCV Filter: Since the CCV filter sits on top of the valve cover, this is the perfect time to replace that filter as well, as a clogged CCV can cause high crankcase pressure and blow out your new gasket.
2. Dodge 5.7L / 6.4L Hemi (Gas)
- Spark Plug Tube Seals: The Hemi engine has spark plugs that go through the center of the valve cover. When replacing the main gasket, you must replace the circular "spark plug tube seals" as well. If these leak, oil will fill the spark plug well, causing severe engine misfires.
- The "Plastic Warp" Issue: Stock Hemi valve covers are plastic. Over 80,000 miles, heat cycles cause them to warp. If you install a new gasket on a warped plastic cover, it will leak again.

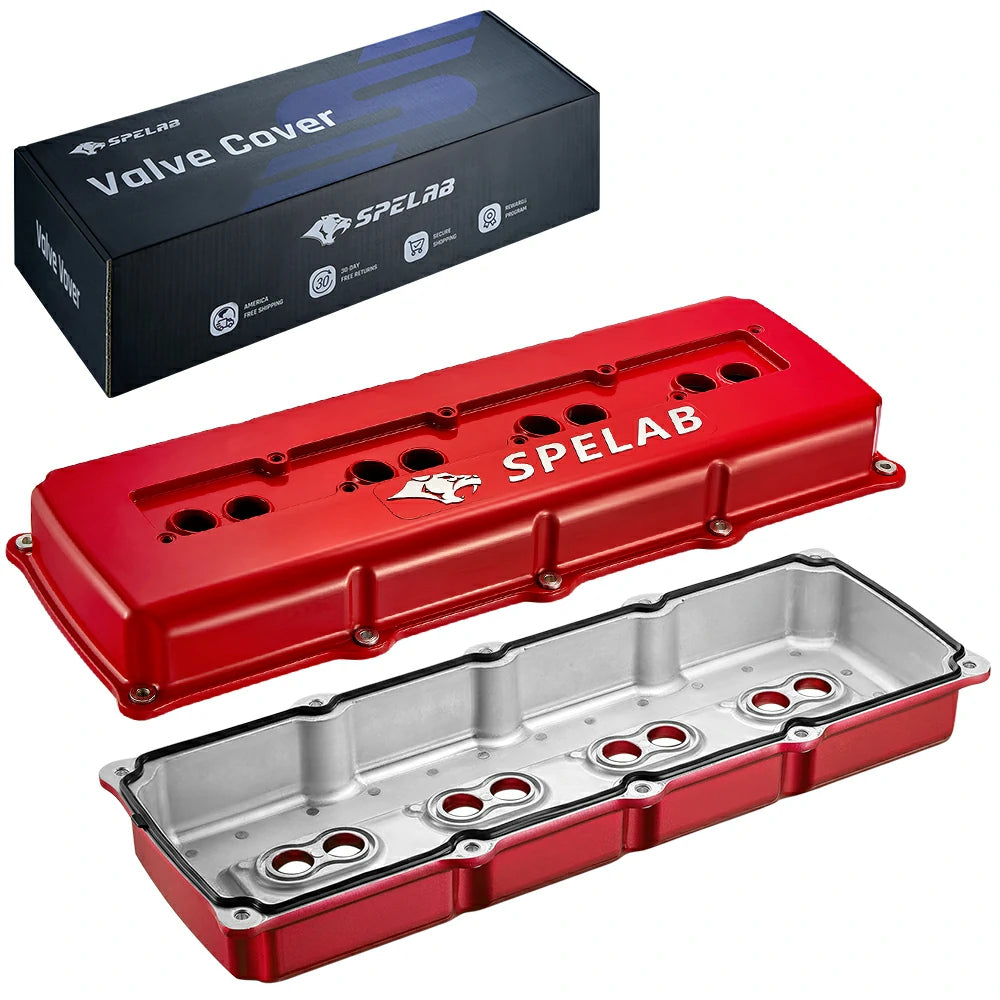

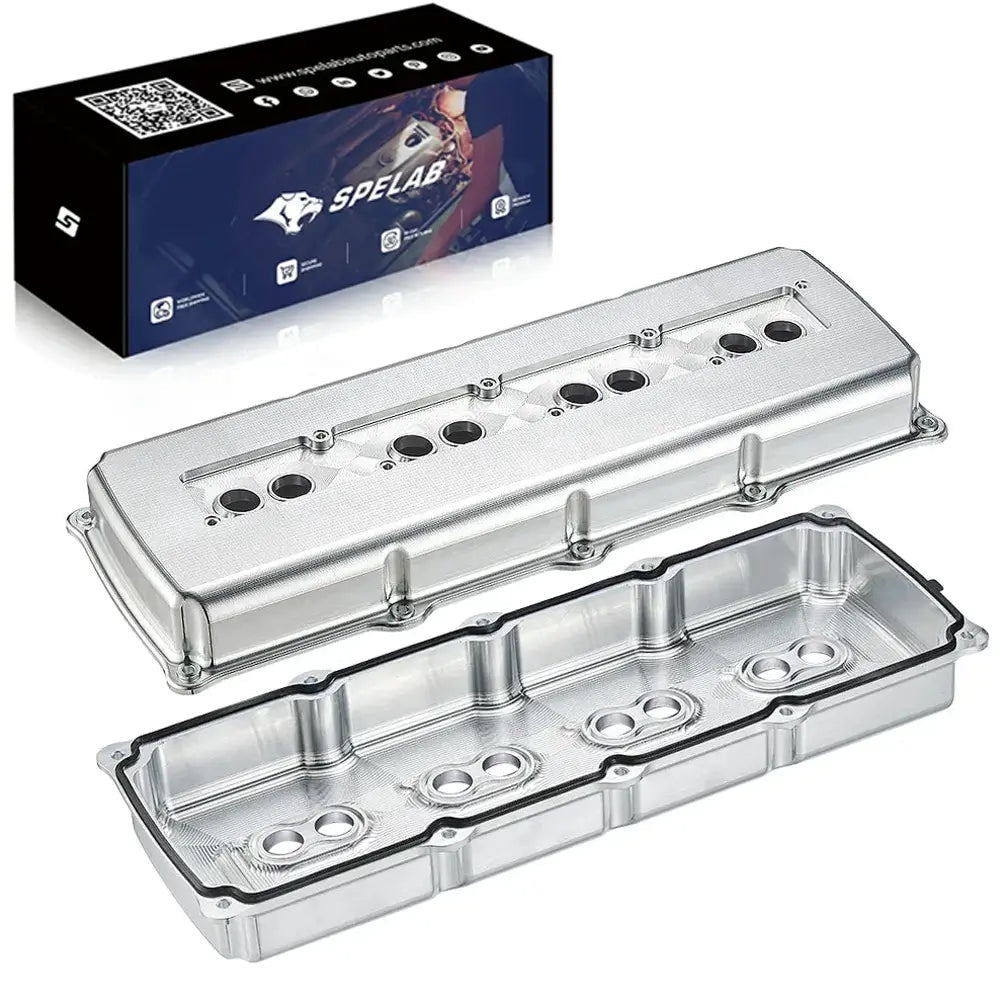

If your Dodge Hemi has over 100k miles, we strongly recommend ditching the plastic covers entirely. Upgrading to Aluminum Valve Covers ensures a flat sealing surface that won't warp, solving the leak problem permanently.
Fitment: 2006-2019 5.7L, 2005-2010 6.1L and 2011-2019 6.4L engines
Buy NowHow Much Does It Cost to Replace a Valve Cover Gasket?
If you aren't comfortable doing it yourself, here is what to expect for costs. Prices vary based on your vehicle's make (V6 and V8 engines have two gaskets, increasing labor):
- DIY Cost: $20 - $50 for the gasket set.
- Professional Shop: $120 - $350 total.
Note: If your valve cover itself is cracked (common in older plastic covers), the parts cost will increase significantly.
Conclusion
Your valve cover gasket is the silent guardian of your engine's oil system. Regular inspection of the valve cover edges for wetness can save you from low oil levels and fire hazards. If you own a vehicle known for valve cover issues, like the Dodge Hemi, consider upgrading to aluminum covers when you replace the gasket for a "one-and-done" solution.
FAQs
Q1: Is a valve cover gasket leak serious?
A1: Yes. While it starts as a minor annoyance, oil dripping onto hot exhaust parts creates a fire hazard. Furthermore, oil leaking into spark plug tubes can cause engine misfires and damage ignition coils.
Q2: How often should you replace a valve cover gasket?
A2: There is no set mileage, but they typically last 50,000 to 100,000 miles. They should be replaced whenever you adjust valves or if leaks appear.
Q3: Can I drive with a leaking valve cover gasket?
A3: You can drive for a short period if the leak is minor (seeping). However, if you smell burning oil or see smoke, you should repair it immediately to prevent fire risks or oil starvation.
Q4: Why does my new gasket still leak?
A4: This often happens because the valve cover itself is warped (plastic covers), the surface wasn't cleaned properly, or the bolts were over-tightened/under-tightened.
Q5: Valve Cover Gasket vs. Head Gasket: Which is worse?
A5: A head gasket leak is much worse. It involves internal engine sealing and is a very expensive repair. A valve cover gasket is an external oil seal and is relatively cheap and easy to fix.
Q6: How long does the replacement take?
A6: For an inline-4 cylinder engine, it may take 1 hour. For V6 or V8 engines (like the Dodge Hemi), it can take 2-4 hours due to more components being in the way.
