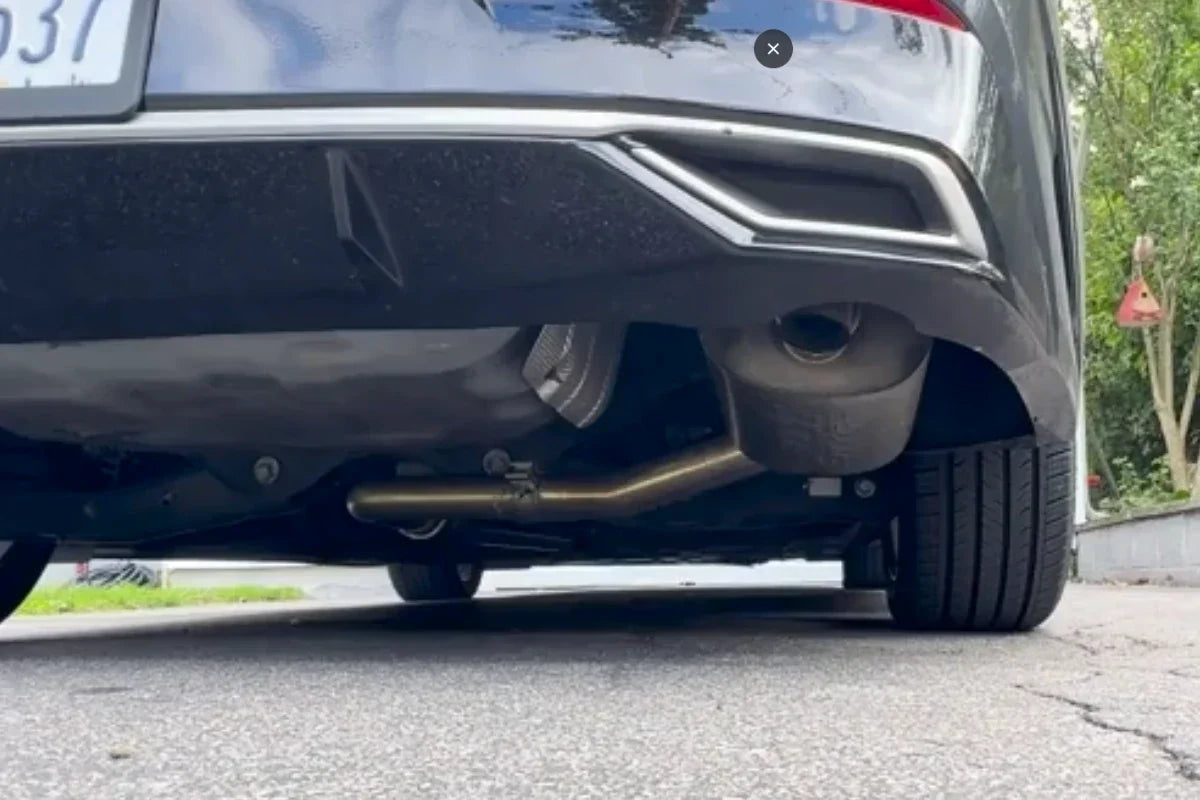

A cat-back exhaust replaces the exhaust assembly downstream of the catalytic converter, typically including connecting pipes, mufflers, and tailpipe sections. For most buyers, the main reasons to change a healthy factory system are sound, appearance, or replacement of worn components. Power gains depend on the vehicle and the restriction being removed; a louder exhaust is not proof of more horsepower.
Key Takeaways
Choose a cat-back by its fitment, retained emissions equipment, and sound under your normal driving conditions.
- Check the actual start and end points of the kit, not just the product name.
- Compare the exact engine, body style, wheelbase, and existing exhaust layout before ordering.
- Judge cabin drone during steady cruising and load, not only from idle or revving clips.
- Choose materials for corrosion exposure, budget, and repairability rather than a promised sound or power gain.
- Include hardware, installation, possible cutting, and active-valve requirements in the total cost.
Last updated:
What Parts Are Included, and What Stays on the Vehicle?
Kit contents and connection points determine what a cat-back installation changes; the vehicle-specific parts list is the buying reference.
Most cat-back exhaust systems include some combination of mid-pipes, mufflers, resonators, tailpipes, tips, clamps, and hangers. Some reuse factory hardware or omit sections that another kit includes. Compare the illustrated layout with the system already on the vehicle.
Identify every catalytic converter and sensor around the proposed connection point. A vehicle can have more than one catalyst. Do not assume that a kit beginning behind the first converter leaves all emissions hardware untouched.
What Is Different on a Modern Diesel?
A modern diesel rear-section upgrade must be identified relative to the complete aftertreatment system, including the diesel particulate filter (DPF) and selective catalytic reduction (SCR) equipment.
DPF-back and other diesel exhaust labels describe different starting points. Confirm which filters, catalysts, sensors, and dosing components remain in place. With factory aftertreatment intact, a tail-section change may produce a smaller sound difference than a gasoline-engine video suggests.
A diesel owner may still want a different outlet layout, corrosion-resistant replacement tubing, or a preferred tip finish. Retain any required factory diffuser, heat-management function, and clearances unless the replacement kit documents how those functions are accommodated.
Does a Cat-Back Exhaust Add Horsepower or Improve Throttle Response?
A cat-back can increase power when the replaced section meaningfully limits flow, but some vehicles show little or no measurable improvement.
Before buying for horsepower gains, look for before-and-after testing of the same engine and configuration. Fuel, calibration, test conditions, and other modifications need to be comparable. A claimed peak number without that context cannot predict the result on your vehicle.
A sharper sound can make acceleration feel more immediate without changing measured engine response. Turbocharging or tuning alone does not prove that the rear exhaust is the restriction.
Compare the tubing dimensions, not just the tip diameter. One SPELAB F-150 kit uses a 3-inch main pipe that splits into dual 2.5-inch outlets; its 4-inch tips do not make the entire system 4 inches. Choose the documented vehicle-specific layout rather than a universal pipe-size rule.
Mandrel bending helps preserve the cross-section through a bend. Other bending methods can change the shape, but the amount depends on tooling and geometry. Bend quality is worth comparing without assigning every factory pipe the same percentage of restriction.
How Do You Choose a Sound You Can Live With?
Exhaust comfort depends on cabin sound at your cruising speed and load, not simply how loud the vehicle sounds outside.
Compare cold starts, warm idle, acceleration, and steady-speed cabin recordings from the same engine and chassis. A phone microphone, an open window, or a different gear can change the impression. For a truck that tows, ask about sustained grades with a trailer rather than relying on a driveway rev.
Exhaust mufflers, resonators, pipe routing, and the engine's firing characteristics work together. A straight-through layout does not have one universal loudness, and a chambered muffler does not guarantee a quiet cabin.
| Choice | Typical purpose | What to verify |
|---|---|---|
| Resonated system | Control selected frequencies while shaping the exhaust note | Whether the resonator targets the frequencies that cause discomfort in this vehicle. |
| Non-resonated system | Use a different acoustic balance with fewer resonator sections | Cabin sound at steady cruise; the remaining mufflers and layout still matter. |
| Active-valve system | Provide different sound paths or modes | Factory actuator compatibility, control strategy, wiring, and operation in each mode. |
| Aftermarket cutout or bypass valve | Offer an alternate exhaust path rather than replace the full cat-back | Closed and open sound, safe outlet routing, emissions boundaries, and local noise rules. A closed valve does not guarantee zero drone. |
Cabin drone is the steady booming sound that can become tiring during a long cruise or loaded climb. Record the engine speed, gear, road speed, and load when the boom appears; the troublesome range is specific to the vehicle and exhaust. A correctly matched resonator can help, but a fixed RPM band is not a rule for every V6 or V8 truck.
Cat-Back, Axle-Back, or Muffler Delete: Which Fits Your Goal?
Choose the smallest change that addresses your goal while retaining the required emissions and noise-control equipment.
| Option | Typical replacement scope | Useful when | Main buying check |
|---|---|---|---|
| Cat-back | A broader downstream assembly with the included pipes and sound-control parts | You want a matched assembly or need to replace several worn downstream sections. | Exact boundaries, fitment, contents, and cabin sound. |
| Axle-back | The rear section near or behind the rear axle, depending on the vehicle | The existing upstream piping is suitable and the rear section provides the desired change. | Factory connection, bumper openings, and retained active valves. |
| Muffler delete | Removal or replacement of the muffler section | A particular build permits the resulting configuration. | Equipment laws and measured or demonstrated sound; it is not automatically the loudest or best-performing option. |
If appearance is the only issue, changing suitable exhaust tips may address the goal without replacing the full assembly. Check outlet size, attachment, bumper clearance, and heat exposure rather than expecting a substantial power increase from a tip.
Which Exhaust Material Makes Sense for Your Climate?
Material selection is mainly a durability, weight, and budget decision; alloy alone cannot predict the finished system's sound or performance.
| Material | Practical advantage | Trade-off |
|---|---|---|
| Aluminized steel | Often a lower-cost option | Coating damage, cut edges, welds, and salt exposure need attention. |
| 409 stainless steel | Common exhaust-grade material balancing cost and durability | Surface oxidation can appear; appearance alone does not establish structural failure. |
| 304 stainless steel | Generally better cosmetic corrosion resistance than 409 in comparable exposure | Usually costs more; weld quality, hardware, and maintenance still matter. |
For a dry-climate budget build, aluminized steel may be a practical choice. Repeated winter road-salt exposure strengthens the case for comparing 304 stainless with less corrosion-resistant options. No alloy guarantees a fixed service life or freedom from corrosion.
Check wall thickness, welds, flanges, and clamps alongside the material grade. Gauge numbers require a material-specific thickness reference; a lower gauge number alone does not establish the quality of the finished system.
How Do You Confirm Fitment Before Ordering?
Fitment requires the vehicle configuration and connection geometry to match the kit, not just the year range in the title.
For system selection, record the details below before comparing part numbers.
| Check | Why it matters |
|---|---|
| Model year, engine, body style, and drivetrain | Pipe routing, flanges, underbody space, and rear-body openings can differ. |
| Truck cab, bed length, and wheelbase | Length and hanger locations may change within one model year. |
| Inlet connection and retained emissions equipment | The flange, slip joint, diameter, and starting point must match the actual vehicle. |
| Single or dual outlet and bumper layout | Tip location must match the available openings and clearances. |
| Factory exhaust valves | Actuators, harnesses, and operating modes may need to be retained. |
| Hitch, spare tire, suspension changes, and accessories | Check clearance across the movement and operating conditions specified by the installer or kit maker. |
| Included hardware and permitted trimming | Identify reused parts, required adapters, and any specified cuts before removing the old exhaust. |
Our 2015-2019 F-150 cat-back exhaust excludes Standard Cab trucks with a 6.5-foot bed. Our 2011-2014 F-150 5.0L cat-back exhaust may require pipe trimming.
On multi-wheelbase kits, an extension section or a specified trim can adapt the assembly to different cab-and-bed combinations. Some systems use separate adapters instead. Follow the instructions for the exact part number; do not cut a fixed length based only on the difference between two wheelbase measurements. A specified straight-pipe trim is different from fabricating a new route or welding an incorrect kit into place.
Does Bolt-On Mean No Cutting, No Tune, and No Warning Light?
Bolt-on describes the intended attachment method; the installation instructions determine whether trimming, factory-hardware reuse, or valve transfer is required.
A correctly matched downstream-only system commonly works with the stock engine calibration when it leaves emissions hardware and controls unchanged. Confirm the kit's requirements rather than using a tune to conceal a new warning light or installation fault.
- Inspect the supplied parts and removal route. Compare pipes, joints, gaskets, clamps, and hangers with the parts list. An over-axle section may be difficult to remove in one piece with limited working height. Check the approved removal method before cutting the old exhaust, and identify nearby lines and wiring before any permitted cut.
- Work on a cool, safely supported vehicle. Use appropriate support equipment and never work beneath a vehicle supported only by a jack.
- Release hangers without bending their mounts. Use exhaust-hanger pliers where access permits. Apply only a rubber-compatible lubricant approved for the isolator; do not assume every penetrating oil is suitable.
- Assemble before final tightening. Leave the joints adjustable as instructed, seat the pipes, and align outlet height and projection. Check that hangers are not twisted and that the pipework is not being forced sideways.
- Verify clearances, then tighten. Check nearby wiring, lines, plastic bodywork, the spare tire, and hitch using the kit-specified clearances. Apply the tightening sequence and fastener values for the supplied clamps; different clamp designs do not share one safe torque range.
- Inspect after installation. Complete the instructed leak, valve-operation, heat-clearance, and road checks. Recheck hardware only as the manufacturer directs.
| New symptom | First evidence to gather | Next decision |
|---|---|---|
| Ticking or an abnormal puffing sound at a joint | Cold inspection, joint alignment, and suitable leak testing | Confirm the leak location before tightening or replacing parts. |
| Rattle over bumps or during engine movement | Contact marks and clearance at hangers, braces, and nearby components | Correct alignment or contact using the installation procedure. |
| Drone at steady speed | Engine speed, gear, load, cabin recording, and installed sound-control components | Discuss a matched acoustic correction rather than assuming every resonator will solve it. |
| Warning light or valve fault | Fault codes, disturbed connectors, and actuator operation | Diagnose the actual fault instead of assuming tuning is required. |
Stop driving and investigate exhaust fumes in the cabin. The absence of a smell does not establish that the cabin is safe from carbon monoxide.
What Should the Total Price Include?
Three SPELAB cat-back kits checked on October 16, 2026 had listed hardware prices from $242.99 to $499.99, excluding installation. This is a three-product sample, not a market-wide price range.
| Kit application | Listed price in USD |
|---|---|
| 2011-2014 Ford F-150 5.0L, 3-inch system | $242.99 |
| 2015-2019 Ford F-150 2.7L/3.5L/5.0L, 3-inch system | $489.90 |
| 2003-2008 Nissan 350Z, dual-tip system | $499.99 |
Compare installed cost for the same scope: kit, required hardware, labor, fabrication, valve-related parts, and any inspection or certification requirements. Ask for the quoted labor hours and shop rate separately.
Ask whether the quote includes cutting seized hardware, replacing worn hangers, adjusting outlets, or correcting an existing leak. Shipping, taxes, materials, vehicle access, and local labor rates can change the total.
Keep the stock system when practical and clarify the return policy before fitting or cutting a new kit. A suitable setup should solve the reason you are buying it without making everyday use uncomfortable.
Is a Cat-Back Exhaust Street Legal, and Does It Affect Warranty?
A cat-back product name is not a legal approval: the actual installation must preserve required emissions operation and satisfy applicable noise and equipment rules.
EPA tampering guidance addresses emissions-control hardware and software. Noise limits and inspection requirements also depend on jurisdiction. Check the rules and product documentation for the actual vehicle and location before purchase.
In the United States, fitting an aftermarket part does not by itself cancel the entire vehicle warranty. Coverage for damage caused by the part or its installation can be denied; retain the invoice and installation records. The FTC explains the distinction between aftermarket-part use and damage attributable to that part.
Frequently Asked Questions
Judge a proposed system by the actual vehicle, connection points, sound evidence, and installation requirements.
Does a cat-back remove the catalytic converter?
A conventional cat-back leaves the catalytic converters in place. Verify every catalyst and the kit's starting point because product labels alone do not establish what remains installed.
How much horsepower will a cat-back add?
Some vehicles show little or no measurable power increase from a cat-back alone. Use comparable testing of the exact engine and setup rather than budgeting for a generic horsepower range.
Will a cat-back make my truck drone while towing?
Drone depends on engine speed, load, cabin acoustics, and the exhaust design. Compare reports from the same truck configuration under towing load before choosing the sound level.
Is a resonated cat-back always quieter?
A resonator controls selected frequencies, but the complete system determines loudness and cabin comfort. A resonated label alone does not guarantee a quieter or drone-free result.
Do I need a tune after installing a cat-back?
A matched downstream-only system commonly retains the stock calibration when emissions components and controls remain unchanged. Confirm the kit requirements and diagnose any new fault rather than assuming a tune is necessary.
Can a cat-back fit every cab and bed length?
Truck exhaust fitment can vary with cab, bed length, wheelbase, and outlet layout. Check the kit's exact inclusions and exclusions rather than relying on the engine and year alone.
Is a diesel DPF-back exhaust the same as a gasoline cat-back?
A diesel DPF-back and a gasoline cat-back refer to different system boundaries. Identify all retained aftertreatment components and sensors before comparing fitment, sound, or legality.
