You poured the expected amount into your 6.6L Duramax, started the engine, and checked the dipstick. The level looks wrong—and the fresh oil already looks dark. Before adding another quart or ordering a new pan, separate three different questions: service capacity, measurement accuracy, and how the installed pan drains.
Last updated:
How Much Oil Does a 6.6L Duramax Take?
The familiar 10-quart figure is a routine oil-and-filter service quantity, not the amount required to fill a completely dry engine. Earlier and later GM diesel supplements support the same basic pickup reference; the examples below are not limited to the newest truck.
| Model-year reference | Service quantity | Application boundary |
|---|---|---|
| 2006 Duramax diesel supplement | 10 US qt / 9.5 L | Use the applicable engine and vehicle identification in that supplement. |
| 2015 Duramax diesel supplement | 10 US qt / 9.5 L | Stock oil-system service reference; includes the LML pickup application. |
| 2020 6.6L Duramax diesel supplement | 10 US qt / 9.5 L | Stock L5P pickup oil system. |
| 2024 6.6L Duramax diesel supplement | 10 US qt / 9.5 L | Stock oil system covered by that supplement. |
| Aftermarket pan, remote filter, or external oil-system conversion | Installed-system instructions | Additional volume can change the refill requirement. |
For an LB7, LLY, LBZ, LMM, LML, or L5P pickup, start your planning with the common stock service reference, then match it to the model-year documentation. Medium-duty chassis and modified engines need their own application check.
Do not subtract a guessed amount of retained oil from the published service quantity. A routine-service figure already differs from a dry-engine fill. If the final level is unexpected, check the draining process, quantity added, dipstick, and installed hardware rather than assuming every pan retains exactly one quart.
Which Oil Grade and Filter Should You Use?
For the 2024 6.6L Duramax, GM specifies American Petroleum Institute (API) CJ-4 or CK-4 oil and Society of Automotive Engineers (SAE) 15W-40 viscosity. Below 0°F (−18°C), the supplement specifies SAE 5W-40. Match an older or newer truck to its own requirements rather than applying one oil label across every generation.
Oil category and viscosity describe different requirements. Match both; a familiar brand or the word “synthetic” does not replace the specification.
PF2232 Is Not the Filter for Every Duramax
GM's August 2022 TechLink update distinguishes earlier PF2232 applications from later PF63/PF26 applications. Engine displacement alone is not a reliable filter lookup.
| Pickup application | Published reference | Ordering check |
|---|---|---|
| 2001–2019 6.6L Duramax HD pickups | ACDelco PF2232 | Confirm the current catalog and any superseding part number. |
| 2020–2023 applicable L5P HD pickups | ACDelco PF63; PF26 also compatible according to the update | Do not substitute PF2232 merely because the truck has an L5P. |
| Later model years or nonstandard filter systems | Current vehicle- or system-specific listing | Confirm by vehicle identification number (VIN) and installed housing. |
Keep the filter box or part number with the service record. Physical resemblance and matching threads do not, by themselves, establish that a substitute has the correct application approval.
How to Check the Duramax Oil Level Consistently
- Choose a level location. Park on level ground and follow the manual's oil-temperature conditions. A truck sitting nose-high with a trailer attached is a poor reference.
- Allow the specified drain-back time. Shut the engine off and wait as directed. For vehicles covered by GM bulletin 16-NA-376, the consumption-test procedure calls for at least 15 minutes and comparable oil temperature between checks.
- Read the dipstick correctly. Wipe the dipstick clean, fully reinsert it, remove it, and read the indicated range. Repeat an unclear reading.
- Resolve an unexpected result. Check the recorded fill, dipstick part number, tube seating, and any pan or filter-system changes before adding more oil.
- Adjust only when the reading supports it. Use the approved oil and recheck after an addition. A confirmed overfill needs correction or diagnosis before towing or hard use.
A low-looking reading immediately after shutdown does not prove the truck needs another quart. Likewise, a repeated rise without topping up is a diagnostic concern—not a sign that the engine has gained useful capacity.
When Should You Change Duramax Engine Oil?
Follow the truck's oil-life monitor and model-year maintenance schedule. The 2024 supplement requires an oil and filter change at least annually, even if the monitor has not requested service.
A tow truck climbing long grades, a work truck idling at a jobsite, and a pickup making short winter trips accumulate different demands. Record load, mileage, and engine hours, then apply the schedule for the actual use. Do not present a single owner-preferred mileage as GM's rule for every engine.
Reset the monitor after changing the oil and filter. Topping up, fitting a larger pan, or installing a premium filter does not independently authorize a longer interval.
Used oil analysis (UOA) can help investigate fuel dilution, viscosity changes, soot, and wear trends. Interpret the results with the laboratory and repair shop, especially when symptoms have changed. A pending sample is not a reason to continue operating an engine with suspected serious contamination.
Oil-Change Checks That Prevent Expensive Mistakes
- Confirm the parts first. Check oil approval, filter application, plug sealing requirements, and the installed pan's service instructions.
- Make access safe. Handle hot components cautiously and use rated supports if lifting is necessary. Never work beneath a vehicle supported only by a jack.
- Inspect what comes out. Unusual debris, contamination, damaged plug threads, or a damaged sealing surface needs attention before refilling.
- Keep filter installation clean. Remove the old gasket and follow the current filter and vehicle instructions for filling, gasket lubrication, and tightening. Do not assume every filter holds one quart or requires the same preparation.
- Count all oil added. Any oil placed in the filter counts toward the total refill. Do not add a full sump quantity and then forget the oil already in the filter.
- Use the correct torque. Obtain the specification for the actual plug, pan, and mounting hardware. A stock-pan figure may not apply to an aftermarket casting.
- Verify the result. Follow the vehicle's startup checks, inspect for leaks from a safe position, shut down, and recheck the level after the prescribed wait.
An oil-pressure warning is not a routine top-off reminder. Stop safely and shut the engine off if a pressure warning appears. Establish the cause before restarting; a normal oil level does not prove adequate pressure.
Why Does Fresh Duramax Oil Turn Dark—and Does Pan Design Matter?
Fresh diesel oil can darken as it mixes with residual oil and suspended soot. Color alone cannot quantify how much oil remained, measure fuel dilution, or establish whether the next service is due.
Drainability is a separate mechanical question. An internal drain boss above the lowest part of a sump can leave a pool below the outlet. Pan shape, the installed drain hardware, vehicle angle, and draining conditions affect the amount retained. That gives owners a legitimate reason to compare designs, but not a universal “one quart trapped” correction for every Duramax.
A better-draining lower pan can reduce oil retained in that particular sump. It cannot remove all residual oil from the galleries, cooler, and other engine passages or guarantee that fresh oil stays gold. Judge the replacement by its documented geometry and application, not by an unsupported promise of 100% system evacuation.
When Is an Oil Pan Upgrade Worth Considering?
A pan does not have to leak before an upgrade makes sense. Easier drain access, an improved sump outlet, corrosion-resistant material, or a documented capacity increase can be useful service improvements. A sound stock pan can also remain a reasonable choice when those changes offer little value for the truck's use.

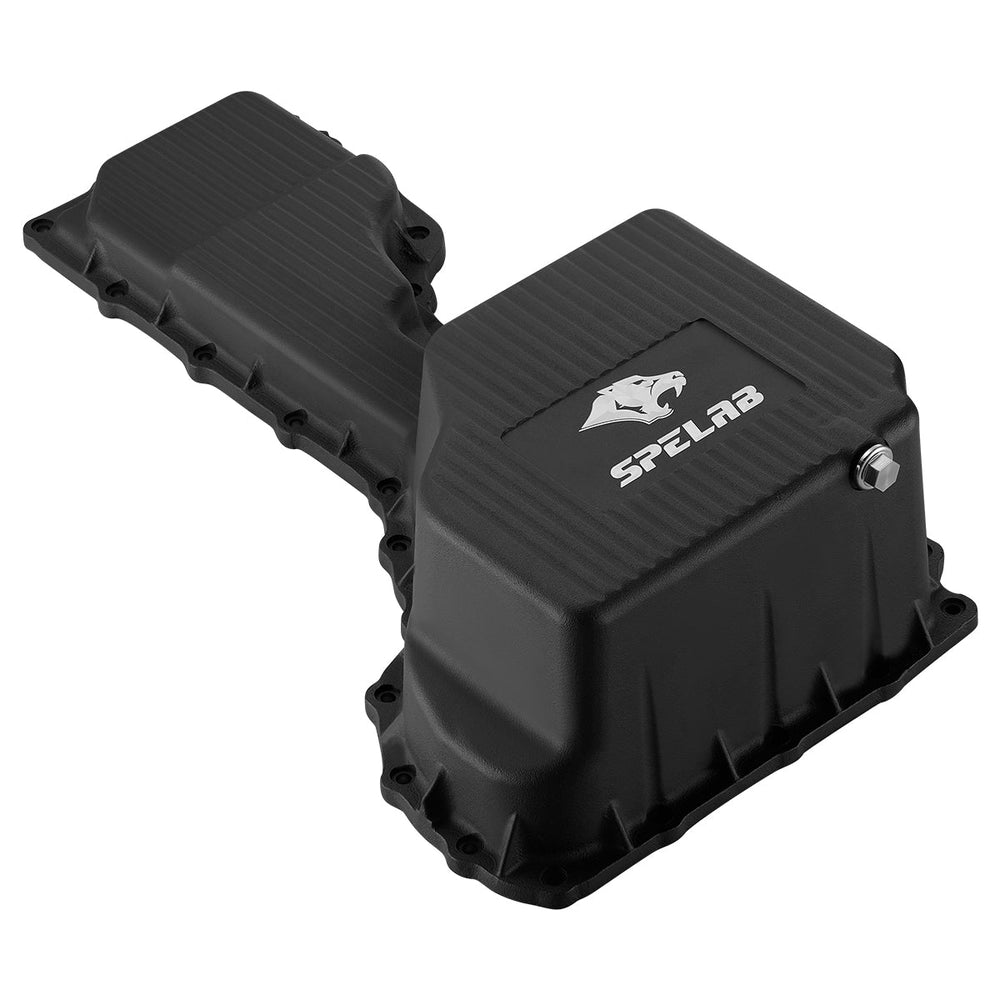

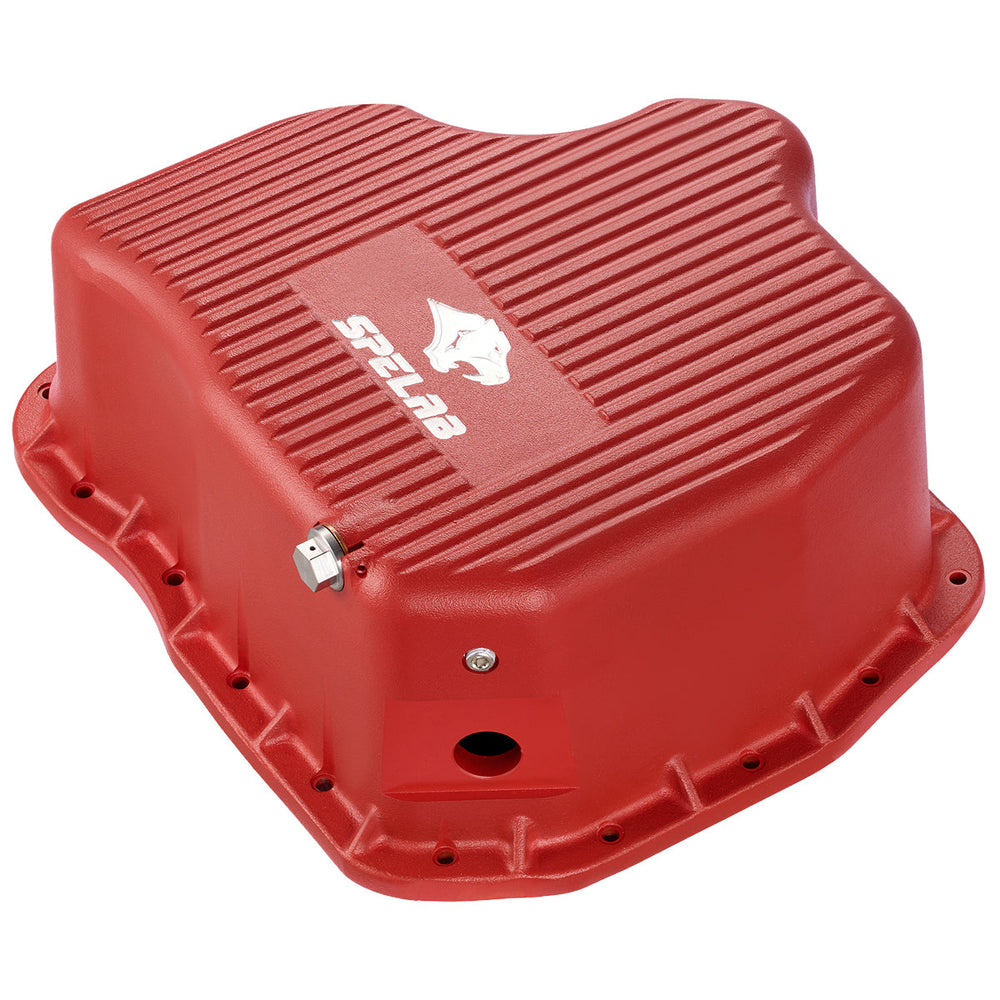

When comparing Duramax oil pans, check clearance, drain location, sealing method, hardware, and the refill procedure together. More volume and cooling fins are design features—not a verified temperature reduction or an automatic extension of oil life.
Sealing and Hardware Depend on the Installed Pan
Do not transfer a factory sealant procedure to a replacement supplied with a gasket. These product listings include sealing components and mounting hardware; confirm their current instructions, surface preparation, tightening sequence, and any curing requirements. A universal bead size or bolt torque is not appropriate across every stock and aftermarket arrangement.
What If the Oil Level Rises, Falls, or Changes Suddenly?
| Observation | Next useful check | Do not assume |
|---|---|---|
| Oil level falls between services | Repeat the reading, inspect for leaks, and record measured additions. | That internal wear is the only possible cause. |
| Oil level rises without topping up | Verify the reading and investigate overfill, fuel dilution, or other contamination. | That draining the excess has repaired the cause. |
| Fresh oil appears around the lower engine | Trace the highest fresh leak source after safe cleaning. | That oil collected at the pan originated there. |
| Oil appears in the coolant | Arrange diagnosis of the contamination source before further use. | That an oil cooler has already been confirmed as the failed part. |
A confirmed rising level with suspected fuel dilution needs prompt diagnosis before continued driving. On an older LB7, injector-system leakage belongs in the investigation. On a later truck, identify the engine and fuel-system configuration before assigning blame to regeneration. Smell is a clue, not a measurement of fuel concentration.
Milky residue only under a filler cap is not the same evidence as contamination throughout the sump. Compare dipstick condition, coolant appearance, level trends, and service history. Never open a hot pressurized coolant reservoir.
For abnormal towing temperatures, evaluate oil-temperature control under load before choosing a larger pan as the entire repair.
How Should You Track L5P Oil Consumption?
GM's December 2024 revision of bulletin 16-NA-376 evaluates oil use against fuel consumed on its listed L5P/L5D applications. It publishes a maximum of 2.0 qt per 80 gallons under specified warranty, maintenance, and operating conditions. That threshold is not a target, a universal allowance for every Duramax, or permission to run low.
Keep a log of date, mileage, engine hours when available, fuel purchased, and measured oil additions. Use consistent checking conditions. A sudden increase on the same route deserves investigation even before a formal consumption test is complete.
Keep Intake Deposits and Oil-Service Decisions Connected—but Distinct
Exhaust gas recirculation (EGR) and crankcase ventilation (CCV) can contribute soot and oil mist to the intake path. In the charge-air system, a light film and heavy pooling mean different things; neither observation alone measures crankcase oil condition.
Routine intake or EGR work does not automatically require an oil change. Follow the repair procedure and assess whether fuel, coolant, debris, or another contaminant entered the lubrication system.
Frequently Asked Questions
Does every 6.6L Duramax take exactly 10 quarts?
Ten US quarts with a filter change is the common stock-pickup service reference, not a universal fill for every chassis or modified oil system. Verify the applicable documentation and final level.
Why does the dipstick read low after an oil change?
A low reading can result from insufficient fill, uneven parking, inadequate drain-back time, or an incorrect dipstick or tube. Repeat the prescribed checking procedure before adding more oil.
Is PF2232 correct for every L5P?
No. GM's 2022 update lists PF2232 for earlier HD pickup applications and PF63, with PF26 also compatible, for the specified 2020–2023 applications. Confirm the current listing for the exact truck.
Must every Duramax oil filter be prefilled with one quart?
Do not apply a one-quart prefill rule to every Duramax filter. Follow the current filter and vehicle instructions, keep oil handling clean, and count any prefill toward the total refill.
Does dark oil prove that the factory pan needs replacement?
No. Dark color does not quantify retained oil or prove a defective pan. Drain access, documented sump design, corrosion, damage, and service goals are more useful reasons to compare pan options.
Can a larger oil pan fix fuel dilution?
No. A larger oil pan does not stop fuel entering the crankcase. Diagnose the contamination source and follow the resulting repair and oil-service procedure.
Is the oil-life percentage the same as the oil level?
No. The oil-life display is a service-interval indicator, not a measurement of oil quantity. Check the dipstick separately.
Can I keep driving after an oil-pressure warning if the level is full?
No. Stop safely, shut the engine off, and establish the cause before restarting. A full dipstick reading does not prove that the engine has adequate oil pressure.
A Practical Duramax Oil-Service Plan
Keep the correct oil specification, filter number, refill reference, and level-check procedure in the service record. Compare pan upgrades for the service improvements you actually want. Before a long towing trip, check the level, inspect fresh seepage, and investigate any change in oil use rather than covering it up with a different viscosity or a larger sump.
References: GM Duramax diesel supplements for 2006, 2015, 2020, and 2024; GM TechLink, “Duramax Diesel Engine Oil Filter Update for 2023,” August 2022; GM bulletin 16-NA-376, December 2024 revision; current SPELAB LML and L5P oil-pan listings. Check the latest vehicle-specific service guidance before work.
