A 6.7 Powerstroke CCV setup has one basic job: move blow-by gases out of the crankcase without creating excessive pressure, oil leakage, or a new restriction. The factory closed system routes those gases back toward the intake, while aftermarket designs may separate more oil, vent elsewhere, or route the outlet farther back on the truck.
The right choice depends on more than intake cleanliness. A daily-driven F-250 in Minnesota, a high-mile F-350 tow rig, and a 2025 F-550 Cab and Chassis do not have the same concerns about odor, condensation, sensor retention, hose routing, maintenance, or road-use requirements.
This comparison looks at the designs that owners actually encounter: the stock closed system, a basic open reroute, an internal separator, an external catch can, and a filtered rear-exit system. It also explains what a reroute cannot repair before money is spent on parts.
What Does the 6.7 Powerstroke CCV System Do?
Combustion gases that pass the piston rings enter the crankcase as blow-by. The crankcase ventilation system gives those gases a controlled exit while managing entrained oil mist. On a factory closed system, the remaining vapor is returned to the intake stream rather than released directly under the hood.
A light oil film in the turbo inlet or charge-air system does not automatically mean the engine is failing. Heavy pooling, rapidly increasing oil consumption, wet intercooler boots, new seal leaks, or strong vapor from the oil-fill opening deserve a broader diagnosis.
Owners who want the wider advantages and drawbacks in one place can compare the pros and drawbacks before modifying the truck.
Do Not Blame the CCV Kit for Every Oil or Pressure Problem
A reroute changes where crankcase vapor travels. It does not restore piston-ring sealing, repair a turbocharger, correct an overfilled crankcase, or fix a pinched hose. If the truck already pushes oil from several seals, produces heavy vapor, or consumes oil quickly, establish the mechanical condition first.
| What the owner sees | Possible causes | Useful first checks |
|---|---|---|
| Oil around charge-air boots | Normal vapor film, loose boot, accumulated oil, excessive blow-by, or turbo-side oil leakage | Clean the area, inspect boot condition, note oil consumption, and watch how quickly residue returns |
| Oil pushed from several engine seals | Restricted or kinked vent hose, separator restriction, frozen condensation, or high mechanical blow-by | Inspect the complete vent path and measure crankcase pressure using the correct service procedure |
| Strong fumes near the cab | Open outlet placed under the engine bay, exhaust or body airflow drawing vapor forward, or a leaking connection | Check outlet location, hose joints, heat exposure, and whether the selected design suits street use |
| P04DB or a ventilation-system warning | Disconnected monitoring hardware, sensor-retention problem, wiring fault, or year-specific installation issue | Verify the model-year instructions and inspect every factory sensor and connector before clearing the code |
| Catch can fills unusually fast | Condensation, short cold trips, high engine load, excess oil level, or increased blow-by | Separate water from oil in the observation, track mileage, and compare the rate over several service intervals |
How Should You Compare SPELAB with Other CCV Kits?
Do not compare logos first. Compare the oil-separation method, vent path, year-specific fittings, service requirements, sensor provisions, and installation instructions. A hollow replacement plate, a baffled internal separator, an external reservoir, and a rear-exit filtered system are different products even when every listing calls itself a "CCV delete kit."

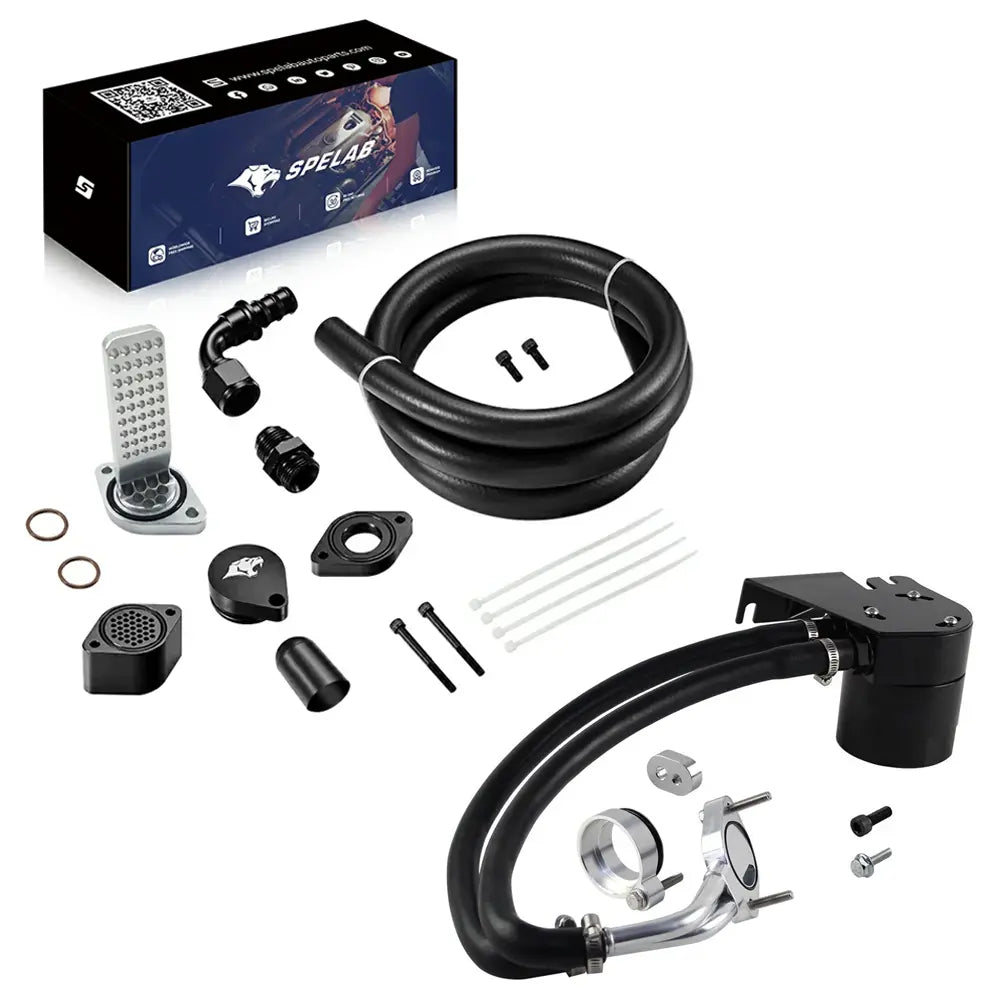

The current SPELAB product family offers separate 11-16 and 17+ selections, plus basic reroute, internal catch-can, internal-and-external catch-can, and Gen-2 filtered configurations. That range is useful, but it also means the buyer must choose the correct variant rather than assuming everything shown in the listing arrives in one box.
| Comparison point | What to verify | Why it matters |
|---|---|---|
| Oil separation | Hollow plate, baffle, replaceable media, drain-back passage, or external reservoir | Determines where captured liquid goes and how the system is serviced |
| Outlet location | Engine bay, frame rail, rear of truck, or tailpipe integration | Affects odor, visible vapor, residue, hose length, and installation difficulty |
| Fitment split | 2011-2016 versus 2017+, pickup versus Cab and Chassis, and 2025+ sensor provisions | Wrong fittings or missing monitoring hardware can cause leaks, codes, or an incomplete installation |
| Cold-weather management | Low spots, exposed hose sections, drainage path, and inspection access | Condensed water can collect, emulsify with oil, or freeze and restrict ventilation |
| Service access | How to inspect, clean, drain, or replace filtration components | "No scheduled drain" should never be interpreted as "never inspect" |
Use the Powerstroke CCV reroute kits collection to compare the actual layouts and included parts, not only the marketing name.
What Does This Choice Look Like in the Real World?
The Stock Daily Driver
If the truck runs cleanly, has no unusual oil consumption, and still carries warranty concerns, replacing the applicable factory service part is usually the least complicated path. Ford's service information warns against operating applicable engines without an approved filter element, so owners staying stock should use the manual for their exact model year rather than a generic internet interval.
Drivers choosing that route can follow the factory-service alternative.
The Fifth-Wheel Tow Rig
Long grades and sustained load increase blow-by flow compared with an unloaded cruise. Treat the amount and character of liquid in an external reservoir as diagnostic evidence: record mileage, note whether the contents are mostly oil or water-heavy emulsion, and investigate any sudden increase under the same route and load.
The Cold-Climate Work Truck
Short winter trips create condensation, and a hose sag that looks harmless in July can become a water trap in January. If that low spot freezes, rising crankcase pressure can push the dipstick upward or force oil past a weak seal. Before the first hard freeze, inspect the full route; if pressure rises or the outlet feels blocked, stop and clear the restriction before working the truck again.
The High-Mileage Truck with Heavy Vapor
A reroute may relocate the vapor, but it cannot reduce the amount produced by worn cylinders. If a can fills rapidly or the outlet smokes heavily after the engine is warm, test the engine rather than blaming the can or buying a more complicated separator.
The 2025+ Super Duty
The current product fitment notes call for sensor retention or modification on 2025+ applications. Confirm the exact instructions before removing factory components. A missing sensor strategy can turn an otherwise tidy mechanical installation into a warning-light problem.
Installation and Maintenance Checks That Matter
- Start with a cool engine: Clean the valve-cover area before opening the factory system so dirt does not fall into the engine.
- Protect the hose: Keep it away from exhaust heat, the driveshaft, steering parts, suspension travel, sharp edges, and road debris.
- Avoid kinks and traps: Use broad bends and, where the selected design allows, maintain a continuous downhill path so oil-water emulsion cannot settle in a hose belly.
- Preserve sensors: Reconnect or retain every year-specific monitor required by the instructions. Do not assume an older installation video applies to a newer truck.
- Inspect after heat cycles: Recheck bolts, O-rings, clamps, and hose contact points after the first drives and again after a towing trip.
- Establish a drain interval: Check an external can frequently at first. Extend the interval only after the truck shows a consistent collection rate through both warm and cold weather.
- Watch for pressure clues: New oil leaks, a swollen hose, whistling, or an unexpectedly clean but blocked outlet deserve immediate inspection.
DIY owners should review the complete installation sequence before turning the first fastener.
Frequently Asked Questions
Q: Does a 6.7 Powerstroke CCV reroute add horsepower?
A: Do not expect a measurable horsepower gain from the reroute alone. Its practical purpose is oil-vapor management and changing where crankcase gases travel, not increasing fuel or turbo airflow.
Q: Will a CCV reroute stop engine blow-by?
A: No. Blow-by is produced inside the cylinders. A reroute manages the gases after they enter the crankcase; it cannot restore worn piston rings or cylinder sealing.
Q: Is oil in the 6.7 Powerstroke turbo inlet normal?
A: A light film can occur with a closed factory system. Heavy pooling, rapidly returning wet residue, increased oil consumption, or oil pushed through multiple connections should be diagnosed.
Q: How often should an external catch can be drained?
A: There is no universal mileage. Check it frequently at first, then set the interval from the truck's measured collection rate; towing and freezing weather justify shorter checks.
Q: Can a CCV hose freeze in winter?
A: Yes. Water can condense and collect in exposed low spots. A frozen restriction can raise crankcase pressure and contribute to oil leakage, so cold-climate routing and inspection matter.
Q: Will a CCV reroute cause P04DB or another warning code?
A: It can on monitored applications if required factory connections or sensors are disconnected or handled incorrectly. Monitoring varies by model year and application. The currently verified kit contents do not list a dedicated bypass dongle, and the product listings call for sensor retention or modification on 2025+ trucks.
Q: Does a mechanical CCV reroute require engine tuning?
A: Not automatically, but the installation must preserve any required monitoring hardware. Never use tuning to hide a disconnected-system code without first confirming the correct mechanical and sensor setup.
Q: Is an internal separator maintenance-free?
A: A drain-back design may remove the need to empty a separate reservoir, but the seals, fittings, filter or baffle area, hose, and drainage path still need periodic inspection.
Q: Is a rear-exit system guaranteed to eliminate cabin odor?
A: No guarantee is reasonable. Moving the outlet rearward can reduce vapor near the engine bay, but body airflow, exhaust leaks, hose placement, and operating conditions still affect odor.
Q: Which years fit the current SPELAB 6.7 Powerstroke kits?
A: The current listings cover 2011+ F-250, F-350, F-450, and F-550 6.7L applications, including listed Cab and Chassis models. Select the correct 11-16 or 17+ option where applicable, and confirm the 2025+ sensor-retention requirement.
Choose the CCV Layout by Use, Not by Hype
The factory system, an internal separator, an external catch can, and a rear-exit filtered route solve different ownership problems. Start with the truck's mechanical condition, climate, warranty exposure, and daily use. Then choose the simplest layout that meets those needs without creating a new pressure, odor, sensor, or maintenance problem.
For most owners, the honest question is not "Which brand claims the biggest improvement?" It is "Which design can I install correctly, inspect easily, and live with through towing season and winter?" That answer will usually be more reliable than a percentage printed in an advertisement.
