Author: John Lee, SPELAB Mechanical Engineer. Updated on Sept 1, 2026.
Quick Answer: How Do You Fix an Exhaust Leak?
To fix an exhaust leak, first locate the leak, identify whether it is coming from a gasket, flange, clamp, flex pipe, exhaust manifold, muffler, turbo connection, or pipe section, then choose the correct repair. Small downstream leaks may be temporarily patched, but cracked manifolds, bad gaskets, rotted flanges, leaking flex pipes, turbo-side leaks, or broken pipe sections usually need proper replacement, welding, new hardware, or a correctly sized clamp.
Safety warning: Exhaust fumes detected inside the cabin require stopping driving and immediate system inspection. Exhaust leaks can allow carbon monoxide into the vehicle, especially at idle or low speeds. Carbon monoxide itself has no smell, so exhaust odor is a warning sign, but the absence of odor does not prove the cabin is safe.
For most drivers, the safest repair path is simple: find the leak, confirm the failed part, replace the gasket or damaged section, and recheck the system after the repair. Tape or temporary patches are not acceptable for leaks near the engine, turbo, exhaust manifold, catalytic converter, DPF, or cabin area.
John Lee’s field note: Black soot trails are often a useful sign of an exhaust leak, especially on diesel engines and rich-running conditions. A dark carbon track around a flange, clamp, gasket, flex pipe, or manifold area usually indicates a nearby leak, but the absence of soot does not rule out a leak.
What Is an Exhaust Leak?
An exhaust leak happens when exhaust gas escapes before it reaches the tailpipe. Instead of traveling through the full exhaust system, hot gas leaks through a crack, failed gasket, loose clamp, broken weld, rusted pipe, damaged flex section, warped flange, or cracked exhaust manifold.
A small leak may produce ticking or hissing sounds. A larger leak may produce a loud, harsh, or raspy sound. On diesel trucks and turbocharged engines, an exhaust leak can degrade turbo response, skew sensor readings, disrupt emissions system behavior, and impair overall drivability.
If the exhaust system is aged, corroded, modified, or recently repaired, carefully inspect its joints. A weak clamp or poorly sealed connection can turn into a repeat leak. For larger exhaust system repairs or upgrades, compare options in the exhaust system collection.
Is an Exhaust Leak Dangerous?
Yes, an exhaust leak can be dangerous. The biggest safety concern is carbon monoxide entering the cabin. Carbon monoxide is colorless and odorless, so you cannot rely on smell alone to judge cabin safety. If you smell exhaust, hear a leak near the engine, or feel symptoms such as headache, dizziness, nausea, or unusual fatigue while driving, stop using the vehicle and inspect the system immediately.
| Risk | Why Risk Matters | What to Do |
|---|---|---|
| Exhaust smell inside cabin | Exhaust odor means exhaust gases may be entering the cabin, and carbon monoxide may be present even though CO itself has no smell. | Stop driving and inspect immediately. |
| Leak near engine bay | Hot gases can damage wiring, hoses, heat shields, and nearby components. | Repair quickly and inspect heat-damaged parts. |
| Leak before O2, EGT, or DPF sensors | A leak before the O2, EGT, or DPF sensors can cause inaccurate sensor readings. | Scan codes and repair the leak before replacing sensors. |
| Turbo or up-pipe leak | A pre-turbo leak can reduce turbine drive energy and slow boost response. Under sustained load, the resulting boost or air-fuel imbalance may contribute to elevated EGT on some engines, but this is not universal. | Inspect flanges, gaskets, V-band clamps, and fasteners. |
| Leak near dry grass or oil residue | Hot exhaust gas can increase fire risk when it exits near dry grass, oil residue, or other flammable material. | Do not use temporary tape near high-heat areas. |
Treat the leak as serious unless you can confirm the vehicle is safe to drive. A quiet leak can still be dangerous if fumes enter the cabin, and lack of smell is not a reliable safety test.
Common Exhaust Leak Symptoms
Exhaust leaks typically show up through sound, smell, soot marks, fault codes, or drivability changes. The exact symptom of an exhaust leak depends on where the leak is located, the engine type, the sensor layout, and whether the leak is upstream or downstream of key emissions components.
| Symptom | What It Usually Means | How Urgent? |
|---|---|---|
| Ticking sound on cold start | Possible manifold gasket leak, cracked manifold, broken bolt, or flange leak. | High |
| Hissing during acceleration | Possible pipe leak, flex section leak, turbo flange leak, up-pipe leak, or gasket leak. | High |
| Exhaust smell in the cabin | Exhaust gas may be entering the vehicle; carbon monoxide may be present even though it has no smell. | Critical |
| Black soot marks near a joint | The leak point is likely nearby, especially on diesel engines, but no soot does not mean no leak. | Medium to high |
| Check Engine Light | O2, EGT, DPF, EGR, or emissions sensor readings may be affected. | Scan codes soon |
| P0299 underboost | Possible turbo-side exhaust leak, intake boost leak, charge-air issue, turbo problem, sensor issue, or tuning problem. | High on turbo engines |
| P2453 DPF pressure sensor code | An exhaust leak in a pressure-sensing section may contribute on some vehicles, but the sensor, pressure tubes or hoses, wiring, and DPF restriction are usually more direct inspection points. | High on diesel trucks |
| P0401 insufficient EGR flow | P0401 is not proof of an exhaust leak. Restricted EGR passages, EGR valve operation, sensors, and wiring are generally more direct causes. | Diagnose before replacing parts |
| Poor acceleration or weak boost | On turbocharged engines, poor acceleration or weak boost may indicate a pre-turbo or turbo-side exhaust leak, but intake-side boost leaks must also be checked. | High on turbo engines |
| Loud exhaust noise | Muffler, pipe, flange, or joint failure may be present. | Medium to high |
Important: Fault codes do not prove the exhaust manifold is the only problem. They are clues. Always inspect the full system, including gaskets, clamps, flanges, pressure hoses, sensors, turbo connections, EGR components, intake-side boost plumbing, and wiring before replacing expensive parts.
Real-World Exhaust Leak Scenarios
Exhaust leaks do not always show up as an obvious hole in the pipe. Many drivers first notice a sound, smell, power change, or warning light before they ever see the leak. Use the driving situation and operating conditions to narrow down where to inspect first.
| Real-World Situation | What It May Suggest | Where to Check First |
|---|---|---|
| The vehicle ticks loudly on cold start, then gets quieter as it warms up. | A small exhaust manifold leak, manifold gasket leak, cracked header, or broken manifold bolt. | Inspect the exhaust manifold, header flange, gasket surface, fasteners, and nearby soot marks. |
| The truck gets louder when accelerating or pulling a trailer. | A leak that opens more under load, often near a flange, flex pipe, turbo connection, up-pipe, or cracked pipe section. | Check flanges, clamps, flex pipe, turbo-side joints, up-pipes, and downpipe connections. |
| You smell exhaust fumes inside the cab at idle or low speed. | Exhaust gas may be entering through the firewall area, floor openings, HVAC intake, or underbody leak path. | Stop driving if the smell is strong. Inspect leaks near the engine bay, under-cab pipe sections, manifold area, and cabin-adjacent joints. |
| The leak started after installing an aftermarket exhaust system. | A clamp may be misaligned, undersized, loose, not centered, or the wrong clamp type for the joint geometry. | Check pipe overlap, clamp type, clamp position, pipe outside diameter, hanger tension, and sealing surface condition. |
| The clamp was tightened, but the joint still leaks. | The pipe may be out of round, the clamp may be too narrow, the joint may not have enough overlap, the sealing surface may be rusty, or a butt-joint clamp may have been used on an overlapping slip joint. | Inspect pipe shape, clamp style, joint overlap, rust, carbon trails, and whether the joint needs a lap-joint clamp, sleeve repair, repositioning, or replacement. |
| A diesel truck has slow turbo spool, soot marks, or an underboost code. | A pre-turbo exhaust leak may be reducing turbine drive energy. | Inspect up-pipes, turbo flange, manifold area, V-band connections, bellows, and soot trails before replacing turbo parts. |
| A diesel truck has DPF or sensor-related codes after an exhaust leak appears. | A leak near EGT sensors, DPF pressure tubes, or pre-DPF joints may distort sensor readings on some vehicles, but sensor, tube, hose, wiring, and DPF restriction faults remain common causes. | Repair visible leaks, then follow the manufacturer-specific diagnostic procedure for DPF pressure data, EGT readings, regeneration behavior, and remaining codes. |
Exhaust Leak Sound Guide
Exhaust-leak sound varies with temperature, engine load, and leak location. Sound alone cannot prove the exact failure, but it can point you toward the right inspection area.
| Sound or Symptom | Common Leak Area | What It Usually Means |
|---|---|---|
| Sharp ticking on cold start | Exhaust manifold, header, manifold gasket, or broken manifold bolt | Hot exhaust gas may be escaping from a small gap that changes as metal expands. |
| Hissing during acceleration | Flex pipe, flange, gasket, turbo connection, up-pipe, or cracked pipe | Pressure increases under load and pushes exhaust through a small opening. |
| Puffing sound near a joint | Flange gasket, slip joint, clamp, or pipe connection | The leak may be pulsing with exhaust flow at a loose, uneven, or incorrectly clamped joint. |
| Loud roaring under the vehicle | Rusted pipe, broken weld, muffler seam, or large downstream leak | A larger opening may allow exhaust to bypass part of the exhaust system. |
| Raspy or harsh exhaust tone | Pipe section, muffler, resonator, or poorly sealed aftermarket joint | The exhaust stream may be escaping or vibrating through a damaged section. |
| Whistling or squealing near the turbo area | Turbo flange, up-pipe, V-band clamp, or pre-turbo gasket | A small high-pressure leak may be affecting turbine drive energy, turbo response, and boost behavior. |
| Exhaust smell with little obvious noise | Small underbody leak, manifold area, cracked pipe, or hidden flange leak | Some leaks are dangerous even when they are not loud, especially if fumes enter the cabin. |
Where Do Exhaust Leaks Usually Happen?
Most exhaust leaks happen at joints, gaskets, welds, rusted sections, or areas exposed to vibration and heat cycles. On trucks, older vehicles, and modified exhaust systems, clamps and flanges are especially common leak points.
1. Exhaust Manifold or Header Area
A leak near the exhaust manifold often sounds like a sharp ticking noise, especially during cold start. As the metal heats up, it expands and may temporarily reduce the gap, making the sound quieter. A warped manifold, cracked manifold, broken bolt, failed stud, or failed gasket can cause the leak.
If the manifold is cracked or badly warped, a gasket alone may not resolve the issue because the crack or warped sealing surface can remain after reassembly. Broken studs require extraction and inspection. Replace the manifold only if it is cracked, excessively warped, has an unserviceable sealing surface, or cannot be repaired correctly.
In those cases, a replacement exhaust header or manifold repair may be needed.
Torque note for diesel owners: On some 6.7 Cummins manifold or turbo-flange procedures, 32 lb-ft is commonly listed for certain fasteners. Do not treat that as a universal rule for every bolt. Fastener location, model year, tightening sequence, original hardware, and aftermarket hardware can change torque requirements. Always follow the factory service manual or the torque specs included with your exact manifold, gasket, clamp, or hardware kit. Uneven torque can crush the gasket, warp the flange, or create a repeat leak.

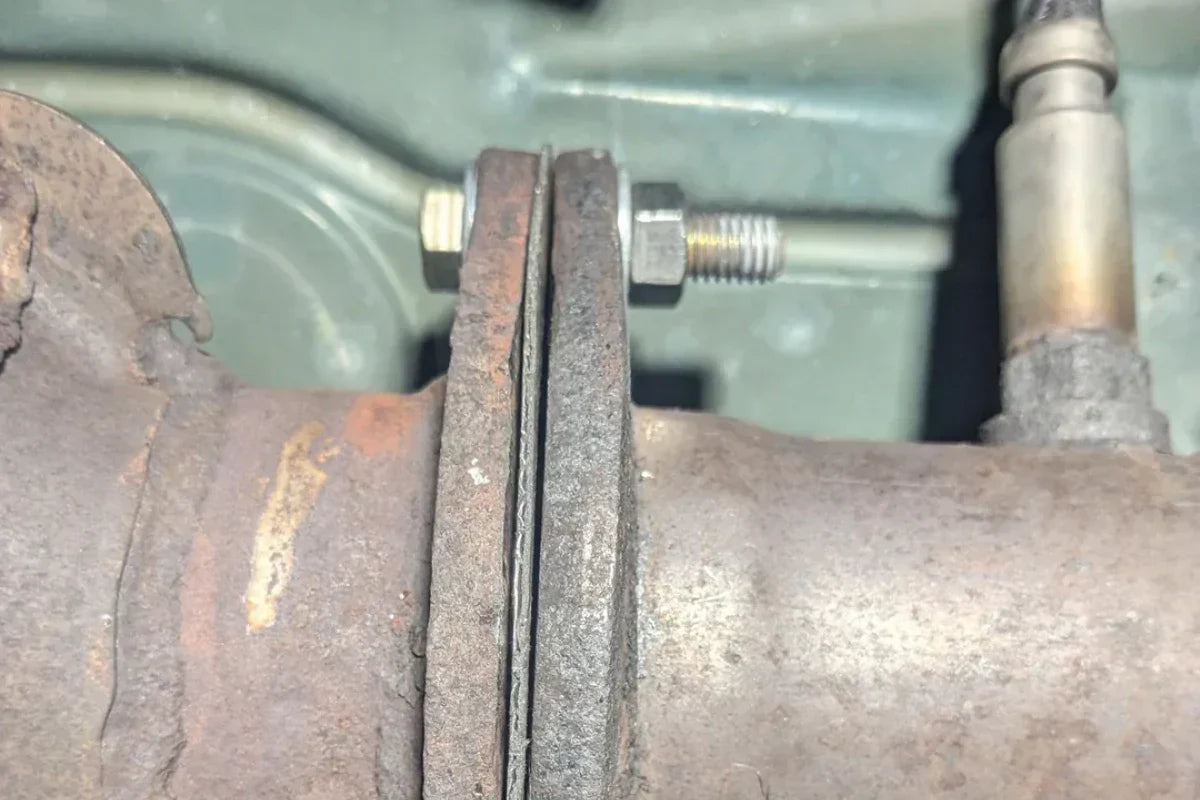

2. Flanges and Gaskets
Flanges mechanically join and secure exhaust sections together. If the gasket burns out, bolts loosen, or the flange surface becomes rusty or uneven, exhaust gas can escape through the joint.
When replacing a gasket, clean both mating sealing surfaces. Residual old gasket material, rust, carbon, or warped metal on the flange can prevent a new gasket from sealing well.
3. Flex Pipe
The flex pipe absorbs engine movement and vibration. Over time, it can crack or separate, creating a hissing or roaring noise. Flex pipe failure usually needs replacement, not tape.
4. Clamps and Slip Joints
Aftermarket exhaust systems often use slip joints and clamps. A loose, undersized, rusted, poorly positioned, or wrong-style clamp can leak.
Clamp selection depends on joint geometry, not only pipe diameter. Use a butt-joint band clamp only when two pipe ends of the same outside diameter meet end to end. Use a lap-joint clamp for overlapping slip-fit connections where one pipe slides into another. Use a sleeve clamp when the repair uses a separate sleeve to bridge or reinforce a pipe connection.
If you are repairing a straight 2.0-inch to 3.0-inch end-to-end pipe joint, a wide SPELAB butt joint band clamp can provide more even 360-degree sealing than a narrow U-bolt clamp. For overlapping slip joints, choose the correct lap-joint clamp instead of forcing a butt-joint clamp onto the wrong connection. For turbo or removable flange sections, a stainless steel V-band clamp may be the better solution when the system is designed for it.
5. Muffler and Pipe Sections
Rusted mufflers and thin exhaust pipes often leak at moisture-collecting seams, welds, or low points. Small holes may be patched temporarily, but a rotted pipe or muffler usually needs replacement.
6. Turbo, Up-Pipe, or Pre-DPF Area on Diesel Trucks
Diesel trucks can leak around turbo flanges, up-pipes, downpipes, V-band connections, and pre-DPF joints. These leaks can degrade boost response, alter EGT readings, disrupt DPF regeneration behavior on some vehicles, and impair sensor accuracy.
For example, black soot around a turbo up-pipe flange, DPF pressure tube, or V-band connection often indicates a nearby leak. Soot is a useful clue, especially on diesel engines, but no visible soot does not prove the system is sealed. Inspect the leak path before assuming the sensor itself has failed.
How to Find an Exhaust Leak
Always start with a cool exhaust system. Exhaust parts can become hot enough to cause serious burns, especially near the manifold, turbo, catalytic converter, or DPF. To understand why these areas are so dangerous, read this guide on how hot an exhaust manifold gets.
Method 1: Listen During Cold Start
With the exhaust cold, start the engine and listen for ticking, hissing, or puffing sounds. Cold conditions often make a manifold or gasket leak sound sharper. Keep hands, clothing, hair, and tools away from belts, fans, pulleys, and other moving parts while the engine is running.
Method 2: Look for Black Soot Trails
Inspect all flanges, clamps, welds, pipe seams, flex pipes, turbo connections, and the manifold area. Exhaust leaks often leave black soot around the leak point, especially on diesel engines. The absence of soot does not rule out a small leak, a clean-running gasoline leak, or a leak in a hard-to-see area.
John Lee’s tip: Do not focus only on obvious holes. Follow any soot trail you can find. Soot-bearing exhaust gas can leave a dark mark that shows the escape path.
Method 3: Use a Low-Pressure Smoke Test
A low-pressure smoke test is one of the safest and most accurate ways to find an exhaust leak. By introducing smoke into the system, a shop can identify where smoke escapes without putting hands near hot exhaust parts or moving engine components.
Method 4: Check Accessible Downstream Joints Carefully
If you are checking a cool, accessible downstream joint, keep your hands away from the exhaust surface and all moving parts. Do not reach near the exhaust manifold, turbo, catalytic converter, DPF, belts, pulleys, or fans while the engine is running. Never crawl under a vehicle supported only by a jack.
Method 5: Scan for Related Codes
If the Check Engine Light is on, scan the vehicle before replacing parts. A leak near O2, EGT, EGR, DPF, or pressure sensors can create misleading readings, but diagnostic trouble codes still need manufacturer-specific diagnosis. If you are diagnosing sensor-related drivability symptoms, this guide on what can trigger sensor-related drivability issues may help with diagnosis.
How to Fix an Exhaust Leak Step by Step
Leak location determines the correct repair. A small downstream pipe leak is very different from a manifold gasket leak, turbo flange leak, or pre-DPF leak, so do not use the same repair method for every leak.
Step 1: Let the Exhaust Cool Completely
Never work on a hot exhaust system. Before touching pipes, clamps, flanges, manifolds, turbo components, or heat shields, let the vehicle cool completely.
Step 2: Raise and Support the Vehicle Safely
If you need to work underneath the vehicle, use proper jack stands on a flat surface. Never rely on a jack alone.
Step 3: Locate the Leak
To locate the leak, use sound, soot marks, smoke testing, visual inspection, and fault-code data where relevant. Confirm the exact location before buying parts.
Step 4: Identify the Type of Leak
| Leak Type | Correct Repair | Temporary Patch? |
|---|---|---|
| Loose clamp or slip joint | Reposition and tighten the clamp, or replace it with the correct clamp style for the joint. | Sometimes |
| Bad flange gasket | Replace the gasket and inspect the flange surface. | No |
| Cracked exhaust manifold | Replace or professionally repair the manifold or header. | No |
| Broken manifold stud or bolt | Extract the broken fastener and inspect the manifold, flange, threads, and sealing surface. | No |
| Rusted pipe hole | Replace the pipe section or weld a patch. | Small downstream holes only |
| Failed flex pipe | Replace the flex section. | No |
| Turbo or up-pipe flange leak | Replace the gasket, hardware, V-band clamp, or flange components. | No |
| Pre-DPF leak on a diesel truck | Repair the pipe, flange, pressure tube, gasket, or clamp, then verify sensor data using the proper diagnostic procedure. | No |
Step 5: Remove Rusted Hardware Carefully
Spray penetrating oil on rusty bolts and allow time to soak. Use the correct socket size. If bolts are badly rusted, forcing them can snap studs or damage flanges.
DIY tip: Work the fastener back and forth slowly instead of forcing it in one direction. If a manifold bolt feels like it is twisting instead of turning, stop and reassess before snapping it.
Step 6: Clean the Sealing Surfaces
Before installing a new gasket, clamp, or pipe section, clean rust, old gasket material, carbon, and debris from the sealing area. A new gasket will not seal well against a dirty or warped surface.
Step 7: Install the New Gasket, Clamp, Flex Pipe, or Pipe Section
Match the repair part to the leak type and install only the correct part. Tighten evenly and verify uniform clamping or gasket pressure where the part design allows it. If using a clamp, make sure the clamp is centered over the joint and sized correctly for the pipe outside diameter.
For straight end-to-end pipe joints, avoid using a narrow clamp because it can over-crush the pipe. Use a butt-joint clamp only for two same-OD pipe ends meeting end to end. Use a lap-joint clamp for overlapping slip-fit connections and a sleeve clamp for sleeve-style repairs.
Step 8: Start the Engine and Recheck
Start the engine and listen for leaks while it is running. Look for visible soot, smoke-test the repair if needed, and recheck fasteners after the first heat cycle only when the service manual or part instructions recommend it.
DIY Exhaust Leak Repair vs Shop Repair
Some exhaust leak repairs are realistic for a careful DIY owner; other exhaust leak repairs are better handled by a shop. The decision depends on heat, rust, access, welding needs, sensor location, clamp style, and leak proximity to the engine, turbo, catalytic converter, or DPF.
| Repair Situation | DIY or Shop? | Best Repair Direction |
|---|---|---|
| Loose clamp on a straight end-to-end pipe joint | DIY possible | Reposition the pipe, center the correct butt-joint clamp, verify pipe diameter, and tighten evenly. |
| Loose clamp on an overlapping slip-fit joint | DIY possible | Use the correct lap-joint clamp, verify pipe overlap, and confirm that the pipes are round and clean. |
| Small downstream pinhole in a pipe | Temporary DIY possible | Use a temporary patch only to get home or reach a shop. Replace or weld the section for a lasting repair. |
| Failed flange gasket with accessible hardware | DIY possible if rust is mild | Replace the gasket, clean both sealing surfaces, and inspect the flange for warping or heavy rust. |
| Broken or seized manifold bolts | Shop recommended | Removing broken studs can require heat, extraction tools, drilling, thread repair, or manifold removal. |
| Cracked exhaust manifold or header | Shop recommended | Replace or professionally repair the manifold/header. A gasket alone will not fix a cracked casting or tube. |
| Failed flex pipe | Shop usually recommended | Replace the flex section. Many flex pipe repairs require cutting, welding, or correct pipe alignment. |
| Turbo, up-pipe, downpipe, or V-band leak | Shop recommended for most owners | Inspect sealing surfaces, gaskets, clamps, alignment, soot trails, and nearby heat-damaged parts. |
| Leak near DPF, EGT sensors, or pressure sensor tubes | Shop recommended | Repair visible leaks first, then verify sensor data, regeneration behavior, and remaining fault codes with the manufacturer-specific procedure. |
| Exhaust fumes entering the cabin | Immediate inspection recommended | Do not treat this as a normal noise problem. Carbon monoxide exposure can be dangerous even when CO cannot be smelled. |
Temporary Exhaust Leak Fixes: What Is Safe and What Is Not?
Temporary repairs can help in limited situations, but they are not a permanent solution. For a small downstream pipe leak, exhaust tape, high-temp sealant, or a correctly selected clamp may provide a temporary seal long enough to get home or reach a shop.
Do not use temporary patches on exhaust manifold leaks, turbo flange leaks, pre-turbo leaks, pre-DPF leaks, cracked flex pipes, or any leak that sends fumes toward the cabin.
Do not put tape on a manifold leak. Exhaust manifolds and turbo-side components reach extreme operating temperatures. Tape, weak sealants, or improvised foil patches can fail quickly and may create a fire risk. If the leak is near the manifold or turbo, repair it with the correct gasket, hardware, clamp, welded repair, or replacement part for that location.
| Temporary Fix | Best Use | Do Not Use On |
|---|---|---|
| Exhaust repair tape | Small downstream pipe holes | Manifold, turbo, flex pipe, or cabin-area leaks |
| High-temp exhaust sealant | Minor joint seepage when used with proper hardware | Large gaps, broken flanges, or cracked manifolds |
| Butt-joint band clamp | Two same-OD pipe ends meeting end to end | Overlapping slip-fit joints, warped manifold surfaces, or broken flex sections |
| Lap-joint clamp | Overlapping slip-fit pipe connections | Cracked manifolds, broken flex sections, or rotted pipe with no solid sealing surface |
| Sleeve clamp | Sleeve-style pipe repairs where the surrounding metal is solid | Thin rotted metal with no solid base left |
| Welding | Permanent repair for some cracks or pipe damage | Thin rotted metal with no solid base left |
How Much Does It Cost to Fix an Exhaust Leak?
The cost depends on the leak location, the vehicle, rust level, parts needed, labor rate, region, and whether welding, diagnosis, broken-stud extraction, or sensor verification is required. The ranges below are illustrative U.S. price ranges, not quotes. Actual cost may vary substantially by vehicle, region, labor rate, corrosion, parts choice, taxes, and shop diagnostic fees.
| Repair Type | Illustrative U.S. Price Range | Notes |
|---|---|---|
| Temporary DIY patch | $5-$30 | Short-term only, small downstream leaks |
| Clamp or gasket repair | $50-$150 | Depends on access, hardware, gasket type, and clamp style |
| Flex pipe replacement | $100-$300+ | May require cutting and welding |
| Shop exhaust repair | $100-$300+ | Simple repairs; rust, diagnosis, and labor can raise cost |
| Manifold or header replacement | $300-$1,000+ | Labor can be high if bolts are seized, broken, or require extraction |
| Turbo or up-pipe leak repair | $300-$1,200+ | Depends on access, gaskets, V-band, broken studs, and diesel layout |
| Full exhaust section replacement | $400-$800+ | Depends on system layout, material, and parts choice |
For a deeper cost comparison, read this exhaust repair cost breakdown.
Diesel Truck Note: Exhaust Leaks Near the DPF or Turbo
On diesel trucks, exhaust leaks can affect more than sound. A leak upstream of the turbo can reduce turbine drive energy, slow spool, and reduce boost. Under sustained load, the resulting boost or air-fuel imbalance may contribute to elevated EGT on some engines, but EGT behavior depends on tuning, fueling, load, sensor location, and leak severity.
If your truck has a leak near the DPF, turbo, up-pipe, downpipe, or pressure sensor area, repair visible leaks before replacing expensive sensors. However, codes such as P2453 and P0401 should still be diagnosed with the manufacturer-specific procedure because sensors, tubes, hoses, wiring, soot restriction, and DPF condition are often more direct causes than the exhaust leak itself.
| Code or Symptom | Possible Exhaust-Leak Connection | First Inspection Point |
|---|---|---|
| P0299 underboost | A pre-turbo exhaust leak may reduce turbo drive pressure, but intake boost leaks, turbo condition, sensors, and tuning must also be checked. | Up-pipes, turbo flange, manifold gasket, charge-air system, turbo, and sensors |
| P2453 DPF pressure sensor code | An exhaust leak in a pressure-sensing section may contribute on some vehicles, but P2453 more commonly requires inspection of the sensor, pressure tubes or hoses, wiring, and DPF restriction. | DPF pressure tubes, hoses, sensor, wiring, connector condition, and DPF restriction |
| P0401 insufficient EGR flow | P0401 is not proof of an exhaust leak. On some engines, a leak may affect pressure-based EGR diagnostics, but restricted EGR passages, valve operation, sensors, and wiring are generally more direct causes. | EGR valve, EGR cooler or passages, soot buildup, sensors, wiring, and manufacturer-specific flow checks |
| High EGT under load | High EGT under load may indicate airflow, fueling, boost, tuning, or exhaust restriction problems. A pre-turbo leak may contribute on some engines but is not a universal cause. | Boost leaks, exhaust leaks, turbo, tuning, fueling, and DPF condition |
Removing or bypassing a DPF is not a normal exhaust leak repair. Removing or disabling emissions-control equipment may violate the U.S. Clean Air Act and applicable state laws, and labeling a product “off-road use only” does not by itself make sale, installation, or use legal. Always confirm the law that applies to the vehicle and location before modifying emissions equipment.
When Should You Replace Instead of Patch?
Patch repairs are only useful when the surrounding metal is still solid. If the exhaust is thin, flaky, seam-cracked, or leaking at multiple points, replacement is usually the better long-term fix.
- If the leak is at a flange and the flange surfaces remain flat, replace the gasket.
- Replace the clamp if it is weak or rusted and the pipe joint is good.
- Use a butt-joint clamp only for same-OD pipe ends that meet end to end.
- Use a lap-joint clamp for overlapping slip-fit pipe connections.
- Replace the flex pipe if its braided or inner section is cracked.
- Replace the muffler if its seams are rusted through.
- Replace the manifold or header if it is cracked, excessively warped, or otherwise unserviceable.
- Extract broken studs and inspect the manifold before deciding whether the manifold itself must be replaced.
- Replace a pipe section if there are multiple rust holes or the surrounding metal is thin and weak.
- Replace or repair V-band joints if the flange is warped, cracked, or no longer sealing evenly.
If you want a repair that also improves sound and flow, compare your options carefully. When the original muffler or pipe is already failing, a performance exhaust muffler or full exhaust section may make sense.
Post-Repair Checklist
After fixing an exhaust leak, do not assume the repair is complete until the system has been checked hot and cold.
- Perform a cold start and listen for ticking or hissing sounds.
- After a short test drive, look for black soot around the repaired area, but remember that no soot does not guarantee there is no leak.
- Verify clamp centering, clamp type, and tightness.
- Confirm that butt-joint, lap-joint, sleeve, and V-band clamps are used only where their joint geometry fits.
- Inspect nearby wiring, hoses, heat shields, and plastic components.
- Scan for codes after confirming the leak is fixed, then clear codes only when diagnosis is complete.
- Recheck the repair after one full heat cycle.
- Retorque only where the service manual or part instructions recommend it.
- If exhaust smell enters the cabin, stop driving immediately.
Related Guides
- How hot an exhaust manifold gets
- How much it costs to replace exhaust parts in a shop
- Beginner’s guide to the vehicle exhaust system
FAQ
Q: Can I drive with an exhaust leak?
A: You should avoid driving if you smell exhaust inside the cabin, hear a loud leak near the engine, notice power loss, or see signs of heat damage. Exhaust leaks can expose you to carbon monoxide and may damage sensors, turbo parts, or emissions components.
Q: What is the easiest way to find an exhaust leak?
A: During a cold start, listen for ticking or hissing, look for black soot marks, and inspect flanges, gaskets, flex pipes, turbo connections, and manifold areas. A low-pressure smoke test is usually the safest and most accurate method.
Q: Can exhaust tape permanently fix a leak?
A: No. Exhaust tape is usually a temporary repair for small downstream leaks. Cracked manifolds, bad gaskets, flex pipe failures, turbo flange leaks, and rotted flanges need proper replacement or welding.
Q: How much does it cost to fix an exhaust leak?
A: A temporary DIY patch may cost $5-$30, gasket or clamp repairs may cost $50-$150, and shop repairs often run $100-$300+. Manifold, turbo-side, flex pipe, or full exhaust section replacement can cost more. These are illustrative U.S. ranges, not quotes, and actual cost can vary by vehicle, region, labor rate, corrosion, and parts choice.
Q: Can an exhaust leak cause a check engine light?
A: Yes. A leak can affect O2, EGT, EGR, DPF, or emissions sensor readings, especially if the leak is upstream of the sensor or DPF system. A code still needs proper diagnosis because sensors, wiring, hoses, soot restriction, intake leaks, and engine-control issues can cause similar symptoms.
Q: Can an exhaust leak cause P0299?
A: A leak located before the turbo, or a leak that affects turbo drive pressure, can contribute to underboost symptoms. However, P0299 can also come from intake boost leaks, turbo problems, sensor issues, charge-air problems, or tuning problems, so inspect the full air and exhaust path.
Q: Can an exhaust leak cause P2453?
A: It can contribute on some vehicles if the leak affects the pressure-sensing section of the exhaust system. However, P2453 more commonly requires inspection of the DPF pressure sensor, pressure hoses or tubes, wiring, connector condition, and DPF restriction. Follow the manufacturer-specific diagnostic procedure.
Q: Can an exhaust leak cause P0401?
A: P0401 is not proof of an exhaust leak. On some engines, an exhaust leak may affect pressure-based EGR diagnostics, but restricted EGR passages, EGR valve operation, sensor issues, and wiring faults are generally more direct causes.
Q: Is an exhaust leak dangerous?
A: Yes. Exhaust leaks can allow carbon monoxide into the cabin, especially at idle or low speeds. Carbon monoxide has no smell, so exhaust odor is only a warning sign, not the only risk indicator. If you smell exhaust inside the vehicle, stop driving and inspect it immediately.
Q: What does an exhaust leak sound like?
A: An exhaust leak may sound like ticking, hissing, puffing, tapping, whistling, or a louder-than-normal exhaust tone. Manifold leaks often sound sharp when cold, while pipe or muffler leaks may sound deeper or louder.
Q: Why is my truck louder when accelerating?
A: A truck that gets louder under acceleration may have an exhaust leak that opens more under load. Common areas include a loose clamp, leaking flange gasket, cracked flex pipe, manifold leak, turbo flange leak, up-pipe leak, or cracked pipe section. Inspect for soot trails and listen during a cold start before replacing parts.
Q: Can an exhaust leak cause loss of power?
A: Yes. A leak before the turbo can reduce turbine drive energy and cause slow spool, poor throttle response, or underboost symptoms. A leak near oxygen sensors, EGT sensors, DPF pressure tubes, or pre-DPF joints can also affect sensor readings and emissions-system behavior on some vehicles.
Q: Can an exhaust leak cause high EGT?
A: Sometimes. A pre-turbo leak can reduce turbo drive energy and contribute to a boost or air-fuel imbalance under sustained load, which may raise EGT on some engines. EGT behavior depends on load, tuning, fueling, sensor location, and leak severity, so high EGT should not be blamed on an exhaust leak without diagnosis.
Q: Can an exhaust leak cause exhaust smell inside the cab?
A: Yes. Exhaust smell inside the cab can happen when fumes enter through the firewall area, floor openings, HVAC intake, or underbody gaps. This warrants serious attention because exhaust gas can contain carbon monoxide. Carbon monoxide itself has no smell, so the absence of odor does not prove the cabin is safe.
Q: Why does an exhaust leak tick when cold and get quieter when warm?
A: A cold-start ticking sound often points to a small leak near the exhaust manifold, header, gasket, or flange. As the metal heats up, it expands and may temporarily reduce the gap, making the sound quieter. The leak still needs inspection because the gasket, manifold, or hardware may continue to worsen.
Q: Can I use a clamp instead of welding an exhaust leak?
A: Sometimes. A correctly sized clamp can work well when the pipe is still solid, round, and matched to the correct joint type. Use a butt-joint clamp only for same-OD pipe ends that meet end to end, and use a lap-joint clamp for overlapping slip-fit connections. Welding or replacement is usually preferable for cracked pipes, rusted sections, broken welds, damaged flex pipes, and leaks with thin, weak surrounding metal.
Q: Why does my exhaust still leak after tightening the clamp?
A: The clamp may be misaligned, too narrow, undersized, off-center, or the wrong style for the joint. The pipe may also be out of round, rusty, too short on overlap, or crushed from previous tightening. Remove the clamp, inspect the sealing area, confirm the pipe outside diameter and joint type, clean the joint, and replace damaged hardware if needed.
Q: Can a bad exhaust gasket cause a leak?
A: Yes. Burned, crushed, or misaligned gaskets can cause flange or manifold leaks. Replace the gasket and inspect the sealing surfaces before reassembly.
Q: Do broken exhaust manifold studs mean I need a new manifold?
A: Not always. Broken studs require extraction and inspection. Replace the manifold only if it is cracked, excessively warped, has damaged threads or an unserviceable sealing surface, or cannot be repaired correctly.
Q: Can an exhaust leak hurt fuel economy?
A: It can. If the leak affects sensor readings, turbo response, or engine control, fuel economy may drop. Small downstream leaks usually affect noise more than fuel mileage.
Q: Should I repair or replace a leaking exhaust?
A: Repair may be enough for a loose clamp, small joint leak, or simple gasket failure. Replace the part if the metal is rusted through, cracked, warped, unserviceable, or leaking in multiple areas.
John Lee
Mechanical Engineer | 10+ Years Experience
John has engineered and tested high-performance automotive components for the last decade. He specializes in drivetrain durability and thermal management across Powerstroke, Cummins, and Duramax applications, bridging the gap between OEM limitations and aftermarket performance. His philosophy: "Factory parts are only a starting point."
