There is no universal rule that the smooth side of an exhaust manifold gasket faces the cylinder head. Use the facing instructions for the exact gasket part number, then confirm its port and fastener alignment. The gasket seals the joint between the cylinder head and the manifold or header; appearance alone does not tell you which face belongs against each surface.
Key Takeaways
Identify the gasket before choosing its orientation; surface texture, a raised bead, or a matching bolt pattern is not enough to establish the correct facing.
- Follow an explicit HEAD SIDE or MANIFOLD SIDE instruction for the selected part.
- TOP and FRONT may describe positioning rather than which face touches the cylinder head.
- Fel-Pro specifies the smooth metallic face toward the manifold on its exhaust gaskets with a metallic face and a composite face.
- A gasket that looks symmetrical is not necessarily reversible.
- Correct orientation still needs clean, serviceable flanges and the specified fastener procedure.
Last updated:
Does the Smooth or Shiny Side Always Face the Head?
A smooth metallic face does not establish a head-side orientation; some exhaust gaskets use that face against the manifold.
Fel-Pro's gasket-direction guidance gives a useful example: when its exhaust manifold gasket has one smooth metallic face and one composite face, the metallic face goes toward the exhaust manifold. That surface accommodates manifold movement during heat cycling. This is a construction-specific instruction, not a new rule for every shiny gasket.
With a different brand or design, identify the part and read its instructions. Do not reverse an established installation direction because the other face looks smoother.
Which Gasket Markings Actually Tell You the Direction?
A face-specific marking identifies a mating surface; a location marking identifies position and may leave the face orientation unresolved.
| What you find | What it establishes | What to do |
|---|---|---|
| HEAD SIDE or ENGINE SIDE | The indicated face, when that meaning is specified for the part. | Place the identified face against the cylinder head and check the full installation instructions. |
| MANIFOLD SIDE | The face intended to contact the manifold or header flange. | Follow the part's instruction, then verify port and fastener alignment. |
| TOP, FRONT, a bank label, or an arrow | A position or directional reference that depends on the design. | Identify what the marking refers to; do not assume it means HEAD SIDE. |
| No marking; different materials on each face | The gasket may have distinct face functions. | Look up the exact part number rather than choosing by color or texture. |
| Raised bead, folded edge, or embossed layers | A sealing or structural feature, not a universal facing instruction. | Use the manufacturer's orientation diagram. Leave the layers assembled. |
| Matching shape and holes on both sides | Geometric fit only. | Confirm that the manufacturer permits installation either way. |
What Should You Do If the Gasket Has No Markings?
An unmarked exhaust gasket needs part-specific identification before installation, not a guess based on its smoother face.
- Find the part number. Check the package, gasket tab, invoice, or supplied kit list. Use that number to find the manufacturer's installation sheet or orientation diagram, including any package QR code.
- Match the construction. Compare the actual gasket with the manufacturer's drawing or installation sheet. A photo of a different material revision is not enough.
- Check the mechanical fit cold. Confirm that the ports, bolt holes, slots, and tabs sit correctly without masking a port or forcing the gasket into place.
- Resolve the facing question. If the instructions do not identify the faces or confirm reversibility, send the supplier clear photos of both sides and the part number before tightening.
The old gasket can help identify the application, but its previous orientation is not proof of a correct installation. Keep the new coating and sealing beads intact while comparing parts.
Do MLS, Graphite, Composite, and Copper Gaskets Follow Different Rules?
Material names describe gasket construction; they do not replace the orientation and surface requirements for a particular part.
| Construction | Useful identification check | Installation decision |
|---|---|---|
| One metallic face and one composite face | Confirm the brand and exact construction, not just the shiny appearance. | Fel-Pro directs the metallic face toward the manifold for this construction. Apply another brand's own instructions. |
| Multi-layer steel (MLS) | Check bank markings, sealing beads, coatings, and the supplied facing diagram. | Keep the layers assembled. An embossed bead alone does not identify the manifold side. |
| Graphite or fiber-faced composite | Compare both facings and any carrier, tabs, or backing. Some designs have fiber on both sides of a steel core. | Install either way only when the selected part is identified as non-directional; matching faces alone are not confirmation. |
| Solid copper | Check port shape, bank, and the manufacturer's preparation requirements. | Confirm reversibility and any dressing or annealing requirement for the selected gasket rather than treating all copper parts alike. |
Can the Gasket Face Correctly but Still Fit the Wrong Bank?
Correct face orientation does not establish left-bank or right-bank fit; the gasket must also match the ports, bolt pattern, and attached hardware.
Hold the gasket against the cold flange before tightening. Check every port edge, slotted hole, heat-shield tab, and bracket attachment. Compare bank-specific part numbers where provided. Do not trim an interfering tab or remove a heat shield to force an unidentified gasket to fit.
What Else Determines Whether the Gasket Seals?
A correctly oriented gasket needs clean mating surfaces, acceptable flange flatness, and the fastener load specified for the installed assembly.
- Work on a cold, secured vehicle. Use the specified support equipment if access requires lifting. Protect exposed exhaust ports during surface preparation.
- Remove old material without cutting the sealing face. Use the approved cleaning method and a suitable non-damaging scraper. Keep debris out of the ports. Avoid powered abrasive discs, wire wheels, and abrasive residue, especially around an aluminum cylinder head.
- Inspect the flange and head face. Look for cracks, erosion, grooves, broken hardware, and uneven contact. On a clean, cold flange, use a precision straightedge and feeler gauges at the positions specified in the service procedure. Record the gaps and compare them with the limit for that assembly; do not pull a warped flange flat with the bolts.
- Verify the complete gasket fit. Check facing, bank, ports, tabs, and fastener holes before drawing the parts together.
- Prepare the hardware as specified. Follow the instructions for replacement fasteners, thread condition, washers, lubrication, and any locking treatment. Do not add anti-seize to a dry-thread torque procedure.
- Seat the flange evenly. Start all fasteners by hand. Where the instructions specify center-out tightening, work outward from the middle in the listed stages. Follow the assembly's exact sequence and torque or angle procedure rather than borrowing a value from another engine.
- Verify the repair safely. Follow the prescribed leak check in a properly ventilated setting. Inspect or retighten after heat cycling only if the instructions require it.
Should You Use Anti-Seize on the Manifold Bolts?
Use anti-seize only when the fastener or assembly procedure specifies it; lubricant changes the clamp load produced by a given torque.
A universal 15% torque reduction cannot account for different coatings, lubricants, threads, and fasteners. Match the specified thread condition and torque procedure, including any replacement bolts supplied with the assembly.
Should You Add RTV, Copper Spray, or Exhaust Paste?
Add sealant or gasket dressing only when the gasket or assembly instructions specify the product and application method.
A high-temperature label does not establish that a product belongs between the faces of a supplied gasket. Do not use extra sealant or stacked gaskets to make up for a cracked casting, damaged surface, or out-of-limit flange.
Which Installation Numbers Can You Actually Use?
Use a published torque or inspection interval only for the matching gasket, hardware, and assembly; the examples below are not a general exhaust-manifold specification.
| Parameter | Verified value or measurement example | Applicable conditions |
|---|---|---|
| Gasket-specific tightening example | Remflex 2079 lists a suggested torque of 20 lb-ft, approximately 27 N·m. | Remflex 2079 is a GM SB2-head header gasket with 2-inch (50.8 mm) diameter ports. This suggestion is not a torque specification for other Chevrolet heads, other Remflex parts, or diesel manifolds. Confirm the complete assembly and fastener requirements before using it. |
| Header-specific tightening example | Hooker 70101355-RHKR specifies 25-28 lb-ft, approximately 34-38 N·m, working from the center outward. | The cited instructions cover this header kit for a 1997-2000 C5 Corvette 5.7L V8, using the specified OEM gasket and supplied bolts. Do not transfer the value to factory manifolds, another kit, or a different lubricant condition. The instructions identify this kit as racing-use-only. |
| Follow-up inspection example | The same Hooker installation sheet calls for checking connections, clamps, and hardware after 150 miles, approximately 240 km. | This is a kit-specific inspection interval, not an instruction to add torque to every manifold bolt or to retighten a hot assembly. Follow the current procedure for the installed parts. |
| Reading a flange-gap measurement | A measured gap of 0.003 inch equals 0.0762 mm; 0.005 inch equals 0.127 mm. | These are unit conversions, not acceptable-warpage limits. Record where each gap occurs on the clean, cold flange and compare the measurements with that assembly's local and overall flatness limits. |
Check the wrench units: 1 lb-ft equals 12 lb-in. For example, 20 lb-ft equals 240 lb-in, not 20 lb-in. Use the correct scale and a calibrated wrench whose rated working range includes the specified setting.
Check the current installation sheet against the part number before using a listed example. If the gasket, header, and fastener instructions disagree, resolve the combination with the manufacturers rather than averaging the torque values. A generic 0.003-0.005-inch rejection rule, a fixed anti-seize correction, and a universal heat-cycle count are not substitutes for those instructions.
What If You Already Installed the Gasket and Suspect It Is Backward?
Check the installed part's facing requirement before deciding whether rework is needed; the absence of an obvious leak does not establish correct orientation.
If the manufacturer confirms that the gasket is non-directional and the fit is correct, a different-looking face alone is not a reason to dismantle it. If a required facing was reversed, follow the corrective procedure and use a replacement gasket when the instructions require one.
For a new tick, soot trail, or exhaust odor, locate the exhaust leak before blaming the gasket's orientation. A nearby cracked manifold, loose connection, or broken stud can produce a similar complaint. Do not use bare hands to search for escaping hot gas or run the engine in an enclosed garage.
Can a Gasket Leak Sound Like Injector Knock?
Exhaust leakage and combustion-related noise can both follow engine speed, so rhythm or cold-start behavior alone cannot distinguish them.
A small flange gap can change as the manifold, fasteners, and cylinder head heat up, so an exhaust tick may fade after warm-up. Cold-start ticking therefore deserves a cold exhaust inspection, not an immediate injector replacement.
A soot trail leading from the flange helps locate leakage but does not establish why the joint failed. Injector and valvetrain noise can also change with temperature. If the exhaust inspection does not explain the noise, use the engine's specified scan-data and mechanical checks.
When Is a New Gasket Not Enough?
Repeated flange leaks call for checking surface condition, alignment, and clamp load before fitting another gasket.
When repairing a confirmed exhaust leak, separate a failed gasket from the condition that caused it. Out-of-limit warping, eroded sealing faces, broken studs, or a cracked casting need their own repair.
Replacement exhaust manifolds should match the engine, bank, drivetrain, attached plumbing, and required emissions provisions. A suitable factory-style replacement can be the right repair; a performance upgrade is not mandatory.

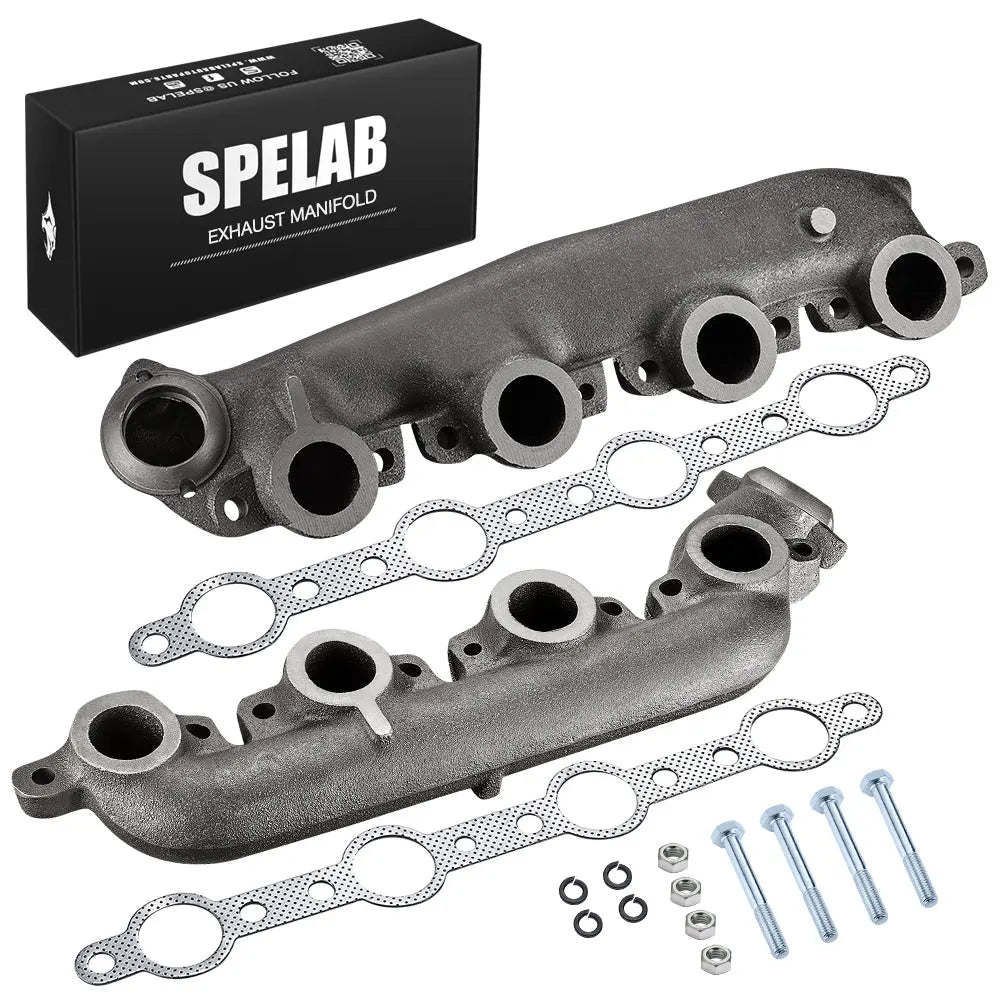

SPELAB replacement and build options: exhaust headers are an option when the selected application and build require them. For a wider project, compare compatible exhaust systems by their connections, routing, and required equipment.
Exhaust Gasket Orientation FAQ
Which side of an exhaust manifold gasket goes toward the engine?
Use the head-side facing identified for the exact gasket. There is no universal smooth-side rule; Fel-Pro specifies the metallic face toward the manifold on its metallic-and-composite exhaust gasket construction.
Does no marking mean the gasket can go either way?
No. Missing markings do not establish reversibility. Confirm the part number and installation instructions, including any differences between the two faces.
Does the raised or embossed side face the manifold?
A raised bead is a sealing feature, not a universal manifold-side indicator. Use the facing diagram for the selected gasket rather than interpreting the bead by appearance.
Can I reuse an exhaust gasket after removing the manifold?
Use a new gasket when the service instructions require replacement. Compression, coating damage, and heat cycling can affect resealing; a gasket that looks intact is not automatically reusable.
Does a collector gasket follow the same orientation rule?
No. A collector or pipe-flange gasket seals a different joint. Match its ring, recess, flange design, and installation instructions instead of transferring a head-flange facing rule.
Can I add anti-seize and reduce the bolt torque by 15%?
No universal percentage makes that substitution reliable. Follow the specified lubricant, thread condition, and torque procedure because friction changes the clamp load produced by tightening.
Do exhaust manifold bolts need retightening after heat cycling?
Retighten only when the vehicle, header, or gasket instructions require it. Hooker's instructions for 70101355-RHKR headers on a 1997-2000 C5 Corvette 5.7L V8 call for checking connections, clamps, and hardware after 150 miles, approximately 240 km. That kit-specific inspection is not a universal hot-retorque instruction or a reason to add an extra turn.
