Updated on June 15, 2026.
Quick Answer: How Do You Increase Horsepower on a Diesel Truck Safely?
The safest way to increase horsepower on a diesel truck is to restore lost power first, fix airflow restriction, choose the right calibration, support fuel delivery, upgrade the turbo only when the truck is ready, and control heat through cooling and drivetrain upgrades.
Power comes from moving the right amount of air and fuel through the engine without cooking EGT, dropping rail pressure, overspeeding the turbo, or abusing the transmission. A Ford F-250/F-350 6.7L Power Stroke, Ram 2500/3500 6.7L Cummins, Chevy Silverado 2500HD/3500HD 6.6L Duramax, and GMC Sierra 2500HD/3500HD 6.6L Duramax should be built around usable torque, towing load, boost control, fuel pressure, and transmission temperature, not just a peak dyno number.
| Driver Goal | First Move | Risk Level | Best for Towing? | Needs Tuning? |
|---|---|---|---|---|
| Restore lost power | Scan data, filters, boost leak test, fuel pressure check | Low | Yes | No |
| Better throttle response | Air intake, intake horn, intercooler pipes, exhaust restriction check | Low to medium | Yes | Sometimes |
| More towing torque | Monitoring, mild calibration, airflow support, cooling check | Medium | Yes | Usually |
| Big horsepower build | Fuel system, turbo, tuning, cooling, transmission support | High | Depends on setup | Yes |
| Race or off-road power | Full build plan with fuel, turbo, tune, drivetrain, and legal-use boundary | High | No, unless built for that job | Yes |
Key Takeaways
- If the truck smokes but does not pull, fix air delivery before adding more fuel.
- If actual rail pressure drops under load, solve fuel supply before trusting a hotter tune.
- If EGT climbs on grades, check boost leaks, IAT, turbo match, exhaust restriction, and towing weight before chasing peak horsepower.
- If the transmission slips, flares, hunts gears, or runs hot, stop adding torque until TFT, converter lockup, ATF health, and shift behavior are under control.
- A safe tow build is not the same as a dyno build; usable torque, clean boost, and repeatable temperatures matter more than the biggest HP number.
Diesel Horsepower Stages: What Support Do You Need?
Diesel horsepower should be added in stages because a stock tow truck, mild street truck, and high-output build do not need the same fuel, turbo, cooling, or transmission support.
| Power Goal | Typical Direction | Support Needed | Best Use |
|---|---|---|---|
| Restore stock power | Filters, scan data, boost leak test, fuel pressure check | Maintenance and diagnosis | High-mileage daily driver or tow rig |
| Mild response gain | Intake, intake horn, CAC boots, intercooler pipes, compliant exhaust flow | Basic monitoring and healthy factory systems | Daily driving and light towing |
| 50-100 hp over stock | Emissions-compliant calibration, sealed charge-air path, fuel pressure monitoring | EGT, boost, rail pressure, TFT, cooling health | Towing or street use when properly matched |
| 100-200+ hp over stock | Turbo, fuel system, cooling, transmission, and drivetrain plan | Full gauges, data logging, stronger support parts | High-output street, competition, or off-road-only build depending on setup |
Platform-Specific First Checks: Power Stroke, Cummins, and Duramax
Platform-specific diagnosis matters because a 6.7L Power Stroke, 6.7L Cummins, and 6.6L Duramax can feel weak for different reasons even when the driver complaint sounds the same.
| Diesel Platform | What to Check First | Common Complaint | Why It Matters Before More Power |
|---|---|---|---|
| Ford F-250/F-350 6.7L Power Stroke | VGT behavior, CAC boots, EGT, boost response, 6R140 or 10R140 shift behavior | Dead down low, high EGT, poor towing response, transmission heat | A lazy VGT actuator, charge-air leak, or hot transmission can make a tune feel strong empty and weak under load. |
| Ram 2500/3500 6.7L Cummins | CAC boots, rail pressure, fuel filter condition, EGT, 68RFE or Aisin behavior | Black smoke, P0299, rail pressure drop, gear hunting while towing | A soft boot or fuel supply problem can make a tuned Cummins smoke without moving hard. |
| Chevy/GMC 2500HD/3500HD 6.6L Duramax | Commanded vs actual rail pressure, turbo vane behavior, IAT, boost, Allison temperature | Falls on its face at WOT, high IAT, weak pull with trailer, fuel pressure drop | A Duramax with rail pressure falling behind commanded pressure needs fuel diagnosis before a bigger turbo makes sense. |
| Lifted diesel truck on larger tires | Gear ratio, tire size, EGT, TFT, converter lockup, shift schedule | Feels slow after larger tires, hunts gears, runs hotter while towing | Bigger tires change load, leverage, shift timing, and heat before a single horsepower part is added. |
Restore Lost Horsepower Before Buying Mods
Many trucks do not need more parts first; they need lost power restored through scan data, clean filters, sealed boost plumbing, healthy sensors, and stable fuel pressure.
Scan the truck before ordering performance parts. A weak 6.7L Cummins with a leaking CAC boot, a 6.7L Power Stroke with a lazy turbo actuator, or a 6.6L Duramax with a plugged fuel filter can feel like it needs a tuner when the real problem is maintenance or a failing component.
Diesel trucks need clean air filters, clean fuel filters, sealed intercooler boots, stable rail pressure, healthy injectors, correct MAP/MAF data, and no stored derate codes. A truck with a boost leak or fuel pressure drop will not become reliable just because a bigger part gets bolted on.
| Symptom | Likely Cause | First Test | Fix Before Adding Power? |
|---|---|---|---|
| Lazy under load | Boost leak, CAC boot leak, fuel restriction, turbo actuator issue | Log boost pressure and fuel pressure under load | Yes |
| Black smoke | Low air, too much fuel, clogged air filter, leaking charge pipe | Check IAT, boost, air filter, and charge-air path | Yes |
| High EGT | Airflow restriction, aggressive tune, heavy load, turbo mismatch | Watch EGT with boost and load data | Yes |
| Hard start | Fuel pressure problem, injector issue, battery voltage, glow system concern | Check rail pressure, contribution data, and battery health | Yes |
| Limp mode | DTC, sensor mismatch, trans protection, emissions system fault | Read codes and freeze-frame data | Yes |

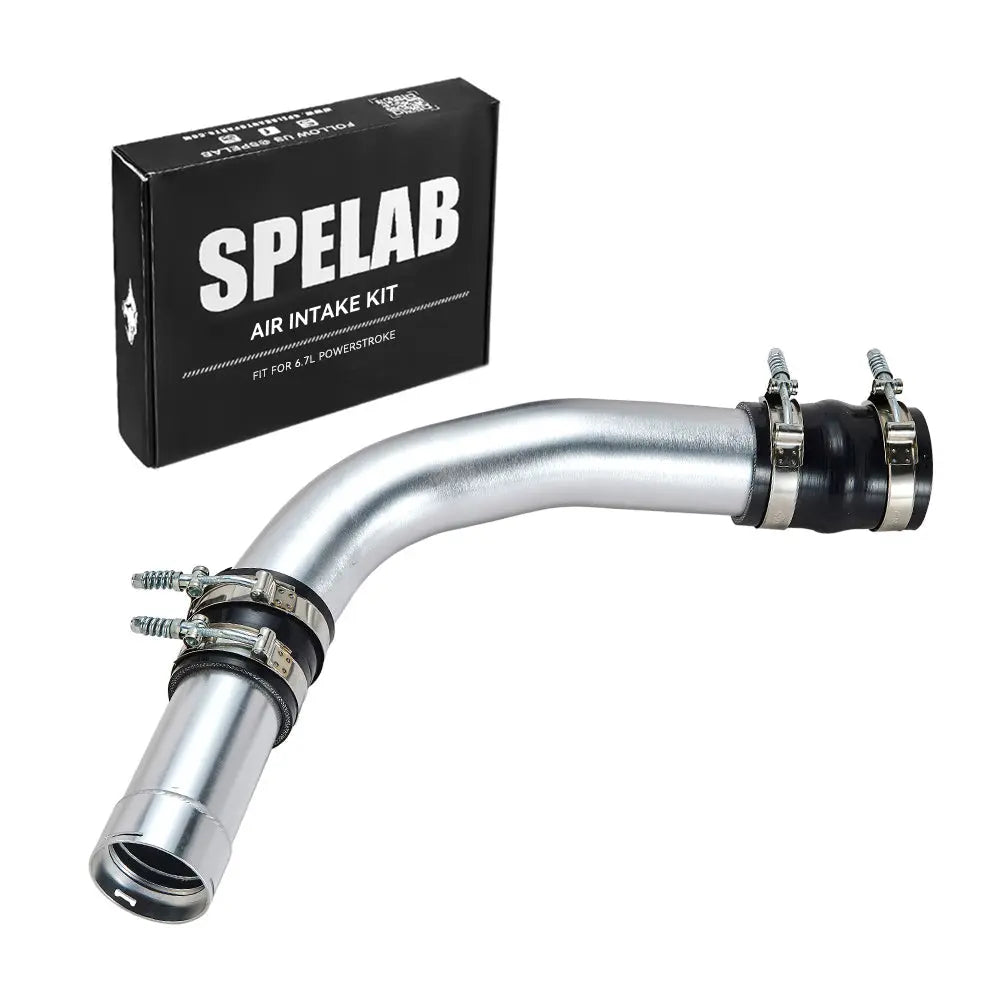

Airflow Mods: Intake, Intake Horn, Intercooler Pipes, and Exhaust
Airflow mods help horsepower when they remove real restriction, seal pressure loss, lower charge-air stress, or prepare the truck for tuning and turbo upgrades.
Start with the intake side. A cold air intake or air intake kit can improve airflow when the factory box, filter, or tube is restrictive. An intake horn or intake manifold upgrade can help on trucks where the factory path has a tight neck, rough casting, or heat-soaked restriction near the inlet. The gain depends on the engine, baseline condition, tune, and airflow demand.
Check the charge-air path before buying bigger power parts. Weak intercooler boots, oil-soaked couplers, cracked plastic pipes, bad clamps, and poor pipe beads can dump boost before the air reaches the intake manifold. P0299 underboost, black smoke, slow spool, high IAT, and lazy towing power often point to pressure loss or heat soak, not a bad turbo.

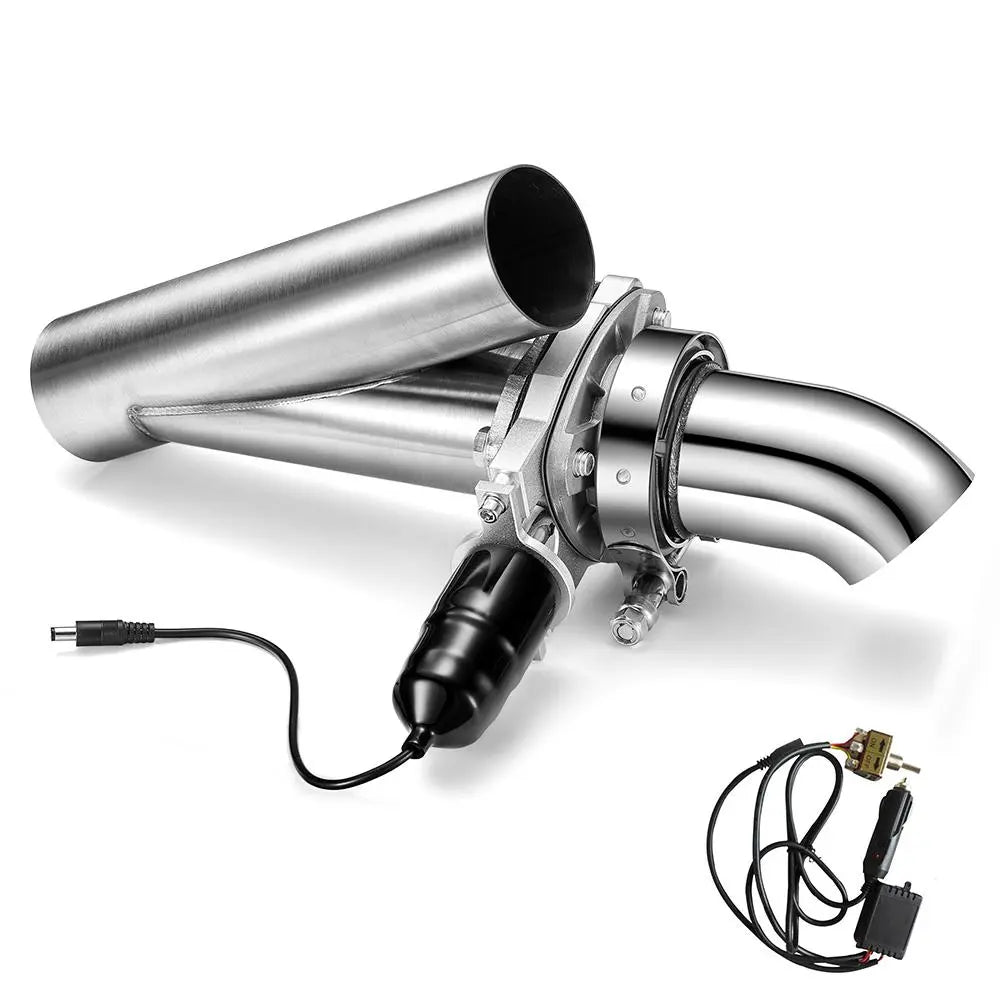

Use street-legal exhaust improvements where the vehicle is used on public roads. A compliant exhaust setup should reduce restriction where legal and retain required emissions equipment on street-driven trucks. Off-road or race-only exhaust changes belong on vehicles used only where that setup is legal.
| Upgrade | What It Improves | Best Symptom | Works Alone? | Needs Tune? |
|---|---|---|---|---|
| Cold air intake | Air inlet restriction and throttle response | Restricted factory airbox or dirty filter path | Often | Usually no |
| Intake horn or manifold | Airflow into the engine after the charge pipe | Choked intake neck, high load response loss | Sometimes | Sometimes |
| Intercooler pipe and CAC boots | Boost sealing and pressure stability | P0299, boot blow-off, black smoke, low boost | Yes | No |
| Street-compliant exhaust improvement | Legal flow path and reduced restriction where allowed | Exhaust restriction, poor response, heat under load | Sometimes | Sometimes |
Tuning: Fast Power, Real Risk
Tuning can add horsepower and torque quickly, but a bad calibration can raise EGT, stress the turbo, overload the transmission, or violate emissions rules.
Pick the calibration for the job. A daily driver needs clean drivability. A tow rig needs controlled torque, safe EGT, and transmission-friendly shift behavior. A performance build needs more monitoring and stronger supporting parts. A race or off-road-only calibration should never be presented as a street-use solution.
Watch the numbers that matter without turning the truck into a guessing game. EGT, boost pressure, transmission fluid temperature, shift timing, converter lockup, and fuel data tell the truth when the truck is loaded. A truck can feel strong empty and still run too hot with a camper, gooseneck, or work trailer hooked up.
Keep emissions compliance separate from power talk. EPA states that it is a Clean Air Act violation to manufacture, sell, or install a motor-vehicle part that bypasses, defeats, or renders inoperative an emission control device, and EPA also identifies software that alters diesel fuel injection timing as an example of a defeat device when it disables emissions controls. Review EPA Air Enforcement before changing emissions-related hardware or software.
| Tune Type | Power Potential | Main Risk | Required Monitoring | Street-Use Note |
|---|---|---|---|---|
| Stock or maintenance calibration | Low | Does not fix mechanical faults | DTCs, boost, fuel data, transmission behavior | Designed around factory compliance |
| Emissions-compliant performance calibration | Low to medium | Heat, torque management, driveline stress | EGT, boost, rail pressure, TFT | Must retain required emissions equipment |
| Towing calibration | Medium | Excess torque at low rpm and high load | EGT, TFT, coolant temp, boost, fuel pressure | Must be matched to the vehicle’s legal use |
| Race or off-road-only calibration | Medium to high | Drivetrain stress, heat, legal-use limits | Full gauges or data logging | Not for public-road emissions-controlled vehicles |
Fuel System Support: Pump, Filter, Injectors, and Rail Pressure
Fuel system support matters when added airflow and tuning need stable delivery under load, not just more commanded fuel on a screen.
Check the boring parts first. A clogged fuel filter, weak lift pump, tired injector, or rail pressure drop can make a truck nose over during acceleration or towing. Commanded rail pressure and actual rail pressure should be compared under load before blaming the turbo or tune.
Diesel power is not just “add more fuel.” Too much fuel without enough clean air raises smoke, EGT, turbo stress, and piston heat. A towing build needs clean combustion and stable pressure; a race build needs a full fuel and air plan; a high-mileage work truck needs reliability before more demand is stacked on the system.
| Fuel Red Flag | What It Can Mean | What to Check | Why It Matters Before More Power |
|---|---|---|---|
| Rail pressure falls under load | Fuel supply problem, pump limit, injector issue | Commanded vs actual rail pressure | The tune may demand fuel the system cannot deliver |
| Hard start | Injector leakdown, low pressure, battery issue | Fuel pressure data and contribution or balance information | Weak starting often gets worse with more demand |
| Black smoke and high EGT | Too much fuel for available air | Boost, IAT, air filter, tune, injector health | Extra fuel can create heat instead of usable power |
| Power falls off at higher rpm | Fuel restriction or pump limit | Fuel filter, lift pump, fuel pressure, rail pressure | The truck may need support before a larger turbo or hotter tune |
Turbocharger Upgrades: When Bigger Air Actually Helps
A turbo upgrade helps when the truck already has healthy fuel supply, sealed charge-air plumbing, correct tuning, cooling support, and a drivetrain that can handle the torque.
Inspect the stock turbo before replacing it. Shaft play, oil leaks, compressor wheel damage, actuator faults, vane sticking, oil starvation, boost leaks, exhaust leaks, and abnormal drive pressure can all make a turbocharged truck feel weak. Replacing a turbo without fixing the cause can kill the new unit too.
Size the turbo for the job. A towing turbo should spool cleanly, hold stable boost, and control EGT under load. A race turbo can chase more airflow at higher rpm but may give up low-rpm response. A daily-driven 6.7L Power Stroke, 6.7L Cummins, or 6.6L Duramax should not be built like a dyno-only truck if the owner still pulls campers, boats, or equipment.
Watch the difference between a VGT, fixed-vane turbo, and compound turbo setup. VGT behavior matters a lot on many modern HD diesel platforms. A fixed-vane swap can simplify the setup but may change spool and towing feel. A compound setup can make serious power, but fuel, cooling, transmission, and tuning need to be planned before the parts show up.
| Driver Goal | Turbo Direction | Supporting Mods | Towing Suitability | Risk If Unsupported |
|---|---|---|---|---|
| Better towing response | Fast-spooling, towing-friendly turbo or stock turbo health repair | Intercooler pipes, intake, monitoring, cooling check | High | High EGT and poor drivability if mismatched |
| Daily driver power | Moderate airflow upgrade or stock system optimization | Airflow, mild tune, fuel health, transmission monitoring | Medium to high | Lag, smoke, heat, and trans stress |
| High horsepower build | Larger turbo or compound planning | Fuel system, tuning, cooling, transmission, gauges | Depends on setup | Turbo lag, overspeed, low fuel pressure, drivetrain failure |
| Race or off-road use | Build-specific turbo matched to rpm, fuel, and use case | Full supporting system plan | Low unless designed for it | Broken parts and unstable heat control |
Cooling and Drivetrain Support: The Part Beginners Skip
A truck that can make more horsepower still needs cooling, transmission, axle, and charge-air support before that power becomes reliable under load.
Build around the job. Towing a camper in 95°F weather, pulling a gooseneck up a grade, running larger tires, idling at a jobsite with A/C on, or hauling payload through mountain roads will expose weak cooling and drivetrain parts fast.
Check the radiator, fan clutch, coolant reservoir, oil cooler, charge air cooler, transmission cooler, ATF condition, transmission pan, differential cover, and gear oil before stacking power. Heat does not care whether the truck made power from a tune, turbo, fuel system, or airflow mod.
| Added Power Level | Cooling Need | Transmission Need | Monitoring Need | Best Use Case |
|---|---|---|---|---|
| Stock to mild bolt-ons | Clean cooling stack, good coolant, sealed hoses | Healthy ATF and no slipping | Basic scan data | Daily driver and light towing |
| Mild tune and airflow mods | Watch EGT, IAT, coolant temp, and oil temp trends | Monitor TFT and shift behavior | Boost, EGT, fuel pressure, TFT | Towing and work truck use |
| Turbo and fuel upgrades | Stronger oil, coolant, and charge-air heat control | Transmission build or upgraded support may be needed | Full gauge or data logging setup | High-output street, tow, or race build |
| Race or off-road power | Build-specific cooling plan | Built transmission and drivetrain planning | Continuous monitoring | Competition or non-public-road use |
Which Horsepower Mod Should You Do First?
The first horsepower mod should match the truck’s real job because a daily driver, tow rig, high-mileage work truck, tuned diesel, lifted truck, and race build do not need the same first upgrade.
Start with the weak link. A high-mileage truck needs diagnosis. A tow rig needs monitoring and heat control. A tuned truck needs airflow, fuel, and transmission data. A lifted truck on larger tires needs gearing, shift behavior, and temperature review before a bigger turbo makes any sense.
| Goal | First Move | Second Move | Avoid First |
|---|---|---|---|
| Daily driver | Tune-up, filters, scan data, boost leak check | Intake or street-compliant exhaust improvement | Big turbo |
| Towing diesel | Monitoring, cooling check, airflow health | Mild calibration and sealed charge-air path | Aggressive race tune |
| High-mileage truck | Compression, fuel, injector, and boost leak testing | Restore weak parts | More fuel |
| Tuned truck | EGT, boost, fuel pressure, and TFT logs | Intercooler pipes, fuel support, cooling support | Stacking another tune blindly |
| Lifted truck on larger tires | Scan data, gear ratio check, transmission behavior, EGT and TFT monitoring | Airflow support, mild calibration, cooling and drivetrain review | Big turbo before fixing drivability |
| Race or off-road build | Fuel, turbo, cooling, transmission, and legal-use plan | Build the system together | Stock transmission abuse |
Common Mistakes That Kill Reliability
Most horsepower failures come from adding power before fixing the weak link: airflow leaks, fuel pressure loss, turbo mismatch, heat, transmission limits, or bad calibration.
We see the same pattern as a parts manufacturer testing airflow, cooling, and support hardware. The owner buys the exciting mod first, then finds the truck had a cracked CAC boot, clogged filter, tired pump, dirty cooling stack, or transmission already slipping under load.
A 6.7L Cummins with a soft CAC boot can smoke and throw P0299 after a tune even when the turbo is fine. A 6.7L Power Stroke with lazy VGT behavior can feel dead down low no matter what intake is installed. An L5P Duramax with actual rail pressure falling behind commanded pressure needs fuel diagnosis before a bigger turbo makes sense. A lifted truck on 37s can feel slow because gearing, tire weight, converter behavior, and shift strategy changed the load before any horsepower part was added.
| Mistake | What Happens | How to Avoid It |
|---|---|---|
| Tuning before diagnosis | Existing fuel, boost, or sensor faults get amplified | Scan and log the truck first |
| Adding fuel before airflow | Smoke, high EGT, turbo stress, poor drivability | Fix intake, boost, and charge-air restriction first |
| Ignoring boost leaks | P0299, black smoke, lazy response, poor towing power | Pressure-test CAC boots and intercooler piping |
| Bigger turbo on stock support | Lag, heat, low fuel pressure, drivetrain stress | Plan fuel, cooling, tuning, and transmission support |
| No gauges on a towing truck | Heat problems stay hidden until damage starts | Monitor EGT, boost, fuel pressure, and TFT |
| Chasing peak HP only | Truck feels worse in real towing or street use | Build for usable torque and the actual job |
FAQ
Q: What is the easiest way to increase horsepower on a diesel truck?
A: Restore lost power first with filters, scan data, boost leak checks, fuel pressure checks, and sensor review; then choose airflow, tuning, fuel, turbo, and cooling upgrades based on the truck’s job.
Q: Does a cold air intake really add horsepower?
A: A cold air intake can help when the factory intake is restrictive, but the bigger value on many diesel trucks is airflow support, throttle response, lower restriction, and preparation for intake horn, CAC pipe, tuning, or turbo upgrades.
Q: How much horsepower does an exhaust add?
A: Exhaust gains vary by platform, restriction, tune, and emissions equipment requirements. Street-driven trucks must retain required emissions hardware, and any exhaust change should match the vehicle’s legal use.
Q: Is a tuner the best horsepower mod?
A: A tuner can be one of the fastest ways to add power, but it is not the safest first move on every truck. Monitor EGT, boost, fuel pressure, and transmission temperature before trusting any higher-power calibration.
Q: Do I need fuel upgrades before a bigger turbo?
A: Many higher-power builds need fuel support before a bigger turbo can work correctly. Check rail pressure, fuel filter condition, injector health, lift pump capacity, and commanded-versus-actual fuel data under load.
Q: What horsepower mods are best for towing?
A: Towing builds usually benefit from restored baseline power, sealed charge-air plumbing, mild tuning, monitoring, cooling support, and transmission health before large turbo or aggressive fuel upgrades.
Q: Can horsepower mods damage my engine?
A: Yes. Poor tuning, high EGT, low fuel pressure, overboost, boost leaks, weak cooling, and stock transmission limits can damage an engine or drivetrain when power is added without support.
