Boat Propeller Theory and Signs for Replacement

0 comments / Posted on by SPELAB SPELAB

SHOP NOW



An oversimplified explanation describes boat propeller theory as being similar to a rotating screw. But, it actually involves more than a turning screw. There are forces created by moving the water away from the blades of the propeller and these forces are what helps move the propeller forward, thus moving the boat.

Boat propellers include blades that turn on a shaft, which is powered by the motor. Propellers can have 3, 4, or 5 blades. Typically, the more blades on the propeller, the more propulsion can be achieved. While the motor provides the power, the propeller is where all the action takes place. Propeller blades displace water, to create the forces that move a boat forward.

Boat Propeller Theory

The basic propeller shaft creates the torque, or energy required to turn the blades. But, the design of propeller blades is what creates the displacement of water. The displacement of water is what creates forces that move a boat forward. Propellers can turn either direction. They work by the same principles, regardless of the direction they turn.

The propeller works by turning torque into thrust. In other words, it converts power from the engine into an action. The action of turning the propellers creates force, by moving the flow of water downward and behind the blades. When this happens, the water that has just been pushed behind the blade creates a temporary hole. This hole fills with water, creating a low pressure system that lifts and pulls the blade forward. The momentum created by the low pressure is what moves the boat forward.

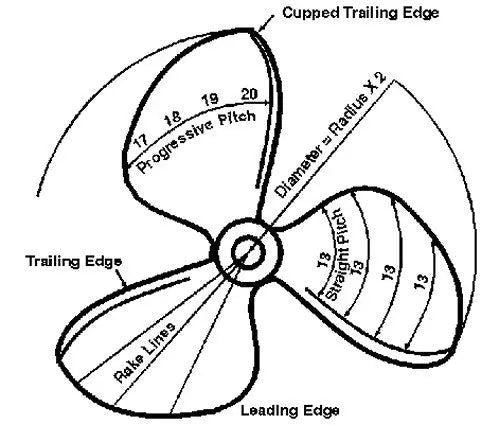

A boat propeller consists of blades. Each blade is designed with a sight curve and a particular shape, which helps move the water down and past it. The leading edge is the part of the propeller blade that hits the water first. The trailing edge is the part where the water leaves the blade. The curve of the blade usually begins at the trailing edge and extends all the way to the hub. the curve is also known as the cup. It's what gives the propeller blade its pitch, or angle.

A propeller in motion creates a pitch. This is the forward movement of the propeller in one revolution. The propeller doesn't always move the exact distance it is designed to move, due to slippage. A good propeller will have as little as 10 to 30% slippage, but this depends on the design of the propeller and blades.

Boat propeller theory is not difficult to understand. But, it is not as simple as a turning screw. It's sometimes compared to the lift created by airplane wings. The difference is that the lift from a propeller is created by moving water.

boat propeller
Signs to Replace Your Boat Propeller

As with all water equipment, preventative maintenance and routine checks are critical to making sure all your gear is in top working condition.

As soon as you notice your boat becoming sluggish, slow to start or difficult to accelerate, it could be time to give your propeller a second look.

Today, we’re sharing six signs that your current model has suffered enough wear and tear and it’s time to look for a replacement.

1. It Has Too Much Pitch

When researching propeller sizes, you’ll notice two numbers associated with each one. The first is its diameter and the second is its pitch.

In boating, prop pitch refers to the distance that your propeller moves through the water in one full revolution.

For instance, say your propeller has a pitch of 18 inches. This means it should move 18 inches every time it rotates through a solid medium.

The only difference? Water is, of course, a liquid medium.

As such, expect some slippage to occur. In fact, this range of motion is necessary to move your boat along. While this adjustment is fine, it shouldn’t be extreme.

If you find that your boat has way too much pitch, it might be difficult for it to come onto a plane. In laymen’s terms, this means it’s hard to accelerate.

It’s akin to leaving a stoplight with your car stuck in third gear. You’re working harder at lower speeds and stressing the rest of the boat mechanics.

Ask a mechanic to adjust your propeller pitch and see if that solves the issue. Often, that’s the only change necessary. Or, you could also try changing from a three-blade propeller to a four-blade one. Sometimes, that extra blade can improve acceleration, fuel efficiency, and overall performance.

2. It Doesn’t Have Enough Pitch

Along the same lines, if your pitch is too low, your boat can overextend itself trying to catch up. As a rule of thumb, remember that the lower a propeller’s pitch, the higher its rotations per minute, or RPM. The higher its pitch, the lower the RPM.

If yours is still slow to pick up, even after over-revving, take it in for a pitch adjustment.

It’s unwise to leave it in this condition for too long. Consider the long-term effects on your vehicle if you drove on the interstate in second gear.

While the rush of the speed is thrilling at first, it doesn’t take long for the engine to experience major damage.

boat propeller

3. It’s a Compromise Propeller

Do you know if your current propeller fits your boat? Often, boat builders will install compromise propellers on their creations, especially if they aren’t sure what you plan to do on the water.

In short, these are standard propellers designed to fit a range of functions at a moderate capacity. Though they’re flexible, they aren’t as high-functioning as ones made for a specific use.

What happens when you install one? You’re unlikely to use it as intended because you may not know what it’s capable of handling.

This means you take your boat to a high-altitude lake, although it’s meant for use at sea level. Or, you load it down with the family camping gear when it’s supposed to transport a lighter weight.

Over time, this ill-fit becomes obvious. You’ll notice your propeller slowing down and your water activities becoming more laborious. When that happens, it’s time to find a propeller that can keep up with your lifestyle.

4. You Damaged It in the Water

It’s easy for your propeller to come into contact with natural surfaces below the water. For example, your boat may run over a log, hit a rock or jam into a sandbar.

While you may not notice an initial change in performance, keep an eye out. A dinged, bent or chipped propeller won’t work as it used to and can even affect the overall engine performance.

Even if you examine yours on land and don’t see any aesthetic changes, keep in mind that the damage could be internal. It can affect your pitch and throw your entire boat off-kilter.

If you heard the collision, odds are high that some level of damage occurred. In other cases, a propeller can become damaged if it’s wrapped around seaweed, which can turn into a silent foe.

5. You’re Losing Gas

Boating isn’t a cheap hobby. In fact, it made the top 10 list of the 20 most common hobbies that the world’s richest people love to enjoy.

There are always parts to buy, upgrades to perform and investments to make if you want to keep the fun going.

That said, you don’t want to throw money out the window with poor fuel economy.

If you dinged or otherwise damaged your propeller, you may notice that your boat needs more frequent fill-ups. This is because your boat now has to work harder to perform even the simplest tasks.

Ask an expert to take a look at it. You may only need an adjustment or repair, though in some cases a total replacement is in order.

6. It’s Not the Right Diameter

You don’t need a gigantic propeller for a little fishing boat. Likewise, your yacht could sink if the outboard prop isn’t sized right.

Before driving away with your new boat, make sure the installed propeller has an appropriate diameter. This is the size of the blade when it’s measured from tip to tip.

If you’ve had yours for a while and you’re looking for a new one, make sure the equipment you choose meets manufacturer specifications. It should be predetermined by the brand with little to no input required by you, but each situation is different.

In most cases, the pitch will be the main point to consider as you do your homework, though you should understand the diameter as well.



Replace Your Boat Propeller and Take Off

Like a car without an engine, a boat without a propeller isn’t going anywhere.

In many ways, this equipment is the lifeblood of your machine. It powers it, keeps it afloat and helps it reach the speed and performance you crave. To keep it in great shape, don’t let too much time pass between inspections.

When it’s time to get a new boat propeller, look for one designed with your goals in mind. Then, rev it up and enjoy!
