Transmission cooler lines carry automatic transmission fluid between the transmission and its radiator-mounted or auxiliary cooler. A wet quick-connect, failed crimp, rusted hard line, kinked hose, or loose retaining clip can lower the ATF level enough to cause overheating, delayed engagement, clutch slip, and a tow bill. Find the exact failure, check the fluid by the factory procedure, and match the replacement line to the transmission and cooler layout—not just the truck's model year and engine.
Key Takeaways
Most cooler-line jobs come down to five decisions: identify the fluid, locate the failed point, judge the rest of the line, confirm fitment, and refill the transmission correctly.
- Transmission cooler lines carry ATF, not engine coolant.
- Active drips, falling fluid level, delayed engagement, clutch slip, or a temperature warning mean the truck should stop working or towing.
- A failed O-ring or clip may be repaired locally; widespread rust, a leaking crimp, crushed tubing, or several weak points usually calls for line replacement.
- Use OEM-formed tubing or hose rated for transmission-oil-cooler service. Heater, vacuum, and unverified fuel hose are not substitutes.
- Fitment must match the transmission, build date, drivetrain, cooler package, connector style, and original routing.
What Are Transmission Cooler Lines?
Transmission cooler lines are the supply and return paths that move ATF between an automatic transmission and its heat exchanger.
A factory assembly may combine steel or aluminum tubing, flexible hose, crimps, quick-connect fittings, O-rings, clips, and chassis brackets. Rigid sections hold the route around the pan, crossmember, axle, exhaust, and frame; flexible sections absorb drivetrain movement.
- Transmission oil cooler lines and transmission fluid lines usually mean the complete circuit.
- Transmission cooler hose or TOC hose normally means a flexible section.
- Transmission coolant lines is a common owner term, but these lines normally carry ATF rather than engine coolant.
How the Transmission Cooler Circuit Works
The transmission sends heated ATF through a supply line to a heat exchanger, and a return line carries the cooled fluid back.
Supply, Cooler, and Return Flow
The basic path is transmission outlet, hot-side line, radiator or auxiliary cooler, cool-side line, and transmission return.
- The pump moves ATF through the converter and cooler circuit.
- The supply line carries hot fluid to an in-radiator heat exchanger, external cooler, or both.
- Airflow and/or engine coolant remove heat.
- The return line sends ATF back to the transmission.
Some heavy-duty trucks use both coolers or a thermal bypass valve that changes flow while the ATF is cold. A tow package can therefore change line lengths, bends, valves, and connector directions. Our guide to how heat moves through a diesel truck's oil-cooling circuit explains the heat-exchanger side in more detail.
Which Line Is the Supply Line and Which Is the Return Line?
No universal rule says the upper radiator port is always the return or the lower port is always the supply; confirm the exact transmission and cooler layout.
Use OEM service information first. A temperature comparison can support the diagnosis after the bypass opens, but cold ATF and light load can make the result misleading.
| Method | Reliability | Shop note |
|---|---|---|
| OEM service diagram | Highest | Match transmission and cooler option |
| Original line routing | High | Watch for build-date and tow-package splits |
| Temperature comparison | Supporting test | Wait until the cooler circuit is active |
| Controlled flow test | High when correct | Control fluid loss and contamination |
| Guessing from port height | Low | Orientation changes across platforms |
Are Transmission Cooler Lines High Pressure?
Cooler lines operate under pressure, but they are usually part of the converter and cooler-return circuit rather than the highest-pressure clutch-control circuit.
Pressure changes with pump speed, ATF temperature, restriction, hose diameter, and bypass position. Use hose rated for cooler service, such as a product meeting SAE J1532 or an OEM requirement, and match the original flow area. Common 5/16-, 3/8-, and 1/2-inch sizes are not interchangeable shortcuts.
Where the Lines Run and What They Look Like
Start at the transmission case, follow the paired tubes along the pan or frame, and trace them to the radiator tank, auxiliary cooler, thermal valve, or a combination of those parts.
Check crossmembers, front-driveshaft clearance, skid plates, frame clips, steering parts, and exhaust clearance. Salt-belt trucks often rust where brackets trap moisture, while off-road impacts can flatten a low loop without causing an immediate leak.
- Transmission cooler lines: Run between the transmission and ATF cooler.
- Engine-oil cooler lines: Run from the engine or filter adapter to an oil cooler.
- Coolant hoses: Connect the engine, radiator, heater core, and reservoir.
- Power-steering lines: Connect the pump, steering gear, hydroboost, or steering cooler.
Do not identify a leak by color alone. Clean the area and follow the wet trail to its highest point.
Leak Symptoms and Common Failure Points
Red or brown ATF under the truck is the obvious sign, but rising temperature under load, repeated low-fluid checks, delayed engagement, and a chafed or flattened tube can expose a problem before a major puddle appears.
| Symptom | Likely cause | Urgency | Next action |
|---|---|---|---|
| Wet quick-connect or fitting | O-ring, clip, fitting seat, or tube-end damage | High | Clean and inspect the exact joint |
| Leak at a rubber-to-metal crimp | Aged hose, corrosion, or failed crimp | High | Replace the assembly containing the crimp |
| ATF level keeps dropping | External leak or cooler failure | Very high | Stop towing and locate the loss |
| Temperature climbs during towing | Low fluid, kink, restriction, bypass issue, or weak airflow | Very high | Reduce load and diagnose before the next pull |
| Delayed Drive or Reverse engagement | Low fluid or aeration | Very high | Shut down and check fluid correctly |
| Engine flare or clutch slip | Low fluid, overheating, or internal damage | Critical | Stop driving |
| Rust around brackets | Moisture trapped against tubing | High | Inspect the full circumference |
| Flattened or sharply bent tube | Impact or poor routing | High | Replace the damaged section or line |
Where Cooler Lines Usually Leak
Most leaks start at a seal, retaining clip, crimp collar, corroded steel section, abrasion point, thermal bypass housing, or stressed cooler connection.
- Quick-connect fittings: Cut O-rings, weak clips, incomplete engagement, damaged tube ends, or corroded sockets.
- Rubber-to-metal crimps: Heat cycles and road salt damage the hose and metal beneath the collar.
- Frame contact points: Missing isolators let the tube fret against metal until a pinhole forms.
- Low hard-line sections: Rocks, ice, tow chains, or a jack can flatten a tube and cut flow.
- Cooler ports: Cross-threading, side load, cracked tanks, or unsupported hose can mimic a line leak.
- Thermal bypass assemblies: Seals and housings can leak or restrict flow.
A damp fitting does not automatically need only an O-ring. Inspect the socket, tube end, and retaining clip, then perform a firm pull test after assembly.
Can You Drive With a Leaking Transmission Cooler Line?
Do not continue driving an active cooler-line leak because the lost ATF supports lubrication, converter flow, hydraulic control, and heat removal at the same time.
A light film is different from a line leaving drops on the ground. Clean the area, verify the level using the correct temperature and gear-selection procedure, and watch the joint while the engine runs. Move the truck only when the leak is minor, the level is correct, engagement is normal, temperature is stable, and the route is short.
Shut it down when the level is low, Drive or Reverse engages slowly, engine speed rises without matching acceleration, a temperature warning appears, or ATF reaches a hot exhaust surface. Use the exact owner-manual procedure and fluid specification. Ford's transmission-fluid guidance, for example, directs owners to vehicle-specific information rather than one universal fluid or checking method.
Is It a Leak, a Restriction, or a Failed Cooler?
Separate fluid loss from flow loss before ordering parts because an external leak, crushed line, and restricted cooler produce different evidence and need different repairs.
| Check | External line leak | Restricted or kinked line | Cooler or radiator failure |
|---|---|---|---|
| ATF level falls | Common | Not required | Possible |
| Visible oil on tube or fitting | Common | Usually absent | May appear at cooler ports |
| Temperature rises under load | Possible as level drops | Common | Common |
| Tube is flattened or bent | May leak later | Strong evidence | No direct evidence |
| ATF mixed with engine coolant | Unlikely | Unlikely | Possible with an internal radiator breach |
Start with a visual inspection and fluid-level check. Road-test only when the level is correct and no active leak makes the test unsafe. Compare supply and return temperatures after the bypass opens, but remember that a large temperature difference does not prove adequate flow.
Perform cooler-flow or cleanliness tests only with the correct service procedure. Cap open ports with clean service plugs; do not use rags, tape, screws, or dirty bolts.
Repair the Leak or Replace the Line?
Repair an isolated seal or connector when the tube is solid; replace the affected line when the hose, crimp, hard line, or routing has failed.
Our fitment work as a parts manufacturer starts with the full assembly rather than the shiny leak spot. A salt-belt line that pinholes at one bracket often has thin metal at the next two.
| Condition | Best repair | Reason |
|---|---|---|
| Single O-ring or clip failed; tube end is sound | Replace the seal or clip | The hard line remains serviceable |
| Leak at a factory hose crimp | Replace the assembly | A seal cannot repair a failed crimp |
| One clean section damaged by impact | Replace one line or use an engineered service section | The damage is isolated |
| Rust at several clips, bends, or both lines | Replace the complete set | Local patches leave weak metal in service |
| Tube is kinked or routed against exhaust | Replace and correct the route | The defect restricts flow or adds heat |
| Several old repairs are present | Replace the full set | Another patch adds joints without restoring the route |
Which Hose Materials Are Safe for ATF?
Use flexible hose only when it is specifically rated for automatic-transmission cooler service and the installation provides correct sizing, retention, heat clearance, and abrasion protection.
SAE J1532 is a common standard to look for, but also check the manufacturer's pressure, temperature, fluid-compatibility, and bend-radius data. Custom braided systems also require correct AN hose and fitting sizing.
| Hose type | ATF suitability | Use on a truck |
|---|---|---|
| Transmission-oil-cooler hose | Designed for the application when correctly rated | Suitable for approved flexible sections |
| OEM molded or crimped assembly | Matched to the factory circuit | Best bolt-on choice when fitment is verified |
| PTFE-lined braided hose | Compatible when liner and fittings are specified for ATF | Useful for a properly engineered custom route |
| Generic fuel hose | Unknown unless explicitly approved for ATF cooler service | Do not use by name alone |
| Heater, coolant, or vacuum hose | Wrong construction or fluid rating | Do not use |
Will Fuel Hose Work for Transmission Fluid?
A fuel-hose label does not prove ATF compatibility, heat resistance, or pressure capability. Use it only when the manufacturer explicitly approves transmission-oil-cooler service.
Match the tube or barb diameter and use a beaded, flared, or approved end that gives the clamp mechanical retention.
Are Splices, Compression Fittings, and Flares Safe?
A splice can be permanent only when every component matches the tube material, diameter, ATF, pressure, temperature, flare standard, and mounting location.
Hose Splices
Use cooler-rated hose, sound tubing, a beaded or properly flared end, approved clamps or crimp sleeves, and enough straight engagement length. Do not clamp over rust or an oval tube.
Compression Fittings
Compression fittings can work on clean, round tubing when approved for the material and service. Measure outside diameter because metric and inch tubing can look close enough to assemble and still leak.
Flared Fittings
Match the tube, nut, seat, and flare geometry. Mixing 45-degree double flares, 37-degree AN/JIC fittings, and metric bubble flares creates leaks even when the threads tighten.
Transmission Cooler Lines Replacement Cost, Labor Time, and Hidden Charges
Most U.S. transmission cooler lines replacement cost estimates land between about $250 and $900, while severe rust, custom fabrication, damaged cooler ports, or radiator replacement can push the total past $1,200.
Parts pricing changes sharply by application. A current GM Genuine Parts cooler-line listing, checked in July 2026, shows an MSRP of $112.76 for one specific OE line. GM's official transmission cooling catalog shows why a VIN and part number matter more than a generic average.
| Repair scenario | Planning cost | Typical shop time | What changes the total |
|---|---|---|---|
| O-ring, clip, or fitting-seal repair | $100–$250 | 0.5–1.0 hour | Access, fluid loss, and fitting condition |
| Replace one hose or formed line | $250–$550 | 1.5–3.0 hours | Part type, shields, brackets, and refill quantity |
| Replace a complete preformed set | $450–$900 | 2.5–5.0 hours | 4WD packaging, corrosion, and line length |
| Fabricate or reroute hard lines | $600–$1,200+ | 4.0–8.0+ hours | Bending, flaring, adapters, and mounting |
| Repair damaged cooler ports | $800–$1,800+ | Varies | Radiator or cooler replacement and broken fittings |
Use these ranges as a budget window, not a quote. Labor rates, ATF price, corrosion, and access change the total quickly. Fluid-level setup also takes time because many late-model transmissions require a narrow temperature window and specified shift sequence.
How to Replace Transmission Cooler Lines
Confirm the leak and fitment first, control contamination during removal, preserve the factory route, install new seals and retainers, and set ATF level by the OEM procedure.
1. Confirm the Leak and Replacement Part
Clean the area and prove whether the leak comes from the line, fitting, crimp, cooler, bypass valve, or transmission case.
- Check the fluid level before running the truck.
- Inspect sections hidden above skid plates and inside frame clips.
- Compare ends, bends, tabs, and routing before opening the system.
2. Identify the Connector Before Pulling
Quick-connect fittings do not all release the same way, so identify the retainer before using force.
- External horseshoe clip: Remove the clip, then pull the line straight out.
- Internal spring-lock: Use the correct disconnect tool.
- Plastic retainer: Release or replace it as the service procedure specifies.
- Threaded fitting: Use a backup wrench so the cooler port does not twist.
3. Cap Open Ports Correctly
Use clean service caps only to keep dirt out while the engine is off; do not dead-head the cooler circuit or drive with both lines plugged.
4. Remove and Route the Lines
Release every bracket before removing a rigid line, then install the replacement without preload, twists, sharp bends, or contact with heat and moving parts.
- Install new O-rings, clips, and isolators.
- Lubricate seals only with approved ATF or specified lubricant.
- Push quick-connects fully home and perform a pull test.
- Restore every bracket and protect custom hose from abrasion.
5. Refill, Warm Up, and Recheck
Refill with the specified ATF, circulate it through the cooler circuit, set the level at the required temperature, and inspect every joint after a light-load road test.
- Start the engine and inspect each connection.
- Move the selector through the specified ranges.
- Monitor transmission temperature when required.
- Set the final level on a level surface.
- Recheck the route and level after the first heat cycle.
What If the Transmission Failed Internally?
A burned clutch pack, failed converter, or metal-producing failure can contaminate the cooler and lines, so fixing an external leak alone may not protect the replacement transmission.
Inspect the drained ATF and pan for clutch material or metal. Follow the vehicle or remanufacturer procedure for cooler flushing, flow testing, or replacement. Some stacked-plate and thermostat-equipped coolers trap debris in small passages and cannot be cleaned reliably.
Replace the cooler or radiator heat exchanger when the required cleaning and flow test cannot be completed, debris remains, or the replacement-transmission warranty requires it.
Fitment Checklist Before Ordering
Do not order cooler lines from engine size alone; match the transmission, build date, drivetrain, cooling package, connector style, and original route.
Two trucks with the same badge can use different radiators, auxiliary coolers, bypass valves, brackets, and transmissions. Pickup versus cab-and-chassis, 2WD versus 4WD, wheelbase, and tow package can all change the line set.
| Item to verify | Where to find it | Why it matters |
|---|---|---|
| Exact transmission model | VIN build data, case tag, scan-tool ID, or OEM catalog | Controls ports, fittings, and routing |
| Vehicle build date | Driver-door label | Identifies mid-year changes |
| 2WD or 4WD | Vehicle configuration | Front driveshaft and crossmember affect routing |
| Pickup or cab-and-chassis | VIN and body configuration | Cooling hardware and frame packaging may differ |
| Tow or heavy-duty cooling package | Build sheet and physical inspection | May add a cooler, valve, or different lines |
| Connector type and direction | Original-line photos and measurements | Prevents ordering the right length with wrong ends |
| OEM part number | Catalog or old-line tag | Provides a strong cross-reference |
| Previous cooler or transmission swap | Service history and inspection | The truck may no longer match factory build data |
Why Dimensions Alone Do Not Confirm Fitment
A line can match the advertised diameter and still miss mounting points, interfere with the front driveshaft, or carry the wrong quick-connect ends.
Fitting clocking, bend sequence, mounting tabs, bypass position, and cooler configuration still have to match. Send the seller the VIN, transmission ID, photos of both ends, and a full-route photo when a listing is ambiguous. We would rather stop an order for one more fitment check than have a customer bend a rigid tube until it side-loads a radiator tank.
Upgrade Match: Vehicle-Specific Cooler Line Kits
Use these kits only after the transmission, model year, cooler layout, and connector style have been confirmed.

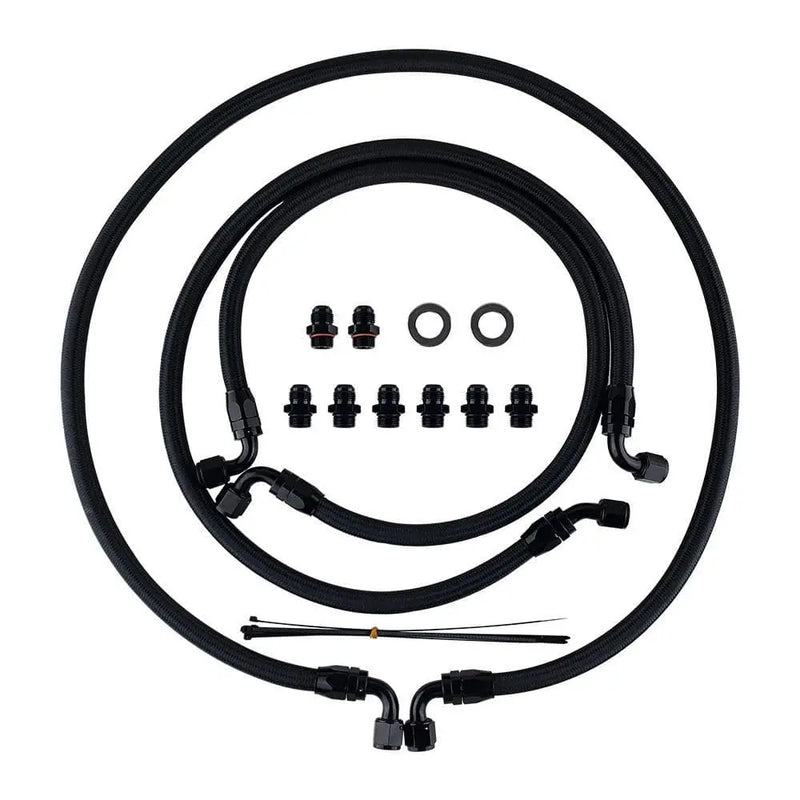

SPELAB Performance Transmission Cooler Line Upgraded Kit, Compatible With 2006-2010 Chevrolet/GMC 6.6L Duramax LBZ/LMM
Uses durable 10AN braided nylon hoses to resist expansion and abrasion while replacing aging factory cooler-line assemblies.

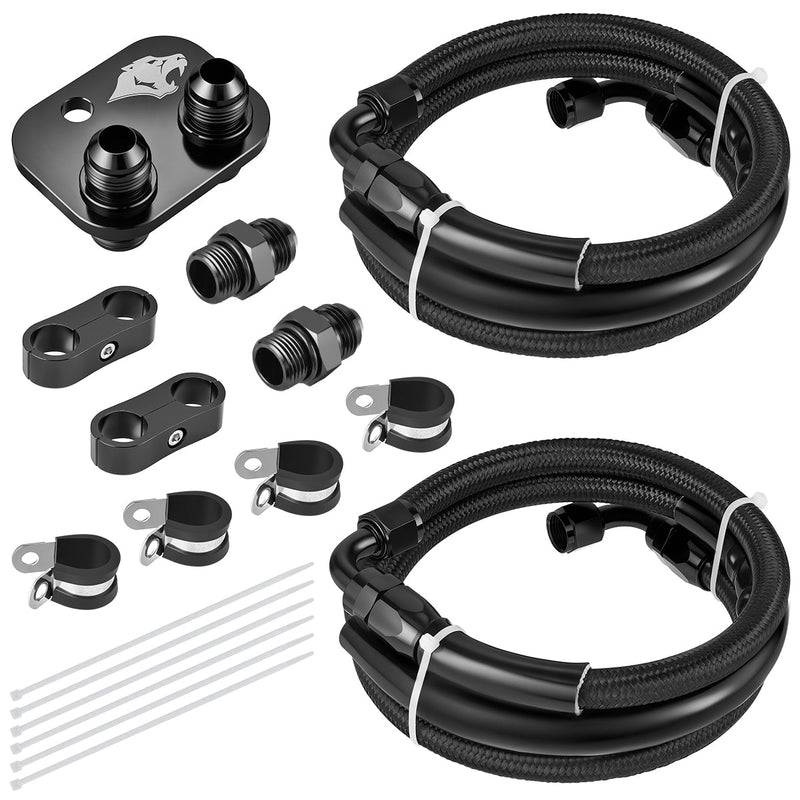

Transmission Line Kit for 2011–2016 Ford F250 F350 6.7L Powerstroke 6R140 Transmission | SPELAB
Replaces failure-prone factory quick-disconnect sections with braided CPE lines, billet adapters, and secure threaded connections.
Towing, Payload, Off-Road, and Jobsite Use

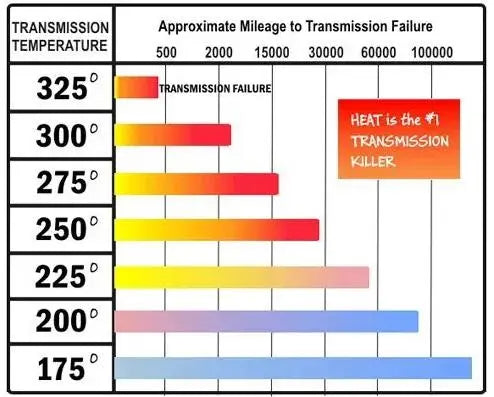

Towing and heavy payload raise converter heat and cooler demand, which makes low fluid, restricted tubing, poor routing, and weak crimps fail faster than they do during an empty commute.
A fifth-wheel pull through a grade keeps the converter and clutches under sustained load. Snowplowing, soft-sand recovery, and jobsite crawling create similar heat with less airflow. Before a long summer haul, use a full summer towing maintenance checklist rather than watching only one temperature number.
- Inspect before the trip: Check crimps, rust under clips, flattened tubing, isolators, and exhaust clearance.
- Watch trends: A truck that suddenly runs hotter on the same trailer and route has changed.
- Preserve flow area: An undersized hose, restrictive adapter, kink, or collapsed liner can defeat a heavy-duty cooler.
- Recheck after a mod: A lift, bumper, intercooler, radiator, or auxiliary cooler can change routing and contact points.
An auxiliary cooler or 6.7L Powerstroke transmission cooler kit does not fix a leaking line or low ATF. Build the plumbing to survive the truck's real payload and duty cycle, not a five-minute idle test.
Ford, GM, and Ram Fitment Differences
Engine family narrows the search, but transmission generation and cooling package decide the actual line, fittings, route, and service procedure.
| Platform | Fitment detail that matters | Common mistake |
|---|---|---|
| 1999–2003 Ford 7.3L Power Stroke | 4R100, drivetrain, cooler layout, and chassis | Buying by engine name without checking ends |
| 2003–2010 Ford 6.0L/6.4L Power Stroke | 5R110W, build split, 2WD/4WD, and cooler configuration | Assuming every Super Duty uses one set |
| 2008 GM HD diesel | Allison six-speed application and crimp condition | Replacing only the visible wet section |
| 2017–2018 GM HD L5P | Auxiliary-cooler route and connection areas | Ordering by L5P engine alone |
| 2020-up GM HD | 10-speed generation, quick-connects, package, and build date | Cross-fitting an older six-speed set |
| Ram 2500/3500 diesel | 68RFE, Aisin, or later transmission plus chassis package | Assuming the Cummins engine decides fitment |
Browse broader transmission system upgrades only after the transmission and cooler-line fitment are confirmed.
Official records show why exact build details matter. Review the defined vehicle populations in the 2008 GM HD coverage, 2017–2018 GM HD coverage, and 2021 Ford medium-duty recall.
When Should You Stop and Use a Repair Shop?
Hand the job to a qualified shop when safe access, connector condition, fluid-level setup, contamination control, or custom tube work exceeds the tools and information available in your driveway.
- The truck cannot be supported safely on a rated, level surface.
- A cooler port is cracked, stripped, or turning in the tank.
- Salt corrosion has seized several fittings or weakened long sections.
- The transmission needs a scan tool and narrow temperature window for level setting.
- The repair requires custom bending, flaring, or unidentified adapters.
- The transmission failed internally and the cooler needs a verified flush and flow test.
- The truck still slips, delays engagement, or overheats after the leak and level are corrected.
Stop when the job changes from a known bolt-on repair into fabrication or internal transmission diagnosis.
Frequently Asked Questions
These short answers cover the questions owners ask most often before diagnosing, repairing, or ordering transmission cooler lines.
Q: What fluid runs through transmission cooler lines?
A: Automatic transmission fluid runs through the lines. Use the exact ATF specification listed for the transmission; color or “universal” wording is not enough.
Q: Are transmission cooler lines the same as coolant hoses?
A: No. Cooler lines connect the transmission to an ATF heat exchanger, while coolant hoses circulate engine coolant through the engine and radiator.
Q: Which transmission cooler line is the return line?
A: The return line carries cooled ATF back to the transmission, but its port location varies. Confirm it with the exact OEM layout or a controlled flow test.
Q: Can I use regular rubber hose?
A: No. Use hose rated for transmission-oil-cooler service and verify diameter, pressure, temperature, retention, and heat clearance.
Q: Can transmission cooler lines be spliced?
A: Yes, when the remaining tube is clean and sound and the splice uses compatible hose or fittings. Do not splice over widespread rust or a crushed tube.
Q: Can I plug the lines and drive the truck?
A: No. Clean caps only keep dirt out while the engine is off. Plugging both lines blocks the intended cooler circuit.
Q: Do both lines need to be replaced together?
A: Not always. Replace one line when damage is isolated. Replace the set when both share the same corrosion, crimp condition, bad route, or repair history.
1 comment
I DRIVE A 93 MB 300 td 2.5 Radiator had to be replaced which damaged transmission coolant line. MB SAYA NO LONG MADE PLEASE HELP.
