On a 6.7L Power Stroke, CCV problems usually show up as an oil film around the turbo-inlet plumbing, unexplained oil consumption, crankcase pressure, a disconnected-hose code, or a separator that no longer controls oil mist correctly. The first step is understanding what CCV actually means, because it is not a fuel-injection valve and it should never be blocked off without a safe ventilation path.
A healthy system separates oil from crankcase vapor, returns that oil to the engine, and sends the remaining vapor into the intake path before the turbocharger. A repair, closed-loop separator upgrade, or legally permitted reroute must still let the crankcase breathe without leaks, kinks, frozen hoses, missing sensors, or uncontrolled oil discharge.
What Does CCV Mean on a 6.7 Powerstroke?
CCV stands for crankcase ventilation. Combustion pressure that passes the piston rings creates blow-by gas in the crankcase. That gas carries moisture, combustion byproducts, and a fine oil mist. The ventilation system gives the pressure a controlled exit while an oil separator captures part of the oil before the vapor reaches the intake.
Ford describes the 6.7L crankcase vent oil separator as an assembly attached to the left valve cover. Separated oil drains back into the crankcase through the valve-cover path, while vapor is routed into lower intake ducting before the turbo inlet. Exact filter and monitoring designs vary by model year, truck configuration, and replacement-part revision, so a 2011 pickup and a later chassis-cab truck should not be assumed to use identical service procedures.
What Symptoms Point to a CCV Problem?
A light oil haze inside the turbo-inlet tract can be normal on a closed factory system. Wet boots, pooling oil, repeated oil loss, a rising dipstick, strong crankcase pressure, or fresh external leaks deserve a wider diagnosis.
| Owner Complaint | Possible CCV Connection | First Check |
|---|---|---|
| P04DB or a crankcase-vent warning | Disconnected hose, connection sensor, wiring, separator assembly, or altered routing on an applicable monitored truck | Save freeze-frame data and inspect every connection before replacing parts |
| Oil around turbo-inlet or charge-air boots | Oil mist passing through the separator or a saturated/restricted assembly | Distinguish a light film from active pooling and inspect the turbo and boots |
| Oil consumption after long idle hours | Restricted separator or filter on certain extended-idle applications | Check idle history, oil level trend, separator revision, and Ford service information for the VIN |
| Fresh crankcase oil leaks | Vent restriction can raise crankcase pressure | Inspect the vent path before blaming a rear main seal or replacing multiple gaskets |
| Strong odor or oily residue under the truck | Open reroute outlet, saturated filter, full catch can, or poor hose termination | Inspect the outlet, drain the separator if required, and verify that oil cannot reach the tires, brakes, or exhaust |
What Do P04DB, P04E2, and P04E3 Mean?
These codes are associated with the crankcase ventilation connection or its monitoring circuit on applicable Ford diesel configurations:
- P04DB: Crankcase ventilation system disconnected.
- P04E2: Crankcase ventilation hose connection sensor circuit low.
- P04E3: Crankcase ventilation hose connection sensor circuit high.
Code availability is not identical across every model year and chassis. Ford service information has documented these codes on certain 6.7L applications, but a generic code definition does not tell you whether the hose is loose, the sensor circuit has failed, the separator assembly is faulty, or a previous owner changed the system. Do not clear the code until the freeze-frame and wiring condition have been recorded.
Do Not Blame the CCV System Too Fast
A reroute kit cannot repair worn piston rings, excessive mechanical blow-by, a failed turbo oil seal, an overfilled crankcase, fuel dilution, or a leaking charge-air boot. If a catch can fills unusually fast, that is diagnostic information, not proof that the can is working better than every other design.
- Confirm the oil is not overfilled and the level is not rising between checks.
- Inspect turbo-inlet and compressor-side oil patterns before condemning the separator.
- Check boost boots and charge-air pipes for external oil wetness and leakage.
- Measure crankcase pressure using the correct Ford procedure when blow-by is suspected.
- Review idle hours as well as odometer mileage on work trucks.
- Verify that a previous reroute has not been kinked, capped, frozen, or routed uphill into a low spot.
Owners deciding whether to stay stock or modify the routing can compare the stock and modified paths before buying hardware.
Does Every 6.7 Powerstroke Have a Serviceable CCV Filter?
No. Ford used different separator and filter arrangements across years, applications, and replacement-part revisions. The popular internet summary that every 2011-2016 truck has one design and every 2017-2019 truck has another is too broad to use as a parts guide.
Ford owner guidance warns that operating an application without its approved filter can damage turbocharger-related components. Match the procedure, separator part number, pickup or chassis-cab configuration, and VIN instead of ordering only by model year or the words "6.7 Powerstroke."
For an application that retains a serviceable element, use the correct steps to replace the factory separator correctly, including clean sealing surfaces and the specified tightening sequence.
Stock Repair, Closed-Loop Upgrade, or Open Reroute?
| Option | Best Fit | Main Tradeoff |
|---|---|---|
| Stock separator repair or replacement | Street-driven, inspected, under-warranty, cold-climate, or fleet trucks | Retains the factory oil-vapor path and its maintenance requirements |

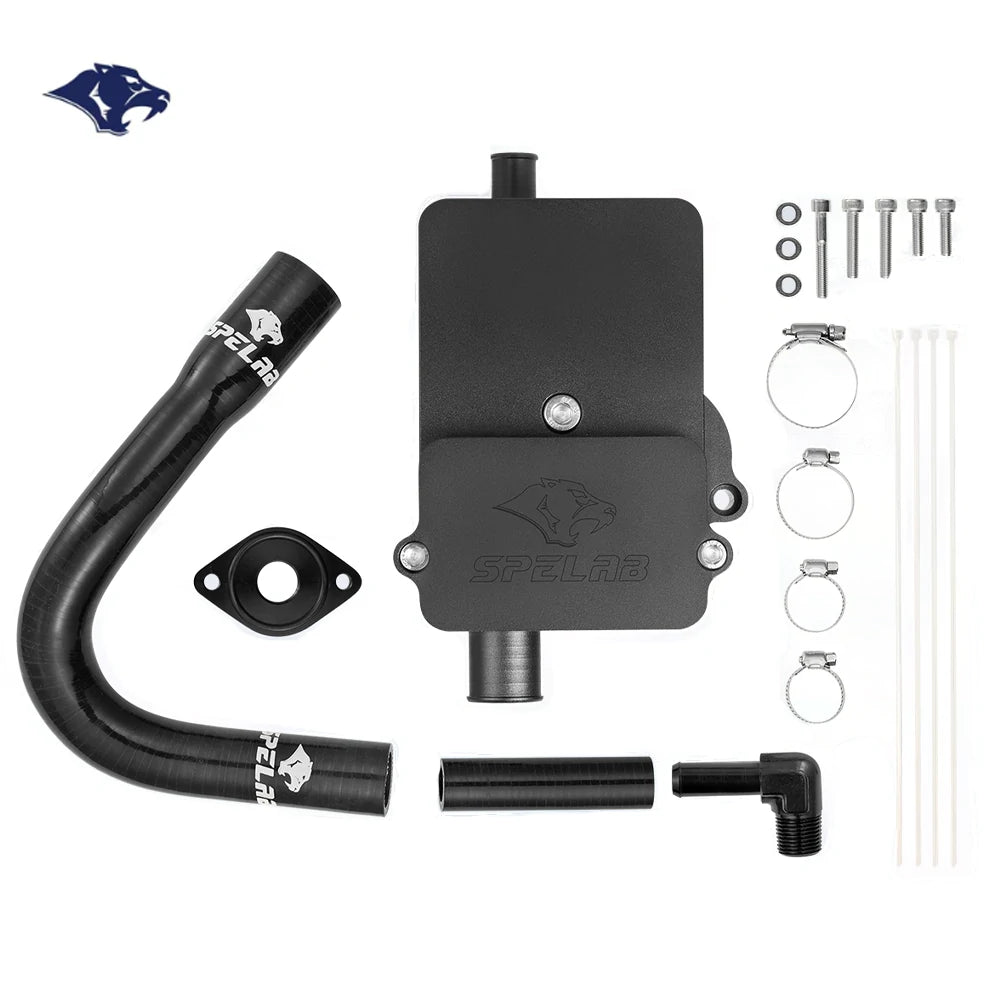

| Closed-loop recirculating separator | Owners who want additional service access or separation while routing vapor back toward the intake | Fitment, drain-back, sensor compatibility, and cleaning still need verification |
| Filtered open reroute or catch-can system | Legally permitted off-road or specialized builds where odor, maintenance, winter use, and outlet routing are understood | Can add smell, residue, inspection concerns, drain service, hose-freezing risk, or connection-monitor codes |
A "delete" should never mean plugging the crankcase outlet. The engine must retain a correctly sized, unrestricted ventilation path. If an aftermarket setup reduces hose diameter, creates sharp bends, or leaves condensed oil trapped in a sagging line, crankcase pressure may become worse rather than better.
Cold-Weather and Maintenance Reality
Blow-by vapor contains moisture. In freezing weather, condensation can collect in a low section of hose, a saturated breather, or a full catch can. If that moisture freezes and blocks the vent, crankcase pressure can rise quickly. This is one reason a warm-climate open reroute, sometimes called a "slobber tube," should not be copied blindly onto a truck that sits outside through a northern winter.
- Route hoses without kinks, crushed sections, or deep low spots.
- Keep the outlet away from tires, brakes, hot exhaust, belts, and cabin air entry points.
- Check the catch can frequently during the first few service intervals to learn the truck's actual collection rate.
- Inspect more often during freezing weather, extended idling, short trips, and heavy towing.
- Do not assume "maintenance free" means the hose, separator, drain, and fittings never need inspection.
A separate technical discussion of oil-mist and hose-routing risks can help owners plan the service routine before installation.
Installation Checks That Prevent Repeat Problems
- Identify the exact system first: Confirm model year, pickup or chassis-cab configuration, separator part number, sensor arrangement, and hose connections.
- Keep the vent unrestricted: Do not reduce hose size, install a tight elbow at the outlet, or cap an unused port without understanding its function.
- Protect the hose: Keep it clear of turbo heat, exhaust components, steering shafts, belts, sharp brackets, and suspension movement.
- Preserve drain-back: A recirculating separator must return collected oil through its intended path without a blocked channel or damaged seal.
- Inspect every seal: Replace any flattened, cut, swollen, or pinched O-ring or gasket instead of trying to stop seepage by overtightening the housing.
- Handle sensors deliberately: Do not cut wiring or defeat a connection monitor. A year-correct installation should preserve required diagnostics.
- Inspect after the first heat cycles: Look for oil seepage, loose clamps, hose collapse, abnormal odor, and stored or pending codes.
Related 6.7 Powerstroke CCV Options
For owners comparing the available hardware, the Powerstroke CCV reroute and separator kits collection groups the main routing styles in one place.
FAQ: 6.7 Powerstroke CCV Questions
Q: What does CCV stand for on a diesel truck?
A: CCV stands for crankcase ventilation. It manages blow-by gas and oil mist inside the crankcase; it is not a common-rail fuel-control valve.
Q: Where is the CCV separator on a 6.7 Powerstroke?
A: Ford describes the crankcase vent oil separator as being attached to the left valve cover, with vapor routed toward the lower intake ducting before the turbo inlet. Exact appearance and service procedure vary by year and truck configuration.
Q: Can I keep driving with P04DB?
A: Do not ignore it or clear it blindly. Inspect the hose and connection monitor promptly, especially before towing. Stop and diagnose the truck if the code is accompanied by major oil leakage, strong crankcase pressure, smoke, rising oil level, or reduced power.
Q: Can a CCV reroute fix excessive blow-by?
A: No. It may change where vapor and oil mist travel, but it cannot repair worn rings, cylinder damage, a failing turbo, fuel dilution, or another mechanical cause of excessive crankcase gas.
Q: How often should a catch can be drained?
A: There is no universal interval. Check it frequently after installation, during cold weather, and after extended idle or towing until the truck's actual collection rate is known. Never let the container or drain path fill enough to restrict ventilation.
Q: Is a small amount of oil in the intake normal?
A: A light oil film can occur in a closed system because crankcase vapor enters before the turbo. Pooling oil, soaked boots, rapid consumption, or a sudden change is not something to dismiss without checking the separator, turbo, oil level, and engine condition.
Q: Will a CCV reroute require tuning?
A: Airflow calibration may not be the main issue, but sensor and connection monitoring vary by year and chassis. A poor installation can set P04DB, P04E2, or P04E3 even when the engine otherwise runs normally. Verify the exact truck before assuming no electronic considerations apply.
The Practical Answer
The safest order is simple: identify the exact separator design, scan and save the codes, inspect the stock hose and sensor, check for real crankcase pressure or oil-loss symptoms, and then choose between stock repair, closed-loop separation, or a legally permitted filtered reroute. A good CCV solution keeps the crankcase breathing freely and controls oil mist without creating a new leak, frozen hose, odor problem, or diagnostic fault.
