An exhaust gas recirculation (EGR) cooler uses engine coolant to lower the temperature of exhaust gas returning to the intake. An EGR coolant leak may come from the cooler's internal heat exchanger or an external hose, seal, or connection. Coolant loss near the EGR assembly can also originate elsewhere in the cooling system.
If your diesel truck keeps needing coolant but leaves no puddle, avoid ordering a cooler on the strength of white exhaust alone. Find where the coolant is escaping, then match the repair to the confirmed fault.
Internal and External EGR Coolant Leaks Need Different Repairs
Internal cooler leakage
A crack in the EGR cooler can allow coolant into the exhaust or intake path, depending on the system layout and operating conditions. An internal leak may consume coolant without leaving a wet patch under the truck.
A leaking EGR cooler can also allow exhaust gas into the cooling system and resemble a head-gasket fault. The direction of leakage can change with pressure differences; a clean-looking engine bay does not rule out cooler damage.
Enough coolant entering a cylinder can cause hydraulic lock, commonly called hydrolock, and damage internal engine parts. An engine that suddenly cranks unevenly or will not turn after coolant loss needs professional inspection before another starting attempt.
A starter that stalls or makes a heavy clunk does not prove hydrolock; battery, starter, and other mechanical faults can also prevent cranking. When coolant entry is possible, repeated starting attempts or jump-starting can worsen damage. A technician should inspect for standing liquid and follow the engine-specific recovery procedure before powered cranking.
External hose, seal, and connection leakage
External coolant can escape through a damaged hose, O-ring, quick-connect, gasket, fitting, or cooler joint. A fan, airflow, or gravity can carry coolant away from the actual source.
Inspect the first point that becomes wet after old residue has been documented and cleaned. Deposit color depends on the coolant and contamination, so a colored crust identifies a place to investigate rather than the failed component.
Which Symptoms Point Toward an EGR Cooler Leak?
| Observation | Possible explanation | Next useful check |
|---|---|---|
| Persistent white exhaust and repeated coolant loss | Internal EGR cooler leakage, head-gasket leakage, or another engine-specific coolant path | Record cold coolant loss and arrange targeted internal-leak testing. |
| Wetness or dried deposits around a joint | External leakage, possibly running from a component above it | Clean the area and locate fresh wetness during the specified pressure test. |
| Coolant expelled near the pressure cap | Overfill, a cap or neck fault, overheating, or abnormal gas pressure | Verify cold fill level and test the cap before investigating internal gas entry. |
| White vapor only during a cold, damp start | Condensation may explain the vapor; continued coolant loss still needs investigation. | Track the cold level and whether vapor persists after warm-up. |
| Oil in coolant or coolant in oil | Oil-cooler leakage, an engine fault, or contamination remaining after earlier repairs | Follow the vehicle's contamination and internal-leak diagnostics. |
An EGR cooler can leak without illuminating the malfunction indicator light. Diagnostic trouble codes (DTCs) such as P0401 or P0402 concern EGR flow and do not establish that coolant is crossing the cooler core.
Check Other Coolant-Loss Sources Before Replacing the Cooler
Start with the reservoir, pressure cap, radiator, water pump, heater circuit, accessible hoses, and coolant lines fitted to the engine. A leak above the cooler can make sound EGR hardware look responsible.
Separating cap venting and cold-level changes helps distinguish overfill or poor pressure retention from continuing coolant loss. Identify the correct reservoir chamber and fill mark before adding coolant.
On the applicable 6.0L Power Stroke vehicles, Ford TSB 09-8-3 calls for checking the degas bottle and cap, internal EGR cooler leakage, and oil-cooler flow restriction. That platform-specific relationship matters: replacing a damaged cooler without resolving restricted coolant flow can leave the cause in place.
A positive combustion-gas test can support the presence of combustion or exhaust gas in coolant, but does not locate the route of entry. Use equipment approved for diesel testing and follow its instructions. A negative result may miss an intermittent fault.
How to Diagnose an EGR Coolant Leak
The complete diagnostic sequence below is for qualified diesel technicians with vehicle-specific service information. Owners can document symptoms and inspect accessible areas with the engine cold; pressure testing, cooler isolation, dismantling, and liquid removal require the appropriate training and equipment.
- Let the engine cool completely. Park on level ground. Never remove a pressure cap while the engine is running or the system is hot.
- Record the coolant-loss pattern. Photograph the specified cold level, note measured top-offs, and record whether the symptom follows towing, warm-up, extended idling, or recent repairs. Do not continue driving simply to collect more data if the level is falling quickly.
- Inspect before cleaning. Photograph deposits around the cooler, nearby joints, reservoir, cap, water pump, radiator, and heater hoses. Look above the stained area for a trail.
- Expose the fresh leak. Clean and dry accessible suspected areas with a suitable method. Use ultraviolet dye only when approved for the coolant and equipment.
- Test the cap and system using vehicle-specific instructions. Use the specified adapter, pressure, and acceptance criteria. Do not substitute a generic pressure value or pump higher to chase a leak.
- Investigate unexplained pressure loss. If no external leak appears, a technician should follow the engine-specific cooler-isolation and internal-leak procedure. A pressure drop alone does not identify the EGR cooler.
- Check why the failed part was damaged. Investigate overheating, restricted coolant flow where applicable, incorrect parts, installation stress, and coolant contamination before installing another cooler.
- Verify the completed repair. Refill and bleed as specified, perform the required leak checks, and confirm stable temperature and cold coolant level after a full heat cycle.
A cold pressure test has limits: a cooler or connection may leak only when hot or under load. Persistent coolant loss after a satisfactory cold test requires further diagnosis rather than automatic cooler replacement.
Wet soot in an EGR passage is a clue to investigate, not a stand-alone diagnosis. Dry soot also cannot rule out an intermittent cooler leak. Confirm the liquid and its source rather than judging the cooler by deposit texture alone.
What Changes Between Power Stroke, Cummins, and Duramax?
Power Stroke, Cummins, and Duramax engines use different cooler assemblies, access arrangements, coolant routing, and service procedures. Identify the engine and vehicle identification number (VIN) before choosing a test procedure or ordering parts.
| Platform | Diagnostic or repair focus | Confirm before ordering |
|---|---|---|
| 6.0L Power Stroke | Inspect the oil-cooler-to-EGR-cooler coolant coupling and surrounding area for external leakage. Check the degas cap and investigate oil-cooler restriction when indicated. | A leaking coupling and an internally leaking core are separate faults. Identify the installed cooler design and confirm fresh leakage before choosing parts. |
| 6.4L Power Stroke | The factory system has horizontal and vertical EGR coolers. Inspect accessible coolant connections and trace residue to the affected assembly. | Identify which cooler or connection failed; a stain near one assembly does not establish that both cores need replacement. |
| 6.7L Power Stroke | Trace the affected line to its coolant circuit. Ford's 2011 system diagram distinguishes engine and secondary coolant loops, so reservoir identification matters. | Use the diagram for the actual model year and chassis; do not transfer the 2011 routing to every later truck. |
| 6.7L Cummins | Inspect cooler coolant hoses, pipe connections, and pipe-to-cooler seals where fitted. Look above rear-engine residue before assuming a head-gasket leak. | Confirm the first wet joint and identify its seals from the vehicle-specific parts diagram; do not order a universal O-ring pair by engine name alone. |
| 6.6L Duramax | GM bulletin 16-NA-204 describes dual-sided surge tanks on the covered 2011-2016 pickups. Distinguish actual coolant loss from a level-reading or filling problem. | Identify the pressurized and overflow sides on applicable original tanks. Follow the specific instructions if an aftermarket reservoir changes the layout. |
Do not transfer coolant specifications, torque values, test pressures, or bleeding steps between engines. Current service information for the vehicle controls those decisions.
When does the 6.0L oil-to-coolant temperature difference matter?
For the covered 6.0L applications, Ford TSB 09-8-3 uses an engine oil temperature (EOT) at least 15°F above engine coolant temperature (ECT) as an oil-cooler service criterion during its prescribed test. ECT must exceed 190°F (88°C), and the bulletin requires the earlier leak checks first.
A dashboard reading during an arbitrary cruise is not the same test. A leaking EGR cooler can distort the comparison, so a technician must follow the test sequence rather than treating one temperature difference as a universal diagnosis.
Match the Repair to the Confirmed Leak
A hose, seal, or fitting is leaking externally
Replace damaged hoses, seals, or fittings rather than relying on extra clamp force. A sound hose connection may need correct seating and the specified clamp; a split hose, failed O-ring, or cracked neck needs the appropriate replacement.
Correct routing and allowance for movement matter when a connection leaks repeatedly. Check bracket support, hose alignment, seal engagement, and mating surfaces before tightening the same joint again.
The EGR cooler core has an internal leak
A confirmed internal EGR cooler leak requires an appropriate replacement cooler or manufacturer-approved repair assembly. An external clamp cannot restore a cracked heat-exchanger wall.
Choose an original-equipment or suitable compliant replacement using the vehicle application and current part information. Confirm the required gaskets, connections, and installation instructions rather than selecting a cooler by appearance alone.
The reservoir or pressure cap is the failed part
A replacement reservoir can repair a confirmed tank seam, port, or filler-neck fault. A cap that fails its specified test needs the correct replacement; increasing the pressure rating is not a repair.
When the leak is traced to the bottle rather than the cooler, application-specific options include a 2003-2007 Ford 6.0L Powerstroke coolant reservoir, a 2013-2018 Dodge Ram 6.7L diesel coolant reservoir, or a 2011-2016 LML 6.6L Duramax coolant reservoir. Match the listed application to the truck and compare ports, cap arrangement, sensor provision, mounting points, and supplied fill-level instructions before ordering.
Reservoir material tradeoffs matter after the leak has been located. An aluminum replacement removes the failed plastic tank from service, while its welds, fittings, cap interface, and mounting still need inspection. Confirm correct fitment and pressure-control function rather than assuming any material guarantees a leak-free service life.
Replacement cooling system components must preserve the vehicle's required coolant routing, venting, and pressure-control functions.
What Affects EGR Coolant Leak Repair Cost?
EGR coolant leak repair cost depends on the confirmed fault, access, parts, local labor rate, and damage caused by continued coolant loss. An accessible hose repair and an internal cooler replacement are different jobs, so a single price range can mislead.
- Diagnosis: ask whether the quote includes cap testing, system testing, cooler isolation, and any additional internal-leak checks.
- Parts and access: confirm the cooler or hose assembly, seals, coolant, and removal of surrounding components.
- Related work: distinguish required contamination cleanup, oil service, or restricted-flow repairs from optional work.
- Possible engine damage: a suspected hydrolock event needs inspection before a reliable total can be quoted.
Illustrative U.S.-dollar calculation, not a market quote: if a written estimate lists 8 labor hours at $180 per hour, labor totals $1,440. If that same estimate lists $800 for parts and fluids, the subtotal is $2,240 before taxes and fees. These assumed figures explain the calculation; they do not establish the labor time, rate, or parts price for your truck.
A low-priced seal can still require substantial access and diagnosis. Compare quotes for the same confirmed fault, and ask whether cooler and oil-cooler work share removal labor before adding two full job prices together.
Request an itemized estimate that separates diagnosis, parts, labor, fluids, and post-repair testing. Ask the shop to explain what evidence would authorize additional work before the bill grows.
Can You Drive or Tow With an EGR Coolant Leak?
A truck with an unresolved coolant leak should not return to towing or heavy hauling before diagnosis and repair. A leak that seems manageable during an unloaded trip can worsen as temperature and cooling demand rise on a long grade.
Shut the engine down safely if temperature rises abnormally, coolant falls rapidly, cabin heat suddenly disappears, or the engine runs or cranks abnormally. Arrange recovery rather than repeatedly topping off coolant and continuing the trip.
A normal temperature gauge does not establish that continued driving is safe. An internal leak can threaten the engine before a clear overheat warning appears.
Refill, Bleed, and Verify After Repair
Use the coolant specification and fill procedure required for the vehicle. Coolant color alone does not establish compatibility, and a generic bleeding routine may leave air trapped in a complex circuit.
- Inspect affected intake, exhaust, and cylinders for standing liquid when an internal leak makes that necessary, before powered cranking.
- Follow the required contamination-cleanup and oil-service procedure.
- Use vacuum filling when the applicable service procedure calls for it.
- Set the specified cold level in the correct chamber, then check for leaks and normal temperature behavior.
- Recheck after a complete cool-down and investigate continued loss before returning to heavy service.

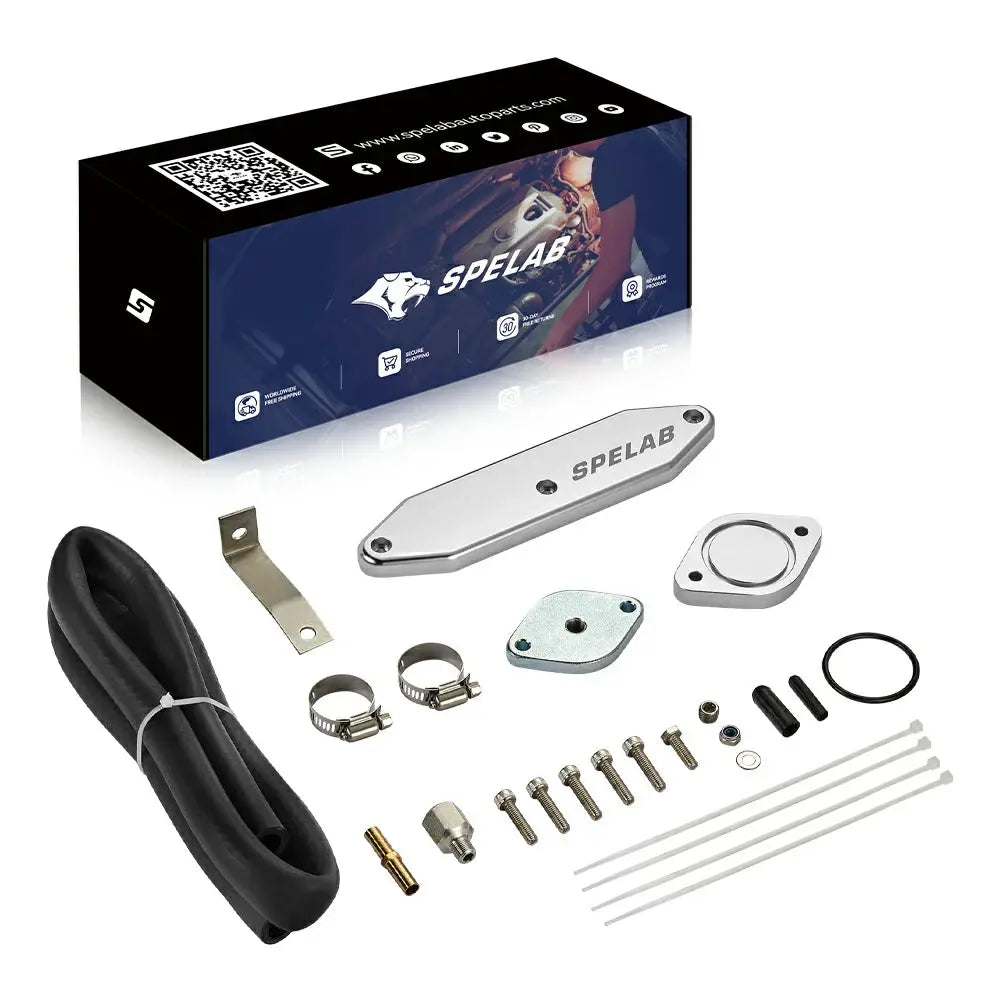

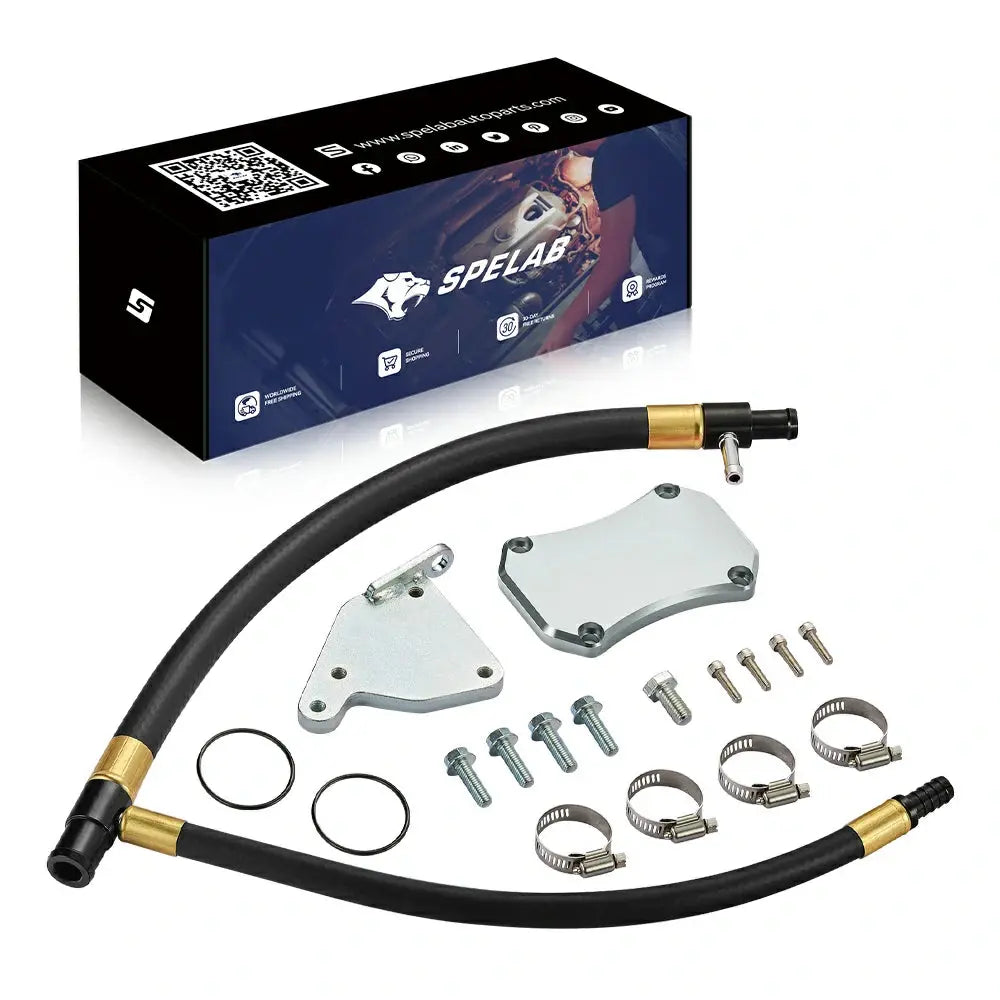

EGR Removal Is Not a Coolant-Leak Diagnosis
EGR delete kits do not establish where coolant was escaping or repair an unrelated hose, reservoir, or head-gasket fault. A normal road-vehicle repair restores the required emissions system to proper operation.
U.S. federal law restricts emissions tampering and defeat devices. An off-road or competition label does not create an automatic exemption for a certified vehicle. Confirm applicable requirements before considering any emissions modification.
Frequently Asked Questions
Can an EGR cooler leak coolant without leaving a puddle?
Yes. An internal EGR cooler leak can send coolant into the intake or exhaust path without an external puddle. Repeated cold-level loss needs testing even when the engine bay looks dry.
Does white exhaust prove that the EGR cooler is leaking?
No. White exhaust can come from condensation, unburned fuel, or coolant entering through several possible paths. Persistent warm-engine vapor with measured coolant loss warrants targeted diagnosis.
Can an EGR cooler leak without a check-engine light?
Yes. An EGR cooler leak may not change monitored conditions enough to trigger a fault code. The absence of a warning light does not rule out coolant loss.
Will tightening a hose clamp fix an EGR coolant leak?
Correct seating and clamp installation may fix leakage at a sound external hose connection. Tightening cannot repair an internal cooler crack, failed O-ring, split hose, or damaged fitting.
Can an EGR cooler leak resemble a head-gasket failure?
Yes. Either fault can allow gas into coolant, and either can accompany coolant loss. A gas-detection result alone does not distinguish the two; follow the engine-specific isolation procedure.
Should the EGR cooler and oil cooler always be replaced together?
No. Combined service depends on the engine's coolant routing, test results, and applicable repair instructions. Do not apply the 6.0L Power Stroke relationship automatically to other diesel engines.
Will a new coolant reservoir fix an internal EGR cooler leak?
No. A coolant reservoir replacement addresses a confirmed reservoir fault. Coolant crossing a damaged EGR cooler core requires a cooler repair and investigation of any contributing cause.
How much coolant loss is normal?
A sealed cooling system should not need routine top-offs after correct filling and bleeding. Repeated loss measured at the same cold reference point needs investigation.
Technical references: Ford Motor Company, TSB 09-8-3, “Coolant Loss — 6.0L”; Ford Diesel Sales Reference Manual, 2011, EGR cooler assemblies; Ford 2017 diesel on-board diagnostics documentation, 2011 6.7L coolant-system diagram; General Motors, bulletin 16-NA-204, June 2016. Each reference applies only to its identified applications. Use current vehicle-specific service information for repair work. This article provides general information and does not replace hands-on diagnosis.
