Updated on July 19, 2026.
A DPF system is the diesel aftertreatment setup that traps soot, manages regeneration, and lets the engine computer verify exhaust pressure, temperature, NOx, DEF/SCR, EGR, and airflow behavior. On a Powerstroke, Cummins, Duramax, Sprinter, or light-duty diesel, the driver usually notices the system only when the amber filter icon shows up, throttle response goes lazy, regen will not complete, or a loaded trailer pull turns into a limp-mode countdown. The smart move is not guessing at the canister; it is proving whether the filter is restricted, the sensors are lying, or the engine is making too much soot upstream.
Key Takeaways
- A DPF system is more than the filter canister; it includes the DOC, DPF substrate, pressure tubes, EGT sensors, dosing strategy, EGR logic, and often SCR/DEF hardware.
- Regeneration is the ECU-controlled soot burn-off process, and it depends on temperature, fuel strategy, airflow, drive cycle, sensor data, and exhaust restriction.
- Real diagnosis starts with scan data: differential pressure, soot load, ash load, regen history, EGT sensors, MAF/MAP, and DTCs such as P2463, P242F, and P2002.
- Short trips, jobsite idling, cold weather, airflow faults, fuel-control issues, and bad sensor data can make a good DPF look bad.
- Street-driven trucks need compliant diagnosis, cleaning, repair, or replacement; delete hardware belongs only in legal off-road or competition-use discussions.

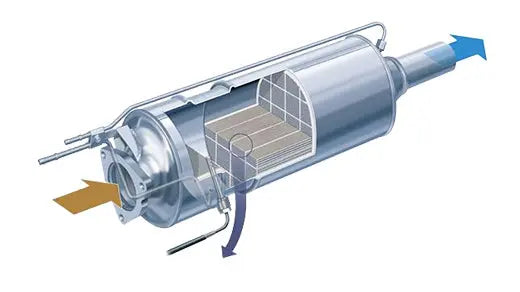

What Is A DPF System?
A DPF system is the exhaust aftertreatment network that captures diesel particulate matter and uses controlled heat events to burn soot into a smaller residue.
DPF stands for diesel particulate filter, but the system around it is what makes the part work. The filter traps soot in a ceramic honeycomb substrate. The ECU watches pressure and temperature data, estimates soot load, commands regeneration, and checks whether the exhaust stream behaves the way it should.
That is why a DPF warning is not always a failed filter. We as a parts manufacturer see this in actual testing: a truck can come in with a DPF code, then turn out to have a cracked intercooler boot, a stuck-open thermostat, a dirty MAP sensor, a weak injector, or pressure hoses cooked near the exhaust. If the truck is used for towing, payload work, winter commuting, or long idle hours, the whole duty cycle matters.
For a simpler definition of the letters and dash-warning basics, see this guide to meaning and warning-light basics.
Main Components In A Modern DPF System
A modern diesel DPF system works as a chain: oxidation, soot trapping, temperature control, pressure measurement, NOx control, and ECU logic all have to agree.
| Component | What It Does | Common Failure Clue |
|---|---|---|
| DOC, or diesel oxidation catalyst | Helps generate and stabilize exhaust heat before the DPF. | Regen takes too long, exhaust temperature does not climb normally, or fuel dosing cannot light off cleanly. |
| DPF substrate | Traps soot in a wall-flow ceramic core while exhaust gas passes through the porous walls. | High backpressure, frequent regen, derate, or a filter efficiency code. |
| Differential pressure sensor and hoses | Compares pressure before and after the DPF so the ECU can estimate restriction. | Flat 0 psi under load, jumpy readings, melted tubes, water in lines, or range/performance codes. |
| EGT sensors | Track exhaust temperature before, inside, and after aftertreatment during regen and normal driving. | Aborted regen, implausible temperature spread, derate, or broken wiring near hot exhaust. |
| Fuel dosing or post-injection strategy | Adds heat for active regeneration using engine calibration, an exhaust doser, or platform-specific strategy. | Incomplete regen, fuel smell, rising oil level on some platforms, or soot load returning too quickly. |
| SCR, DEF, and NOx sensors | Reduce NOx downstream on many newer trucks and verify catalyst performance. | DEF warnings, NOx efficiency codes, speed-limit countdown, or failed readiness monitors. |
| EGR, MAF, MAP, turbo, and ECU logic | Control combustion, airflow, boost, soot formation, and regen decisions upstream of the DPF. | Lazy throttle, black smoke, boost leak symptoms, rough idle, or soot loading that keeps coming back. |
How The DPF Traps Soot
The DPF traps soot by forcing exhaust through porous ceramic walls, while larger carbon particles stay behind until regen burns them down.
Think of the substrate like a heavy-duty honeycomb with alternating plugged channels. Exhaust enters one channel, passes through the wall, and exits a neighboring channel. Soot collects on the wall surface and inside the pores. A small soot layer can improve filtration, but too much soot turns into restriction and raises exhaust backpressure.
Soot and ash are not the same problem. Soot is carbon from combustion and can often be reduced by a successful regeneration event. Ash is non-combustible residue from engine oil additives, normal wear, and long service life. Ash does not burn away during regen. That is why a high-mileage work truck can still need professional cleaning or replacement even if every sensor works.
How DPF Regeneration Works
DPF regeneration is the controlled burn-off of soot, and it only works when the engine, exhaust temperature, sensors, and drive cycle line up.
Passive regen happens when exhaust heat during normal driving is high enough to burn soot steadily. This is common on trucks that tow, run highway miles, or work under real load. Active regen is commanded by the ECU when the soot model says the filter needs help. The truck may use post-injection, an exhaust doser, turbo strategy, idle speed, and EGR changes to raise aftertreatment temperature.
Forced stationary regen is a scan-tool commanded service procedure. It is not a magic reset. If the truck has a boost leak, bad thermostat, failed EGT sensor, plugged pressure tube, weak injector, or ash-loaded filter, a forced regen can abort or come right back with the same complaint. A good shop checks the cause before telling the owner to "take it out on the highway and let it cook."
For owner-level service paths before replacement, this guide on maintenance and service checks explains when cleaning makes sense and when it is just delaying the real repair.
DPF System Diagnosis: Codes, Pressure, And Live Data
A DPF system should be diagnosed with live data and fault history, not by the dashboard icon alone.
Common aftertreatment-related codes include P2463 for soot accumulation, P242F for ash accumulation or restriction logic, and P2002 for particulate filter efficiency below threshold. Those codes are useful search terms and shop clues, but they are not the whole diagnosis. Freeze-frame data, regen history, engine temperature, pressure behavior, and upstream faults still have to match the story.
As a rough field reference, and this varies by engine, sensor scaling, scan tool, temperature, and test setup, a healthy DPF is often under 0.2 to 0.5 psi at hot idle. During hard acceleration, towing, or a loaded grade, pressure should rise smoothly and often stays below about 1.5 to 2.5 psi on a clean system. Under heavy load, readings above 3.5 to 4.0+ psi can point toward serious restriction. If differential pressure stays at 0 psi no matter how throttle and load change, suspect a melted, cracked, plugged, or disconnected pressure hose, or a sensor or wiring fault.
Do not skip the boring checks. Verify coolant temperature, air filter condition, boost evidence, injector balance, turbo control, DEF/SCR status, EGT sensors, MAF/MAP readings, and fuel quality. On a 2011-2016 LML Duramax, for example, a restricted hydrocarbon injector can keep active regen from reaching the heat it needs. Cummins and Powerstroke platforms use different strategies, so one truck's fix does not automatically transfer to the next bay.
If the scan data points toward a pressure-side fault, this deeper article on pressure sensor testing is useful for understanding why sensor plausibility matters. It should be used for diagnosis context, not as a street-use emissions workaround.
Why Real Trucks Clog DPF Systems
Most repeat DPF complaints come from duty cycle, temperature, airflow, fuel control, or sensor errors rather than the filter suddenly failing by itself.
A hot-shot driver pulling a 14,000-lb fifth-wheel up a long highway grade gives the exhaust enough load to work, but the system also sees high heat and backpressure. A jobsite truck idling all day in cold weather may never get enough sustained exhaust temperature for clean passive regen. A grocery-run diesel that shuts off every eight minutes can stack soot faster than the ECU can burn it down.
Then there is the upstream mess. Dry EGR soot mixed with CCV oil vapor can form tar-like sludge in the intake horn, Y-bridge, or manifold. In the shop it looks like black peanut butter. That sludge can bury a MAP sensor, distort airflow and boost readings, cause lazy throttle response, smoke under payload, aborted regen, erratic regen, and premature soot load. The DPF catches the smoke, but it did not create the bad airflow.
- Towing: Watch pressure rise under sustained load, EGT spread, turbo response, and transmission temperature.
- Payload and jobsite use: Track idle hours, regen frequency, coolant temperature, and soot load after stop-and-go work.
- Off-roading: Inspect wiring, pressure tubes, sensor connectors, and exhaust hangers after vibration or mud exposure.
- Cold climates: Confirm thermostat operation before blaming the DPF; low coolant temperature can delay or abort regen.
- High-mileage trucks: Separate soot load from ash load before paying for repeated forced regen attempts.
DPF vs EGR, SCR, And DEF
The DPF traps particulate soot, while EGR changes combustion temperature upstream and SCR/DEF reduces NOx downstream on many newer diesels.
| System | Main Job | What The Driver Notices |
|---|---|---|
| DPF | Captures soot and burns it during regen. | DPF light, frequent regen, high backpressure, reduced power, or filter efficiency codes. |
| EGR | Recirculates exhaust gas to control combustion temperature and NOx formation. | Dirty intake, rough idle, boost/airflow codes, coolant loss from an EGR cooler, or lazy throttle. |
| SCR and DEF | Uses diesel exhaust fluid and catalyst chemistry to reduce NOx. | DEF quality warnings, NOx efficiency codes, countdown messages, or readiness trouble. |
| ECU calibration | Coordinates airflow, fuel, boost, regen, temperature, pressure, and emissions monitors. | Derate, limp strategy, smoke, failed readiness, or codes when hardware and calibration do not match. |
This is why the phrase "DPF system" gets sloppy in the real world. A driver may blame the DPF, a shop may quote an aftertreatment assembly, and the scan tool may show SCR, EGR, NOx, pressure, and temperature faults at the same time. Break the system into pieces before buying parts.
Clean, Repair, Replace, Or Delete: How To Choose A Path
The right DPF system path depends on legal use, restriction data, ash load, sensor health, upstream faults, and exact truck fitment.
| Path | When It Makes Sense | What To Confirm First |
|---|---|---|
| Compliant repair | Street-driven truck, inspection-bound truck, failed sensor, airflow/fuel-control issue, temperature problem, or DEF/SCR complaint. | DTCs, freeze-frame, pressure data, regen history, coolant temp, MAF/MAP, EGT sensors, and upstream mechanical faults. |
| Professional cleaning | Filter is restricted but physically intact, ash load is serviceable, and upstream soot causes are corrected. | Substrate condition, oil consumption, pressure drop before and after cleaning, and shop documentation. |
| Replacement DPF or aftertreatment part | Cracked substrate, melted core, heavy ash load, failed catalyst function, or repeated cleaning failure. | OEM fitment, sensor transfer condition, gaskets, clamps, heat shields, and legal emissions compliance. |
| Legal off-road or competition-use delete hardware | Vehicle is not used on public roads and the owner has confirmed local rules, controller support, and full system requirements. | Exact year, engine, cab, bed, chassis, exhaust diameter, sensors, ECM strategy, calibration support, and written legal-use status. |
For limited-use builds where the vehicle's legal status allows emissions hardware changes, start with the full DPF Delete Kits category rather than mixing pipe diameter, sensor layout, and year ranges by guesswork. Common platform examples include a Ford 6.7 Powerstroke DPF delete race pipe, a 2013-2018 Ram 6.7 Cummins DPF delete race pipe, and a 2011-2016 LML Duramax DPF delete race pipe. Those examples are not universal; fitment and calibration support need to be verified before the truck goes on a lift.
Controller, Calibration, And Service Risks
Late-model diesel aftertreatment work is often limited by controller support, calibration support, sensor condition, and transmission strategy, not just pipe fitment.
Some late-model platforms may involve encrypted or locked controllers, ECM unlocks, bench flashing, controller-specific calibration, credits, SOTF files, and TCM support. Before buying parts, verify the truck by VIN, controller family, ECM strategy, and legal-use status. Avoid assuming every Ford, Ram, GM, or cab-chassis truck follows the same path.
Transmission behavior matters too. Added torque without proper TCM strategy, converter behavior, line-pressure behavior, slip data, and trans temp monitoring can hurt towing reliability, especially on known weaker towing transmissions. For a truck that pulls a fifth-wheel, skid steer, horse trailer, or loaded gooseneck, calibration support is part of the decision, not an afterthought.
Budget for service risk around the exhaust hardware. Aging EGT sensors, NOx sensors, pressure tubes, and exhaust sensors may be rusted, seized, fragile, or thread-damaged in factory bungs after years of heat cycles. A careful shop plans inspection and possible replacement labor so wiring, sensor bodies, and threads do not get damaged during normal service.
Legal And Compliance Notes
DPF system changes can affect emissions compliance, inspection readiness, registration, warranty, resale value, and shop liability.
The U.S. EPA states that the Clean Air Act prohibits tampering with emissions controls and manufacturing, selling, or installing aftermarket devices intended to defeat those controls. A street-driven diesel should be handled through compliant diagnosis, cleaning, repair, or replacement. If a vehicle is claimed for off-road or competition use, the legal-use status still needs to be verified before parts are selected.
FAQ
Q: What is a DPF system in a diesel truck?
A: A DPF system is the diesel aftertreatment network that traps soot, measures pressure and temperature, manages regen, and works with the ECU, EGR, DOC, SCR/DEF, and sensors to keep exhaust behavior within expected limits.
Q: What are the common signs of a clogged DPF system?
A: Common signs include a DPF warning light, frequent regen, reduced throttle response, poor fuel economy, rising exhaust backpressure, limp mode, derate, and codes such as P2463, P242F, or P2002.
Q: What differential pressure reading means the DPF is clogged?
A: There is no single universal number. As a rough field reference, many healthy systems are under 0.2 to 0.5 psi at hot idle, rise smoothly under load, and often stay below about 1.5 to 2.5 psi during clean loaded operation. Heavy-load readings above 3.5 to 4.0+ psi can suggest restriction, while a flat 0 psi under load points toward a hose, sensor, or wiring fault. Always compare against the truck's service data and scan-tool setup.
Q: Can a bad thermostat or boost leak cause DPF problems?
A: Yes. A stuck-open thermostat can keep exhaust temperature too low for clean regen, and a boost leak can create smoke and soot under load. Dirty MAP sensors, injector over-fueling, turbo control faults, and intake sludge can also make the DPF load faster.
Q: Is soot load the same as ash load?
A: No. Soot is carbon that regen can burn down when the system is healthy. Ash is non-combustible residue that builds with mileage and oil consumption. High ash load usually needs professional cleaning or replacement, not another forced regen.
Q: Can I run a straight pipe without calibration or use a dummy plug to fool the DPF pressure sensor?
A: That is not a sound repair path. Modern ECM logic uses dynamic rationality checks, so differential pressure, RPM, boost, fuel mass, EGT sensors, soot load model, regen state, and NOx/DEF/SCR plausibility need to agree. Static dummy parts, resistors, or a pipe with stock calibration may trigger range/performance codes, derate, limp strategy, smoke, failed readiness, or drivability problems. This is a reason to diagnose the system and verify legal-use limits, not a reason to improvise a sensor workaround.
Q: Should I clean, replace, or delete a DPF system?
A: Clean only when the substrate is intact and the upstream cause is corrected. Replace when the core is cracked, melted, heavily ash-loaded, or no longer serviceable. Delete hardware should only be discussed for verified legal off-road or competition-use vehicles with confirmed fitment, controller support, and legal-use status.
