Updated July 13, 2026.
If your Dodge Charger has the 3.6L Pentastar V6 and you see oil collecting near the transmission bellhousing, smell burnt oil after parking, or find oil pooling in the engine valley, the oil cooler and oil filter housing assembly should be high on your inspection list. Because this part sits below the intake manifold, a small leak can hide for a while before it looks like a much more expensive rear main seal problem.
The factory-style plastic oil filter housing works when new, but heat cycling, age, overtightened oil filter caps, worn O-rings, and repeated oil service can make the housing more likely to leak. That is why many Charger, Challenger, Chrysler, and Jeep owners consider an aluminum oil cooler upgrade instead of installing another plastic replacement.
Key takeaway: An aluminum oil filter housing is mainly a durability upgrade. It does not fix every oil leak. First confirm that oil is coming from the oil cooler area, then replace the housing, seals, and intake gaskets correctly so you do not have to remove the intake manifold twice.
What the Oil Cooler Does on a 3.6L Pentastar Charger
On the 3.6L Pentastar V6, the oil cooler and oil filter housing are combined into one assembly. It routes engine oil through the filter, helps manage oil temperature, and seals multiple oil and coolant passages at the top of the engine.
The location is the reason this repair gets attention. The assembly sits in the V of the engine, below the upper and lower intake manifold. When the seals or housing leak, oil can collect in the engine valley, then run down the back of the engine and make it look like a rear main seal or transmission-area leak.
Common Signs of a Dodge Charger Oil Cooler Leak
A failing Dodge Charger oil cooler or oil filter housing does not always announce itself with a puddle right away. Look for these real-world symptoms:
- Oil pooling in the engine valley under the intake manifold.
- Oil running down the rear of the engine onto the transmission bellhousing.
- Burning oil smell after a drive.
- Oil stains on the top or back side of the engine.
- Low engine oil level between oil changes.
- Coolant smell, coolant residue, or coolant loss near the housing area.
- Fresh oil around the oil filter cap after service.
- Check engine light after reassembly if the intake gaskets leak vacuum.
If diagnosis confirms the housing is the source, a fitment-matched aluminum oil filter housing assembly can be considered as an upgrade over another plastic-style replacement. Always verify the part number, model year, engine, and OE fitment before ordering.
Do Not Blame the Oil Cooler Too Fast
Oil on the transmission housing often points people toward the oil cooler, but it is not the only possible source. Before replacing parts, inspect the surrounding areas carefully.
| Possible Source | Typical Clue | How to Check |
|---|---|---|
| Oil cooler / oil filter housing | Oil collects in the engine valley and runs down the back of the engine. | Use a light and mirror around the intake valley, or inspect directly once the intake is removed. |
| Valve cover gasket | Oil starts higher on the side of the cylinder head. | Inspect the valve cover perimeter before assuming the cooler is leaking. |
| Oil filter cap or O-ring | Oil appears soon after a recent oil change. | Check cap seating, O-ring condition, and signs of overtightening. |
| Rear main seal | Oil appears from the lower bellhousing area without oil in the engine valley. | Clean the area, add UV dye if needed, and recheck the leak path. |
| Coolant or oil passage seal | Oil or coolant residue appears around the housing base. | Inspect gasket surfaces and fluid levels before reassembly. |
If you want a deeper explanation of gasket-related leak symptoms before tearing into the intake, this guide on intake manifold leak diagnosis is a useful companion read.
Plastic vs. Aluminum Oil Filter Housing
The main argument for aluminum is not horsepower. The real benefit is resistance to heat-cycle fatigue and service-related stress. The original-style plastic housing can become brittle over time, especially in a hot engine valley. Aluminum is more rigid and more tolerant of repeated heating, cooling, and oil filter service.
| Feature | Factory-Style Plastic Housing | Aluminum Upgrade | Practical Meaning |
|---|---|---|---|
| Material | Glass-filled plastic / nylon-style construction | Cast aluminum construction | Aluminum is less likely to become brittle from heat cycling. |
| Service stress | More sensitive to overtightened caps and aging plastic necks | More rigid around threaded and sealing areas | Helpful for vehicles that see frequent oil service. |
| Leak prevention | Depends heavily on housing condition and seal quality | Still depends on correct gasket installation and torque | Aluminum improves durability, but installation still matters. |
| Cooling role | Manages oil temperature through the factory-style cooler design | Maintains the same basic system function | The upgrade is mainly about housing reliability. |
| Best use case | Budget repair or low-mileage stock replacement | Preventive repair or repeat-leak replacement | Choose based on mileage, leak history, and labor cost. |

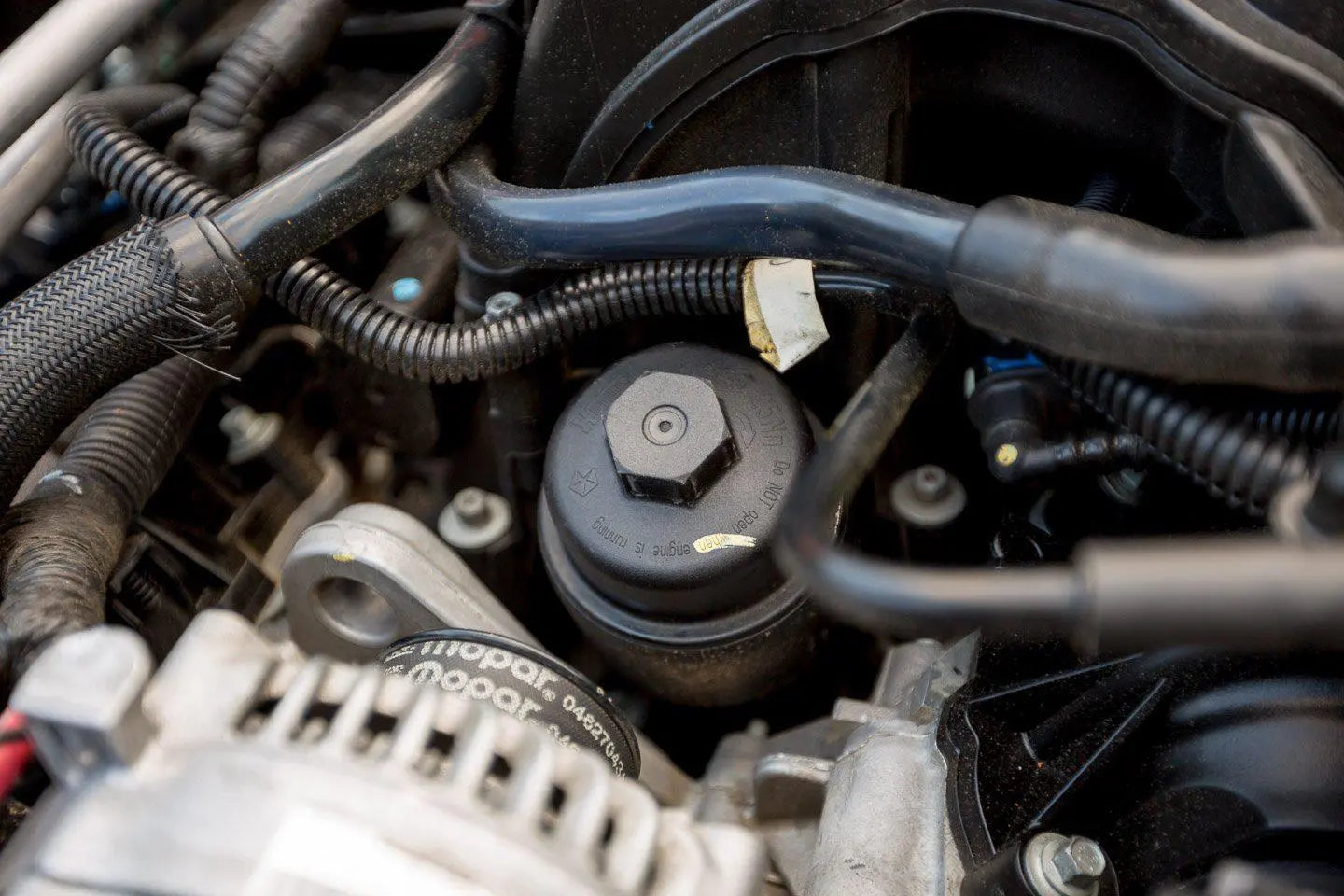

The 25 N·m Oil Filter Cap Rule
One reason these housings get blamed so often is oil filter cap service. Many Pentastar-style oil filter caps are marked with a maximum tightening limit of 25 N·m, or about 18 ft-lbs. Before tightening, read the cap and check the service information for your exact model.
Do not muscle the cap down. A large wrench, the wrong socket, or shop over-tightening can stress the cap neck, threads, and housing area. Aluminum gives the threaded and sealing area more structural margin than aging plastic, but it still should be torqued correctly. The goal is a sealed cap, not a crushed housing.
When Should You Replace It?
Because the oil cooler housing is buried under the intake manifold, labor is a major part of the job. Many owners choose to replace the assembly proactively when the intake is already off for spark plugs or other upper-engine service.
| Mileage / Condition | Recommended Action |
|---|---|
| Under 50,000 miles with no leak | Inspect during oil changes and monitor for oil around the filter cap and valley. |
| 50,000-100,000 miles | Start checking more closely, especially if the vehicle sees heat, short trips, or frequent service. |
| Oil in the engine valley | Diagnose promptly. This is one of the strongest signs of housing or seal failure. |
| Intake manifold already removed | Consider replacing the housing, seals, and related gaskets while access is open. |
| Repeat leak after plastic replacement | An aluminum upgrade becomes more reasonable than repeating the same repair. |
If you are comparing oil temperature control beyond this specific Pentastar housing repair, the oil cooler kits collection can help you understand other oil-cooling layouts. For this Charger repair, however, the key part is still the housing and cooler assembly under the intake.
DIY Difficulty: What Owners Should Know
This job is possible for a careful DIY owner, but it is not the same as a simple oil filter change. The intake manifold must be removed, connectors and hoses must be handled carefully, and sealing surfaces need to be clean before the new housing is installed.
- Expect more time if this is your first Pentastar intake removal.
- Label connectors and hoses before disconnecting them.
- Clean oil from the engine valley before installing the new assembly.
- Replace damaged O-rings or gaskets instead of reusing questionable seals.
- Use a small torque wrench for low-torque fasteners.
- Verify final torque specs with the service information for your exact year and model.
Do not reuse old intake plenum gaskets. Plan for fresh upper and lower intake manifold gaskets before turning the first bolt. Many 3.6L Pentastar intake jobs use six upper and six lower intake seals, but confirm the exact gasket count for your vehicle. Reusing flattened, heat-hardened gaskets can create a vacuum leak and trigger P0171 or P0174 lean codes after the repair.
This is the mistake that turns a one-time repair into a repeat teardown. If the engine idles rough, whistles, sets lean codes, or trims fuel heavily after the job, suspect an intake sealing problem before blaming the new oil cooler housing.
Torque Specs and Service Notes
Torque accuracy matters more than speed on this repair. Different model years, intake styles, and replacement assemblies can have different requirements. Treat online torque tables as planning references, not the final authority.
| Component | Service Note |
|---|---|
| Oil cooler housing bolts | Use the correct low-range torque wrench and tighten evenly in sequence. |
| Lower intake manifold | Start from the center and work outward if the service pattern calls for it. |
| Upper intake / plenum | Avoid overtightening plastic intake components. |
| Oil filter cap | Check the cap marking and service information. Many caps list 25 N·m / 18 ft-lbs. |
| Intake gaskets | Install fresh upper and lower gaskets if the old seals are flattened, hard, swollen, or oil-soaked. |
For a broader understanding of why heat management matters to engine durability, see this guide on engine oil temperature basics.
Cost: DIY vs. Shop Repair
The part cost is only one part of the decision. Since the housing is under the intake manifold, shop labor can be higher than owners expect. DIY can save money, but only if you are comfortable working around intake components, fuel vapor lines, coolant connections, and low-torque fasteners.
| Option | Best For | Main Tradeoff |
|---|---|---|
| Plastic replacement | Budget repair when cost is the main concern | May repeat the same material weakness over time. |
| Aluminum replacement | Owners who want a more durable housing after a leak | Still requires careful installation and fitment verification. |
| Professional repair | Owners without tools, space, or confidence for intake removal | Higher labor cost, but lower risk of installation mistakes. |
| DIY repair | Experienced owners with time and a torque wrench | Mistakes can cause vacuum leaks, oil leaks, or coolant leaks. |
If you are deciding whether to do this job yourself or pay a shop, comparing DIY versus shop labor costs can help frame the decision, even though the exact labor time is different for an oil cooler housing job.
Related Oil-Cooling Parts vs. This Repair
It is easy to group every oil-temperature part together, but the repair path is different. A Pentastar oil cooler housing leak is not the same as adding a remote cooler, replacing a radiator-style cooler, or changing adapter hardware.
| Part Category | When It Matters |
|---|---|
| oil cooler radiators | Useful for broader engine or transmission fluid temperature control, not a direct fix for a leaking Pentastar valley housing. |
| oil cooler adaptor | Relevant when building or modifying an oil-cooling layout that needs adapter hardware. |

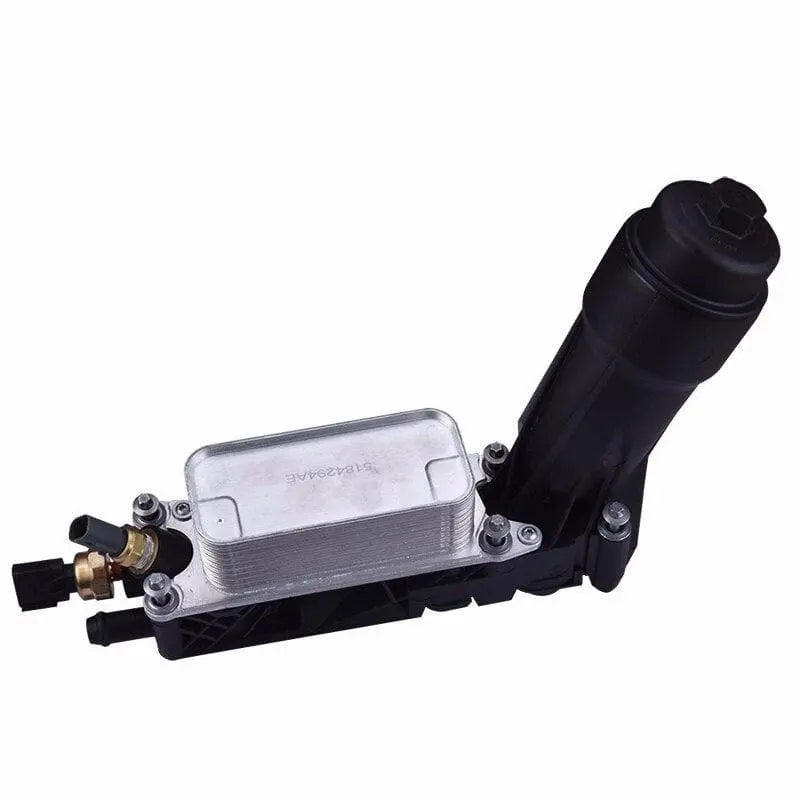

| 3.6L Pentastar oil filter housing | The direct repair target when oil is pooling under the intake manifold on applicable Charger applications. |
FAQ
Why is there oil on my transmission bellhousing?
On the 3.6L Pentastar, oil from a leaking oil cooler or oil filter housing can pool in the engine valley and then drain down the back of the engine. This can make the leak look like it is coming from the transmission area.
Is an aluminum oil cooler housing better than plastic?
For durability, usually yes. Aluminum is more resistant to heat-cycle fatigue and service stress than an aging plastic housing. However, it still needs correct gaskets, clean sealing surfaces, and proper installation.
Will an aluminum housing fix every oil leak?
No. It only helps if the leak is actually coming from the oil cooler housing, oil filter adapter, or related seals. Valve cover gaskets, rear main seals, oil pan leaks, and cap O-ring issues should be ruled out first.
Can I keep driving with a leaking oil cooler?
A small seep should be diagnosed soon. A larger leak can lower engine oil level, create burning oil smell, contaminate the engine valley, or lead to coolant-related issues if the housing seals are failing. Do not ignore fluid loss.
Should I replace the intake manifold gaskets?
Yes, if the intake is removed and the old gaskets are flattened, hard, cracked, swollen, or oil-soaked. Reusing old intake gaskets can cause vacuum leaks, rough idle, and P0171 or P0174 lean codes after the repair.
Do I need RTV silicone?
Usually no. O-rings and formed seals are designed to seal by compression. Extra RTV can interfere with sealing or contaminate oil and coolant passages if used incorrectly.
What happens if the oil filter cap is overtightened?
Overtightening can stress the cap, threads, and housing area. Many caps are marked 25 N·m / 18 ft-lbs, but you should always verify the cap marking and service information for your exact vehicle.
Does the intake manifold need to come off?
On the 3.6L Pentastar layout, access to the oil cooler and oil filter housing normally requires intake manifold removal. That is why many owners combine this repair with spark plug or upper-intake service.
How do I know if the part fits my Charger?
Match the engine, model year, OE part number, and product fitment information. Do not order only because the engine is a 3.6L Pentastar; related vehicles can use different revisions or accessories.
Final Verdict
If your Dodge Charger 3.6L Pentastar has oil pooling in the engine valley or leaking down the rear of the engine, the oil cooler and oil filter housing assembly deserve a close inspection. The aluminum upgrade makes the most sense when the factory-style plastic housing is cracked, warped, leaking, or already accessible during intake service.
The smart repair is not just swapping the housing. Confirm the leak path, respect the 25 N·m cap limit where applicable, use fresh seals, avoid excess RTV, and do not reuse tired intake plenum gaskets. That is how you avoid turning one oil cooler job into two intake removals.
