Updated July 14, 2026.
An electric exhaust cutout sounds simple: press a button, bypass part of the exhaust, and make the vehicle louder. The buying decision is less simple. Pipe size, single- or dual-exhaust layout, valve location, ground clearance, heat exposure, road spray, wiring, and local noise rules all matter more than a claimed horsepower number.
The most useful way to shop is to treat the cutout as a controllable muffler bypass, not as a universal power upgrade. If you want the basic operating principle first, read how a muffler bypass changes sound and flow.
How Does an Electric Exhaust Cutout Work?
A Y-pipe or bypass section is installed in the exhaust. With the valve closed, exhaust continues through the normal muffler and tailpipe. With the valve open, some or all of the flow exits through the shorter branch, depending on the valve position and exhaust design. The result is normally a much louder exhaust note and less restriction from the components located after the cutout.
That last detail is important. A valve installed just before the muffler bypasses the muffler; it does not bypass headers, catalytic converters, diesel aftertreatment, or restrictions located upstream. An open cutout cannot repair a clogged diesel particulate filter, damaged catalytic converter, boost leak, weak turbocharger, or fueling problem.
What Size Exhaust Cutout Should You Buy?
Match the marked cutout size to the exhaust tube and the manufacturer's specified connection measurement. Do not choose a 3-inch valve just because the engine is large. A 2.5-inch exhaust needs a connection designed for that pipe, unless a fabricator intentionally builds a transition.
| Marked Size | What to Verify Before Ordering | Common Buying Mistake |
|---|---|---|
| 2.0 or 2.25 inch | Actual tube diameter, clamp or weld connection, available tunnel space | Ordering by vehicle type instead of measuring the pipe |
| 2.5 inch | Single versus true-dual layout and Y-pipe length | Buying two valves when the system merges into one pipe before the planned location |
| 3.0 inch | Clearance around the transmission tunnel, crossmember, driveshaft, and floor | Assuming a larger opening always creates more useful power |
| 4.0 inch | Heavy-duty pipe fitment, chassis-rail clearance, actuator space, and room for an angled dump tube | Using a large valve without checking whether the outlet directs heat, dust, or exhaust toward the axle, fuel tank, or floor |
Measure before ordering, then check the product drawing. Some listings refer to outside diameter, while fabrication parts may use different slip-fit or butt-weld conventions. The fitment notes for electric exhaust cutout kits should be compared with the pipe measurement and the space under the vehicle.
Do You Need a Single or Dual Cutout?
A vehicle with one exhaust pipe at the installation point normally needs one valve. A true dual exhaust system may need two if the owner wants both banks to bypass their mufflers. The number of engine banks does not decide the order; the pipe layout at the planned mounting point does.

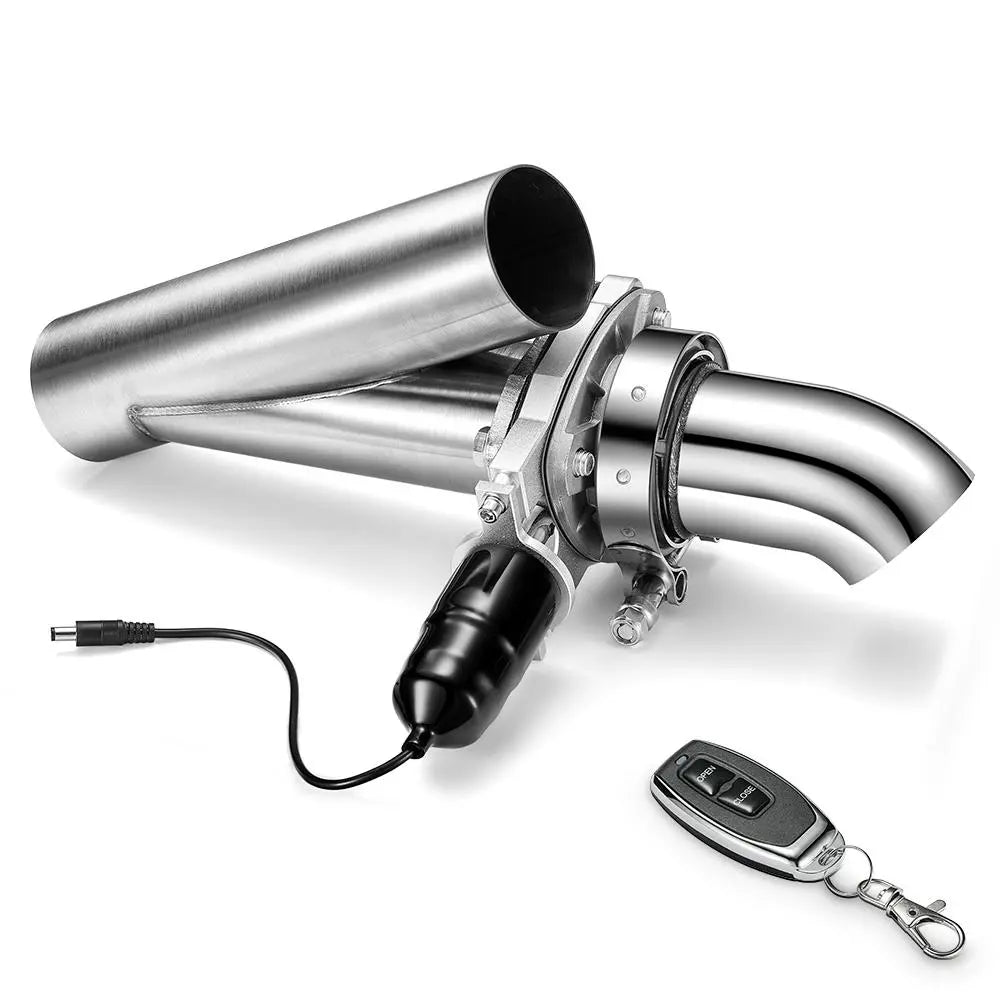

For a single-pipe system with several common size choices, a 2.0/2.25/2.5/3.0-inch remote electric exhaust cutout kit is one configuration to compare. A true-dual 2.5-inch exhaust instead calls for a layout such as a 2.5-inch dual electric exhaust cutout system, provided both pipe measurements and the available space match.
Electric, Manual, or Vacuum Control?
| Control Type | Why Owners Choose It | What Can Go Wrong |
|---|---|---|
| Electric remote or switch | Convenient in-cab control and easy partial or full opening on supported designs | Heat-damaged wiring, blown fuse, corroded connector, weak motor, or lost remote |
| Manual cable or lever | Simple mechanism with fewer electrical parts | Cable routing, stiffness, corrosion, and difficult cabin access |
| Vacuum operated | Compact actuator and fast valve movement on a compatible setup | Vacuum leaks, solenoid issues, hose damage, or lack of a suitable vacuum source |
Remote control is convenient, but it does not remove the need for correct wiring and heat protection. Buyers comparing standard single- and dual-valve layouts can review regular electric exhaust cutout options by pipe size and controller type.

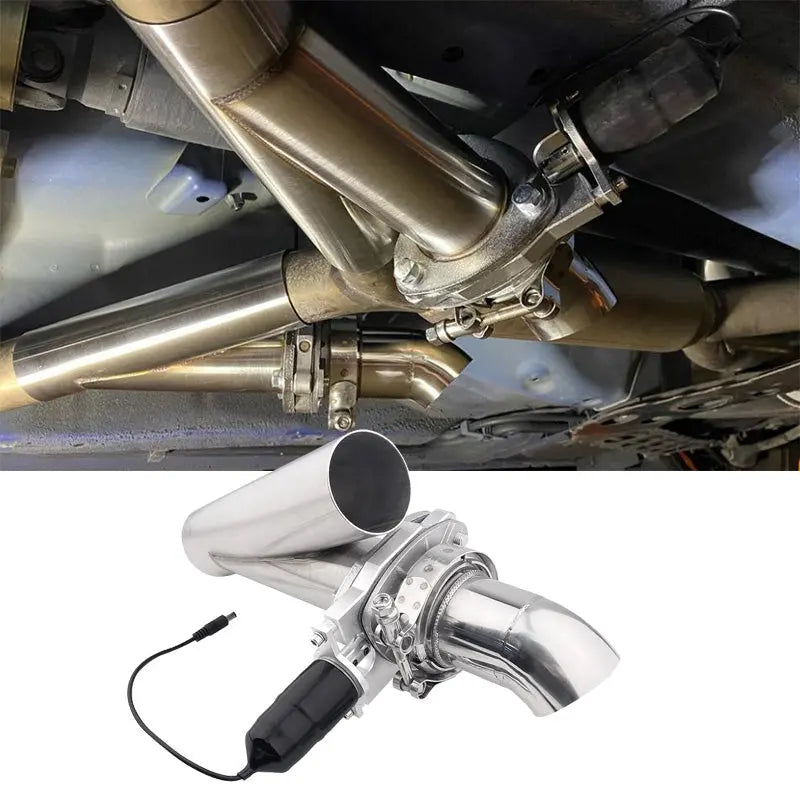

Where Should an Exhaust Cutout Be Installed?
The usual goal is to place the bypass before the muffler while leaving every required catalytic converter, oxygen sensor, DPF, DOC, SCR catalyst, and other emissions component intact. The exact location depends on the vehicle. An installer needs enough straight pipe for the Y-section and enough room for the valve, motor, wiring, and outlet.
- Protect ground clearance: The valve and dump outlet should not become the lowest point under the vehicle.
- Watch suspension and drivetrain movement: Leave clearance around crossmembers, driveshafts, axle travel, heat shields, and the floor.
- Control heat: Keep the actuator and wiring away from the hottest nearby components and use shielding where the manufacturer or installer calls for it.
- Control road spray: Do not aim connectors or motor seams directly into tire spray. "Weather resistant" should not be treated as "submersible."
- Choose the dump path carefully: A turn-down or angled dump tube can redirect heat and exhaust pulse, but a straight-down outlet can throw dust and road debris. Keep the discharge away from fuel lines, brake hoses, wiring, tires, the fuel tank, body panels, and cabin openings.
- Plan service access: You should be able to inspect fasteners, wiring, and the valve without removing half the exhaust.
A driveway photo can hide clearance and outlet-direction problems. Review real-world installation examples, then check your own underbody before using another vehicle as a template.
Which Materials and Features Matter?
Stainless steel exhaust tubing is a practical choice where corrosion, condensation, road salt, and repeated heat cycles are concerns. That does not mean every part of a kit is stainless steel. A product may use stainless tubing or a stainless valve plate with an aluminum-alloy housing, plated elbow, motor gears, gaskets, and electrical components made from different materials.
Instead of shopping by one material word, inspect the complete assembly:
- Y-pipe and dump-tube material
- Butterfly valve, shaft, fastener, and housing construction
- Actuator temperature guidance and heat shielding
- Connector sealing, wire insulation, fuse protection, and control-box location
- Replacement motor, valve, remote, switch, and harness availability
- Gasket design and whether the flange remains flat when tightened
If the valve is still mechanically sound but the controller or harness fails, replacing one service part may be more sensible than cutting out the full assembly. The exhaust cutout accessories category is useful for checking whether service components are available before choosing a kit.
Common Failure Symptoms and What to Check First
| Owner Complaint | Likely Area | First Check |
|---|---|---|
| Metallic rattle with the valve closed | Loose shaft, valve plate, fastener, or flange hardware | Inspect the valve cold and verify hardware without overtightening it |
| Exhaust leak sound when closed | Valve seat, gasket, warped flange, or incomplete closure | Look for soot tracks around the seat and flange |
| Motor clicks but the valve does not move | Stuck valve, weak gear, low voltage, or mechanical interference | Check battery voltage, connector condition, and valve movement with the exhaust cold |
| Valve movement slows after soot-heavy use | Carbon buildup on the butterfly valve or shaft | Stop repeatedly cycling the motor; inspect and clean the cooled valve using the manufacturer's approved method |
| Intermittent operation after rain | Connector, wiring splice, control box, or actuator water ingress | Dry and inspect the circuit before replacing the motor |
| Exhaust smell in the cabin | Unsafe outlet direction, floor opening, body leak, or exhaust leak | Close the valve, stop using the bypass, and correct the leak or routing before driving |
What Diesel Truck Owners Need to Know
A modern Cummins, Power Stroke, or Duramax does not automatically need a larger cutout, and diesel exhaust temperature is not universally higher than gasoline exhaust in every operating condition. The real concerns are placement, aftertreatment, regeneration heat, soot exposure, towing load, and available chassis space.
On a DPF-equipped truck, the DPF, DOC, SCR catalyst, sensors, and other required components must remain in their compliant configuration for public-road use. A cutout located after the aftertreatment may produce less sound change than a gasoline owner expects because the filter and catalysts already absorb exhaust energy. Placement upstream of required aftertreatment is a different modification with serious emissions and diagnostic consequences.
On a compliant truck with a healthy DPF, much of the particulate is captured before it reaches a downstream cutout. Heavy black deposits at a post-DPF valve deserve diagnosis rather than being dismissed as normal. On a legally permitted off-road configuration with soot-rich exhaust, carbon buildup can collect around the butterfly valve and shaft. If movement slows, do not keep forcing the actuator with the remote. Let the exhaust cool, disconnect power, inspect the valve, and use only a cleaning method compatible with the motor, gasket, and valve materials.
A short dump under the cab can also create strong low-frequency cabin drone when the engine is loaded. An angled turn-down changes the discharge direction, but it does not guarantee a quiet cabin; valve location, dump-tube length, floor sealing, exhaust layout, and engine speed all affect resonance.
A diesel owner should avoid using an open valve as a supposed fix for high EGT, frequent regeneration, low boost, or derate. Those symptoms call for scan data and diagnosis. During regeneration or a long tow grade, heat exposure can be severe, so actuator location and shielding deserve more attention than a glossy product photo suggests.
Do Exhaust Cutouts Add Horsepower?
Sometimes an open cutout can reduce a measurable restriction and support a power change, especially when the existing muffler or downstream exhaust is restrictive. It is not an automatic gain. The result depends on where the valve sits, what it bypasses, engine airflow, turbo configuration, tuning, and the rest of the exhaust.
Also, engines do not need harmful exhaust backpressure as a performance feature. Naturally aspirated engines can be sensitive to exhaust velocity and pressure-wave tuning, while a turbocharged engine generally benefits from lower pressure after the turbine. That does not mean the largest valve is always the right purchase. Correct pipe fit, leak-free closure, and a sensible location matter first. Treat sound control as the primary benefit and require vehicle-specific dyno evidence before believing an exact horsepower claim.
Hear the Difference Before You Buy
Phone and video recordings cannot reproduce cabin drone or low-frequency vibration perfectly, but they can reveal how much the sound changes between open and closed positions on a similar exhaust layout.
Related Cutout Options to Compare
Are Exhaust Cutouts Legal on the Street?
Rules vary by location and can address noise level, muffler bypass devices, exhaust outlet position, inspections, and emissions equipment. A cutout that is physically installed after the emissions hardware may still violate a local noise or muffler-bypass rule when opened on a public road. Before installation, review street-use and noise restrictions for the places where the vehicle is registered and driven.
FAQ: Exhaust Cutout Questions Buyers Actually Ask
How do I know what size exhaust cutout I need?
Measure the exhaust tube at the intended location and confirm whether the product size refers to outside diameter, inside diameter, a slip fit, or a butt-weld connection. Match the product drawing rather than relying only on the vehicle model.
Should I install the cutout before or after the muffler?
A cutout is normally placed before the muffler when the goal is to bypass the muffler. Required catalytic converters, oxygen sensors, diesel aftertreatment, and other emissions components should remain intact and upstream on a compliant street vehicle.
Will an electric exhaust cutout trigger a check-engine light?
A properly placed muffler bypass downstream of required sensors may not affect engine monitoring, but exhaust leaks near oxygen sensors or changes to regulated emissions components can cause faults. Diagnose any warning light rather than assuming the valve itself is the only cause.
Is an electric actuator waterproof?
Do not assume it is waterproof unless the manufacturer provides a specific ingress rating. Mount connectors and control boxes away from direct tire spray, standing water, and concentrated heat, and follow the product's weather guidance.
How often should the valve be serviced?
There is no universal mileage interval for every vehicle. Inspect it when operation slows, the closed valve leaks or rattles, wiring is exposed to water, or the vehicle has seen road salt, mud, towing heat, or long storage. Follow the kit-specific instructions.
Is a cutout worth it on a DPF-equipped diesel truck?
It may offer adjustable sound when installed after all required aftertreatment, but the DPF and catalysts can reduce the sound change. It should not be purchased as a repair for regeneration, derate, high EGT, or low-boost complaints.
The Smart Buying Rule
Choose an exhaust cutout only after you know the pipe size, pipe layout, legal mounting zone, available clearance, outlet direction, and service plan. For most buyers, the right kit is not the largest one. It is the one that closes without leaking, survives the mounting environment, keeps every required emissions component intact, and gives the sound control the owner actually wants.
John Lee
Mechanical Engineer | 10+ Years Experience
John focuses on exhaust fitment, thermal management, flow behavior, and the installation details that determine whether an aftermarket part works reliably in daily use.
