Updated on July 19, 2026.
DPF and EGR deletes are emissions-system changes that remove or disable parts of a modern diesel aftertreatment and recirculation strategy; they are not a cure-all for a truck with poor airflow, bad sensor data, injector over-fueling, coolant loss, or failed regeneration. On a Powerstroke, Cummins, or Duramax, the DPF traps soot in the exhaust, while the EGR system recirculates exhaust gas back into the intake. They affect different sides of the engine, but the ECU watches them together through airflow, temperature, pressure, NOx, DEF/SCR, soot-load, and regen data.
Key Takeaways
- DPF delete and EGR delete are different changes: the DPF is downstream exhaust filtration, while EGR is upstream intake recirculation.
- A DPF complaint usually starts with regen frequency, soot load, ash load, differential pressure, EGT sensors, and exhaust restriction.
- An EGR complaint usually starts with intake soot, MAP/MAF errors, rough idle, black smoke, coolant loss, white smoke, or EGR cooler leakage.
- Deleting one system does not fix the other; a DPF pipe will not repair an EGR cooler leak, and an EGR delete will not clean an ash-loaded DPF.
- Street-driven trucks should use compliant diagnosis, cleaning, repair, or replacement; delete hardware belongs only in legal off-road or competition-use discussions.
DPF And EGR Deletes Explained
A DPF delete changes the exhaust aftertreatment path, while an EGR delete changes the intake recirculation path; both require the truck's hardware, sensors, and calibration strategy to agree.
The DPF sits in the exhaust stream and traps soot before it exits the tailpipe. The EGR system routes a controlled amount of exhaust gas back into the intake to manage combustion temperature and NOx. A clogged DPF usually feels like aftertreatment restriction. A bad EGR system usually feels like dirty intake airflow, bad combustion control, coolant trouble, or rough drivability.
The catch is that modern diesel ECUs do not see those systems in isolation. They compare MAF/MAP, EGT sensors, differential pressure, soot load, ash load, NOx data, DEF/SCR status, EGR position, turbo behavior, and regen history. If one system is changed without diagnosing the rest, the truck can still smoke, derate, run hot, or keep setting codes.
DPF vs EGR System Layout
The EGR system is upstream on the intake and recirculation side, while the DPF is downstream in the exhaust aftertreatment path.
That layout matters because symptoms travel. Poor combustion, boost leaks, injector over-fueling, low coolant temperature, or EGR flow problems can create more soot upstream. The DPF catches the result downstream, so the driver may see a DPF warning even when the filter was not the original problem.
If you need a full diagram-level explanation before comparing delete parts, start with this diesel aftertreatment system layout. It helps separate the DOC, DPF, SCR, DEF, EGR, sensors, and regen logic before money gets spent.
Diagnose Before Deleting Anything
The first step is to prove whether the truck has a DPF problem, an EGR problem, a sensor problem, or an upstream engine problem.
| Complaint | Likely Starting Point | First Data To Check | What Not To Assume |
|---|---|---|---|
| Frequent regen or DPF full message | DPF plus upstream soot source | Soot load, ash load, differential pressure, regen history. | Do not assume the filter is the root cause. |
| Rough idle, lazy throttle, intake soot | EGR and intake side | MAF/MAP, EGR commanded vs actual, intake horn, MAP sensor pocket. | Do not assume a DPF pipe fixes intake restriction. |
| Coolant loss or white smoke | EGR cooler or cooling system | Cooling-system pressure, EGR cooler, reservoir behavior, exhaust smell. | Do not blame the DPF first. |
| Black smoke under payload | Air/fuel, EGR, boost, tuning, or modified exhaust | Boost pressure, injector balance, turbo response, MAF/MAP, tune history. | Do not call it a normal diesel thing. |
| Limp mode or derate | Both systems possible | DTCs, freeze-frame data, EGT sensors, differential pressure, boost, fuel rail pressure. | Do not replace parts before reading the reason for derate. |
As a rough field reference, and it varies by engine, sensor scaling, scan tool, temperature, and test setup, a healthy DPF is often under 0.2 to 0.5 psi at hot idle. During hard acceleration or a loaded uphill pull, pressure should rise smoothly and often stays below about 1.5 to 2.5 psi on a clean system. Under heavy load, readings above 3.5 to 4.0+ psi can point toward serious restriction, while a reading that stays at 0 psi no matter how throttle and load change can point toward a melted, cracked, plugged, or disconnected pressure hose, or a sensor/wiring problem.
What A DPF Delete Changes
A DPF delete removes the filter restriction from the exhaust path, but it also removes the normal pressure and regeneration behavior the ECU expects to see.
In a legal off-road or competition-use build, lower exhaust restriction can reduce post-turbo backpressure and change EGT behavior. That can be useful on a purpose-built truck that has matched calibration, proper gauges, correct exhaust fitment, and a clear use case. It does not fix injector issues, boost leaks, bad EGT sensors, poor turbo control, ash-loaded repair history, or a dirty-burning engine.
Budget time for exhaust sensor service, too. Aging EGT probes and other exhaust sensors can be rusted, seized, or fragile in factory bungs after years of heat cycles. A careful shop inspects wiring, threads, sensor condition, and replacement needs before turning a parts job into a broken-sensor job.
For buyers comparing hardware categories after diagnosis, DPF Delete Kits should be checked by platform, year range, cab/bed, chassis layout, pipe size, clamp style, hanger position, sensor layout, and legal-use status.
What An EGR Delete Changes
An EGR delete changes the exhaust-gas recirculation path on the intake side, so it affects combustion behavior, intake soot exposure, coolant routing on some platforms, and ECU airflow expectations.
Dry EGR soot mixed with CCV oil vapor can turn into black peanut butter inside an intake horn, Y-bridge, throttle valve area, or MAP sensor pocket. That tar-like sludge can distort airflow or boost readings, cause lazy throttle response, smoke under payload, aborted regen, and premature soot loading. Cleaning up that problem starts with diagnosis, not a parts slogan.
Owners comparing EGR Delete Kits should confirm EGR cooler layout, valve position, intake horn design, coolant routing, year range, model-specific fitment, calibration support, and legal-use limits. A bad EGR cooler leak is a cooling-system problem first. A DPF delete pipe does not repair it.
When DPF And EGR Changes Are Discussed Together
DPF and EGR changes are sometimes discussed together because the ECU manages emissions, airflow, fuel, and temperature as one connected system.
For a documented legal off-road or competition build, the shop should plan the pipe, EGR hardware, DEF/SCR status, sensor strategy, ECM/TCM support, SOTF files, EGT control, smoke control, torque management, and transmission behavior together. Some late-model platforms may involve encrypted or locked controllers, security gateways, ECM unlocks, bench flashing, controller-specific calibration, SOTF files, and TCM support. Verify by VIN, controller family, ECM strategy, model year, and legal-use status before buying parts.
Transmission strategy matters on tow rigs. Added torque without proper TCM strategy, converter behavior review, line-pressure behavior, slip data, and transmission temperature monitoring can hurt towing reliability, especially on known weaker transmissions such as some 68RFE applications. A professional shop should verify live data and calibration strategy instead of treating engine torque as separate from the transmission.
That is why All-In-One Diesel Delete Kits must be treated as fitment-specific systems, not universal boxes. A kit that fits one Super Duty, Ram, or Silverado configuration may not fit a different cab, bed, chassis, year split, or controller strategy.
Real-World Truck Scenarios
The right answer changes when the truck's job changes, because towing, payload, idling, off-roading, and cold weather stress DPF and EGR systems differently.
- Hot-shot towing: A Ram pulling a heavy gooseneck needs EGT control, boost integrity, transmission behavior, and clean torque management before any hardware decision.
- Jobsite idling: A Powerstroke idling in winter may fail to complete regen because coolant temperature and exhaust heat never stay high enough.
- Farm or oilfield use: Dust, idle hours, payload squat, and short runs can stack soot and intake contamination faster than highway use.
- Off-road competition: A purpose-built truck needs secure exhaust routing, heat clearance, calibration support, and legal-use documentation.
- Street daily driving: The repair path should stay compliant: diagnose, clean, repair, replace, and keep required emissions systems functional.
If your main question is whether an emissions change is even the right direction, read this emissions decision guide before comparing hard parts.
Powerstroke, Cummins, And Duramax Fitment Notes
Powerstroke, Cummins, and Duramax trucks can show similar symptoms, but parts layout, sensor strategy, exhaust routing, and controller support are not universal.
| Platform | Common Checks | Limited-Use Product Example |
|---|---|---|
| Ford 6.7 Powerstroke | Cab/bed, Super Duty year range, downpipe-back routing, EGR cooler behavior, DPF pressure data, ECM/TCM support. | 2011-2019 6.7L Powerstroke all-in-one delete kit |

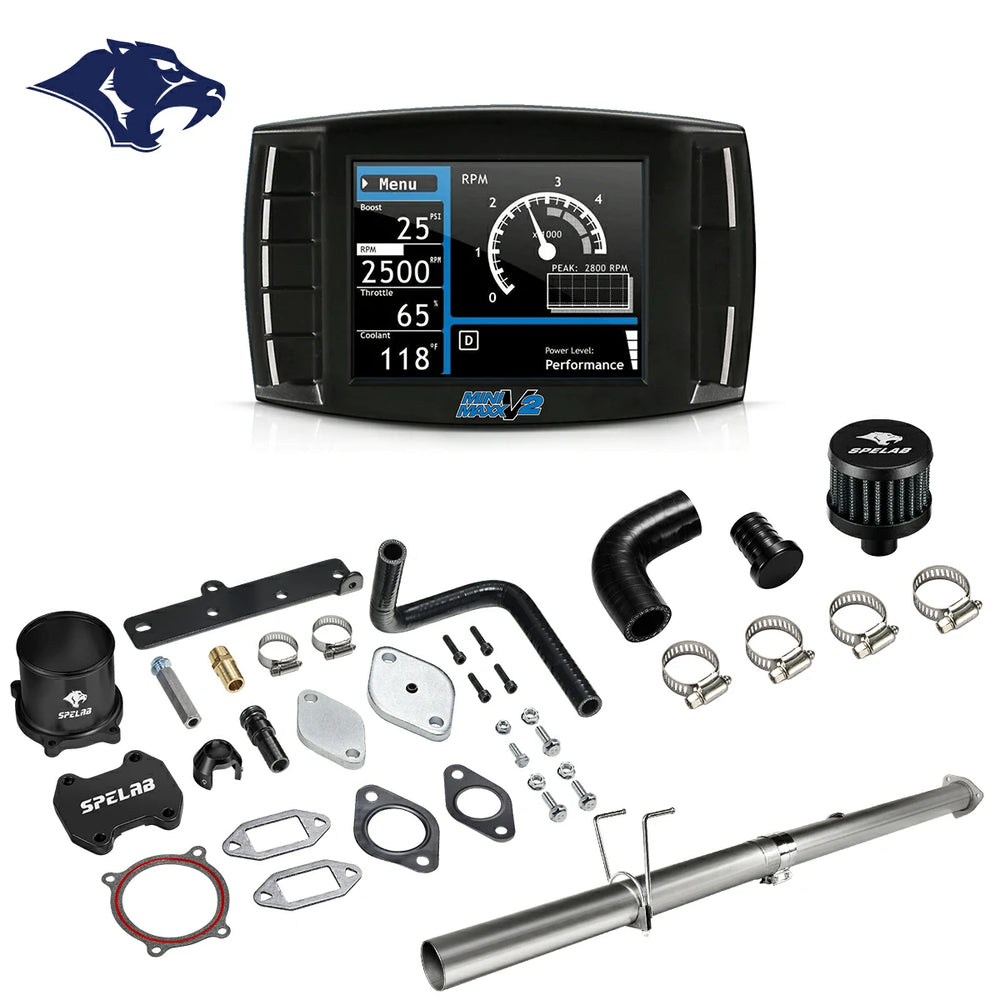

| Ram 6.7 Cummins | Pickup vs cab-chassis, idle hours, 68RFE tow behavior, differential pressure, EGR plate/cooler layout, year split. | 2013-2018 Dodge Ram 6.7L Cummins all-in-one delete kit |

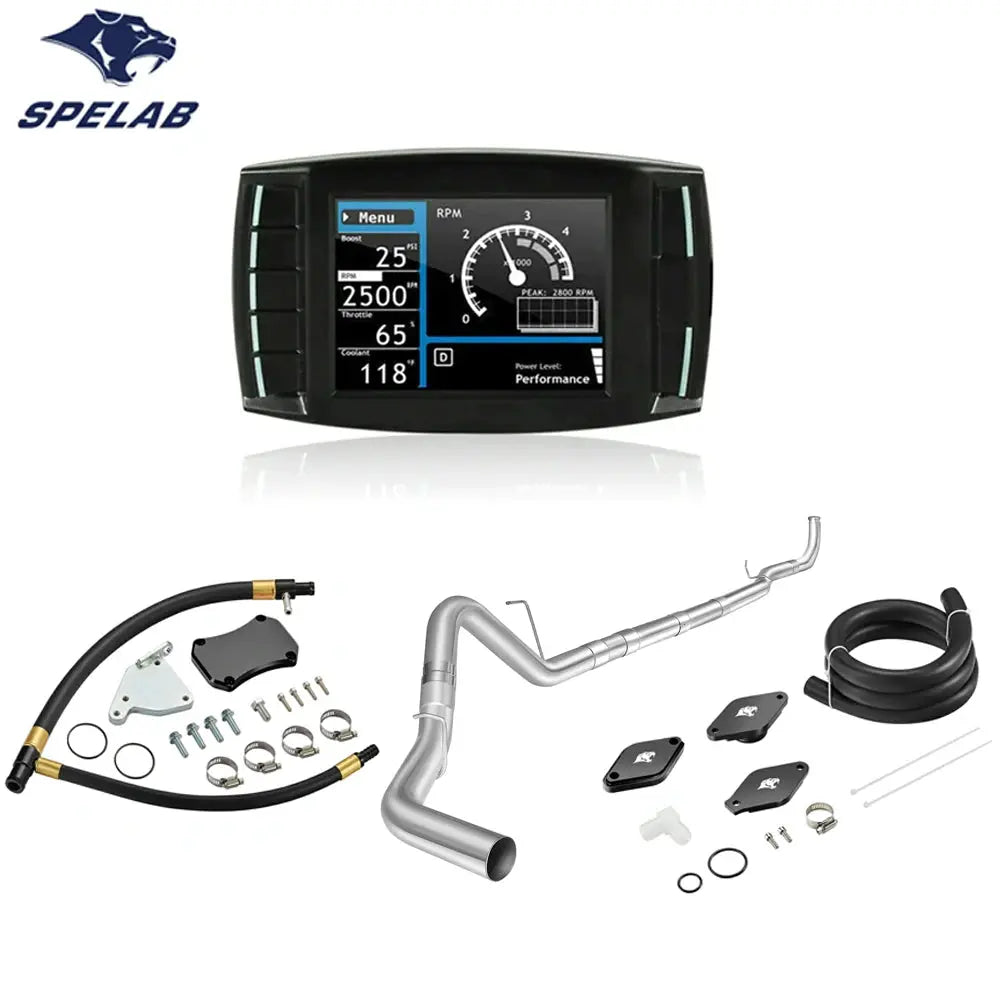

| GM 6.6 Duramax LML | LML year range, hydrocarbon injector behavior, DEF/SCR status, NOx data, EGR cooler, ash load, exhaust section. | 2011-2015 LML 6.6L Duramax all-in-one delete kit |
Those examples are not interchangeable. Fitment must be confirmed by exact year, emissions layout, cab, bed, chassis, sensor routing, controller support, and legal-use status.
Legal And Compliance Notes
DPF and EGR deletes can affect emissions compliance, inspection readiness, road-use legality, warranty status, registration, resale, and shop liability.
The EPA states that the Clean Air Act prohibits tampering with emissions controls and manufacturing, selling, or installing aftermarket devices intended to defeat those controls. A waiver, disclaimer, or off-road label does not make a public-road emissions tampering repair compliant. Street-driven trucks should use compliant diagnosis, cleaning, repair, or replacement.
Final Decision: Repair Path Or Limited-Use System Plan?
The final decision should come from data: what the truck does, what the scan tool shows, what the law allows, and what hardware actually fits.
Choose compliant repair when the truck is street-driven, inspection-bound, repairable through cleaning, or showing sensor and engine faults that can be fixed. Consider a legal-use off-road or competition system plan only when the vehicle's use case allows it and the full hardware, calibration, sensor, and fitment path is confirmed. If the question is how EGR changes can affect DPF behavior, this guide on EGR change effects goes deeper into soot-load drift, MAF/MAP plausibility, and regen mismatch.
FAQ
Q: What is the difference between DPF delete and EGR delete?
A: DPF delete changes the exhaust aftertreatment filter path. EGR delete changes the exhaust-gas recirculation path on the intake side. They affect different systems but share ECU logic, sensors, and calibration strategy.
Q: Does DPF delete fix EGR problems?
A: No. A DPF delete does not repair an EGR cooler leak, stuck EGR valve, intake soot, coolant loss, dirty MAP sensor, or airflow-control issue.
Q: Does EGR delete fix DPF clogging?
A: Not by itself. A DPF may clog from ash load, failed regen, pressure sensor faults, boost leaks, over-fueling, low coolant temperature, short trips, or bad calibration. EGR changes can affect soot behavior, but they do not clean an ash-loaded filter.
Q: Can I use a resistor, dummy plug, or straight pipe without a tuner to fool the DPF pressure sensor?
A: That is not a sound diagnostic path. Modern ECM logic uses dynamic rationality checks, so differential pressure, RPM, boost, fuel mass, EGT sensors, soot load model, and regen state need to make sense together. Static dummy parts or a pipe with stock calibration may trigger range or performance codes, derate, limp strategy, smoke, or drivability problems. This is a reason to diagnose and verify legal-use limits, not a reason to improvise a sensor workaround.
Q: What should I check before buying DPF or EGR delete parts?
A: Check DTCs, freeze-frame data, soot load, ash load, DPF differential pressure, EGT sensors, NOx sensors, EGR commanded vs actual position, MAF/MAP readings, boost leaks, injectors, thermostat operation, turbo control, and legal-use status.
Q: Are all-in-one delete kits universal?
A: No. Fitment depends on year, engine, cab, bed, chassis style, exhaust routing, EGR cooler layout, DEF/SCR system, sensor location, pipe diameter, controller support, and legal-use limits.
Q: Are DPF and EGR deletes legal for street trucks?
A: Removing or disabling required emissions equipment on public-road vehicles creates legal and inspection risk in the United States. Street-driven trucks should use compliant diagnosis, cleaning, repair, or replacement.
About the Author
John Lee
Mechanical Engineer | 10+ Years Experience
John has spent the last decade engineering and testing high-performance automotive components. Specializing in drivetrain durability and thermal management across Powerstroke, Cummins, and Duramax applications, he bridges the gap between OEM limitations and aftermarket performance. His philosophy: "Factory parts are just a starting point."
