Updated on August 11, 2026.

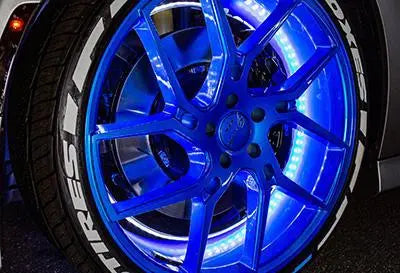

A SPELAB LED wheel ring kit mounts behind the wheel on the brake dust shield, so it's visible through the spokes while staying protected from direct road debris. The question we get asked most is "how hard is the install?" It's a manageable DIY job with basic hand tools, but this job also means working around a raised, unsupported wheel and near your brake hardware - a few steps matter more than they look. Here's the full process, including the parts most tutorials skip.
Before You Start: Vehicle Support Safety
This step gets skipped in a lot of quick tutorials, and it shouldn't be. Park on level, solid ground and set the parking brake. Chock the wheels that will stay on the ground - opposite corner from the one you're lifting. Use your vehicle's actual lift points (check the owner's manual, not just wherever the frame looks solid) and lift with a jack rated for your vehicle's weight. Once it's up, set it on a rated jack stand before you put your hands, or your head, anywhere near or under the wheel well - never trust a jack alone to hold the vehicle while you work. When you're done and reinstalling the wheel, torque the lug nuts to your vehicle's spec in the correct star/crisscross pattern, not just snug in a circle.
Step 1 - Access The Brake Dust Shield
With the wheel safely off and the vehicle properly supported, look behind the rotor for the metal dust shield - that's what the LED ring mounts to. If it's caked in brake dust or grime, wipe it down with a wet rag before you start; the mounting brackets need a clean surface to sit flat. Note that this mounting method needs an actual dust shield to attach to - it's not going to work on a setup without one, or on drum brakes where there's no equivalent surface behind the wheel.
Step 2 - Align The Ring And Check Rotor Clearance
Mock up the ring in the position you want, and power it briefly to check how the light reflects before committing to a location. Use only the voltage printed on your specific ring and controller - these kits are sold in different voltage versions (5V, 12V, 24V), and applying the wrong one to a mismatched kit can burn out the LEDs or controller instantly. Confirm your kit's rated voltage before you ever connect power.
This is also the step to slow down on for clearance: with the ring held in place, spin the rotor by hand and confirm nothing on the ring, bracket, or wiring can contact the rotor, caliper, or any other rotating part through a full rotation, not just where it happens to sit at rest. If you're running a big-brake kit or oversized caliper, double check clearance carefully since the standard ring position may sit closer to the hardware than on a stock brake setup. Mark your final position only once you've confirmed full clearance.
Step 3 - Drill And Attach The Mounting Brackets
Each ring ships with five mounting brackets - pick the positions that work for your dust shield and remove the brackets you don't need. Using the pre-marked points on the ring as your guide, drill through the aluminum ring first, then use those same points to mark and drill through the dust shield behind it. The included self-tapping screws go through both layers together, securing the bracket to the ring and the shield in one pass - follow the exact hole pattern and screw type in your kit's included instructions, since drill bit size and whether thread locker is needed can vary by kit version.
Step 4 - Secure And Recheck Clearance
Once the ring is bolted to the brackets, snug everything down, then recheck rotor and caliper clearance one more time through a full rotation - torque and vibration can shift things slightly from where you originally mocked it up. Don't skip this recheck; it's the single most important safety step in this whole install.
Step 5 - Route And Fasten The Wiring
Secure the wiring with zip ties to solid chassis points or the factory wiring harness - not to brake lines, fuel lines, the ABS sensor harness, or a CV axle/half shaft. A brake line carries hydraulic fluid under pressure, and a zip tie rubbing against any of these over thousands of miles of movement can wear a weak point into a line or harness you really don't want failing. Route the wiring, then turn the wheel to full steering lock in both directions and cycle the suspension through its full travel (or at least push down hard and watch it) to make sure nothing pulls tight, rubs, or gets pinched at any point - not just where it sits at rest.
For power, tap into a switched source such as the parking or running lights rather than wiring straight to the battery, unless you're adding your own switch and fuse. A direct-to-battery connection with no switch will drain the battery if left connected. Better still, use a relay triggered by the switched circuit rather than running the full LED load through the factory wiring directly - this avoids overloading a circuit that wasn't sized for extra load, and helps prevent flicker or a bulb-out warning on vehicles that monitor lighting circuits. Use an inline fuse near the power source sized for your kit's actual current draw (check the kit's spec, don't guess), and seal any spliced connections against water and road spray, since this location sees constant exposure.
Buy the SPELAB LED wheel ring kit below - check the product listing for exact ring diameter, kit contents, and voltage before ordering to make sure it matches your vehicle.
Check Local Lighting Laws Before You Run Them
Colored, flashing, or unusually positioned aftermarket lighting is regulated in a lot of states, not just tinted taillights or headlights. California, for example, restricts flashing lights and light colors visible from the front or rear of a vehicle. Rules vary by state and by color/mode, so check your local law before running anything other than a steady, white or amber accent light on public roads.
FAQ
Q: Will the LED ring or bracket interfere with my brakes?
A: Not if you check clearance properly during install - see Steps 2 and 4. Confirm nothing contacts the rotor or caliper through a full rotation before finalizing the position, and recheck after everything is torqued down. Big-brake kits and oversized calipers need extra care here.
Q: Will this work with drum brakes or a setup with no dust shield?
A: No - this mounting method needs an actual dust shield to attach the brackets to. Without one, there's no equivalent surface to mount to.
Q: Is this a universal fit for any wheel?
A: The kit mounts to the brake dust shield rather than the wheel itself, so it works across a wide range of vehicles, but dust shield size and shape vary enough that you should confirm ring diameter and kit contents on the product listing before ordering.
Q: Can I wire this straight to the battery?
A: You can, but only with your own switch and inline fuse - a direct, always-on connection with no switch will slowly drain the battery. A relay off a switched circuit like parking lights is a more reliable setup for most installs.
Q: Can I use a 12V ring with a 24V system, or vice versa?
A: No. Use only the voltage printed on your ring, controller, and kit label. Applying the wrong voltage can burn out the LEDs or controller immediately.
Q: What actually takes the most time in this install?
A: Not the drilling - it's mocking up the position, checking full-rotation rotor clearance twice, and routing wiring cleanly through full steering lock and suspension travel. Rushing those steps is the most common mistake, and where most install problems come from.
