Quick Answer: A line lock is an electric hydraulic solenoid valve installed in a brake line to temporarily hold brake pressure on one axle, most often the front brakes. In drag racing, it lets the front brakes hold the vehicle still while the rear tires spin for a controlled burnout in a track setting.
A line lock is not a horsepower part, and it is not a parking brake. It is a brake-control device used for drag strip staging, tire warmup, and controlled motorsport use. Because it changes how hydraulic brake pressure is held and released, installation quality, brake bleeding, wiring, leak checks, and safe operating habits matter.
What Is a Line Lock?
A line lock, also called a brake line lock or roll control, is a solenoid valve installed in a hydraulic brake line. When activated by a switch, it traps brake fluid pressure in part of the brake system so one axle can stay locked while the other axle is released.
In the most common drag racing setup, the line lock is installed in the front brake circuit. The driver presses the brake pedal to build pressure, activates the switch, and the solenoid holds pressure at the front brakes. The rear brakes release, allowing the rear tires to spin while the vehicle stays mostly stationary in the burnout box.
How Does a Line Lock Work?
A line lock works by controlling hydraulic brake pressure. Brake fluid pressure normally travels from the master cylinder through the brake lines to the calipers. When the line-lock solenoid is energized, it holds pressure in the selected brake circuit.
For a front-brake setup, the front calipers stay clamped while the rear brakes are free. That lets a rear-wheel-drive car or truck spin the rear tires without fighting the rear brakes. This reduces heat and wear on the rear pads, rotors, and parking brake components during a track burnout.
Important detail: A line lock does not create brake pressure by itself. It only holds the hydraulic pressure the driver has already applied with the brake pedal.
How Much Does a Line Lock Cost?
A basic line lock solenoid kit is usually one of the more affordable drag-racing brake upgrades, but the total cost depends on the vehicle, brake plumbing, fittings, wiring, and whether you install it yourself or pay a shop. The part may be simple; the labor is where the job can get expensive.
| Cost Item | Typical Cost Range | What Changes the Price |
|---|---|---|
| Basic line lock solenoid kit | $40–$150+ | Solenoid quality, switch type, fittings, wiring, and brand. |
| Brake lines and fittings | $20–$100+ | SAE vs metric threads, flare style, adapters, and line length. |
| DIY installation | Parts cost only | Requires brake plumbing, wiring, bleeding, and leak checks. |
| Professional installation | $150–$500+ | Custom brake-line work, ABS layout, shop rate, and troubleshooting. |
For SPELAB reference, use the Line Lock Installation Kit page to confirm the SAE brake line and brass fitting requirements before buying parts or cutting into the brake system.
What Is a Line Lock Used For?
Drag Strip Burnouts
The main use of a front line lock is a controlled burnout before a drag racing pass. The rear tires spin while the front brakes hold the vehicle in place. This can help heat the tires, clean debris from the tread, and prepare the tire surface before staging.
Staging and Launch Support
On manual-transmission drag cars, a line lock can help the driver hold the vehicle while managing clutch and throttle input. On automatic cars, it can help keep the vehicle staged without riding the brake pedal as aggressively. It should still be used only in the proper track environment.
Burnout Competitions and Show Use
Some vehicles use line locks for burnout contests or exhibition driving. This is not the same as safe street use. Burnouts create heat, smoke, tire debris, and drivetrain stress, so the vehicle should be inspected before and after heavy use.
Front Line Lock vs Rear Line Lock
| Setup | What It Does | Common Use | Main Risk |
|---|---|---|---|
| Front line lock | Holds front brake pressure while rear brakes release. | Drag strip burnouts and staging support. | Improper use can overheat tires, brakes, drivetrain parts, or cause loss of control. |
| Rear line lock | Changes rear brake pressure behavior depending on plumbing layout. | Specialized motorsport or exhibition setups. | Higher risk of unstable brake behavior if installed or used incorrectly. |
Most first-time buyers are looking for a front line lock. Rear brake-line setups are more specialized and should not be treated as a normal street or daily-driver modification.
Line Lock vs Trans Brake: What Is the Difference?
A line lock works in the brake system. It holds hydraulic brake pressure at one axle, usually the front brakes. A trans brake works inside an automatic transmission and locks the transmission in a way that allows the engine to build power before launch.
In plain language: a line lock is mostly for holding the car during a burnout or staging. A trans brake is a transmission-based drag racing launch tool. They are not the same part, and one does not replace the other.
Line Lock vs Exhaust Cutout: Do Not Mix Up the Switches
A line lock is a brake-system solenoid. An exhaust cutout is an exhaust-flow valve. They may both use switches, wiring, and driver controls, but they are not interchangeable systems.
For sound-control builds, SPELAB’s Exhaust Cutout Kits use electric or vacuum exhaust valves to control exhaust sound and flow. That is a completely different job from holding hydraulic brake pressure for a burnout.
If you are repairing an exhaust-valve system, compare Exhaust Cutout Accessories. Do not use exhaust-cutout wiring or switches as line-lock brake components unless the manufacturer specifically approves that setup for brake-system use.
Can a Line Lock Be Used as a Parking Brake?
⚠️ Important Safety Warning:
A line lock is not a parking brake. It is only a temporary hydraulic brake-hold device. Hydraulic pressure can bleed down, seals can leak, fittings can seep, and temperature changes can affect pressure. Never rely on a line lock to hold a parked vehicle on a hill, trailer, driveway, shop lift, or job site.
For trucks, tow rigs, and off-road vehicles, this warning matters even more. Vehicle weight, tire size, brake temperature, and slope can all increase the risk if a hydraulic hold bleeds down.
How to Use a Line Lock at the Track
The exact process depends on the vehicle, transmission, track rules, and wiring setup. The basic idea is simple: build brake pressure, hold it with the solenoid, let the rear tires spin in the burnout box, then release the switch before staging or launching.
- Use a controlled track area: Do not perform burnouts on public roads, parking lots, or around pedestrians.
- Check the system first: Confirm brake fluid level, wiring, fittings, switch operation, and that there are no leaks.
- Build brake pressure: Press the brake pedal firmly before activating the line lock.
- Activate the momentary switch: The solenoid holds the selected brake circuit under pressure.
- Release the brake pedal: In a front-brake setup, the front brakes remain held while the rear brakes release.
- Perform only the needed burnout: Use enough tire heat for the track and tire type. Do not overheat the brakes, tires, clutch, converter, or driveline.
- Release the switch: The held brake pressure releases so the vehicle can roll forward normally.
Can You Use a Line Lock on a Truck?
Yes, a line lock can be used on some trucks, but the setup needs more thought than a lightweight drag car. A diesel pickup or heavy street truck has more weight, larger tires, more brake heat, and often more complicated ABS and stability-control systems.
For a diesel truck owner, the real questions are not just “Will it do a burnout?” They are: Will it hold brake pressure correctly? Will it confuse ABS or traction control? Are the brake fittings compatible? Has the system been bled properly? Is the truck used only in a controlled motorsport setting?
Heavy trucks can also load the driveline hard during a burnout. Watch brake temperature, tire speed, driveline shock, axle wrap, and driveshaft stress. A line lock is not a fix for weak brakes, bad tires, or poor traction setup.
Line Lock Installation Basics
A line lock is installed into a hydraulic brake circuit, usually between the master cylinder or ABS hydraulic unit and the front brake lines, depending on the vehicle. Because brake systems are safety-critical, the installation should be handled by someone who understands brake plumbing, flare fittings, brake-fluid compatibility, wiring, and bleeding procedures.
- Confirm brake system layout: ABS, traction control, and split hydraulic circuits can change where the solenoid should be installed.
- Use proper brake fittings: Avoid mismatched threads, poor flares, cheap adapters, and fittings that do not seal.
- Bleed the brakes correctly: Air in the system can make the pedal soft and reduce holding power.
- Wire the switch safely: Use correct power supply, fuse protection, grounding, and a momentary switch unless the kit specifies otherwise.
- Leak-test the system: Any brake-fluid seepage is a stop-and-fix-now problem.
- Test at low speed first: Confirm normal braking before any track use.

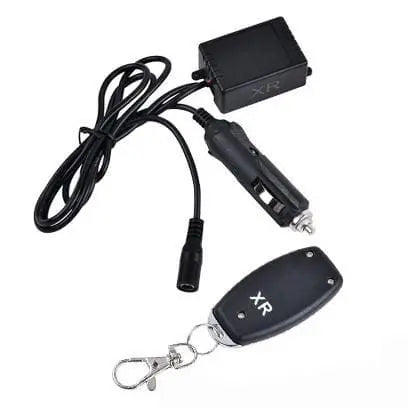

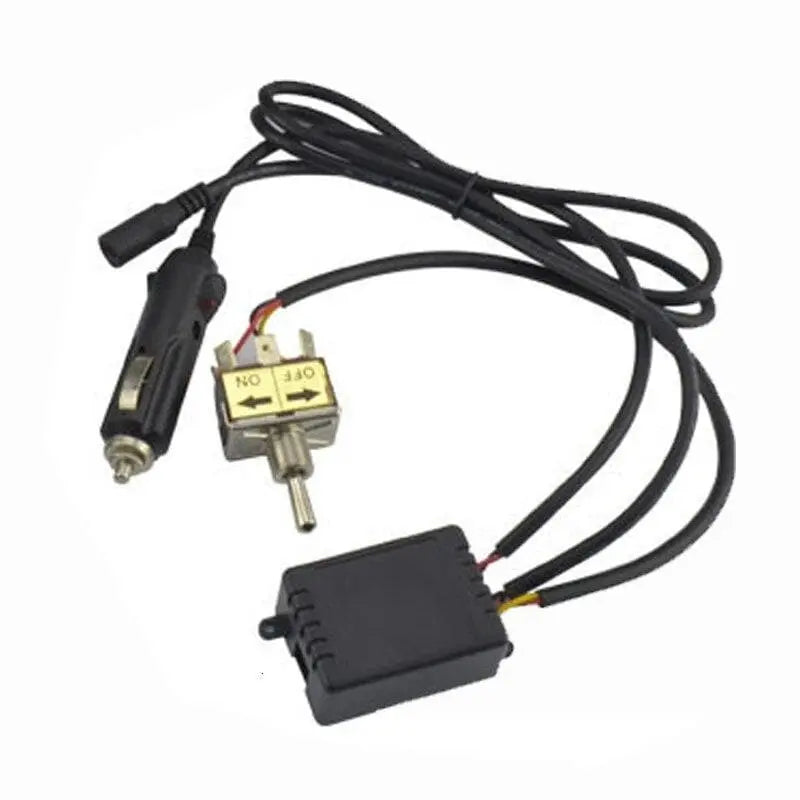

For electrical control parts on SPELAB exhaust-valve systems, browse the Switch collection. For a line lock, confirm the brake-system electrical switch and solenoid are rated for the intended brake-control use.
Common Line Lock Problems
| Problem | Likely Cause | What to Check |
|---|---|---|
| Line lock will not hold | Air in brake system, leaking fitting, weak solenoid, wrong plumbing direction | Bleed brakes, inspect fittings, confirm valve orientation, test switch voltage. |
| Brakes drag after release | Solenoid not releasing, restriction, incorrect wiring, contaminated fluid | Check power to solenoid, valve function, brake hose condition, and fluid quality. |
| Pedal feels soft | Air in system or brake fluid issue | Bleed system again and inspect for leaks before driving. |
| ABS or warning lights appear | Brake system modification conflicts with vehicle electronics | Scan codes and verify installation location against the vehicle brake layout. |
Street Legality and Safety
A line lock should be treated as a track or motorsport-use brake control device, not a street driving feature. Public-road burnouts can create loss of control, tire failure, smoke, visibility problems, and legal trouble. Follow local laws, track rules, and the instructions for your specific kit.
Because a line lock touches the hydraulic brake system, poor installation can affect normal braking. If you are not comfortable flaring brake lines, bleeding brakes, checking hydraulic fittings, or diagnosing ABS-related issues, have the system installed and inspected by a qualified professional.
FAQ
Q: What does a line lock do?
A: It holds hydraulic brake pressure in one brake circuit, usually the front brakes, so the rear tires can spin during a controlled track burnout.
Q: Is a line lock the same as a parking brake?
A: No. It is a temporary hydraulic hold, not a permanent mechanical parking brake.
Q: How much does a line lock cost?
A: Basic kits often cost about $40–$150+, while professional installation can add roughly $150–$500+ depending on brake plumbing and labor.
Q: Can a line lock damage brakes?
A: It can if installed incorrectly or abused. Heat, pressure, brake fluid condition, and solenoid function all matter.
Q: Will a line lock work with ABS?
A: It depends on the vehicle and where the solenoid is installed. ABS-equipped vehicles need careful brake-system layout checks before installation.
Q: Is a line lock street legal?
A: Laws vary, but street burnouts and brake-control modifications can create legal and safety problems. Use line locks only in controlled motorsport environments.
Q: Do diesel trucks need a line lock?
A: Most diesel trucks do not need one for normal driving or towing. It is mainly a drag strip or burnout-control device for purpose-built setups.
