Fit Chevrolet Small Block V8 Gen.V 6.2L,LT Rear Sump Low-Profile Retro-Fit Oil Pan|SPELAB
Overview

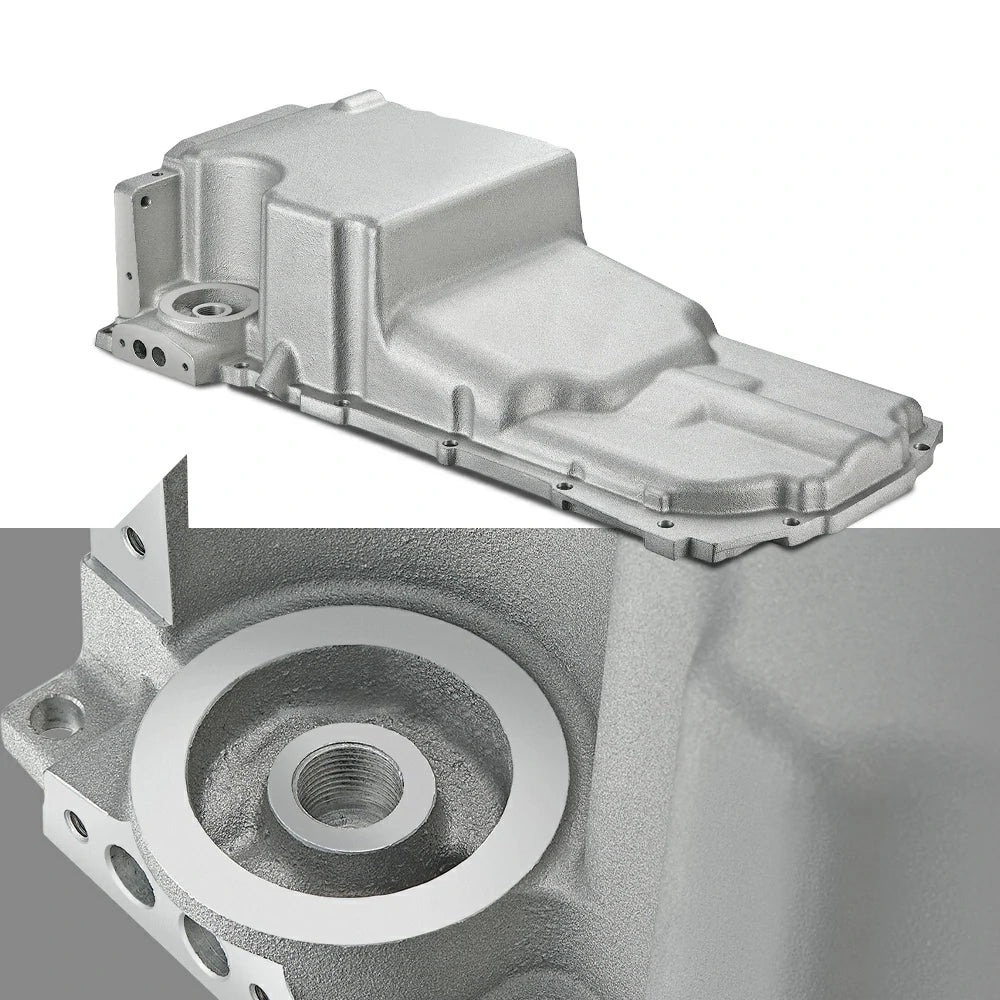

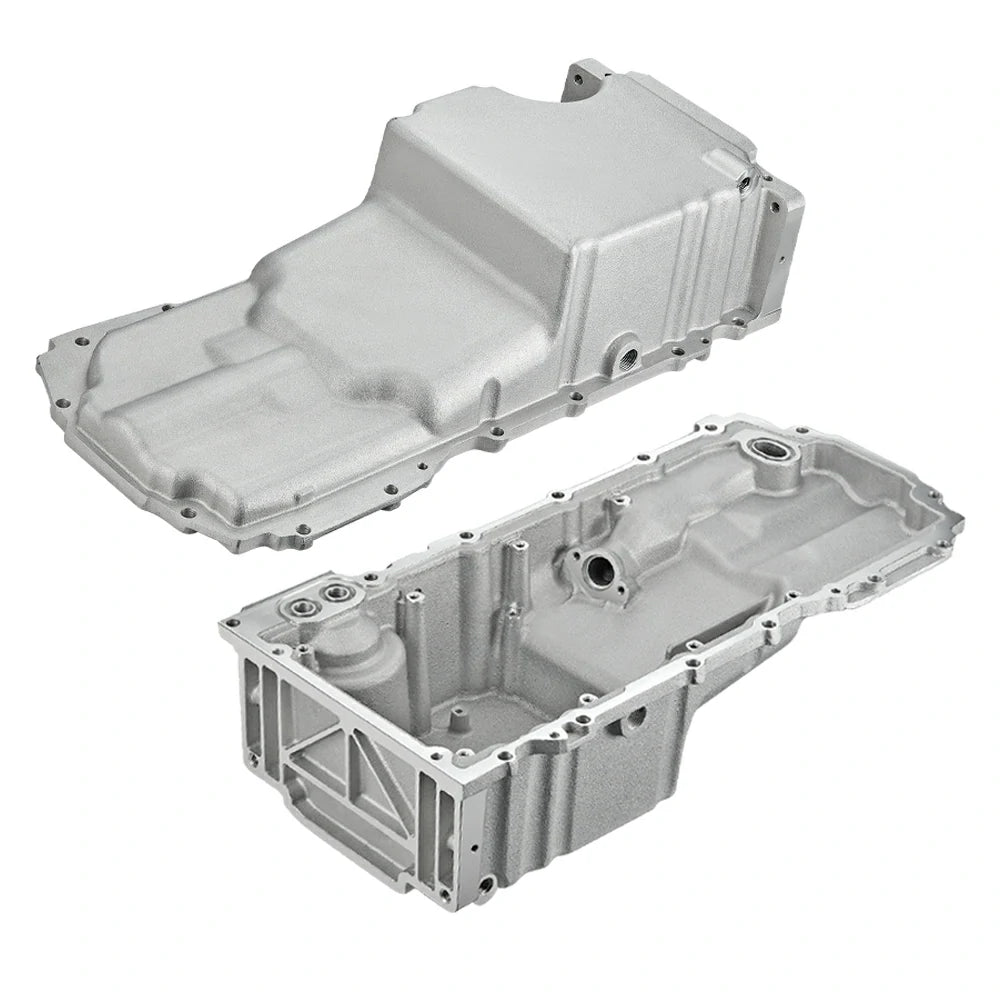

LT engines are becoming more and more popular for swaps. Unfortunately, stock LT oil pans can't always fit where you want them to. That's where SPELAB's low-profile, retro fit oil pan comes in. Composed of lightweight cast aluminum, it is designed to allow for increased clearance to the ground and chassis. It will fit many GM rear-wheel drive applications originally equipped with a small or big block Chevy engine and factory rear sump pan. Meticulously designed, it will mount perfectly to an LT engine and take the stock oil filter.
NOTES
- Ideal for Camaro/Firebird ('67-'92), Nova/Apollo/Ventura/Omega ('68-'74), GM A-body ('64-'72), G-body ('78-'87), and GM Full-size trucks ('73-'87) applications*
- Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application
Specifications
| SUMP STYLE | Wet |
| SUMP LOCATION | Rear |
| SUMP DEPTH | 5.56" |
| MAXIMUM STROKE | 4.00" |
| OIL FILTER LOCATION | Stock |
| SUMP OIL CAPACITY | 5.6 Quarts |
| TOTAL OIL CAPACITY | 6.1 Quarts with Stock Filter |
| BAFFLED | Yes |

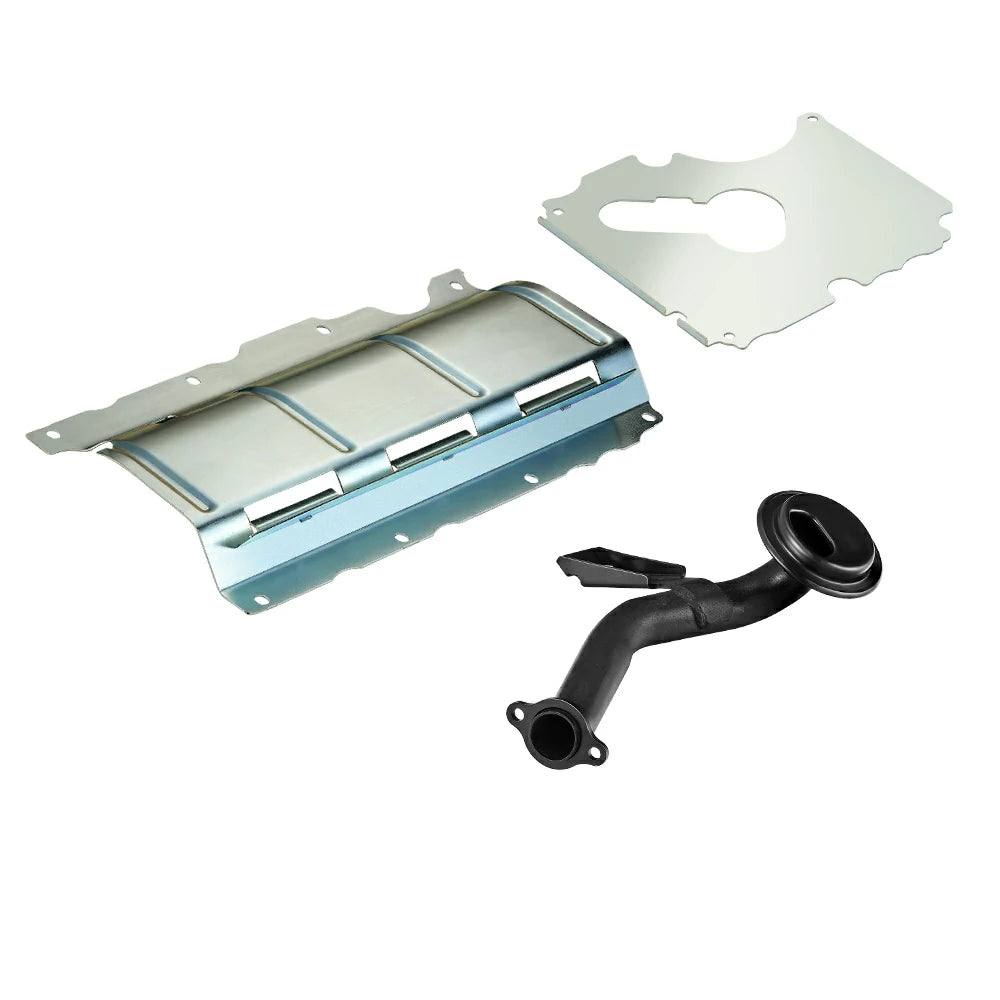

| WINDAGE TRAY | Included |
| OIL PICK-UP | Included |
| GASKET | Included |

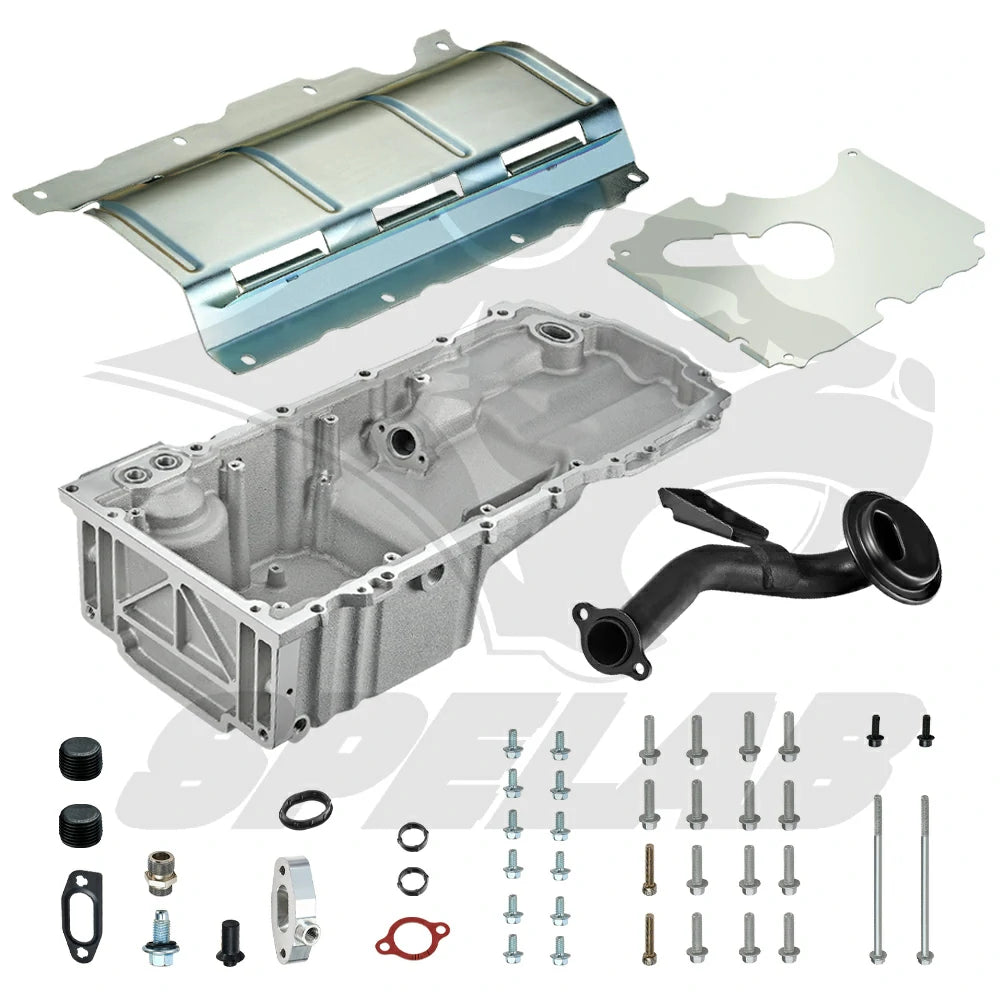

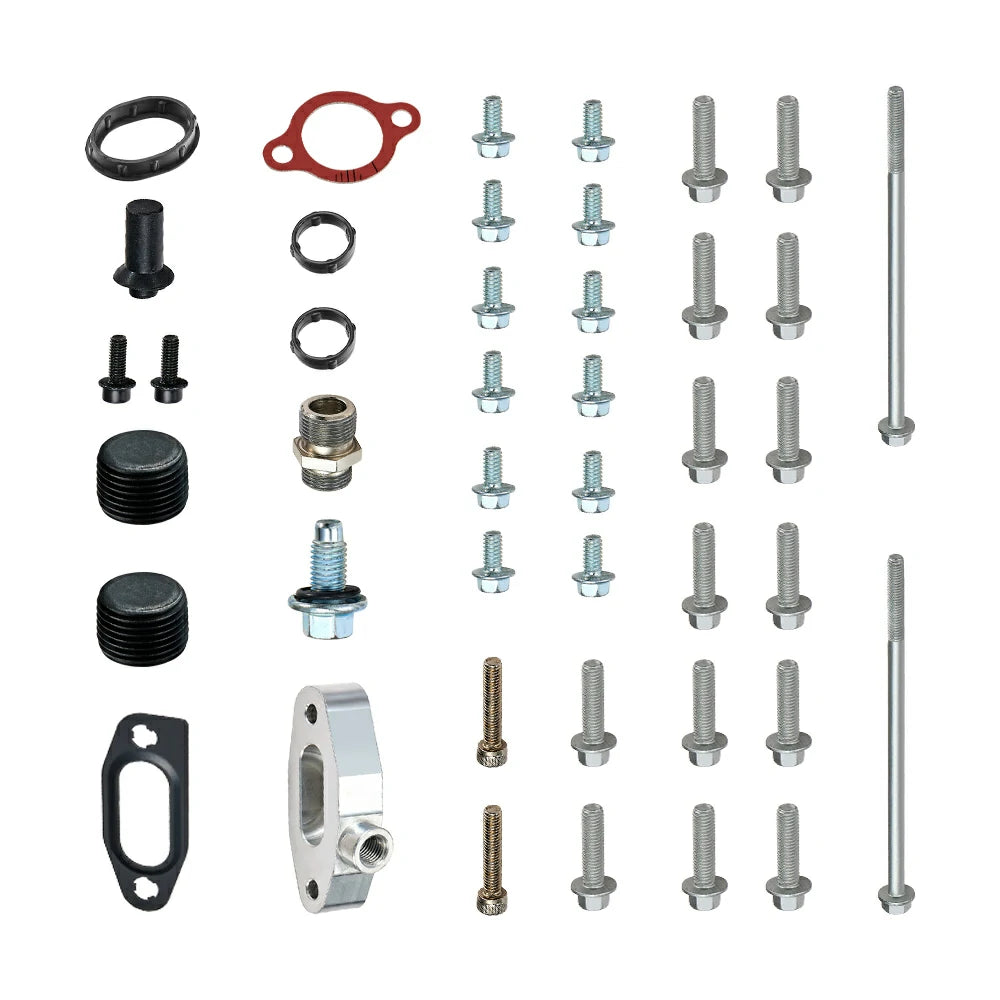

| INCLUDED | Sump Baffle Oil Pickup Tube Drain Plug Oil Filter Stud Oil Passage Cover Oil Return Plugs Mounting Hardware |
Fitment
CHEVROLET SMALL BLOCK V8 GEN. V (LT BASED)
- 6.2 L / 376 in3
