Intake Manifold-EFI SBC 4150 Single Plane Fuel Injection| SPELAB

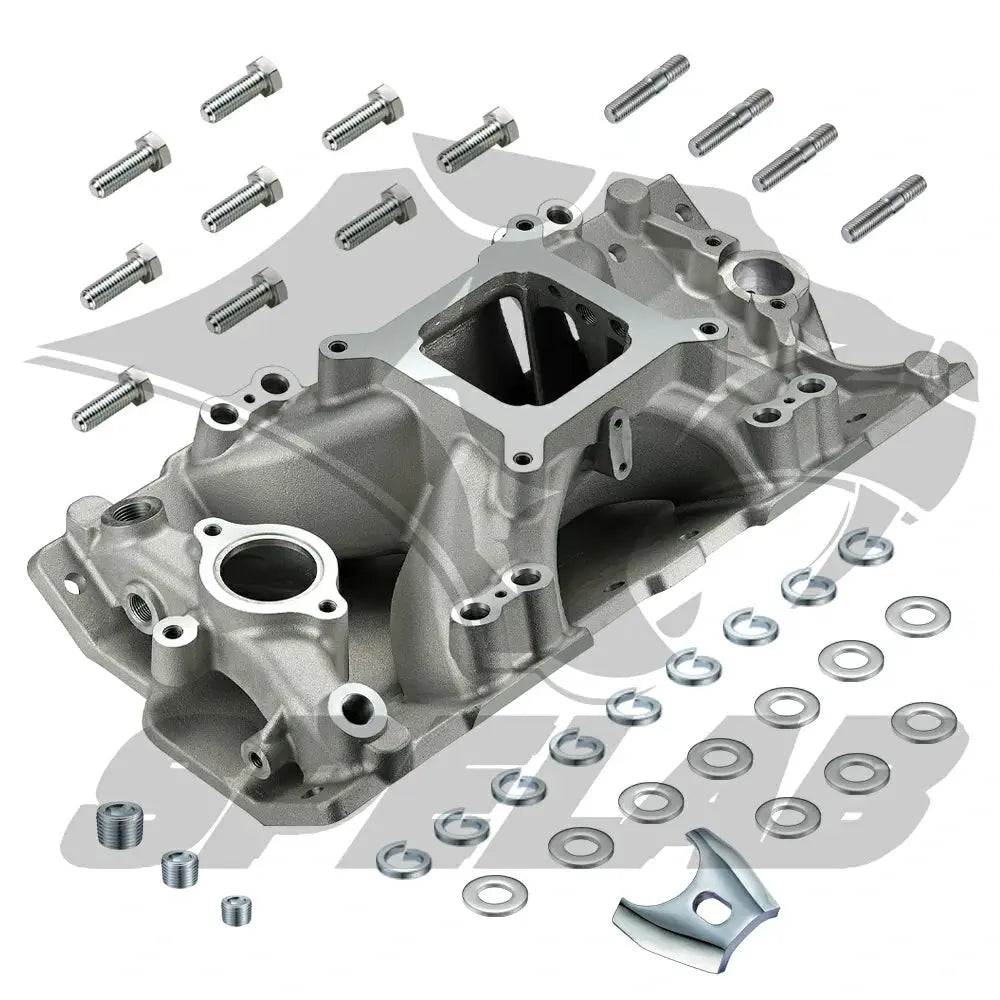

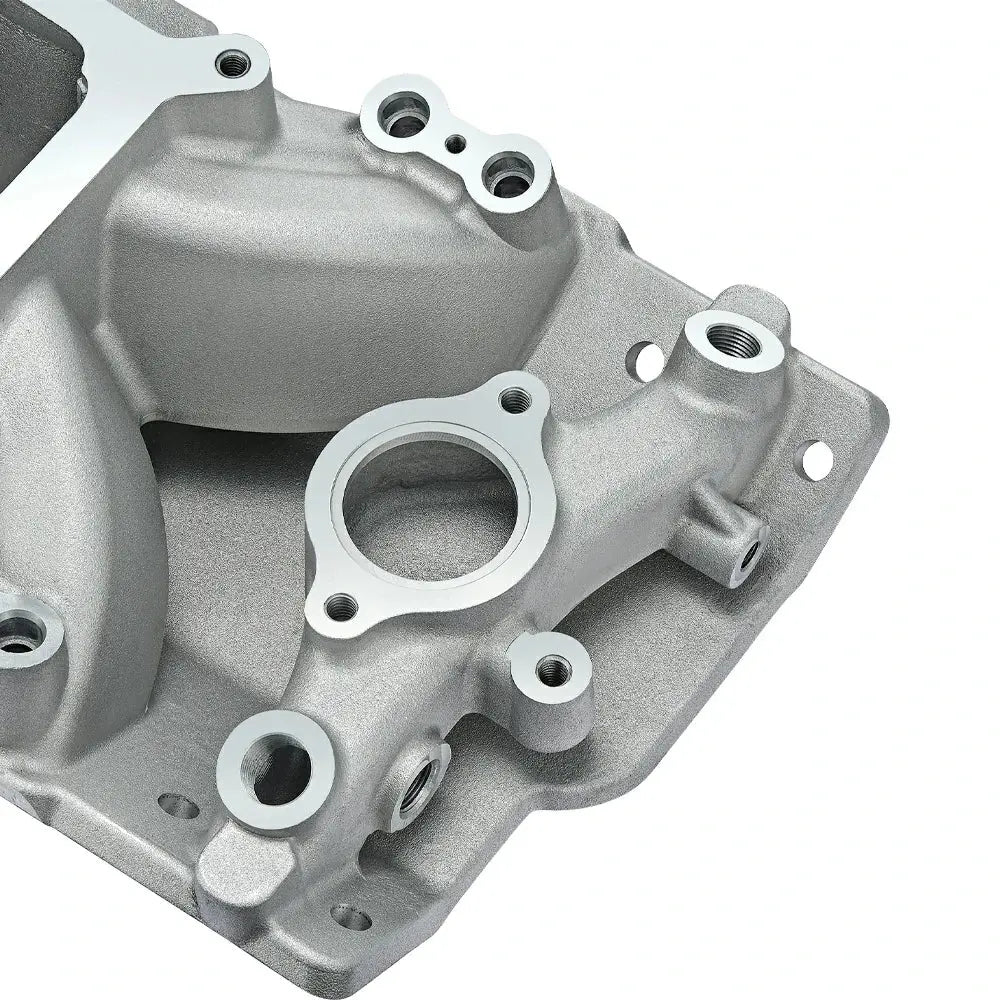

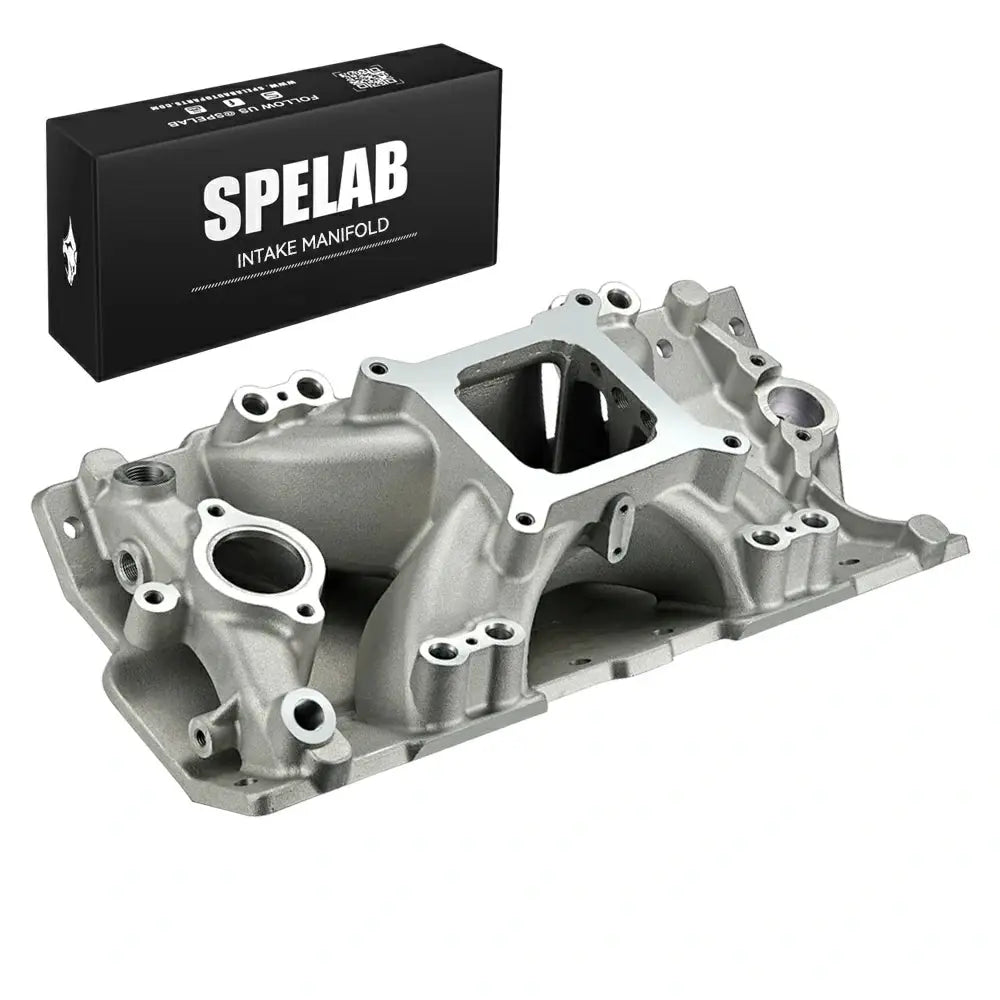

The new single plane intake manifolds are designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The EFI manifold is designed to work with 4150 Style Throttle body EFI systems like the SPELAB 4150 style flange Universal Throttle Bodies. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features like better plenum and runner geometry for improved charge airflow. The isolated design of the air/fuel passages helps to increase charge air density and performance.
Features:
- Single plane design with isolated plenum for cooler charge air temperatures

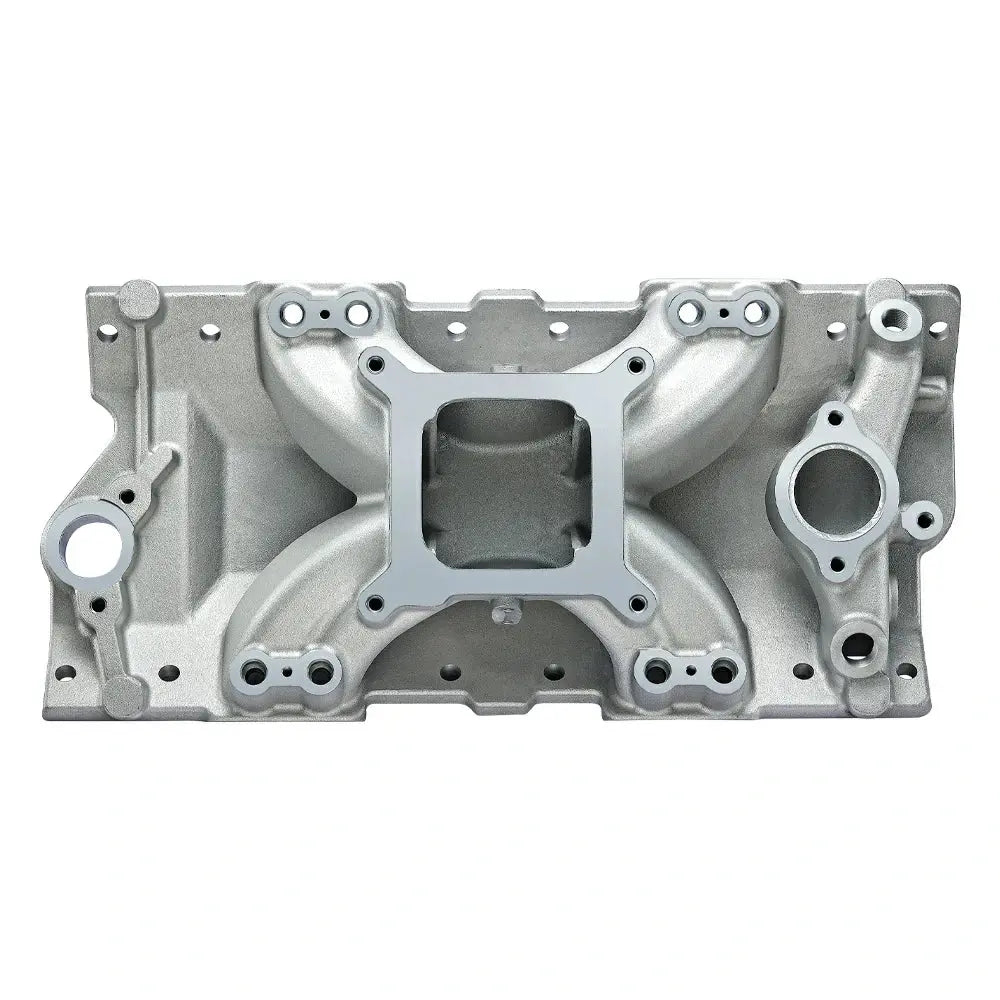

- 4150 square bore mounting flange
- Power band: 2500-7500 RPM
- Height: front 5.58”, rear 6.40”

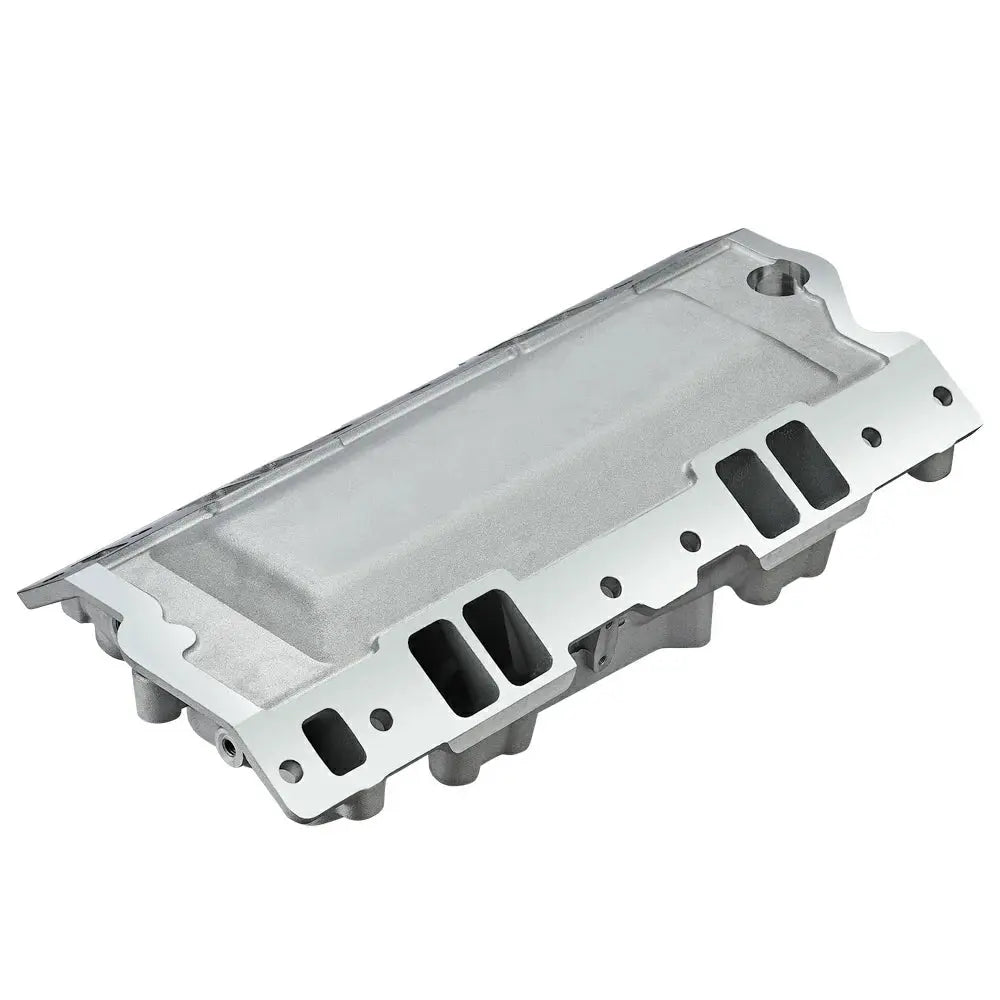

- Port size: 1.82” height, 1.04” width
- Extra material allows for porting to 2.00” height, 1.20” width
- Anodized aluminum fuel rails with laser-etched logo (EFI model) 6AN
- Includes fuel rail mounting brackets in two sizes for more options in fuel injectors (EFI Model)
- Accessory ports under the carburetor in 1/8 NPT, 1/4 NPT and 3/8 NPT sizes
- Kit does not work with factory fuel rails and requires the use of SPELAB Fuel Rail Kit -SPIS08520
EMISSIONS
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
