Intake Manifold For Small Block Chevy Vortec Dual Plane 1996-2002 | SPELAB
2
sold in last
8
hours
- Description
- Review + Q&A
Description
Intake Manifold For Chevy Small Block Vortec Dual Plane | SPELAB

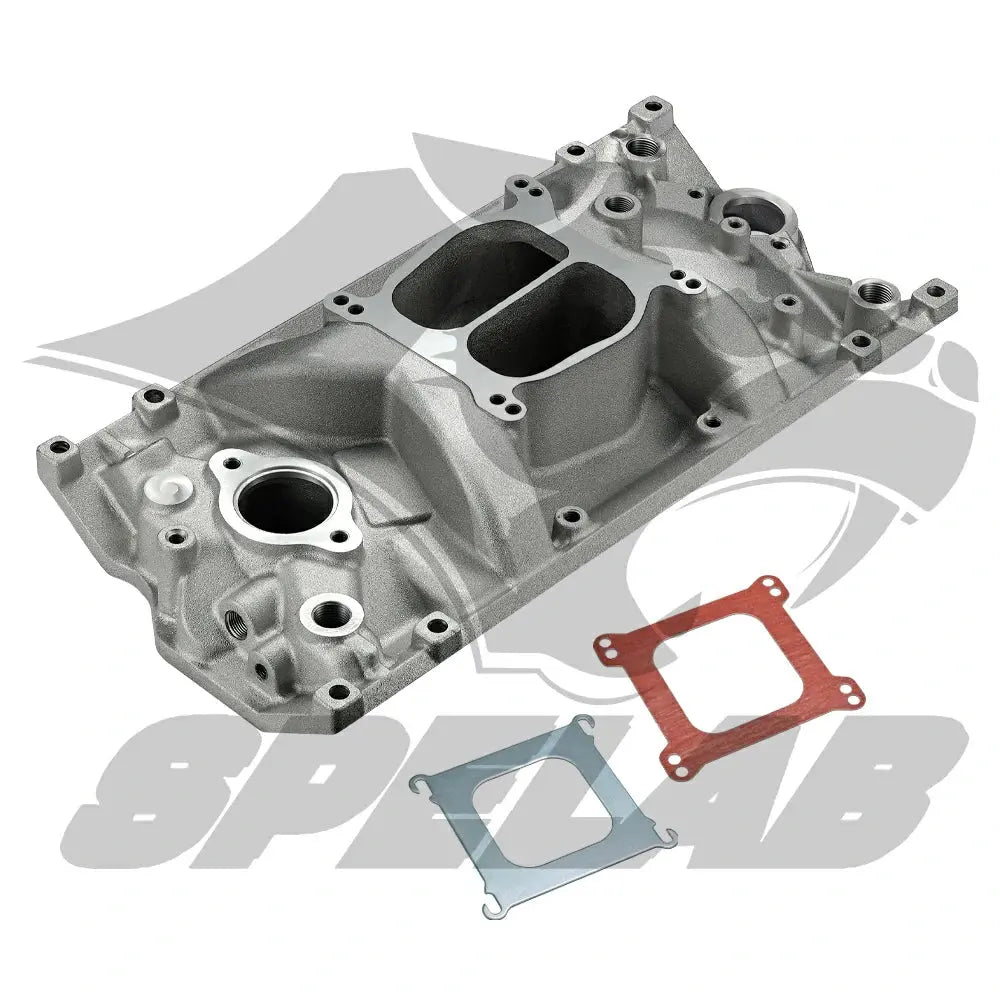

SPELAB's dual-plane high-performance intake manifold for the Vortec small block Chevy is ideal for street performance applications. With a design that improves throttle response, as well as power and torque over a wide rpm range - idle to 5,500. It is cast from lightweight aluminum and features a low profile for ideal hood clearance. Additional provisions include dual distributor hold-downs, 4 corner water ports, and a choke block-off kit. Set up for spread bore carbs, this manifold comes with an adapter plate and gasket for use with square bore types.
Note：
- Fits 1996-2002 Chevy small block Vortec engines
- As Vortec blocks do not have a water bypass, manifold is equipped with a provision to connect it to stock a water pump using a 5/8" heater hose
Specifications
| ENGINE BLOCK STYLE | OEM Standard Deck |
| CARBURETOR QUANTITY | 1 |
| INTAKE STYLE | Dual Plane |
| BASIC OPERATING RANGE | Idle to 5,500 RPM |
| MANIFOLD HEIGHT | 4.25" |
| MANIFOLD MATERAL | Aluminum |
| EGR | No |
| INCLUDED | Head Bolt Adapters |
| Choke Block-off Kit | |
| Square Bore Adapter Kit |
Fitment
CHEVROLET SMALL BLOCK V8 GEN. I
- 5.0 L / 305 in3
- 5.7 L / 350 in3
